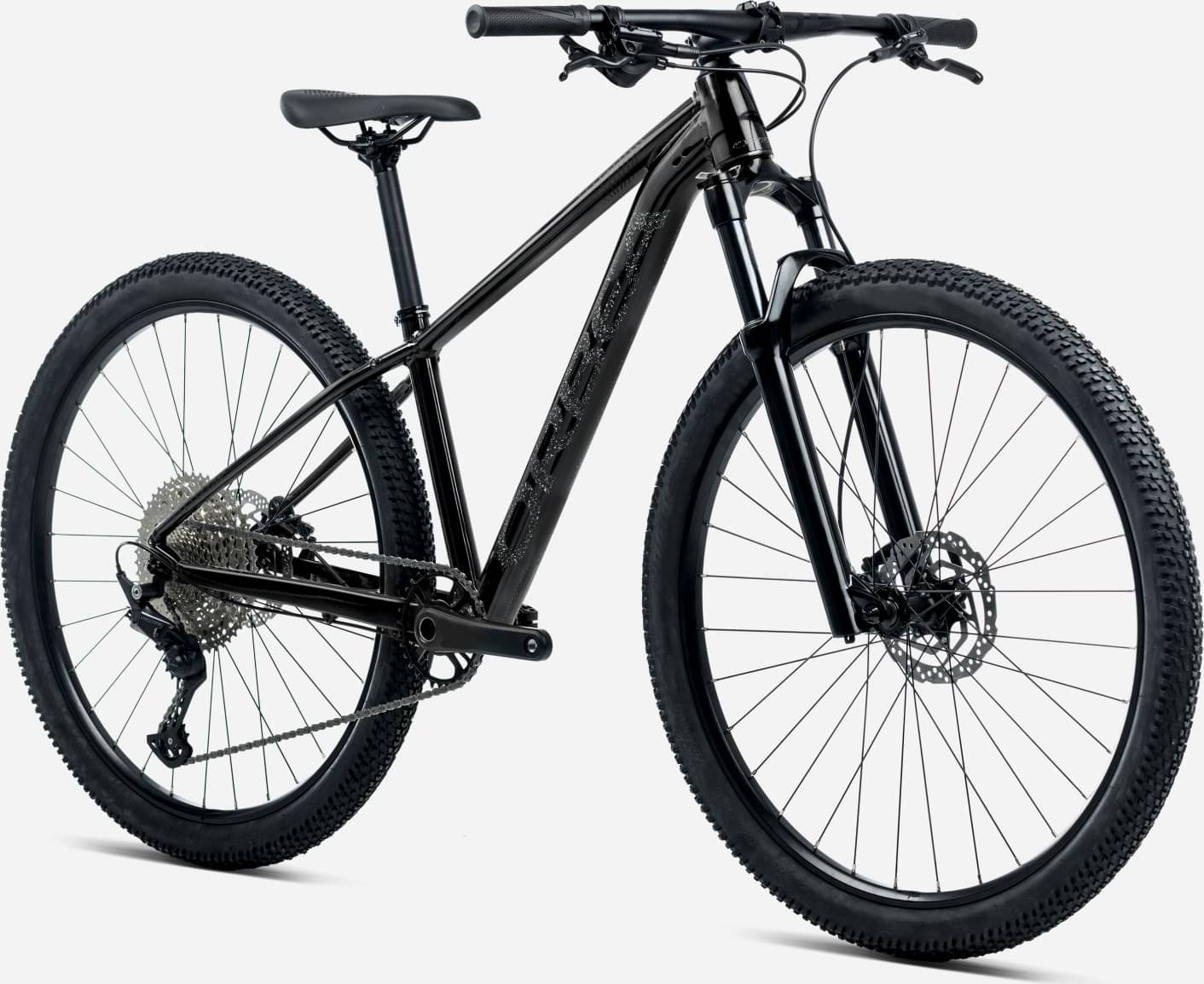

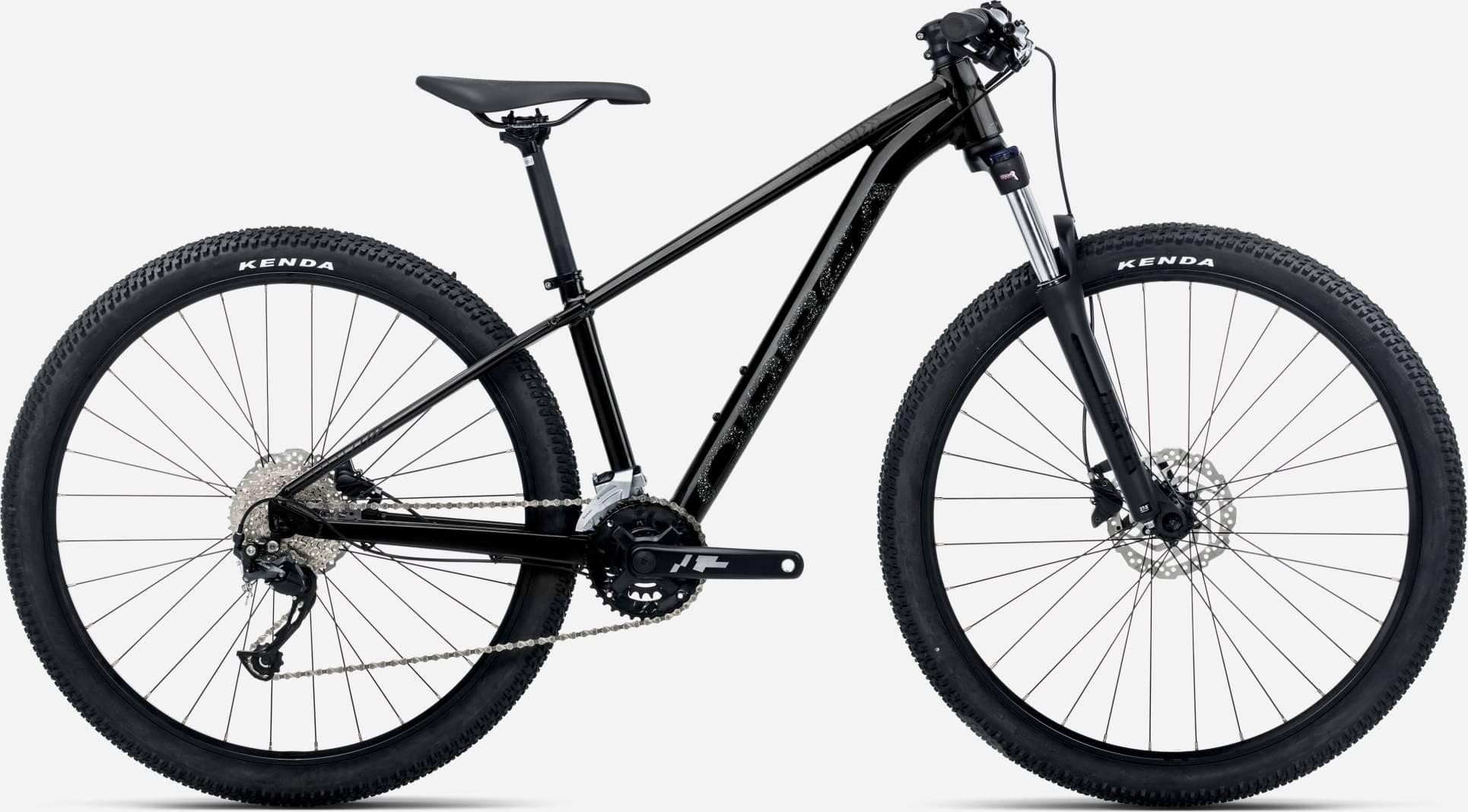

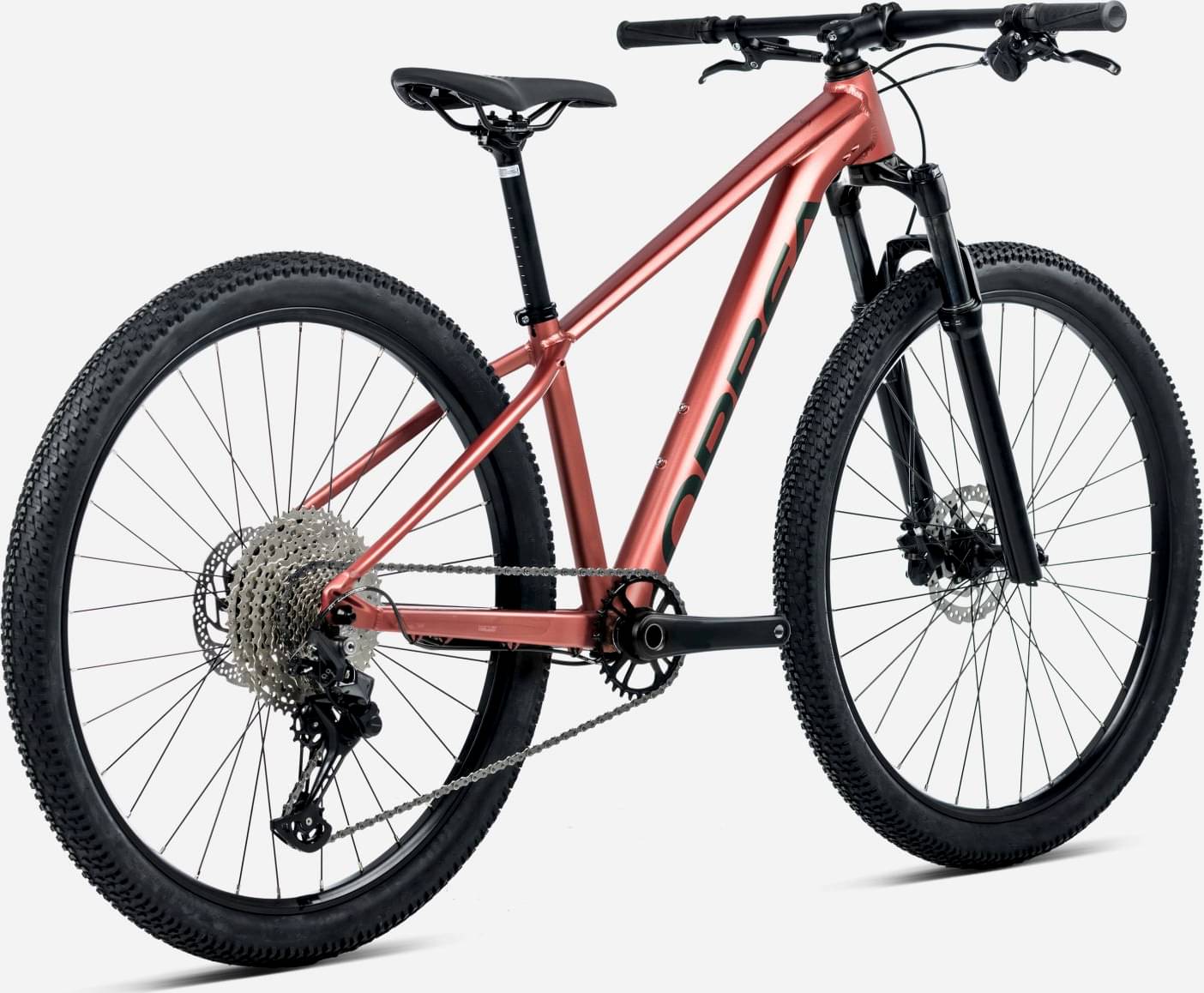

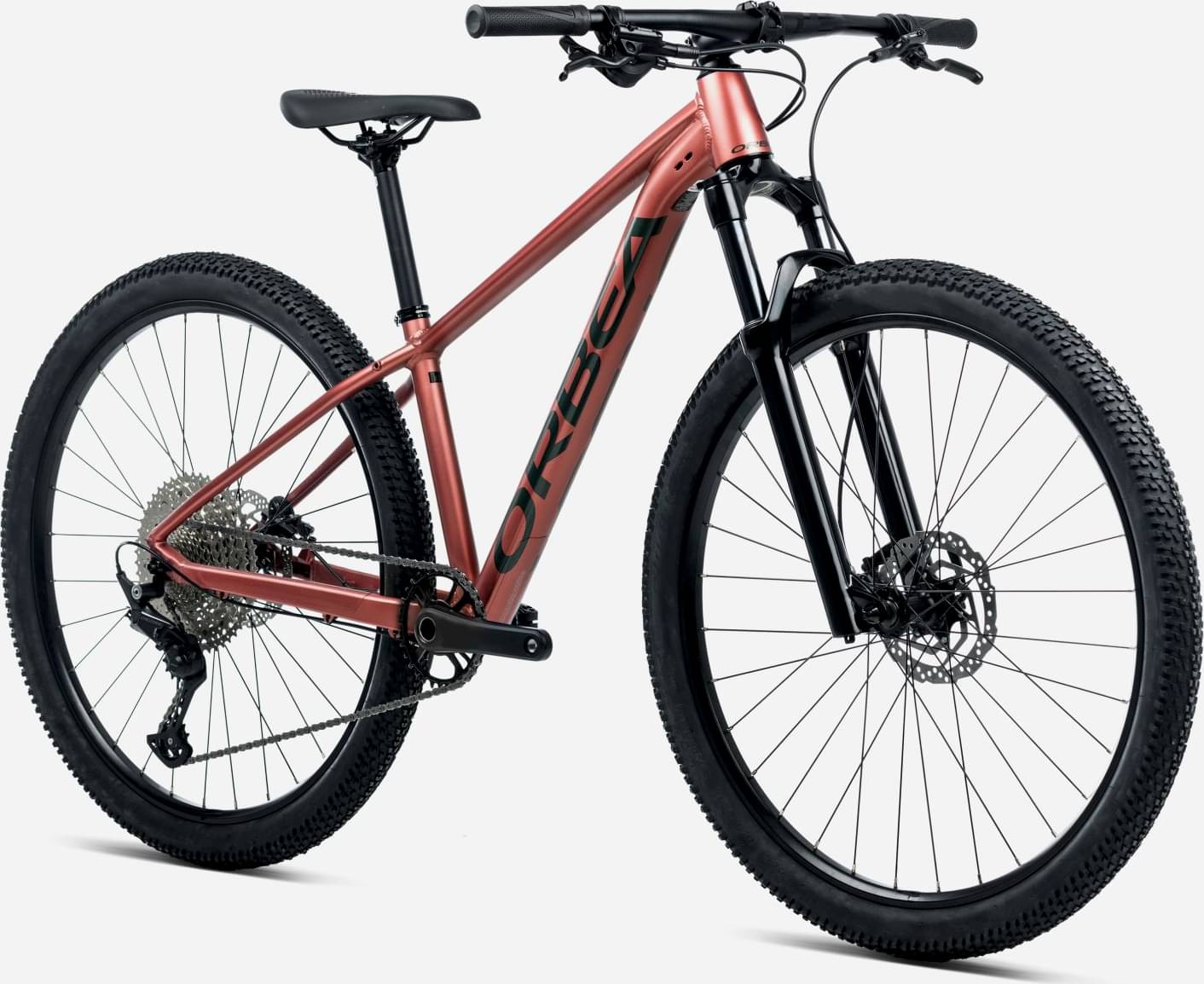

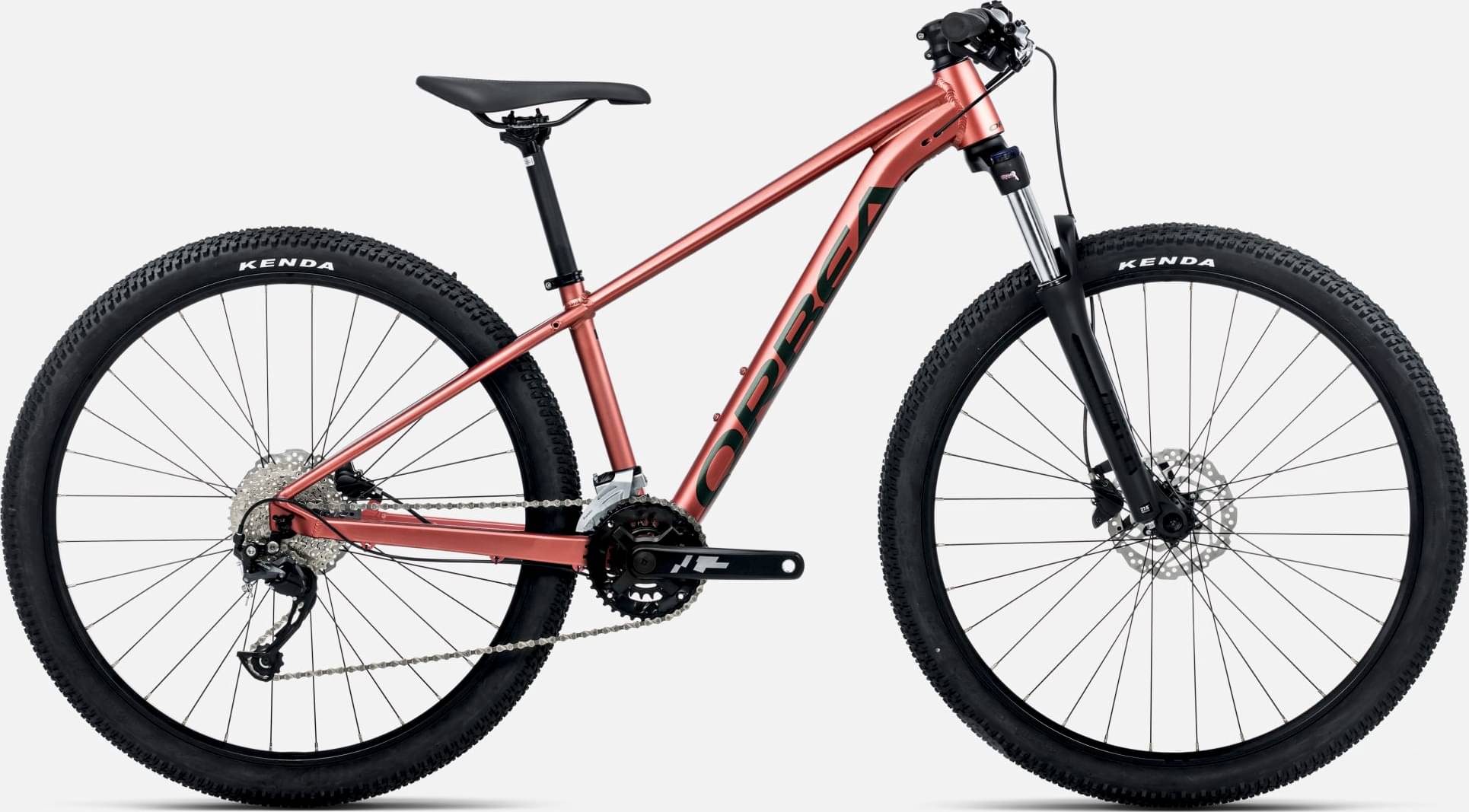

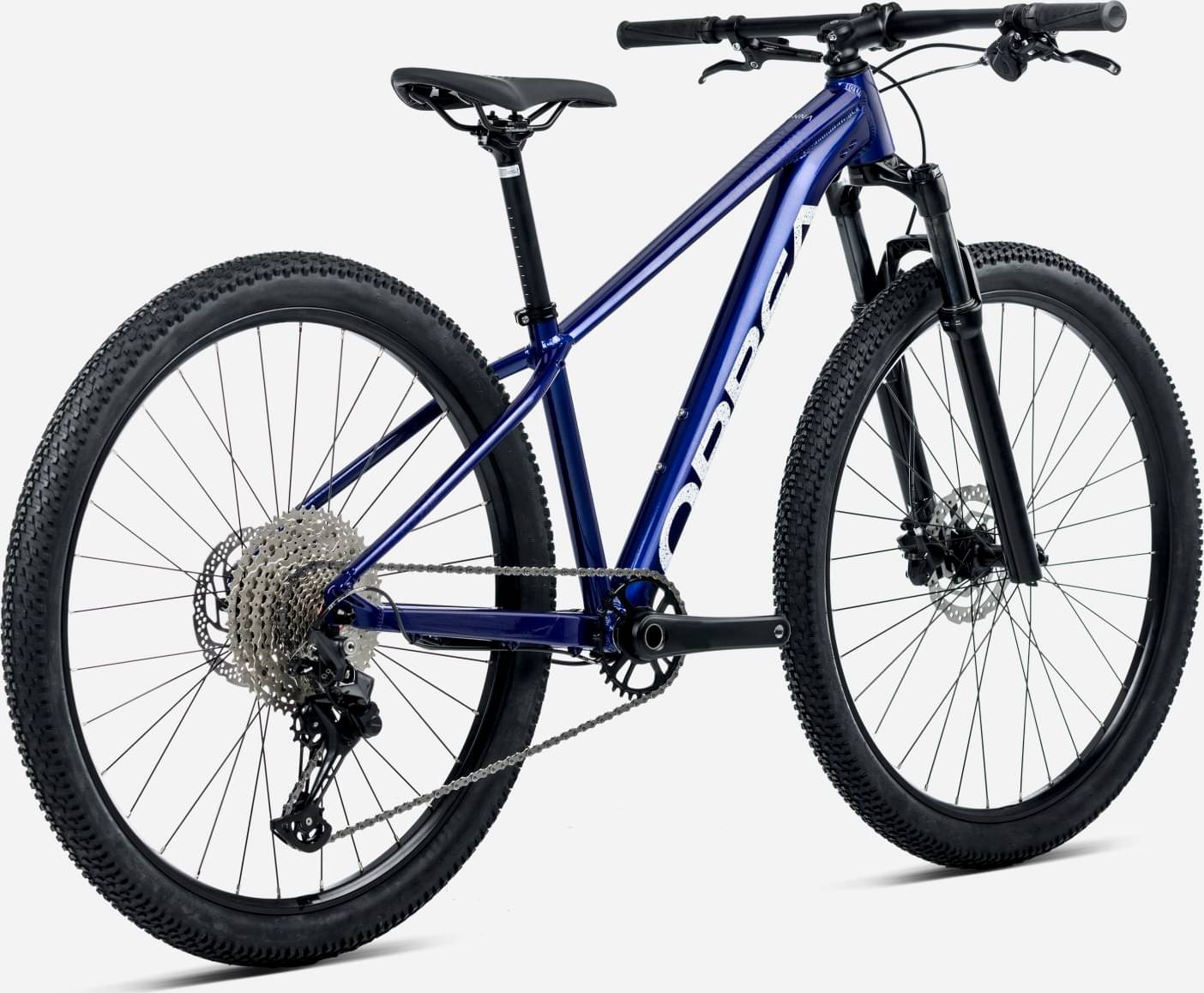

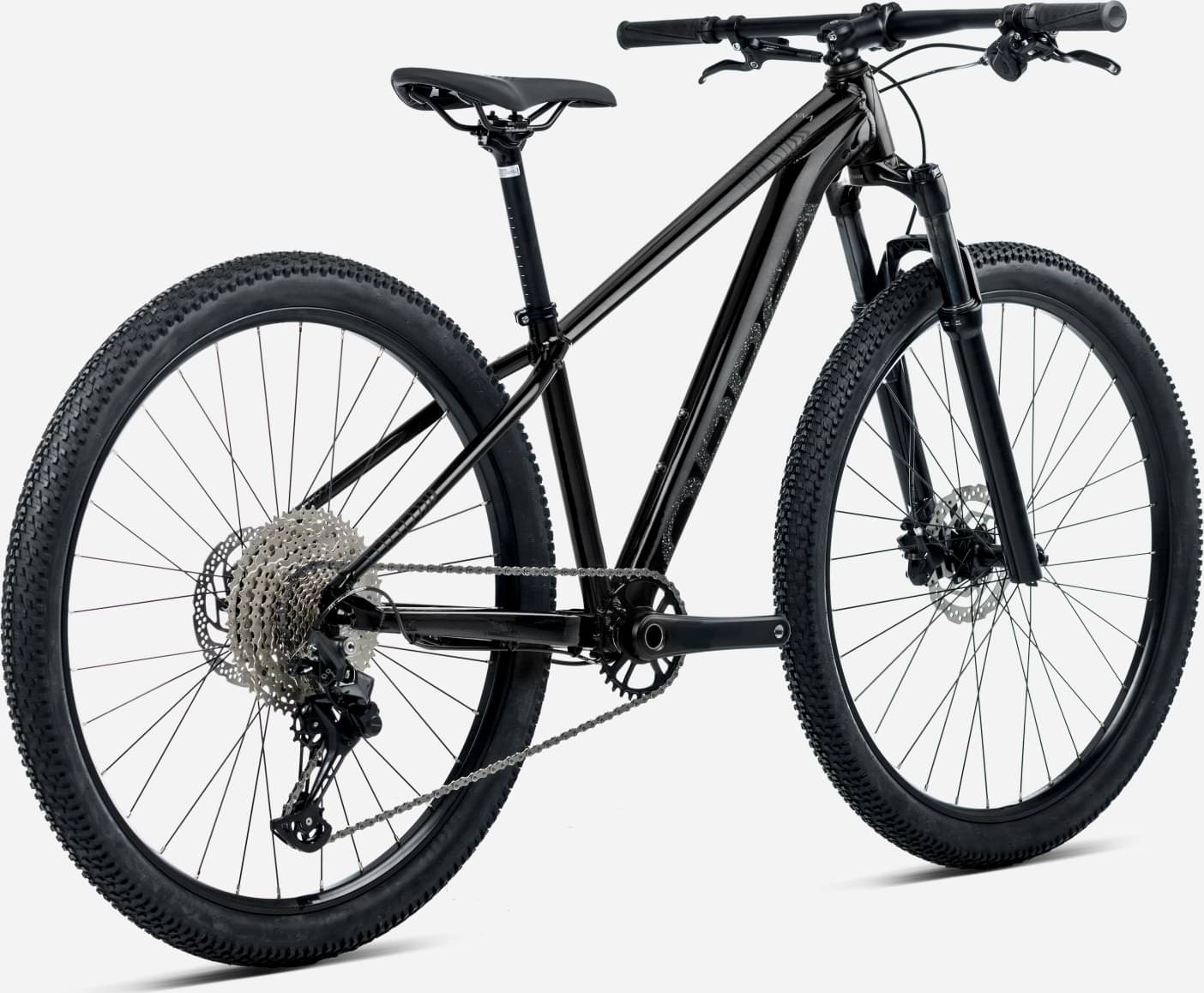

Orbea ONNA 27 XS Junior 40 2024
2024 Mountain
Estimate price |
802$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Fork Suntour XCT -
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Onna Alloy, Dropout 9x135, BSA BB, Internal cable routing
Suspension Fork
SR Suntour XCT 30 Coil 100mm QR
Drivetrain
Rear Derailleur
Shimano Altus M2000 SGS Shadow
Front Derailleur
Shimano M2020 31.8mm
Shift Levers
Shimano Alivio SL-M3100
Cassette
Sun Race CSM989 11-36t 9-Speed
Crank
Forged alloy, 22x36t, 9S
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X9
Pedals
VP-537 Black
Wheels
Rims
Alloy, 23c, 32H
Tires
Kenda Booster 2.40" 30TPI
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Alloy, 7º
Handlebar
Alloy, 31.8mm, Flat, 720mm
Seat
Saddle
Fortune QF-3091
Seatpost
Alloy, 27.2mm, Setback 0
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | U |
|---|---|
| Stack Reach Ratio | 1.595 mm |
| Bottom Bracket Height | 312 mm |
| Front Center | 623 mm |
| Rake | 42 mm |
| Trail | 95 mm |
| Stack | 582 mm |
| Reach | 365 mm |
| Top Tube Length | 526 mm |
| Seat Tube Angle | 74.5 ° |
| Seat Tube Length | 350 mm |
| Head Tube Angle | 68.5 ° |
| Head Tube Length | 95 mm |
| Chainstay Length | 430 mm |
| Wheelbase | 1049 mm |
| Bottom Bracket Drop | 45 mm |
| Standover Height | 668 mm |
| Wheels | 27" |
