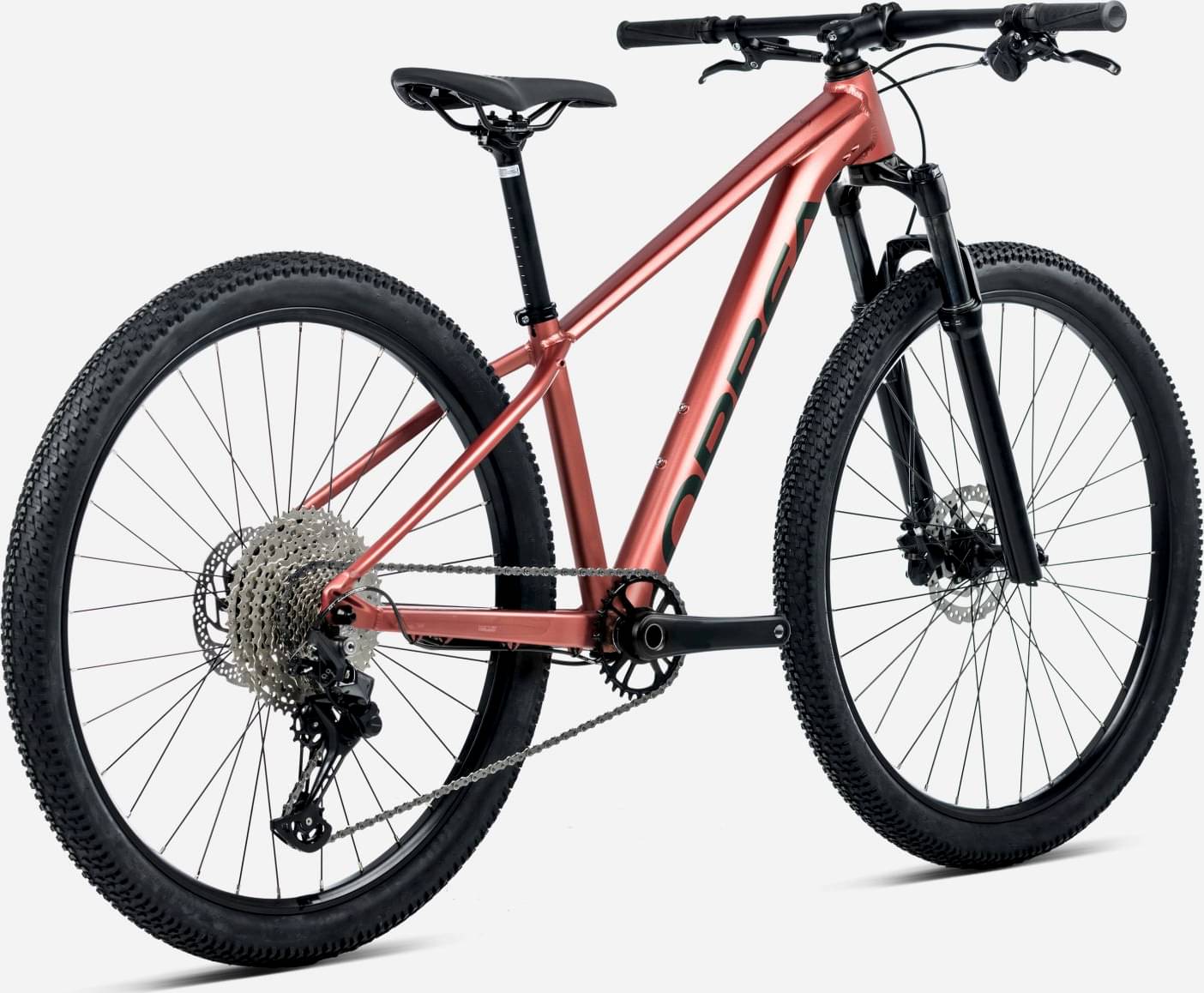

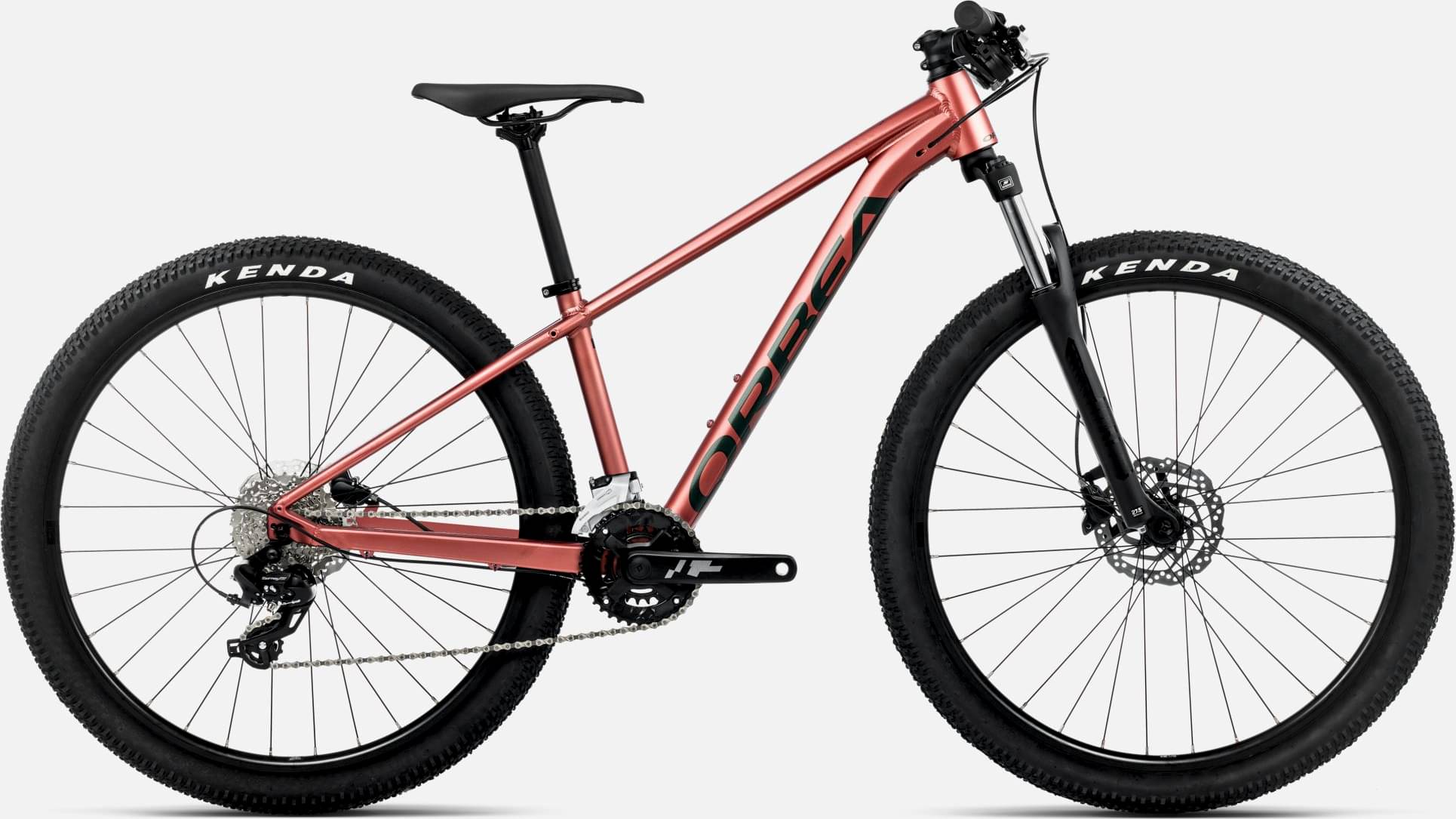

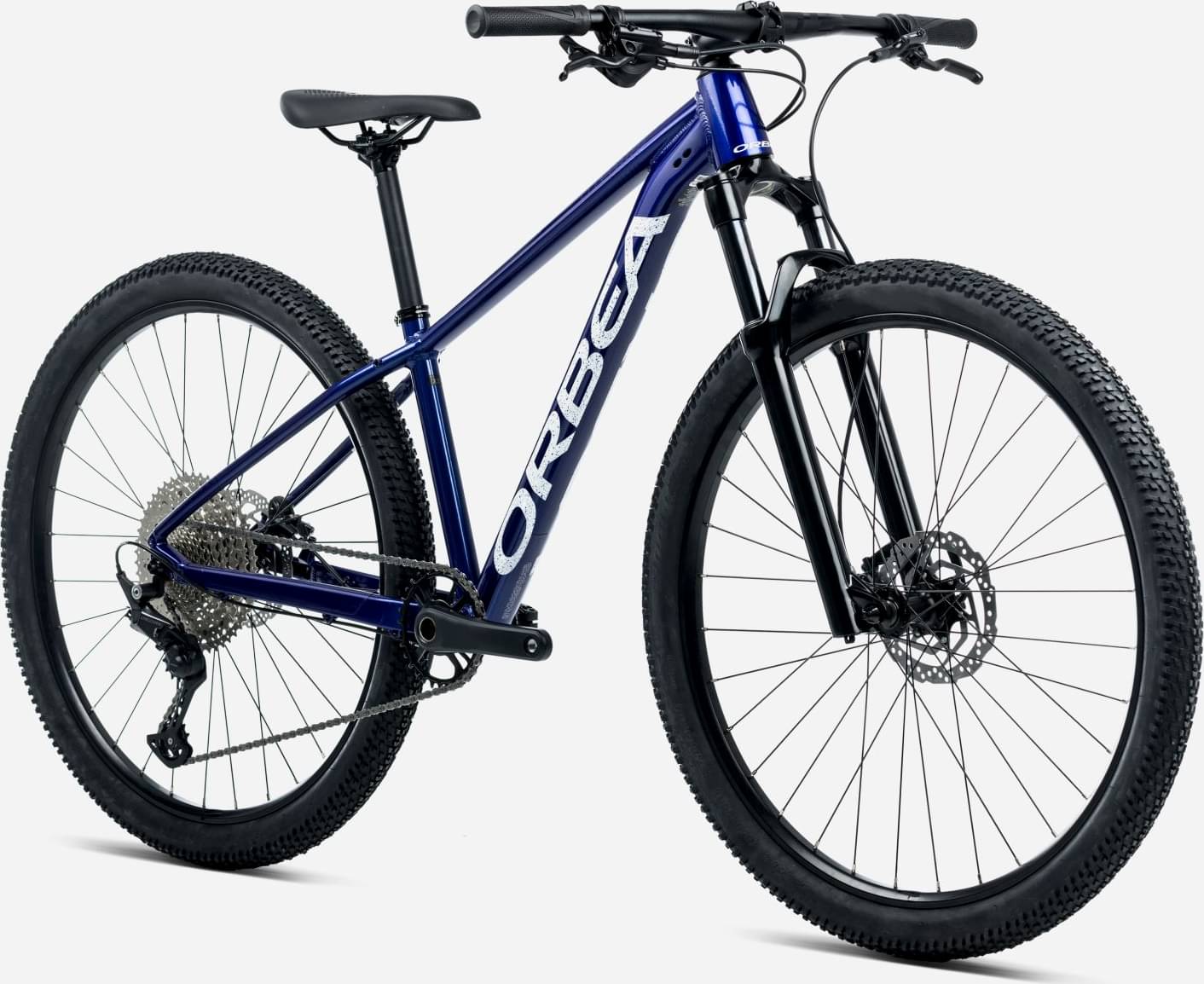

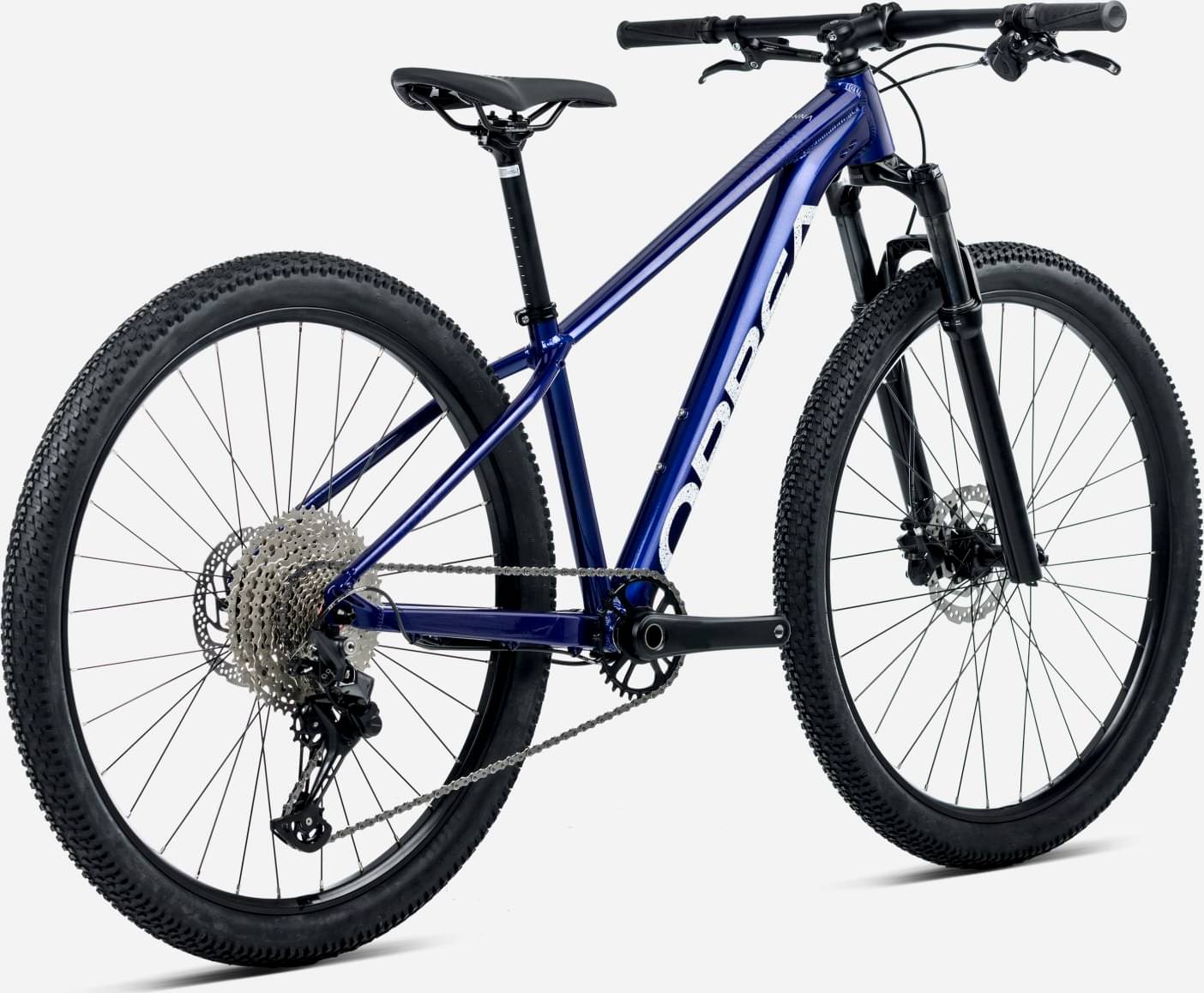

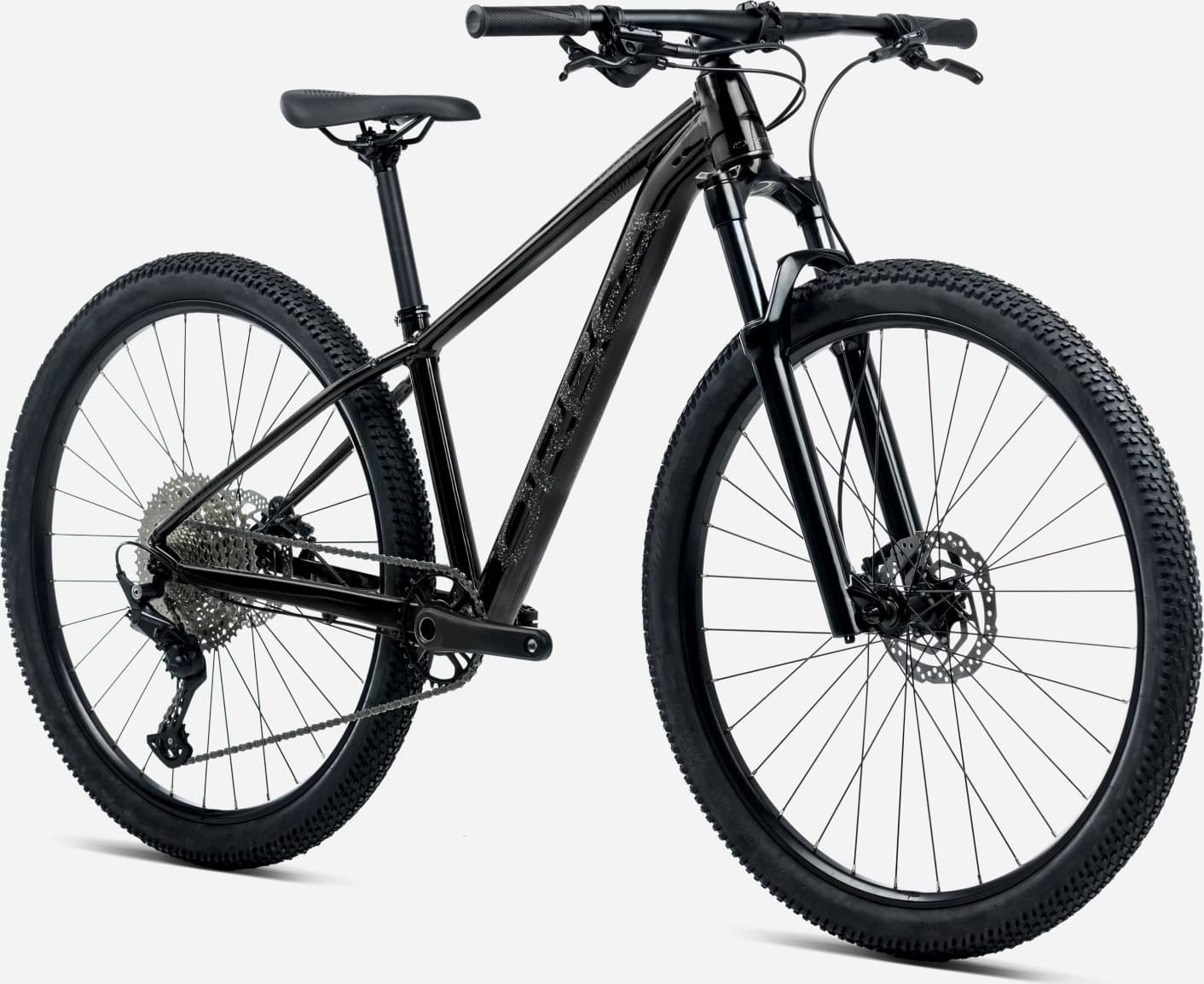

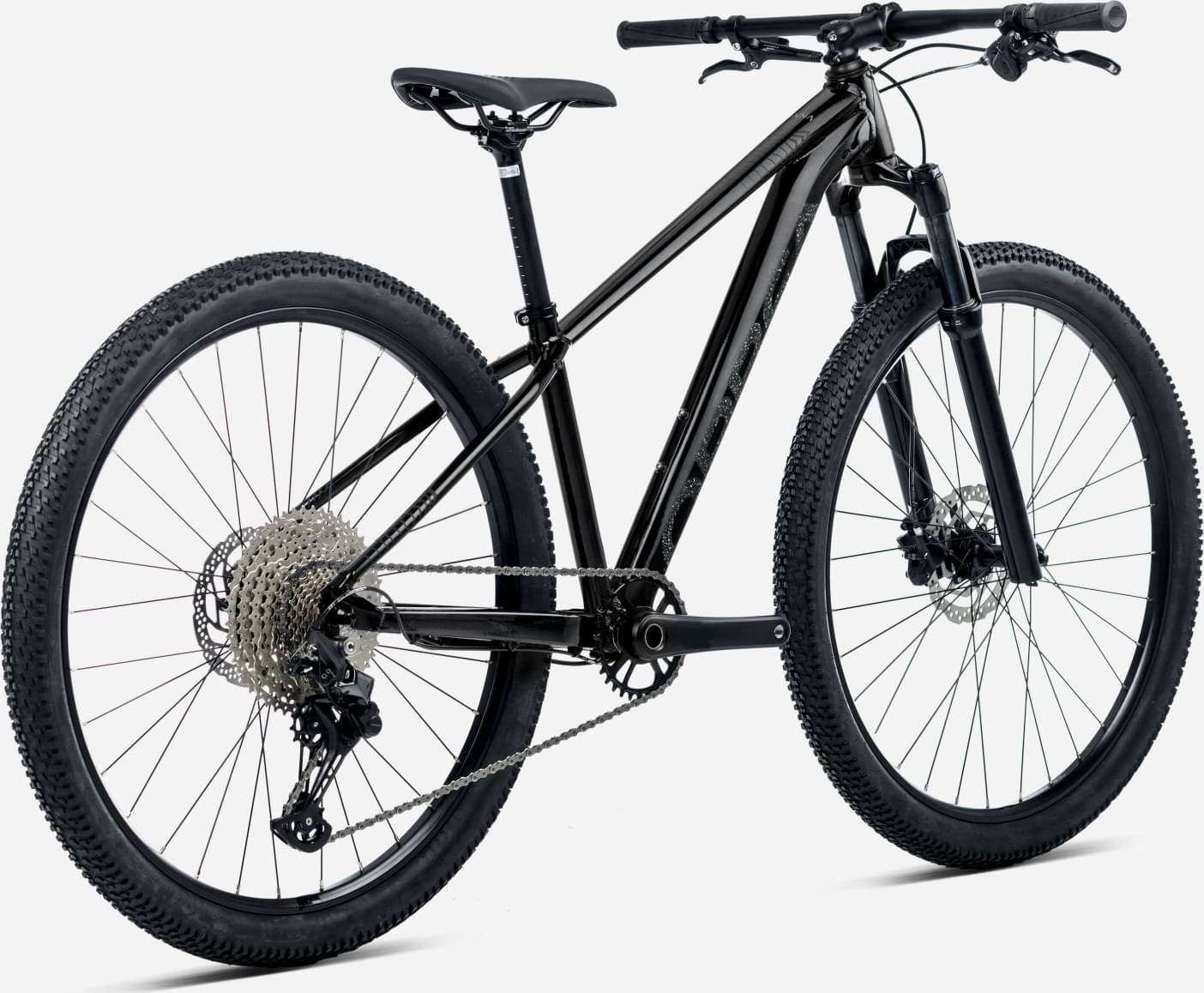

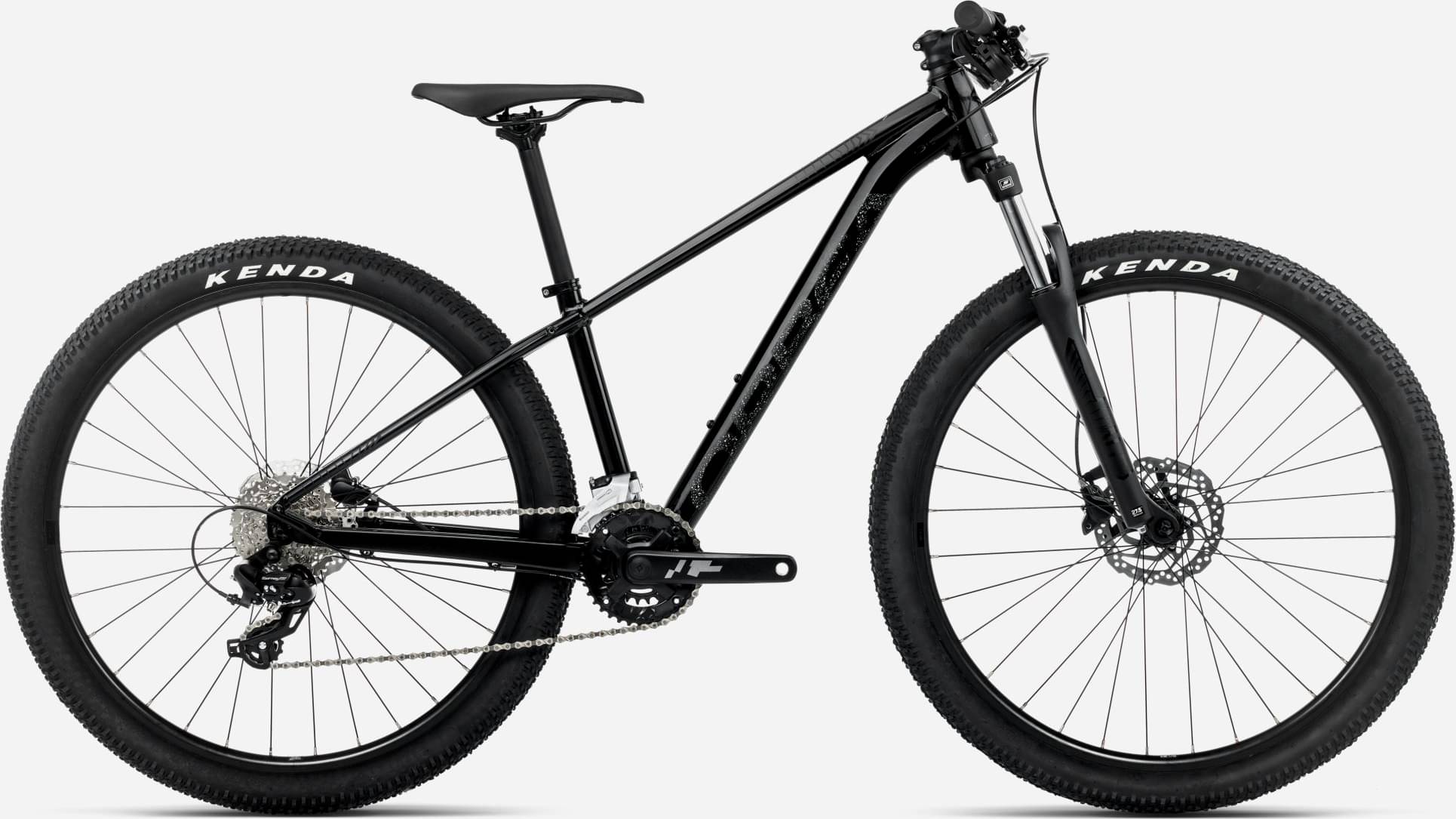

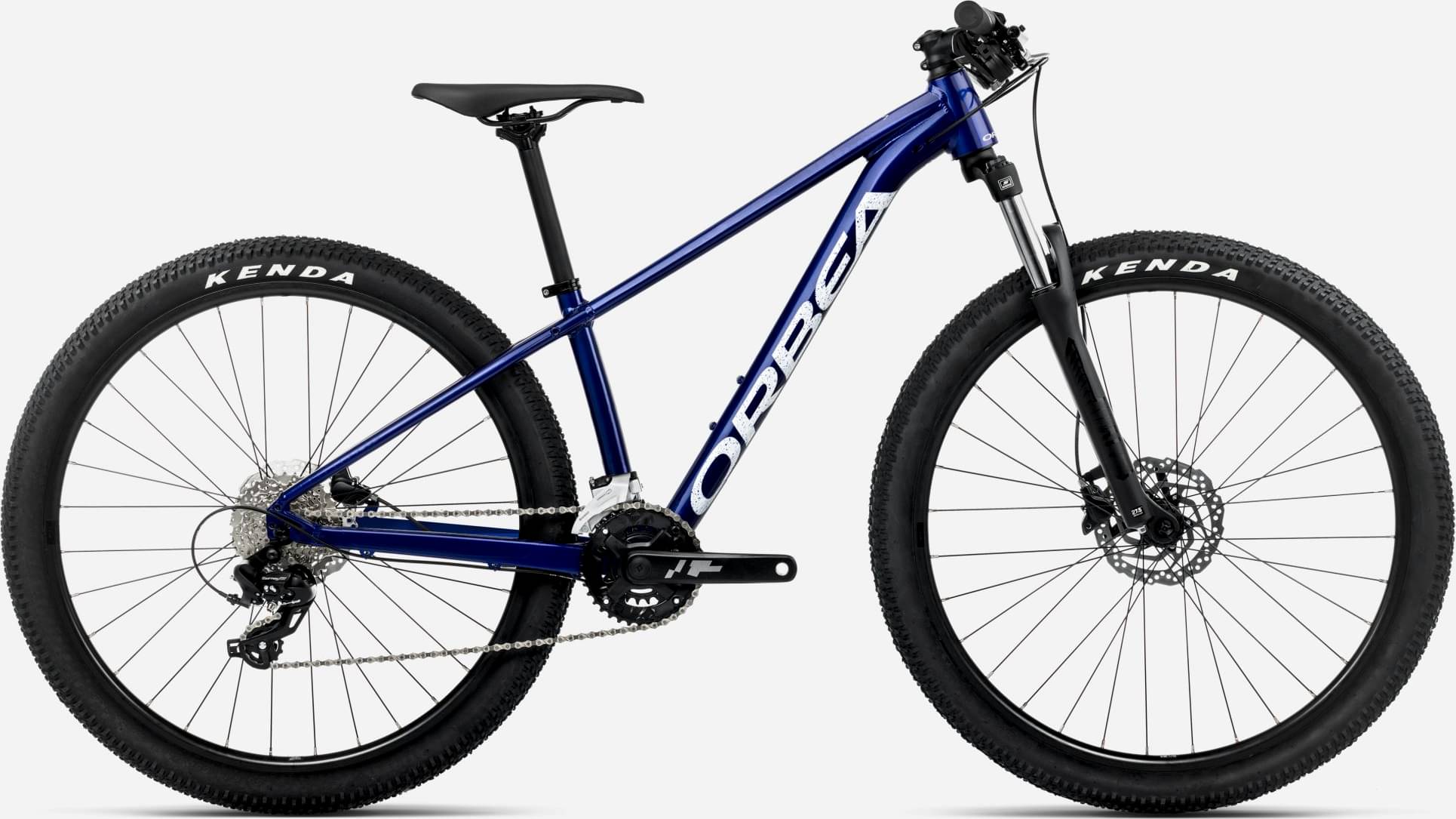

Orbea ONNA 27 XS Junior 50 2024
2024 Mountain
Estimate price |
687$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Fork Suntour XCE -
Groupset Tourney -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Onna Alloy, Dropout 9x135, BSA BB, Internal cable routing
Suspension Fork
SR Suntour XCE 28 Coil 100mm QR
Drivetrain
Rear Derailleur
Shimano Tourney TX800
Front Derailleur
Shimano M315 31.8mm
Shift Levers
Microshift TS38
Cassette
Sun Race CSM66 11-34t 8-Speed
Crank
Forged alloy, 22x36t, 7/8S
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X8
Pedals
VP-537 Black
Wheels
Rims
Mach1 ER20 19c
Tires
Kenda K1153 2.35" 22TPI
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Alloy, 7º
Handlebar
Alloy, 31.8mm, Flat, 720mm
Seat
Saddle
Essax Adv soft135mm for Orbea
Seatpost
Alloy, 27.2mm, Setback 0
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | U |
|---|---|
| Stack Reach Ratio | 1.595 mm |
| Bottom Bracket Height | 312 mm |
| Front Center | 623 mm |
| Rake | 42 mm |
| Trail | 95 mm |
| Stack | 582 mm |
| Reach | 365 mm |
| Top Tube Length | 526 mm |
| Seat Tube Angle | 74.5 ° |
| Seat Tube Length | 350 mm |
| Head Tube Angle | 68.5 ° |
| Head Tube Length | 95 mm |
| Chainstay Length | 430 mm |
| Wheelbase | 1049 mm |
| Bottom Bracket Drop | 45 mm |
| Standover Height | 668 mm |
| Wheels | 27" |
