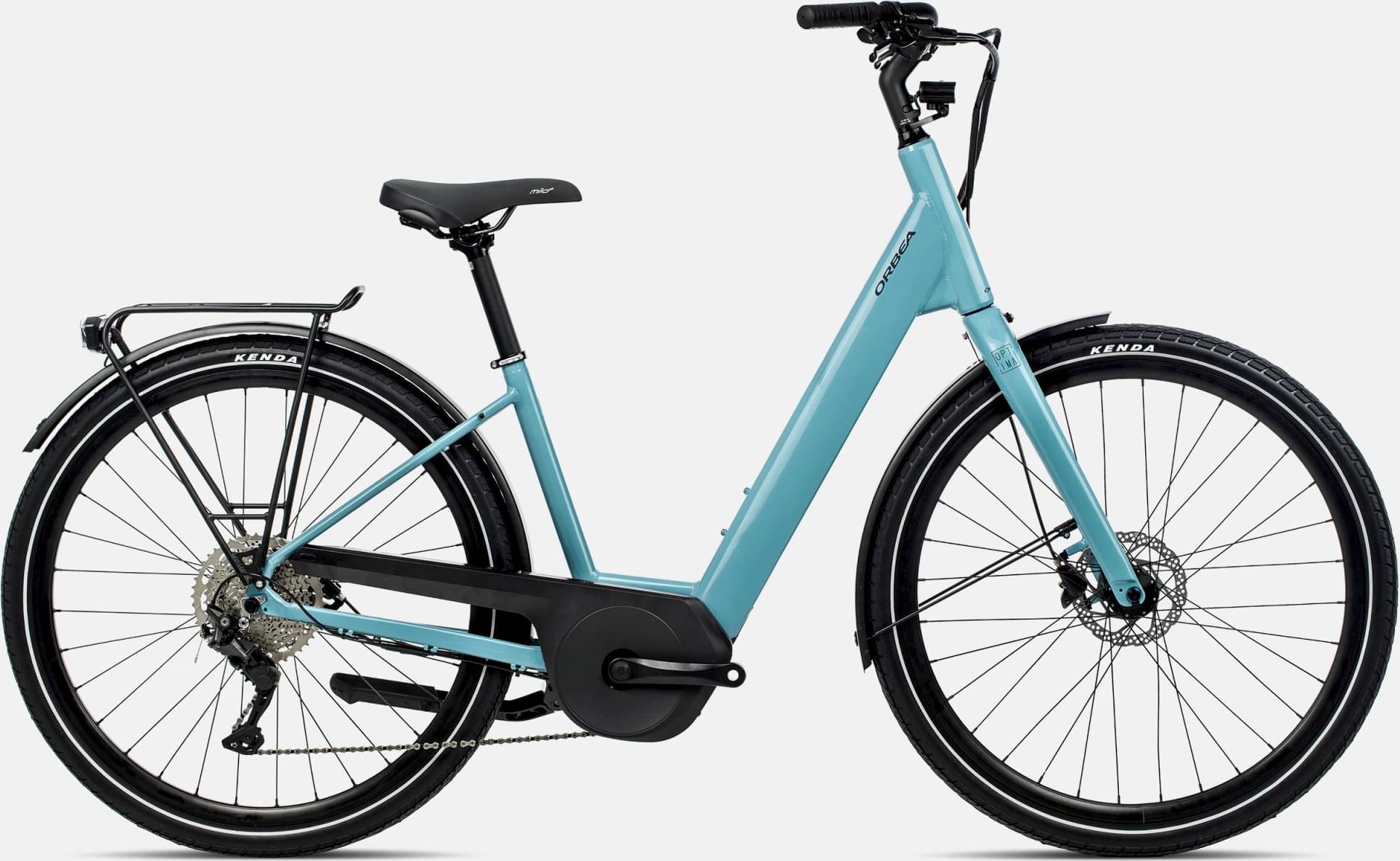

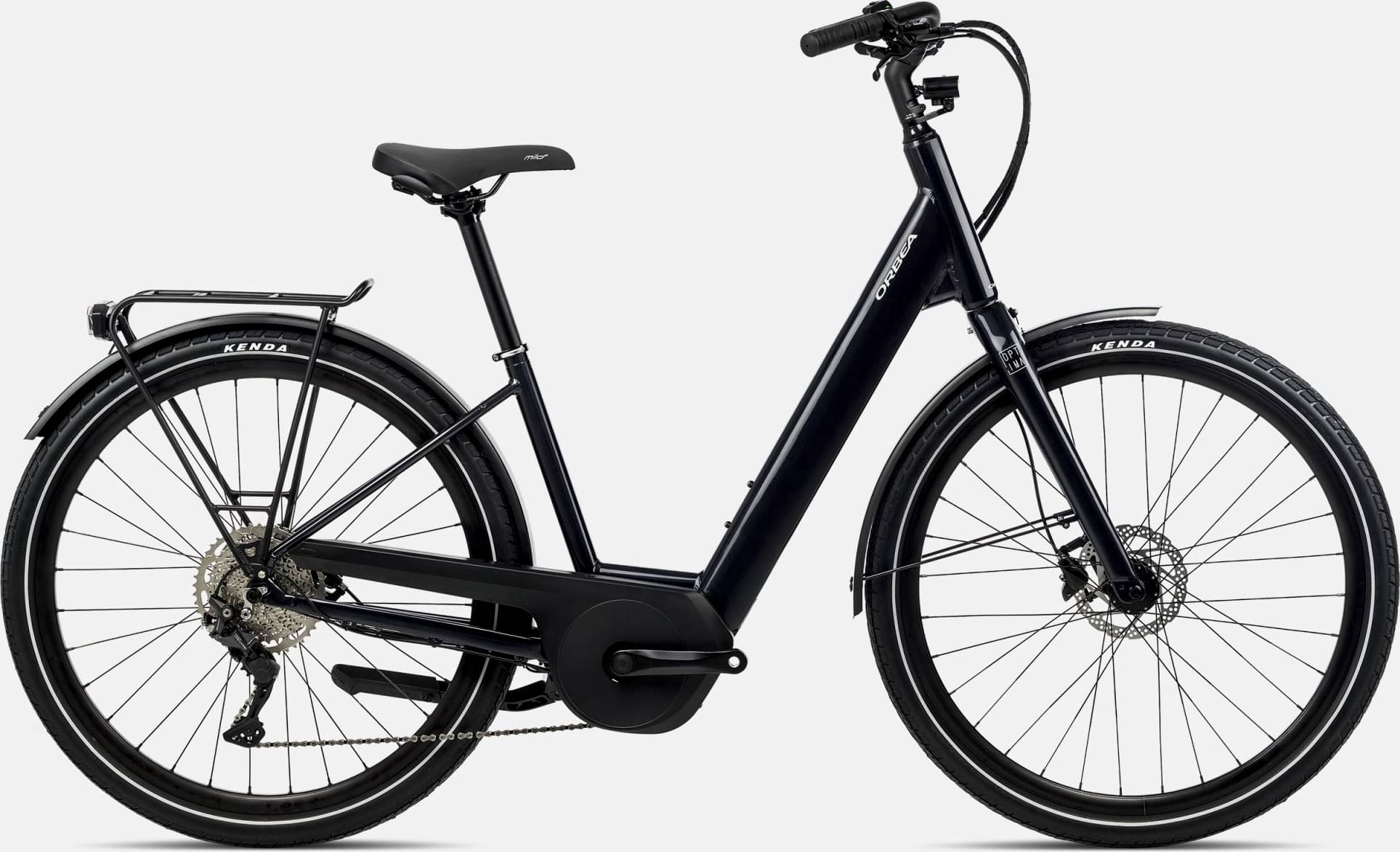

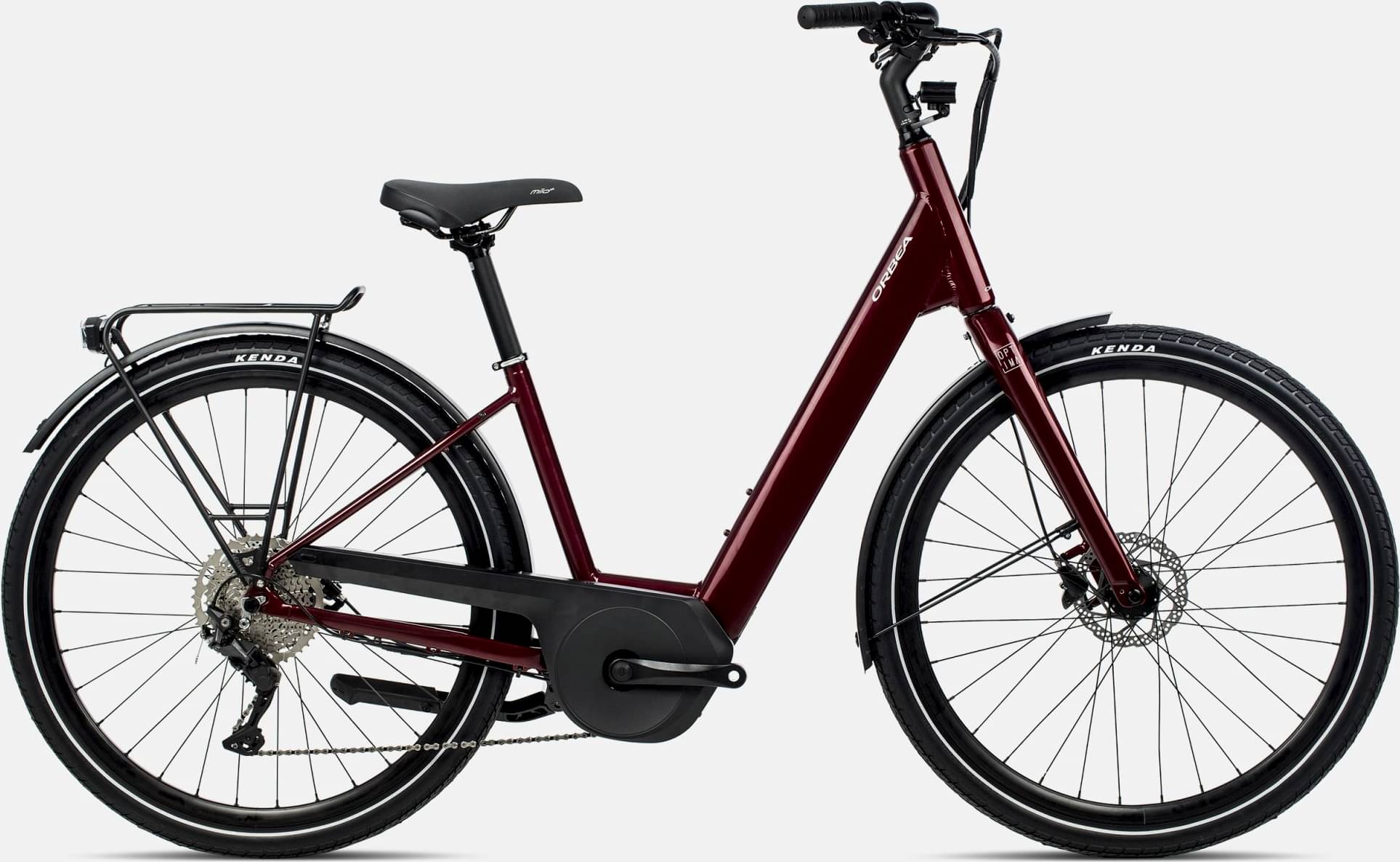

Orbea OPTIMA E40 20mph 2024
2024 E-bike
Estimate price |
3,199$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -
Motor MAHLE hub-drive -
Battery Mahle 36V/6.9A 248Wh ANT+ -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Optima Hydroformed Alloy, Ebikemotion X35 internal battery
Suspension Fork
Optima 400mm Alloy Post mount
Drivetrain
Rear Derailleur
Shimano Deore M5120 SGS Shadow Plus
Shift Levers
Shimano Deore M4100
Cassette
Shimano CS-M4100 11-46t 10-Speed
Crank
Orbea, Alloy, 42t
Chain
KMC X10
Chain Guide
Sunon A017
Pedals
VP-857 Black
Wheels
Rims
Ready GR 29-700 C
Tires
Kenda 1172 700x50c
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Orbea TDS-D617
Handlebar
Orbea City Riser Alu 640mm
Seat
Saddle
Selle Royal Milo Plus DR
Seatpost
Alloy, 31.6mm, Setback 0
Motor & Battery
Motor
Mahle motor hub X35 Plus 20mph
Battery
Mahle 36V/6.9A 248Wh ANT+
Remote
Mahle iWoc TRIO
Charger
Mahle X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.668 mm | 1.751 mm | 1.675 mm |
| Bottom Bracket Height | 272.5 mm | 272.5 mm | 272.5 mm |
| Front Center | 669 mm | 692 mm | 738 mm |
| Rake | 55 mm | 55 mm | 55 mm |
| Trail | 68 mm | 70 mm | 68 mm |
| Stack | 662 mm | 709 mm | 737 mm |
| Reach | 397 mm | 405 mm | 440 mm |
| Top Tube Length | 625 mm | 648 mm | 693 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 405 mm | 450 mm | 500 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 190 mm | 240 mm | 270 mm |
| Chainstay Length | 510 mm | 510 mm | 510 mm |
| Wheelbase | 1163 mm | 1187 mm | 1233 mm |
| Bottom Bracket Drop | 95 mm | 95 mm | 95 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
