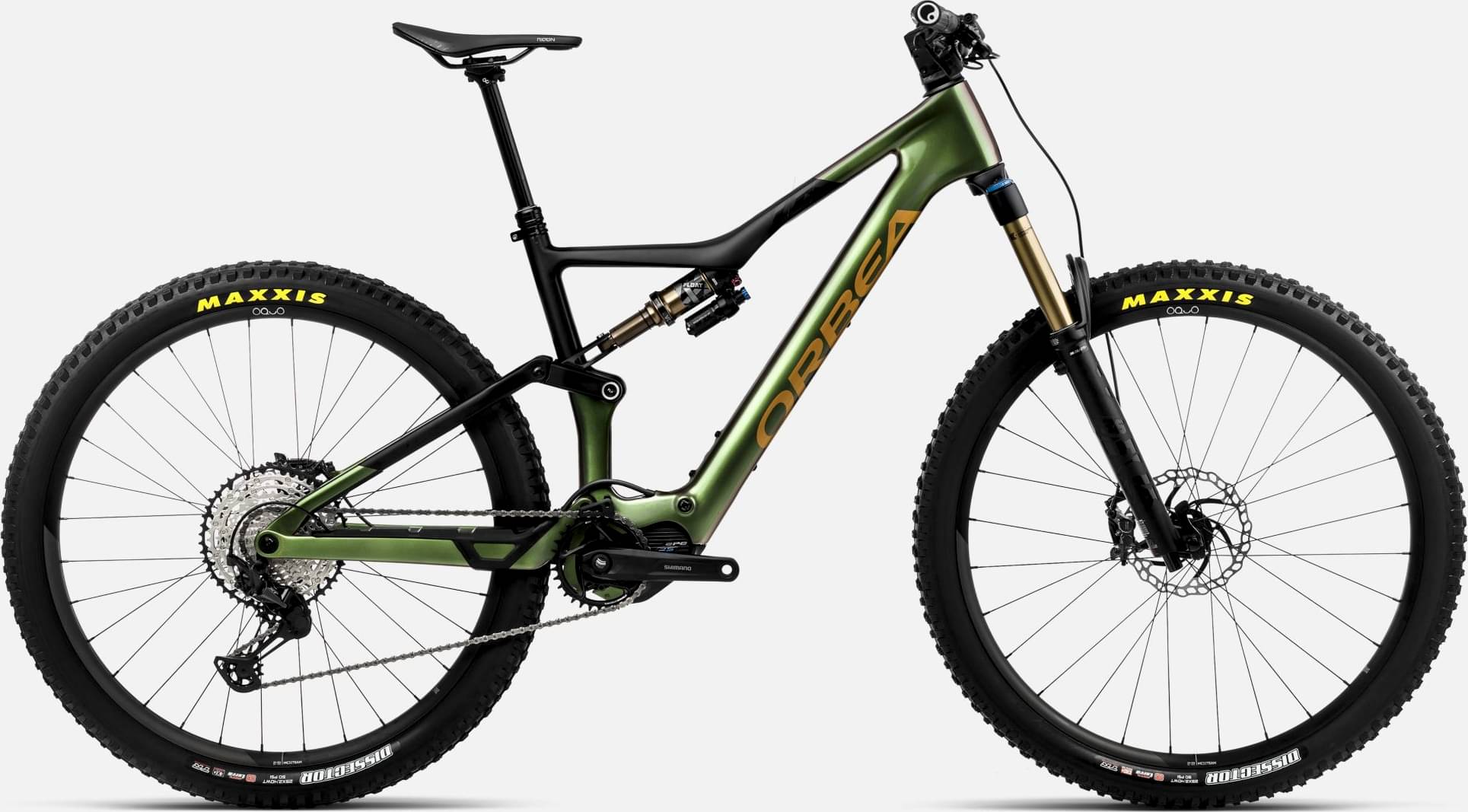

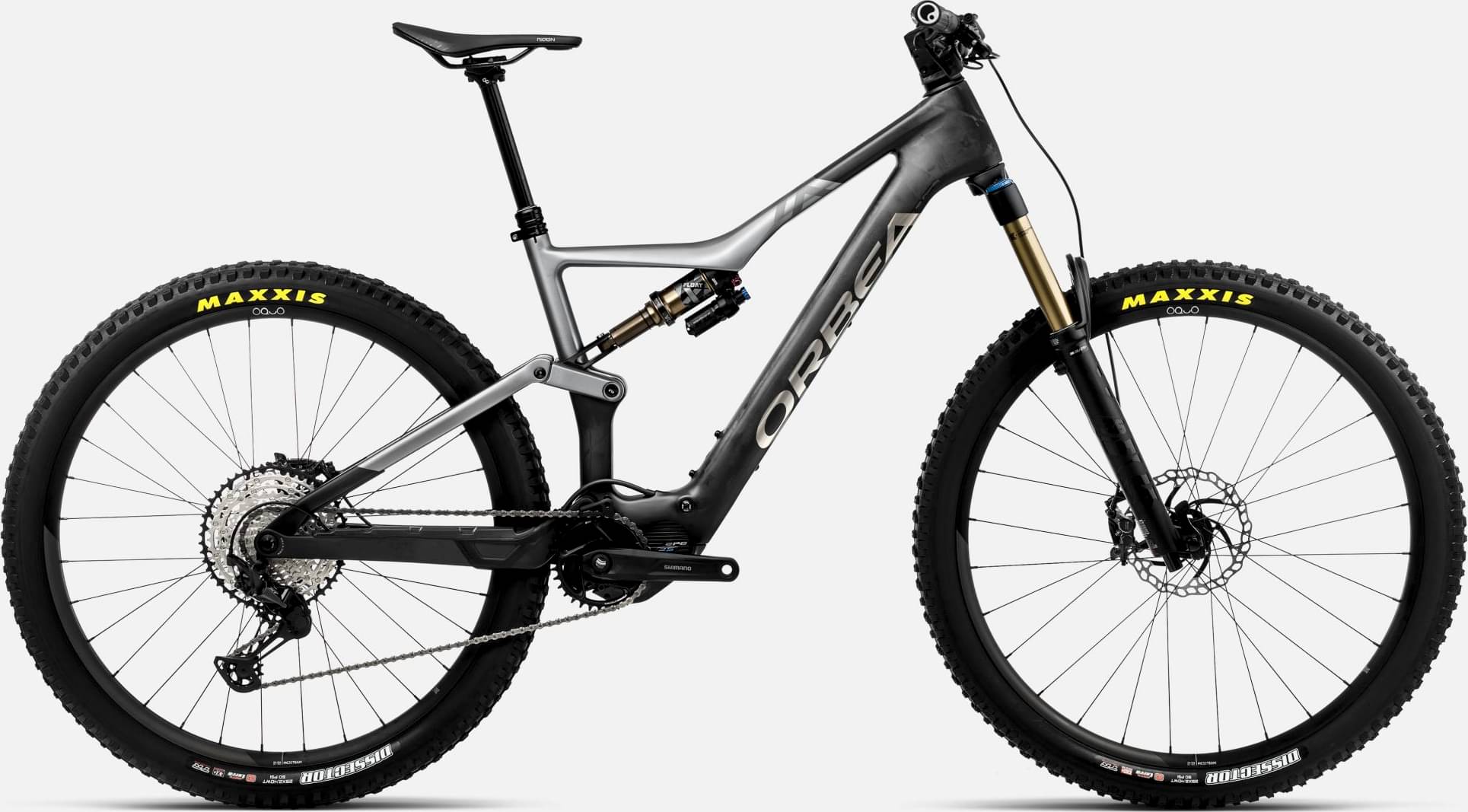

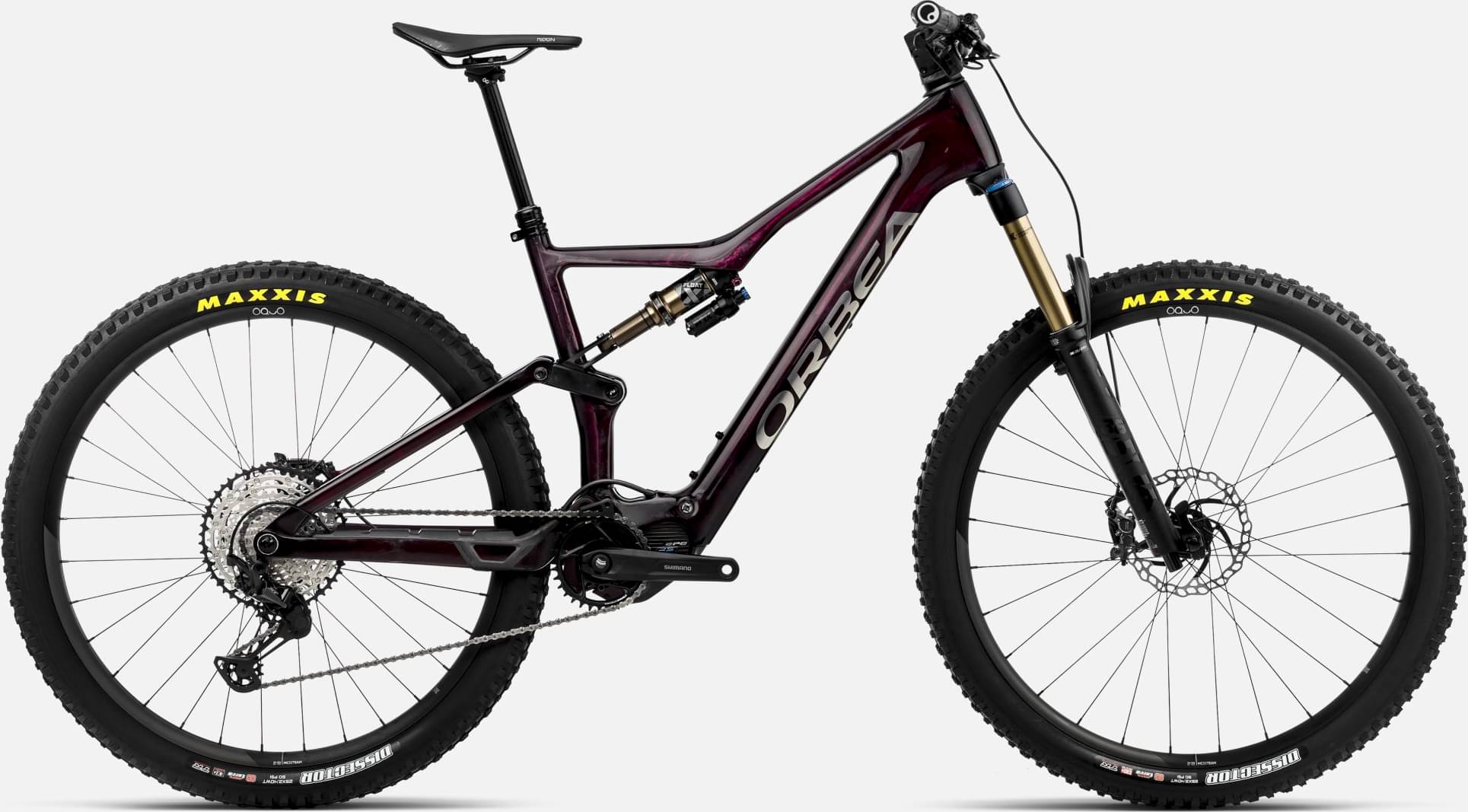

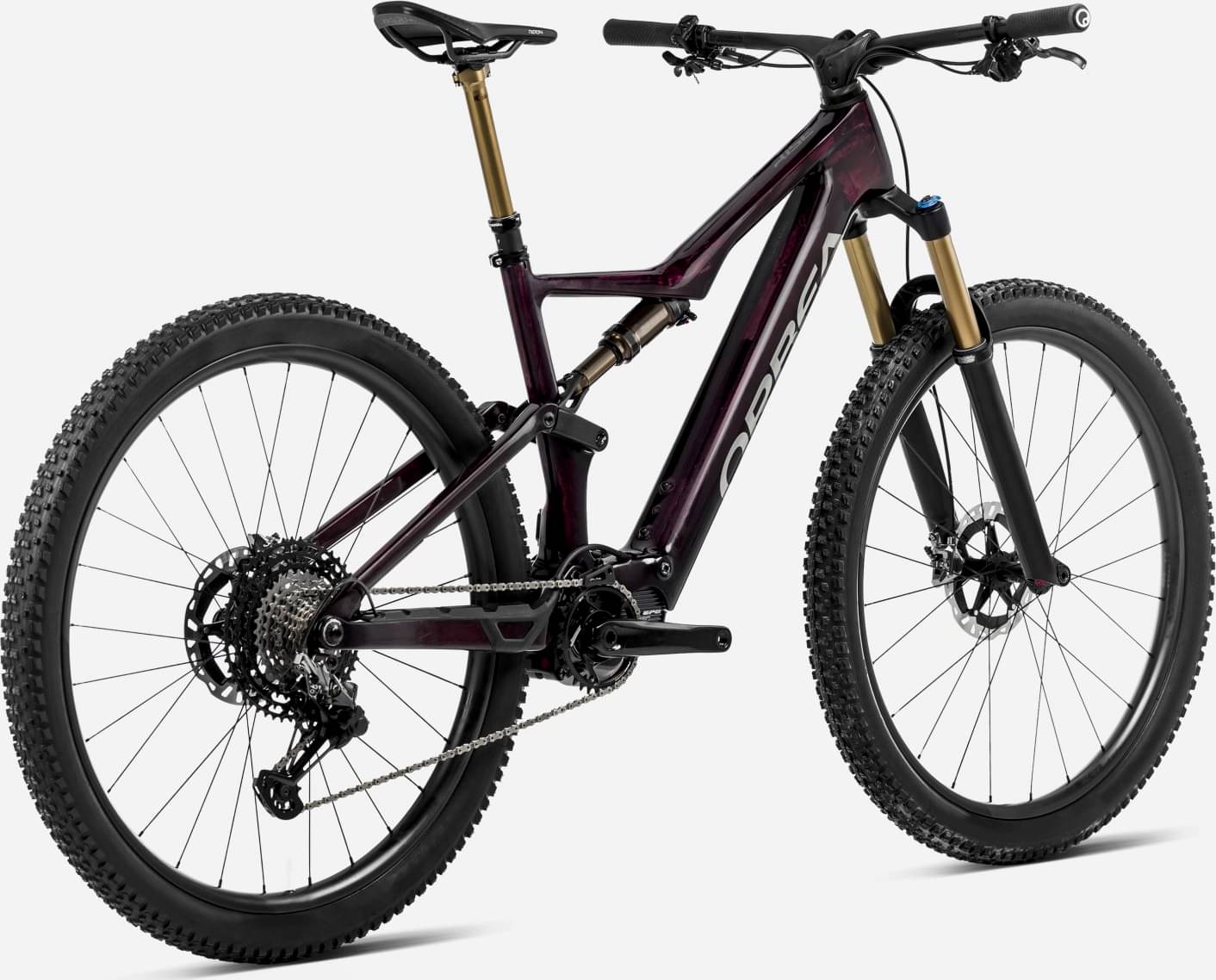

Orbea RISE M10 20mph 2024
2024 E-bike
Estimate price |
8,699$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XT, SLX -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery Orbea Internal 360Wh (Optional 540Wh) -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 165cm
MD
160cm - 175cm
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Rise Evo OMR 2023, 140mm travel, 29" wheels, Concentric Boost 12x148
Suspension Fork
Fox 36 Float Factory 150 Grip2 QR15x110 Kashima
Rear Shock
Fox FLOAT X Factory 2-Position Evol LV Kashima custom tune 210x55mm
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano SLX M7100 I-Spec EV
Cassette
Shimano CS-M7100 10-51t 12-Speed
Crank
e*thirteen e*spec Direct Mount 32T Boost
Chain
Shimano M7100
Chain Guide
Orbea Rise chainguide
Wheels
Rims
Oquo Mountain Control MC32TEAM
Tires
Maxxis Dissector 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Brakes
Brakes
Shimano XT M8120 Hydraulic Disc
Cockpit
Stem
OC Mountain Control MC20, 0º
Handlebar
OC Mountain Control MC21 Alu SL, Rise20, Width 800
Grips
Ergon GE10
Headset
Alloy 1-1/2", Black Oxidated Bearing
Seat
Saddle
Fizik Terra Ridon X5 145mm
Seatpost
OC Mountain Control MC21, 31.6mm, Dropper
Motor & Battery
Motor
Shimano EP801-RS
Battery
Orbea Internal 360Wh (Optional 540Wh)
Remote
EN600-L
Charger
Orbea 2.Generation eBike Smart charger 42V/2-4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.421 mm | 1.362 mm | 1.323 mm | 1.292 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 737 mm | 762 mm | 786 mm | 812 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 109 mm | 113 mm | 119 mm | 127 mm |
| Stack | 604 mm | 613 mm | 627 mm | 646 mm |
| Reach | 425 mm | 450 mm | 474 mm | 500 mm |
| Top Tube Length | 565 mm | 592 mm | 619 mm | 649 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 381 mm | 419 mm | 457 mm | 508 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1180 mm | 1205 mm | 1229 mm | 1255 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 710 mm | 736 mm | 766 mm | 776 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 198 cm |
