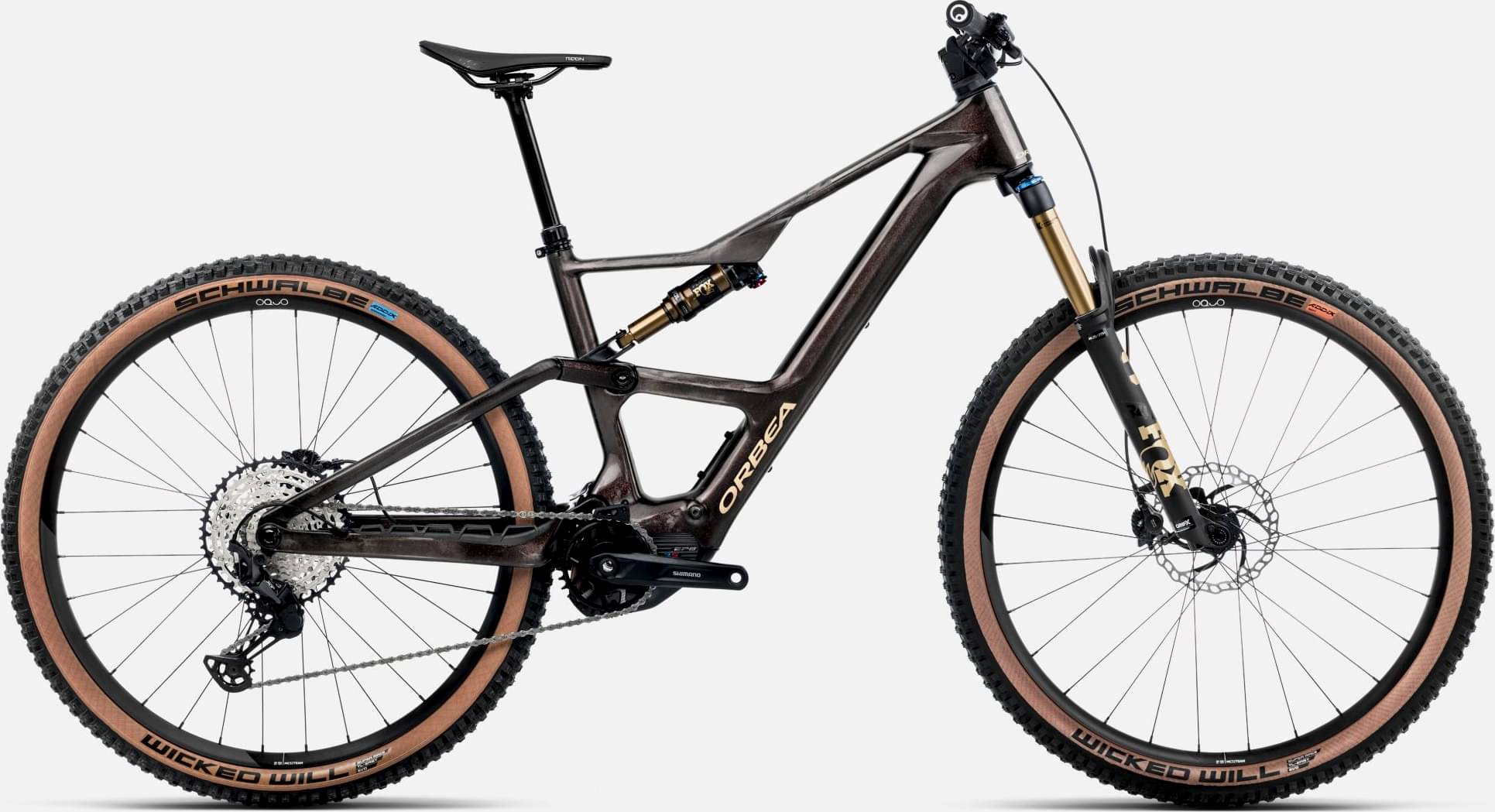

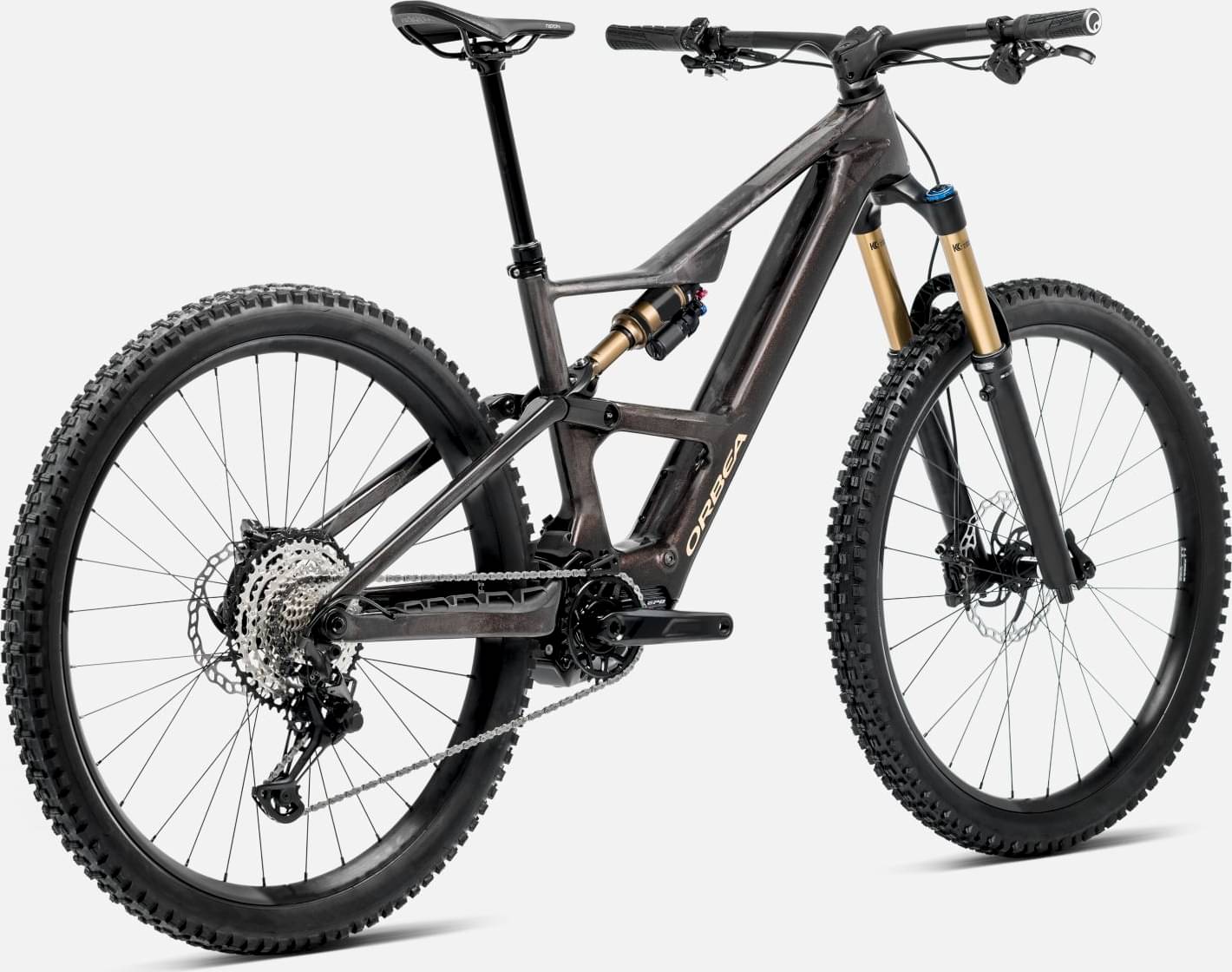

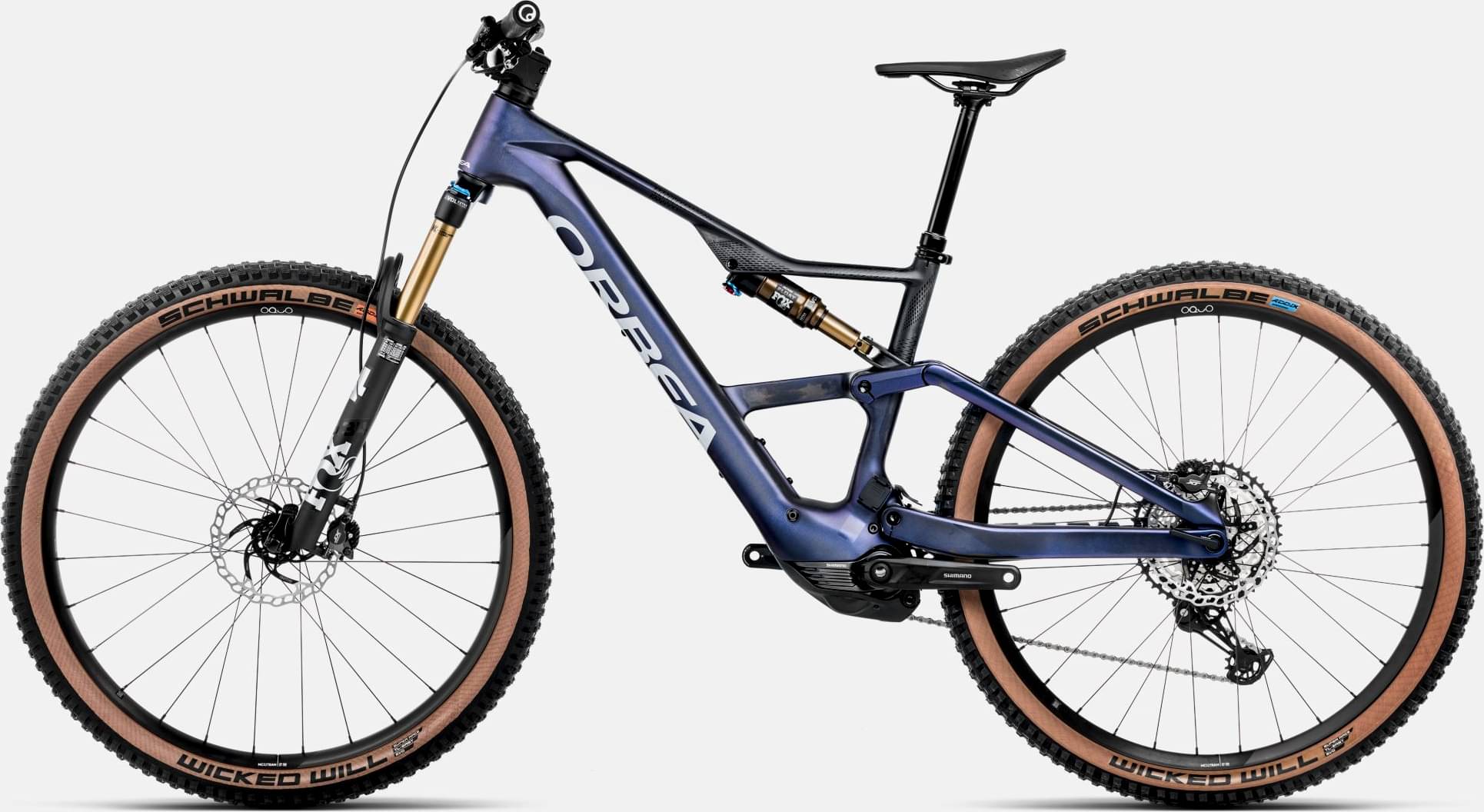

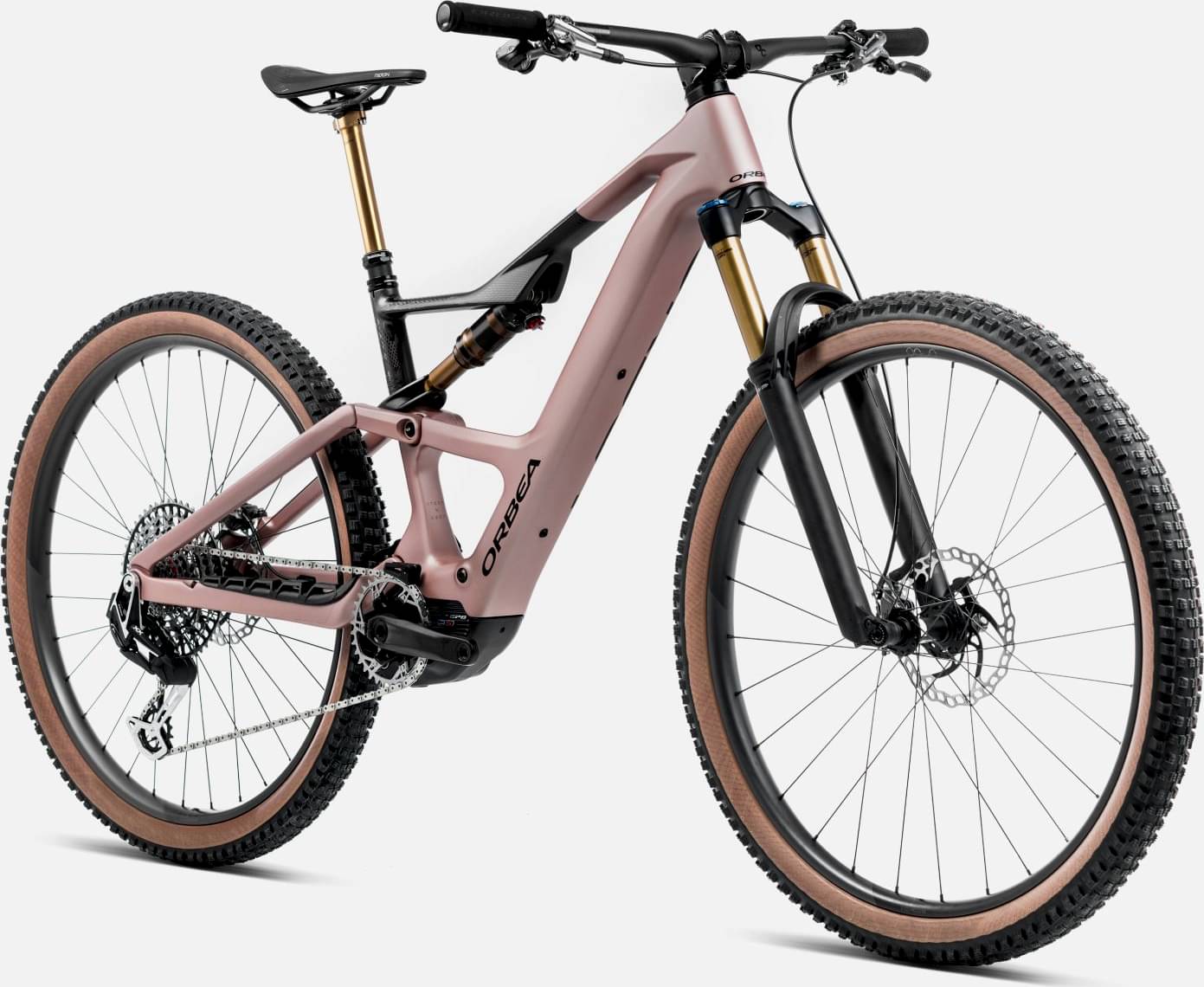

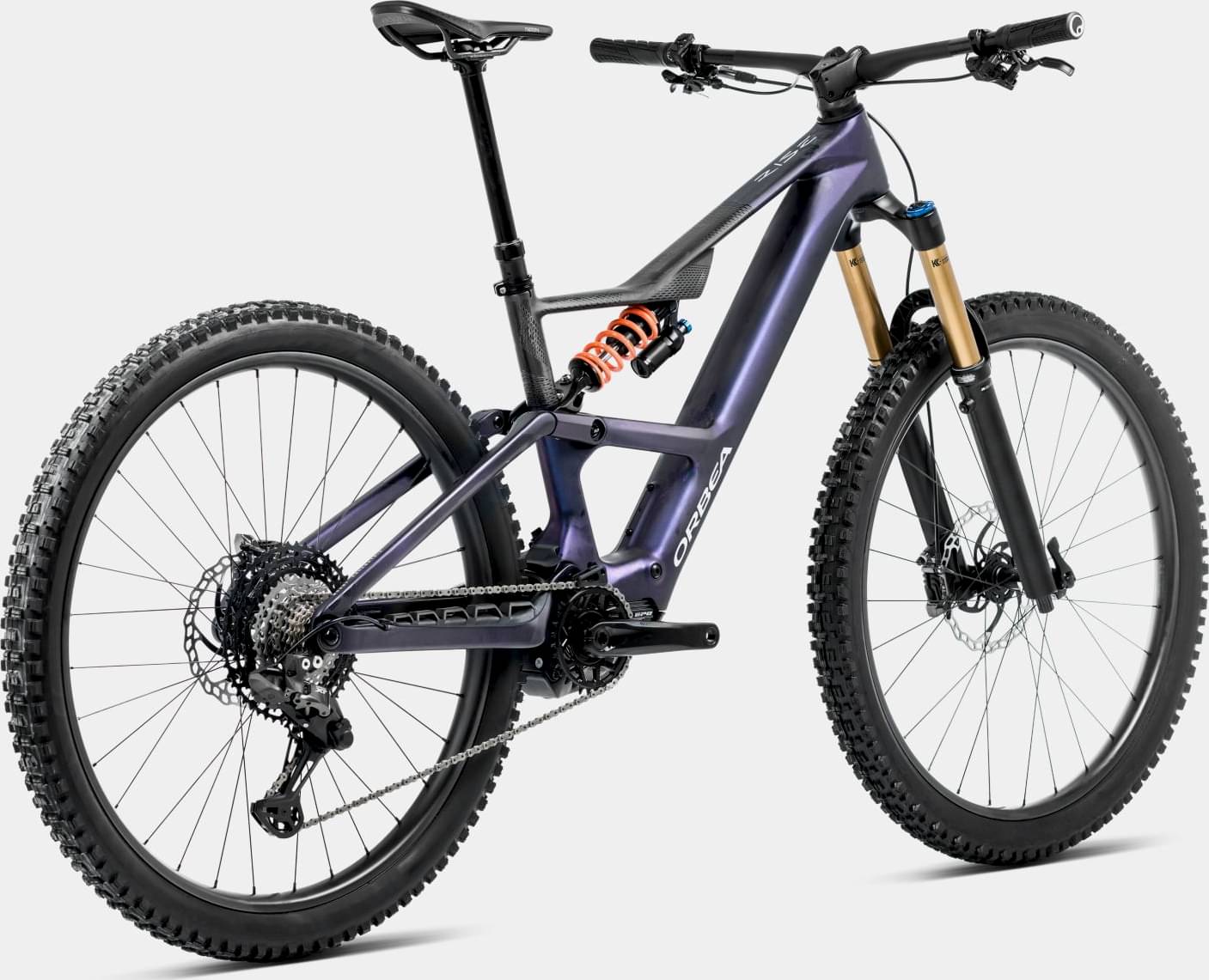

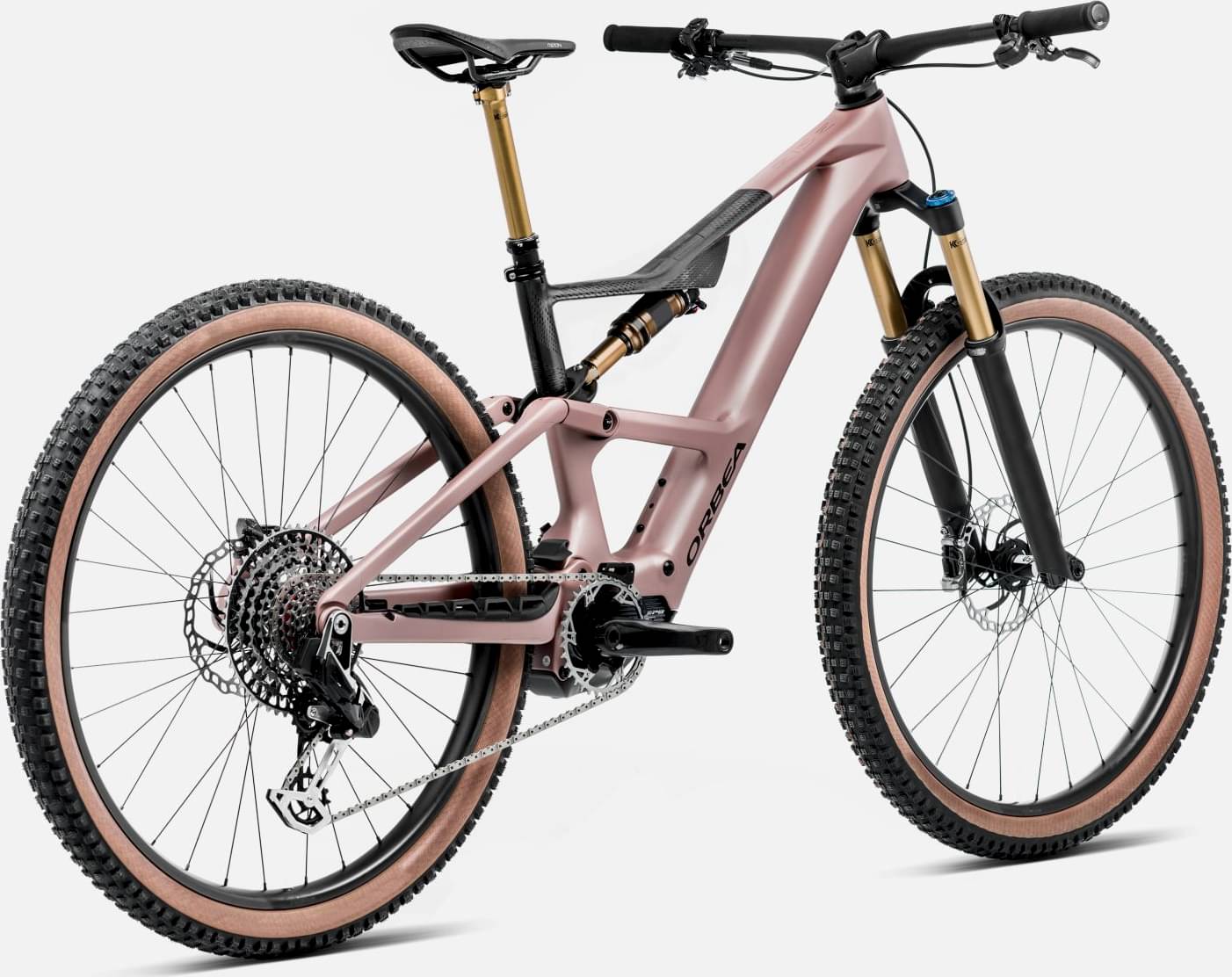

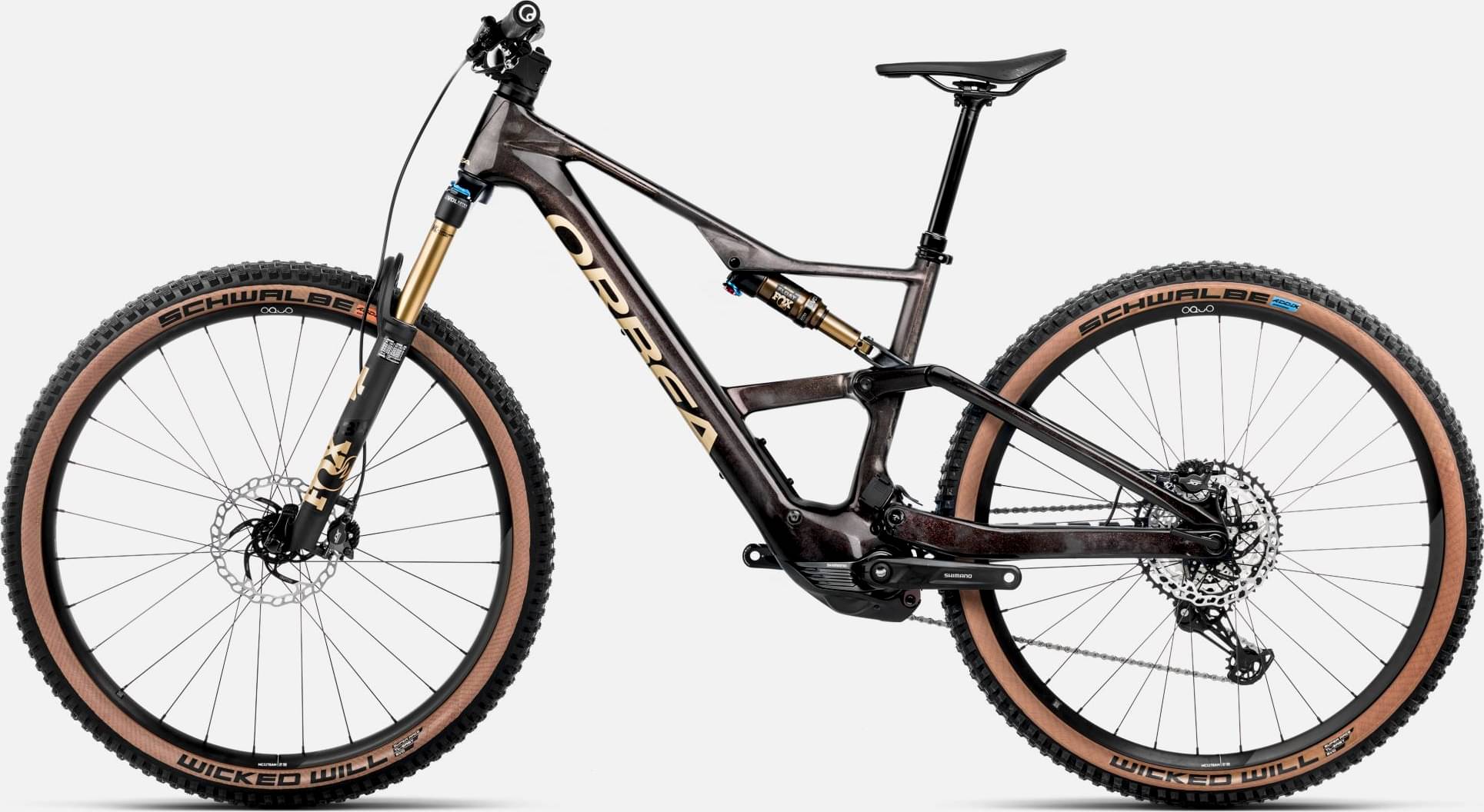

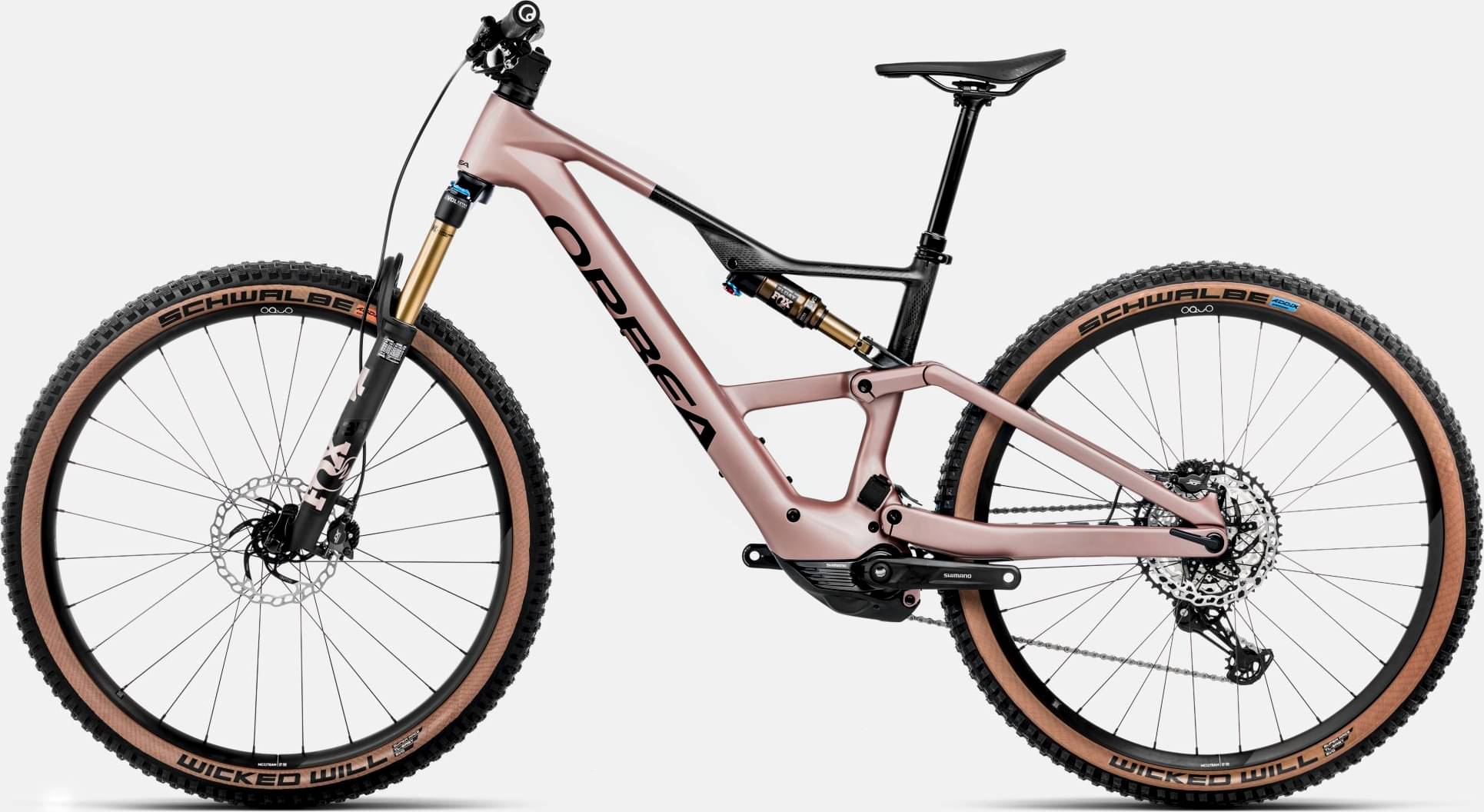

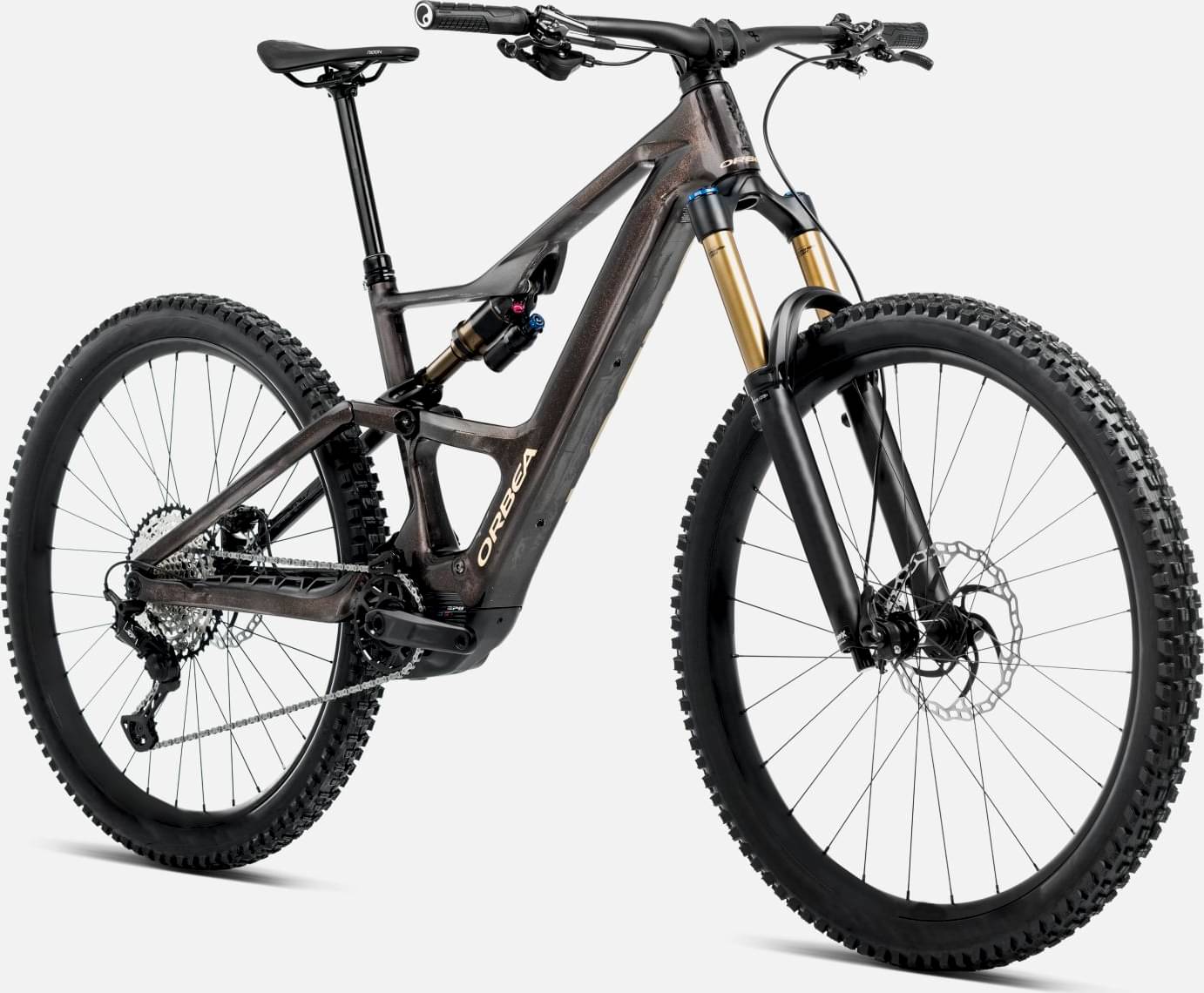

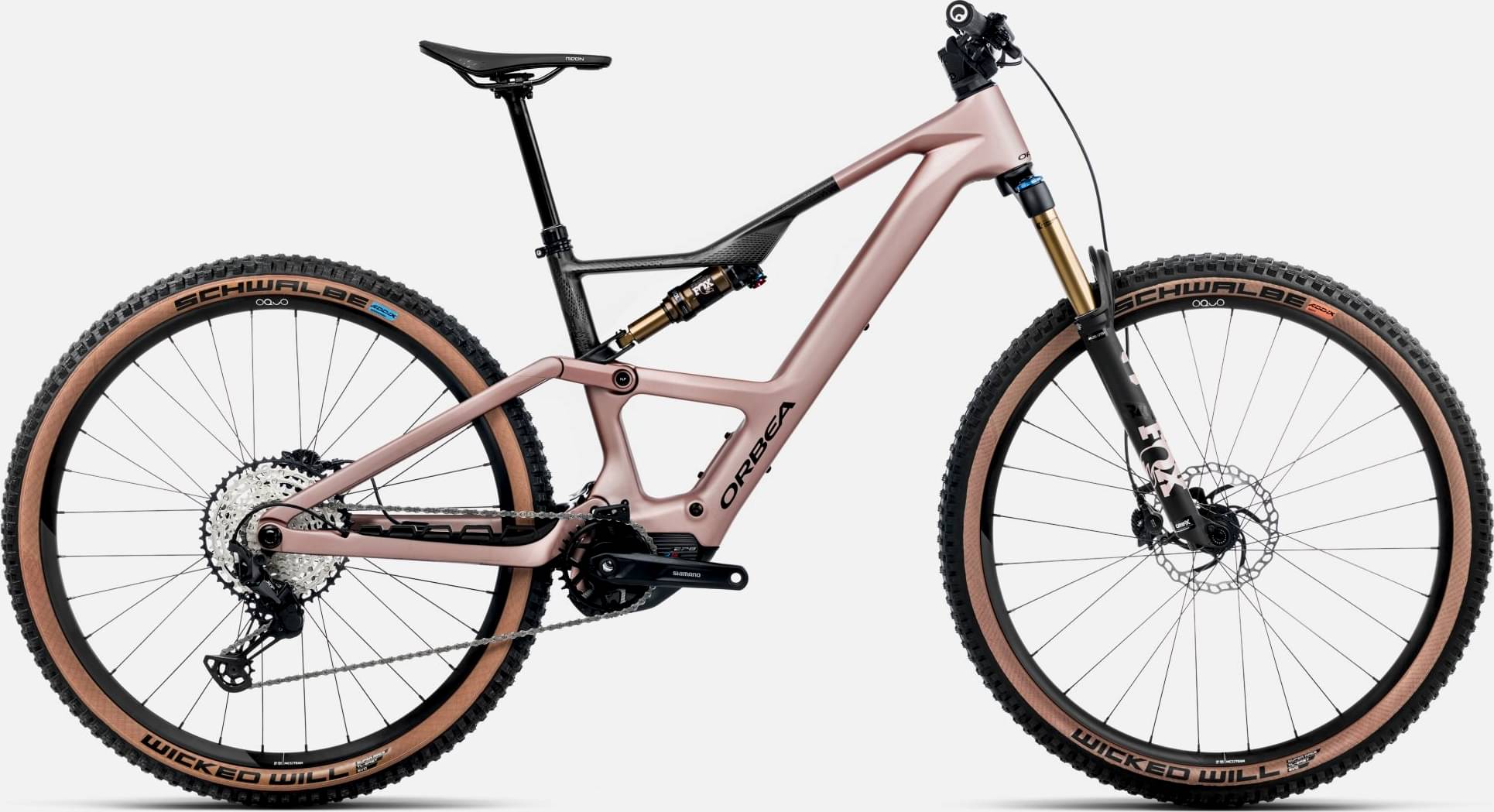

Orbea RISE SL M10 20mph 2025
2025 E-bike
Estimate price |
8,699$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Factory Float 34
-
Groupset XT, SLX -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery Orbea Internal 420Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Rise SL OMR 2025, 140mm travel, 29" wheels, Concentric Boost 12x148
Suspension Fork
Fox 34 Float Factory 140 Grip X QR15x110 Kashima
Rear Shock
Fox Float Factory 2-Pos Adjust Evol LV Kashima custom tune 210x50mm
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano SLX M7100 I-Spec EV
Cassette
Shimano CS-M7100 10-51t 12-Speed
Crank
e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine
Chain
Shimano M7100
Chain Guide
Orbea eBike chainguide
Wheels
Rims
Oquo Mountain Control MC32TEAM
Tires
Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown
Brakes
Brakes
Shimano XT M8100 Hydraulic Disc
Cockpit
Stem
OC Mountain Control MC20, 0º
Handlebar
OC Mountain Control MC21 Alu SL, Rise20, Width 800
Grips
Ergon GXR
Seat
Saddle
Fizik Terra Ridon X5 145mm
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Motor & Battery
Motor
Shimano EP801 RS Gen2 MC
Battery
Orbea Internal 420Wh
Remote
EN600-L
Charger
Orbea 2.Generation eBike Smart charger 42V/2-4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.384 mm | 1.32 mm | 1.271 mm | 1.227 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 755 mm | 782 mm | 811 mm | 841 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 117 mm | 117 mm | 117 mm | 116 mm |
| Stack | 609 mm | 614 mm | 623 mm | 632 mm |
| Reach | 440 mm | 465 mm | 490 mm | 515 mm |
| Top Tube Length | 568 mm | 594 mm | 620 mm | 647 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 405 mm | 415 mm | 430 mm | 460 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1193 mm | 1220 mm | 1249 mm | 1279 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
