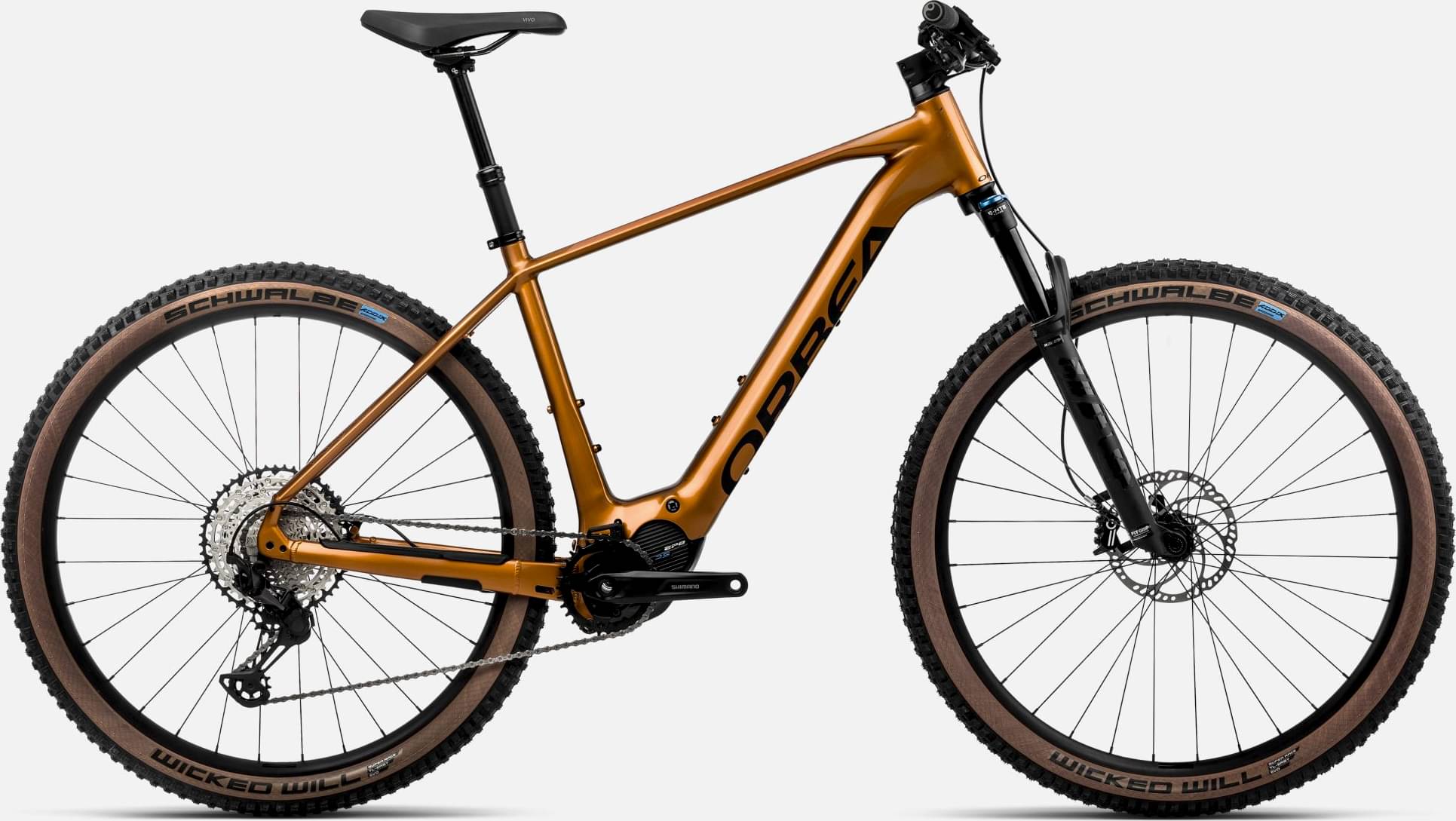

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Fox Performance Float 34
-
Groupset XT -
Suspension Hardtail -
Motor Shimano 600W 85Nm mid-drive -
Battery Orbea Internal 540Wh (Optional 250 Wh Range Extender) -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Urrun, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
Suspension Fork
Fox 34 Float Performance 120 Grip 3-Position QR15x110 E-Bike Optimized
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano XT M8100
Cassette
Shimano CS-M7100 10-51t 12-Speed
Crank
Alloy EP8 32t
Bottom Bracket
STEPS, press-fit
Chain
Shimano M6100
Chain Guide
Orbea Rise chainguide
Pedals
VP-537 Black
Wheels
Rims
Alloy, Tubeless, 29", 29c, 32H
Tires
Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown
Brakes
Brakes
Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Cockpit
Stem
Alloy forged, 35mm interface, -6º, ICR
Handlebar
OC Mountain Control MC31, Rise20, Width 800
Headset
FSA 1-1/2" Integrated Aluminium Cup
Seat
Saddle
Selle Royal Vivo Sport Men 145 x 269mm
Seatpost
OC Mountain Control MC21, 31.6mm, Dropper
Motor & Battery
Motor
Shimano EP801-RS
Battery
Orbea Internal 540Wh (Optional 250 Wh Range Extender)
Remote
EN600-L
Charger
Orbea 2.Generation eBike Smart charger 42V/2-4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.597 mm | 1.551 mm | 1.47 mm | 1.448 mm |
| Bottom Bracket Height | 322 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 703 mm | 711 mm | 734 mm | 781 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 128 mm | 117 mm | 138 mm | 120 mm |
| Stack | 631 mm | 628 mm | 647 mm | 666 mm |
| Reach | 395 mm | 405 mm | 440 mm | 460 mm |
| Top Tube Length | 565 mm | 579 mm | 608 mm | 645 mm |
| Seat Tube Angle | 74.8 ° | 74.6 ° | 74.6 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 453 mm | 483 mm | 533 mm |
| Head Tube Angle | 65.5 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 115 mm | 132 mm | 153 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1143 mm | 1150 mm | 1173 mm | 1220 mm |
| Bottom Bracket Drop | 54 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 798 mm | 826 mm | 848 mm | 882 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
