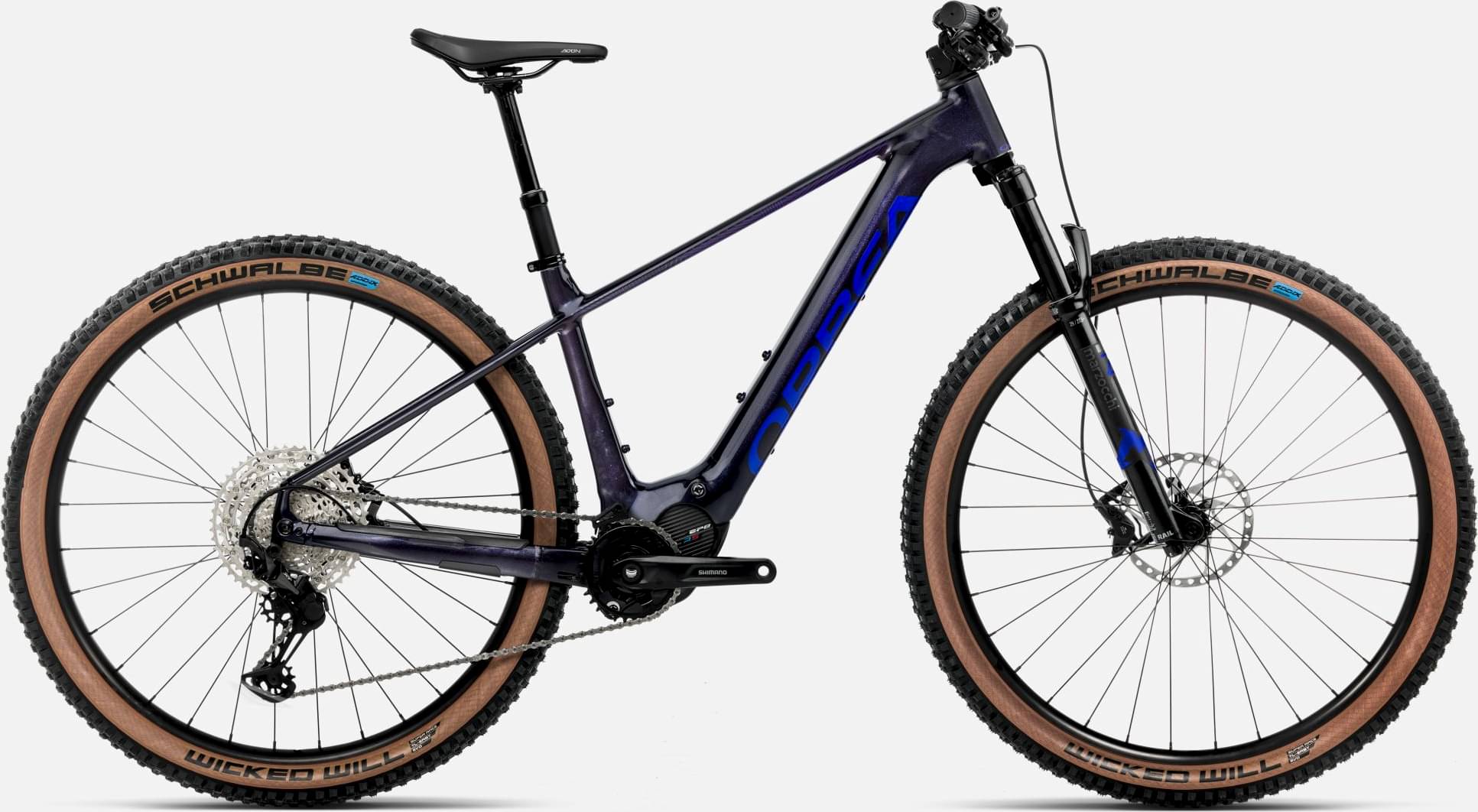

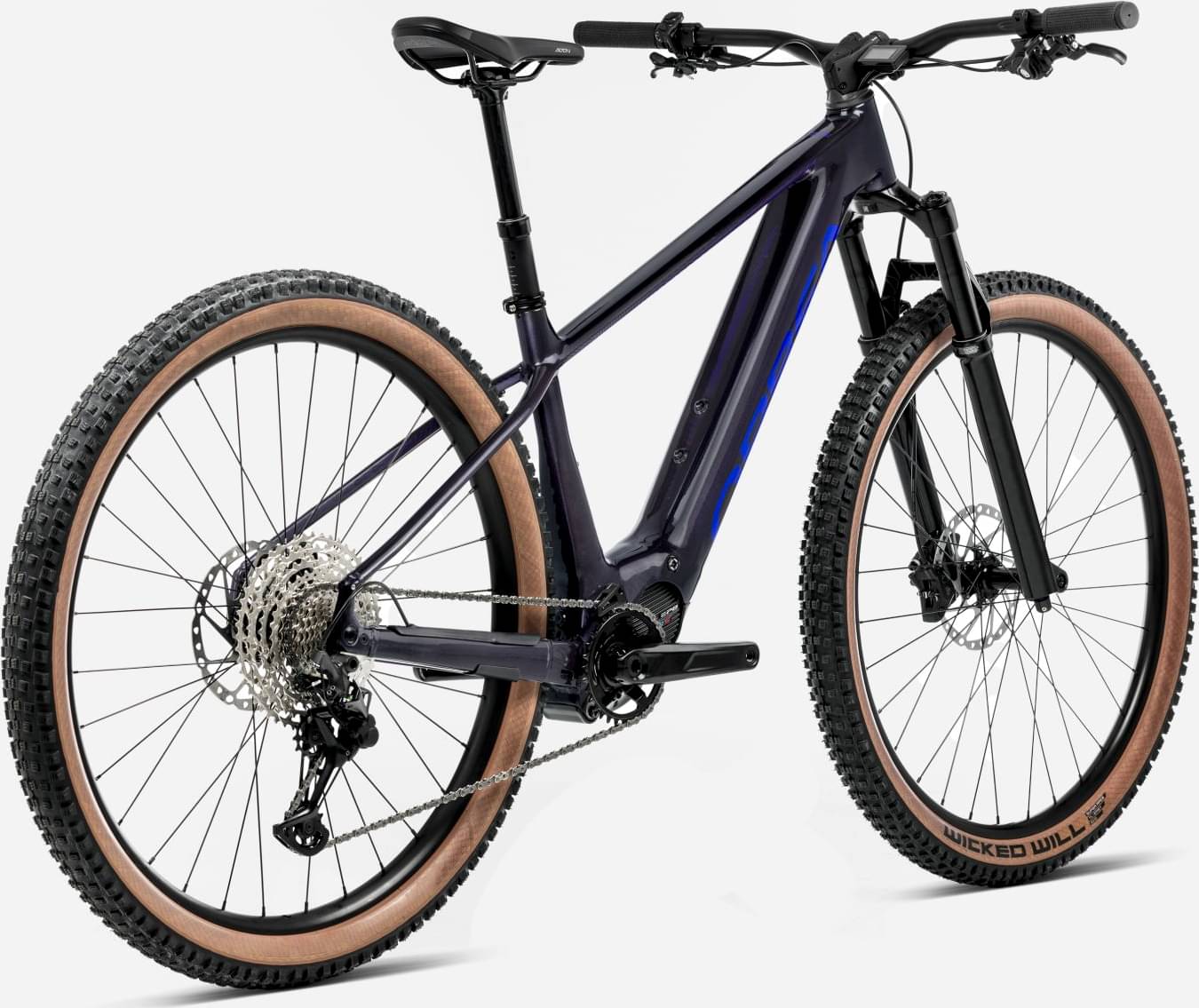

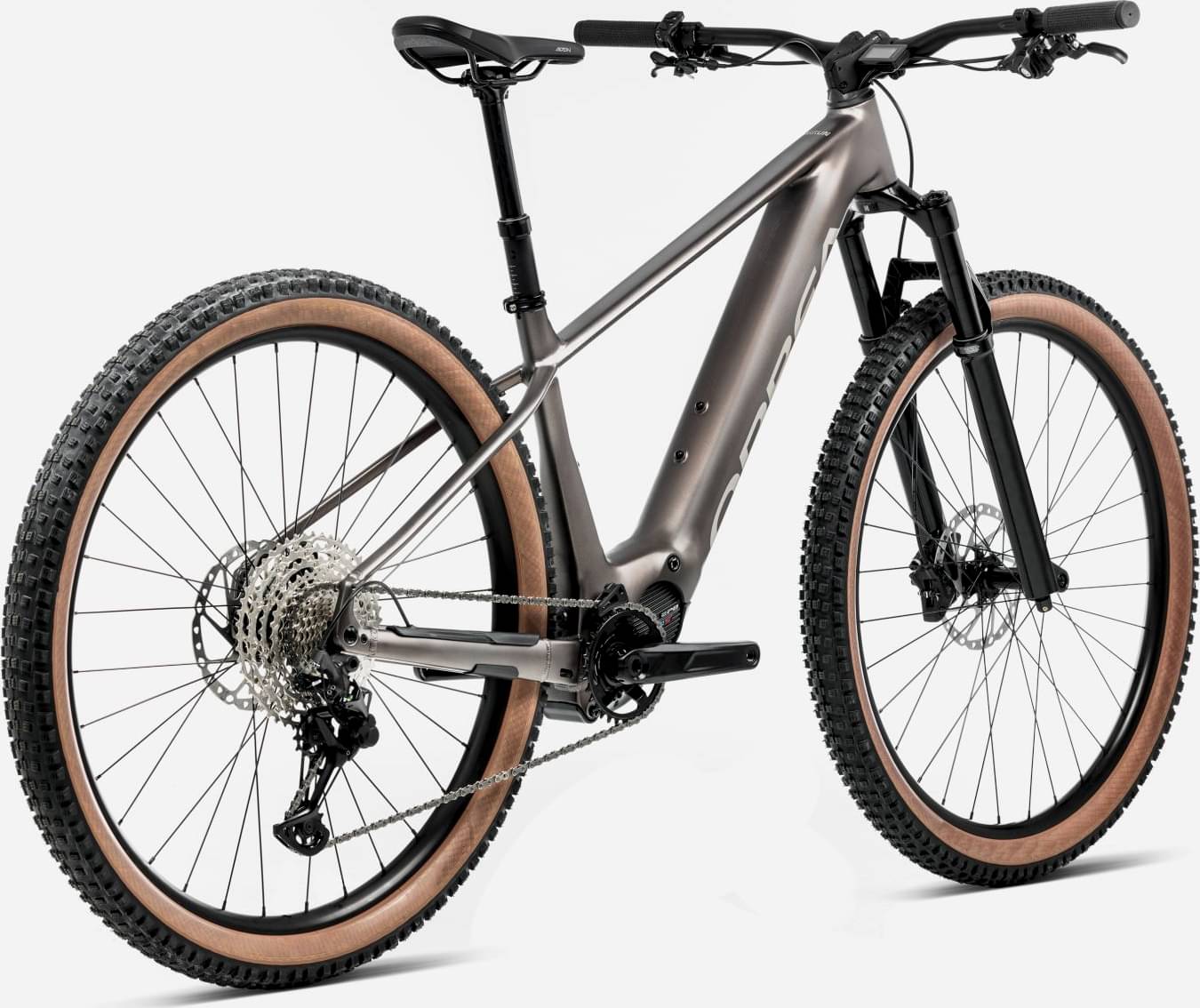

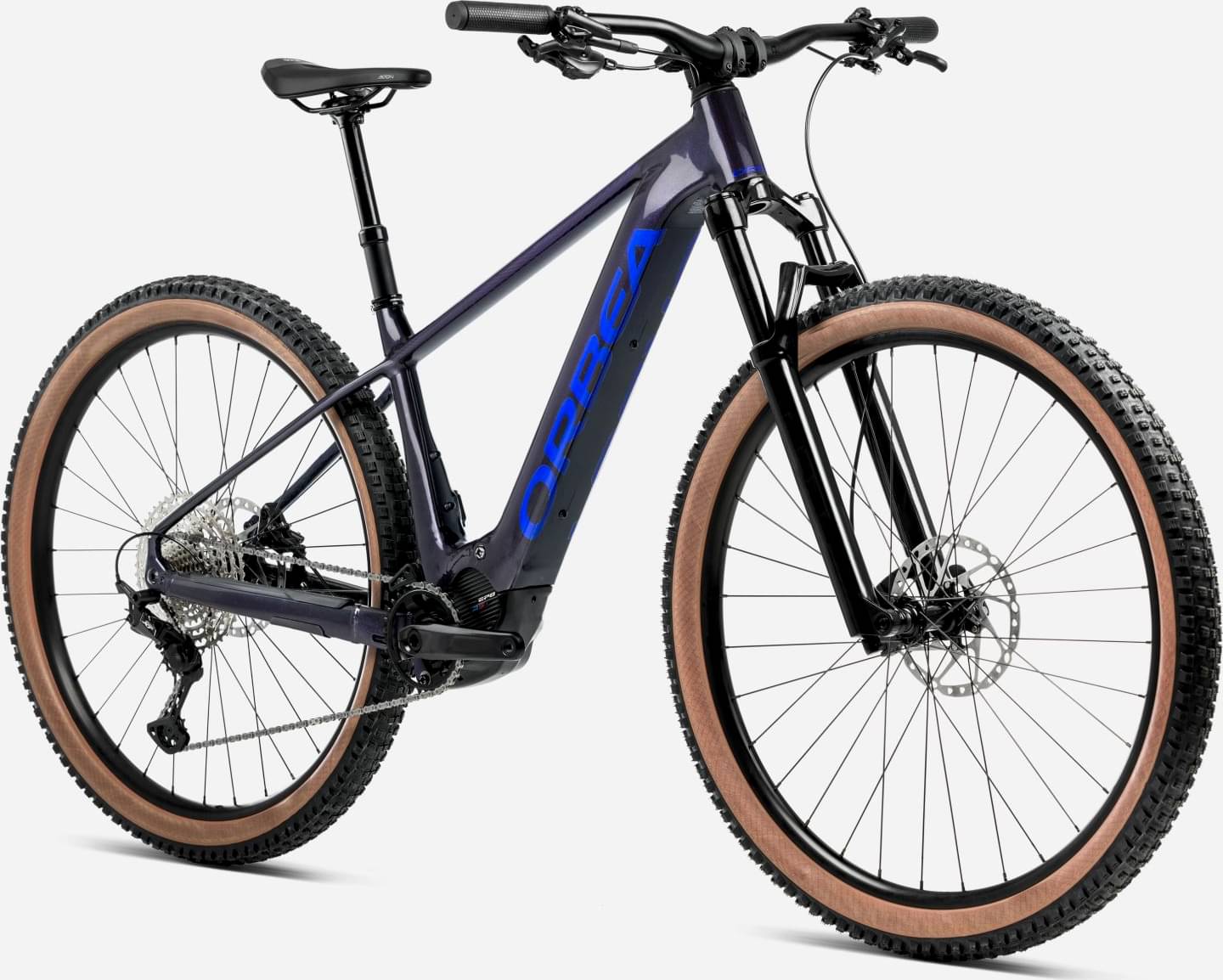

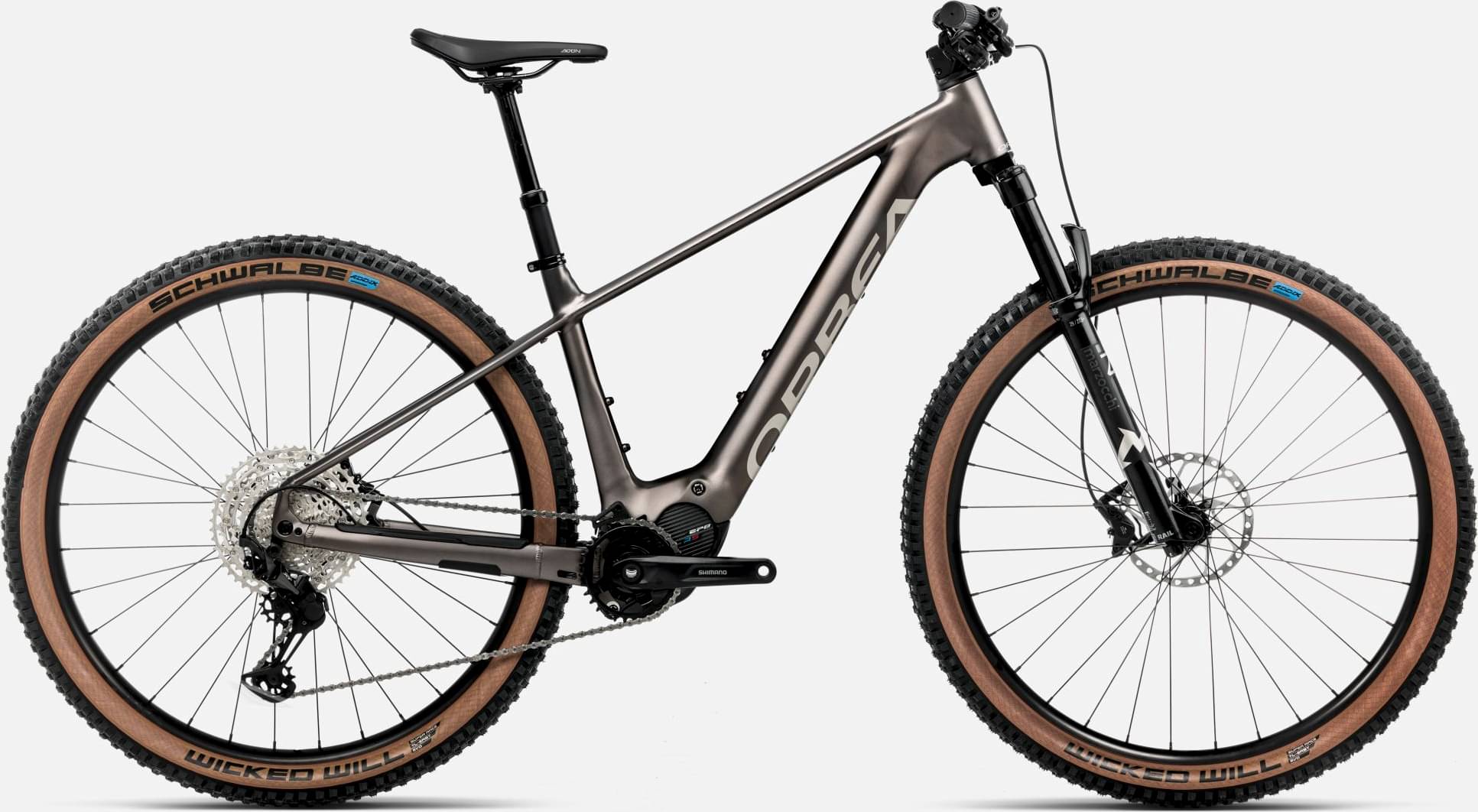

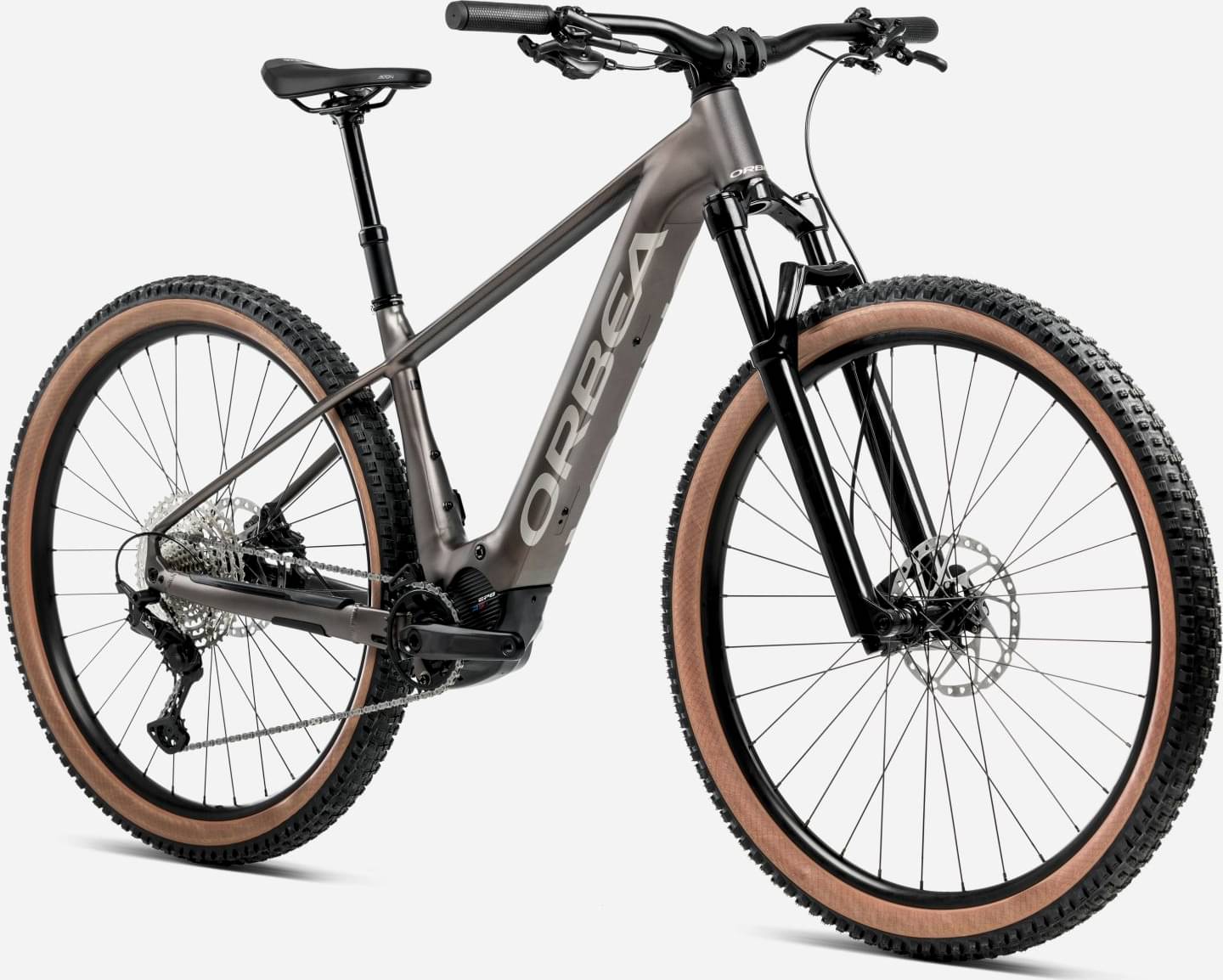

Orbea URRUN 10 20mph 2025
2025 E-bike
Estimate price |
4,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 120mm -
Fork Marzocchi Bomber Z2
-
Groupset XT -
Suspension Hardtail -
Motor Shimano 600W 85Nm mid-drive -
Battery Orbea Internal 630Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Marzocchi Bomber Z2 120 QR15x110 E-Bike Optimized
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano XT M8100 I-Spec EV
Cassette
Shimano CS-M6100 10-51t 12-Speed
Crank
Alloy EP8/6 32t
Chain
Shimano M6100
Chain Guide
Orbea eBike chainguide
Pedals
VP-537 Black
Wheels
Rims
Alloy, Tubeless, 29", 29c, 32H
Tires
Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown
Brakes
Brakes
Shimano M6100 Hydraulic Disc
Cockpit
Stem
OC Mountain Control MC20, 0º
Handlebar
OC Mountain Control MC31, Rise20, Width 800
Seat
Saddle
Fizik Aidon 208x145mm manganese rail
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Motor & Battery
Motor
Shimano EP801 RS Gen2 MC
Battery
Orbea Internal 630Wh
Remote
EN600-L
Charger
Orbea 2.Generation eBike Smart charger 42V/2-4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.524 mm | 1.465 mm | 1.404 mm | 1.383 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 711 mm | 733 mm | 762 mm | 790 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 119 mm | 119 mm | 119 mm | 119 mm |
| Stack | 625 mm | 630 mm | 639 mm | 657 mm |
| Reach | 410 mm | 430 mm | 455 mm | 475 mm |
| Top Tube Length | 575 mm | 596 mm | 624 mm | 649 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 450 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1149 mm | 1171 mm | 1200 mm | 1228 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 775 mm | 780 mm | 791 mm | 814 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
