origine Axxome 400 Flatbar FS63 2024

2024 Urban
Estimate price | 3,640$
Open compare Use advisor

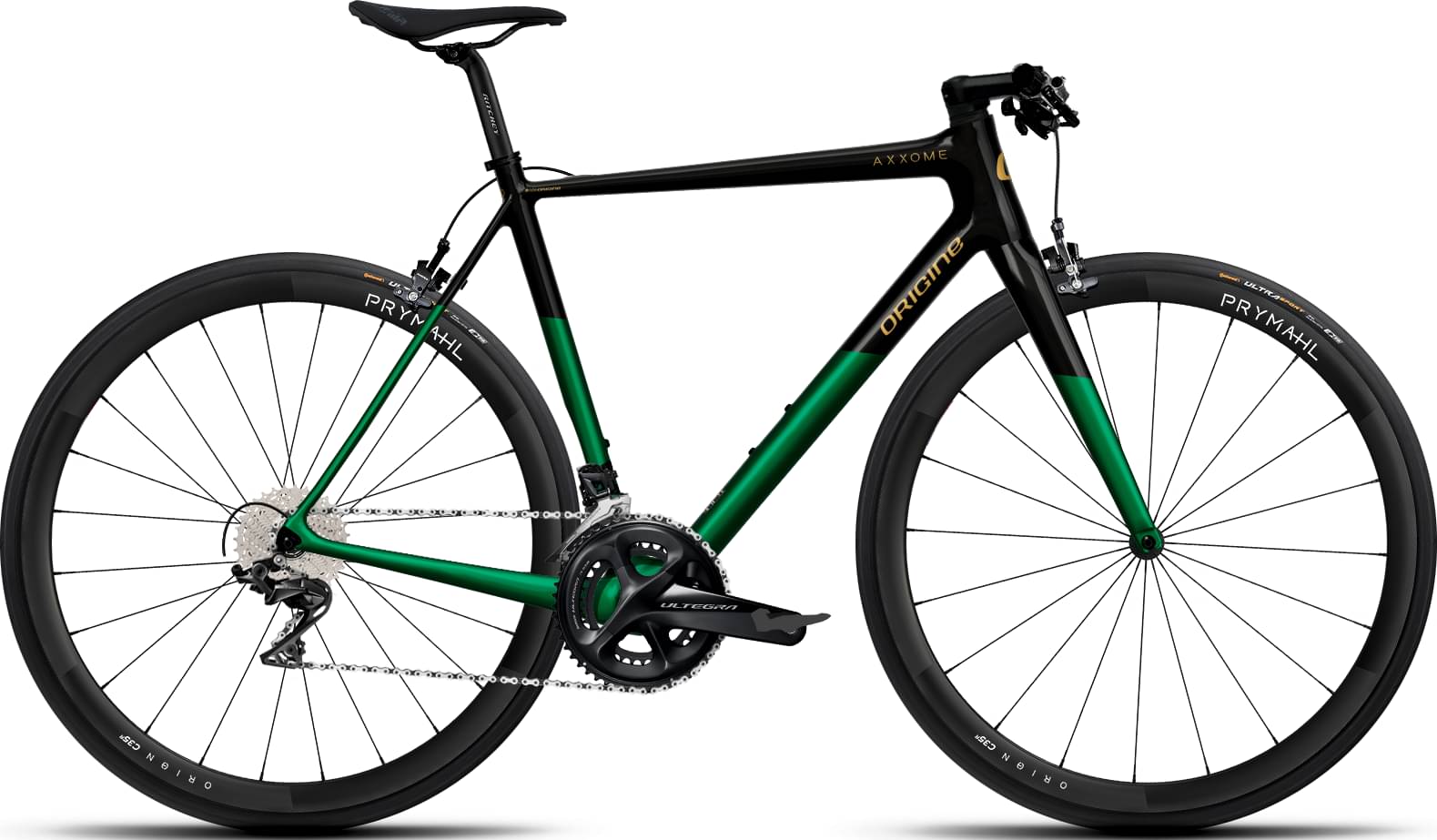

Origine Axxome 400 Flatbar Fs63 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Carbon
  • Groupset Ultegra, 105
  • Suspension Rigid
  • Drivetrain 2 × 11
  • Brakes Rim
Sizing

Recommended size guide.

  • XS

    151cm - 167cm

  • SM

    164cm - 173cm

  • MD

    170cm - 181cm

  • LG

    178cm - 187cm

  • XL

    184cm - 193cm

  • XXL

    190cm - 196cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Axxome 400

Suspension Fork

Axxome II Carbone U.D (380 g)

Drivetrain

Rear Derailleur

Ultegra R8000 Evo

Cassette

R7000 11-34

Crank

105 R7000 50/34 Compact

Pedals

Without pedals

Wheels

Rims

Orion C35 R

Tires

Ultra Sport 28

Brakes

Brakes

Ultegra R8000 Flat Evo

Cockpit

Stem

TK-278A (semi-intégrée)

Handlebar

MTN 2x Carbon

Grips

True grip X Comp

Seat

Saddle

Novus Boost Evo

Seatpost

1B WCS 27.2

Fit data

Geometry

Numbers for sizing and ride feel.

SizeXSSMMDLGXLXXL
Stack Reach Ratio
1.392 mm1.429 mm1.461 mm1.493 mm1.489 mm1.506 mm
Front Center
577 mm579 mm581 mm589 mm610 mm624 mm
Rake
45 mm45 mm45 mm45 mm45 mm45 mm
Trail
74 mm70 mm66 mm63 mm62 mm60 mm
Stack
518 mm533 mm548 mm569 mm588 mm613 mm
Reach
372 mm373 mm375 mm381 mm395 mm407 mm
Seat Tube Angle
74.5 °74 °73.2 °73 °73 °72.5 °
Seat Tube Length
470 mm500 mm530 mm555 mm580 mm610 mm
Head Tube Angle
71 °71.5 °72 °72.5 °72.5 °73 °
Head Tube Length
115 mm130 mm145 mm165 mm185 mm210 mm
Chainstay Length
403 mm403 mm403 mm403 mm403 mm403 mm
Wheelbase
969 mm971 mm974 mm982 mm1003 mm1017 mm
Bottom Bracket Drop
72 mm71 mm70 mm70 mm70 mm70 mm
Wheels700700700700700700
Rider Min Height151 cm164 cm170 cm178 cm184 cm190 cm
Rider Max Height167 cm173 cm181 cm187 cm193 cm196 cm
