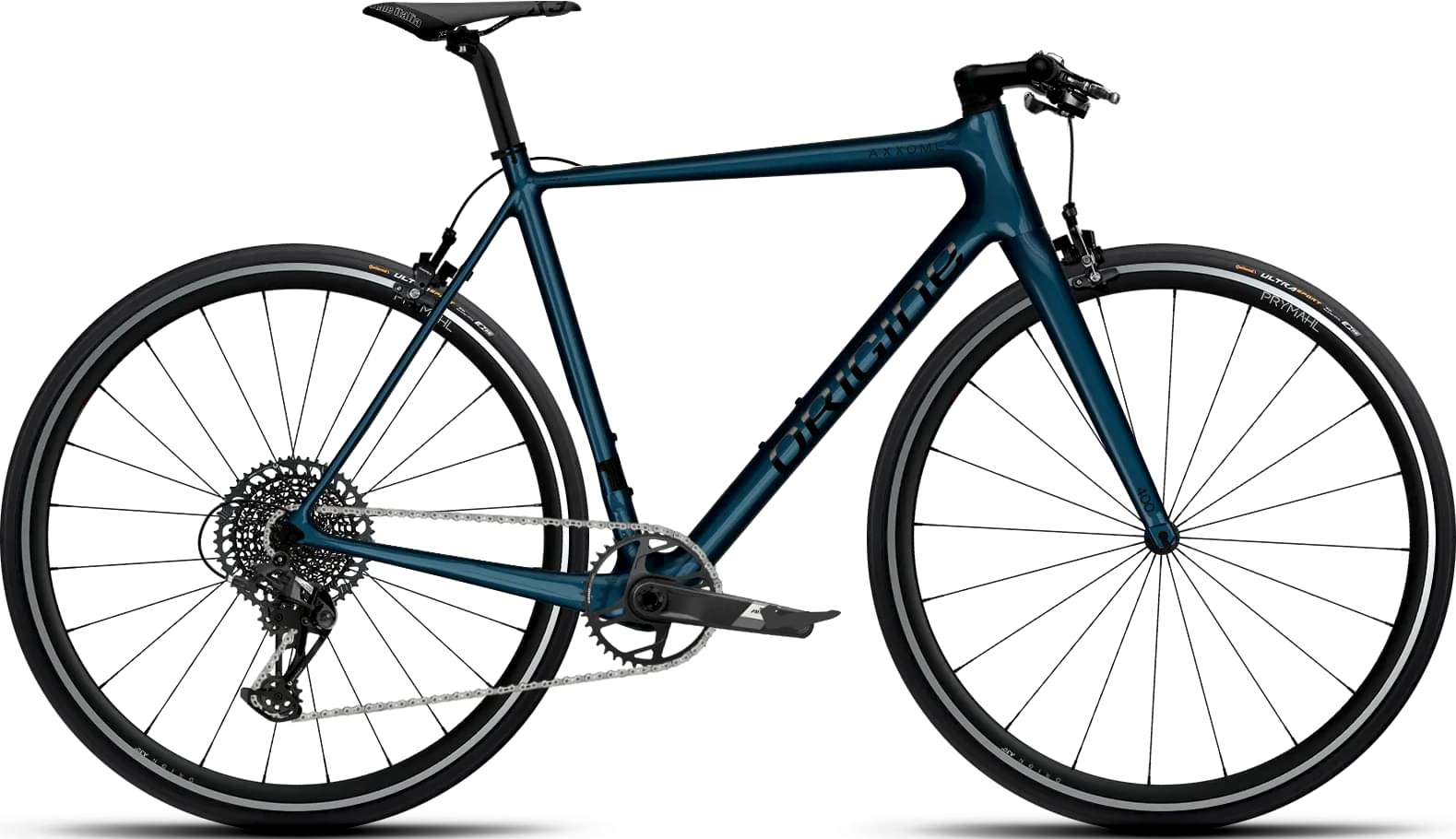

origine Axxome 400 Flatbar M2 2025
2025 Urban
Estimate price |
3,028$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Apex -
Suspension Rigid -
Brakes Shimano Tiagra Rim
Sizing
Recommended size guide.
XS
151cm - 167cm
SM
164cm - 173cm
MD
170cm - 181cm
LG
178cm - 187cm
XL
184cm - 193cm
XXL
190cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Axxome 400
Suspension Fork
Axxome II Carbone U.D (380 g)
Drivetrain
Rear Derailleur
Apex Eagle 1x12v
Cassette
GX Eagle 10-52 12 s
Crank
Apex 12v 42D
Pedals
Without pedals
Wheels
Rims
Orion A30 R
Tires
Ultra Sport 28
Brakes
Brakes
Tiagra 4700 Fitness
Cockpit
Stem
TK-278A (semi-intégrée)
Handlebar
Flat 580 mm
Grips
Superlogic
Seat
Saddle
X3 Flow Boost
Seatpost
Monobloc 27,2 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.392 mm | 1.429 mm | 1.461 mm | 1.493 mm | 1.489 mm | 1.506 mm |
| Front Center | 577 mm | 579 mm | 581 mm | 589 mm | 610 mm | 624 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 74 mm | 70 mm | 66 mm | 63 mm | 62 mm | 60 mm |
| Stack | 518 mm | 533 mm | 548 mm | 569 mm | 588 mm | 613 mm |
| Reach | 372 mm | 373 mm | 375 mm | 381 mm | 395 mm | 407 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.2 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 555 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° | 73 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 165 mm | 185 mm | 210 mm |
| Chainstay Length | 403 mm | 403 mm | 403 mm | 403 mm | 403 mm | 403 mm |
| Wheelbase | 969 mm | 971 mm | 974 mm | 982 mm | 1003 mm | 1017 mm |
| Bottom Bracket Drop | 72 mm | 71 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 164 cm | 170 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 167 cm | 173 cm | 181 cm | 187 cm | 193 cm | 196 cm |
