origine Axxome GTO Ultra Flatbar M3 2025

2025 Urban
Estimate price | 3,426$
Open compare Use advisor

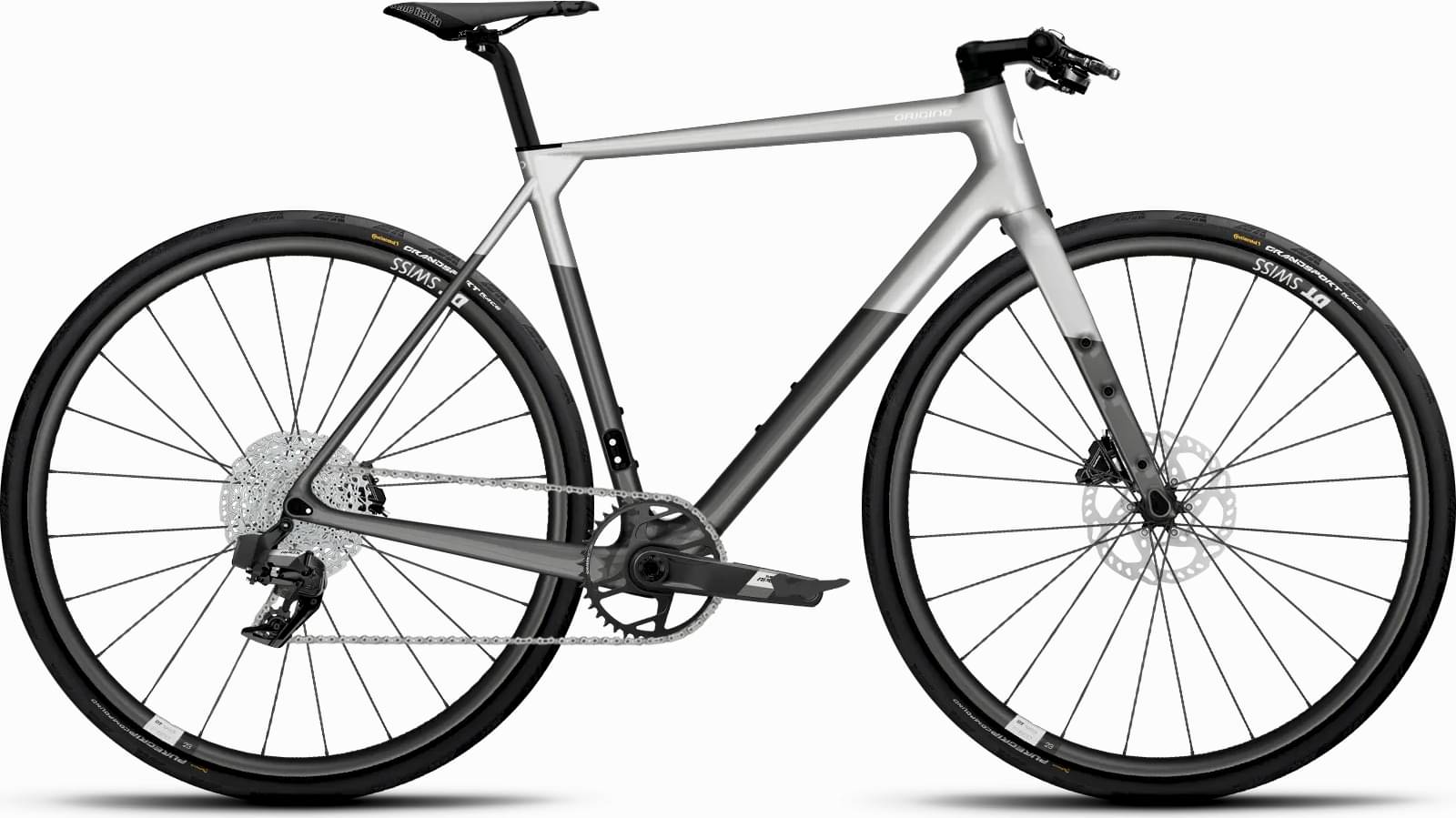

Origine Axxome Gto Ultra Flatbar M3 2025

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Carbon
  • Groupset Apex XPLR AXS
  • Suspension Rigid
  • Drivetrain 1 × 12 Electronic
  • Brakes Rim
Sizing

Recommended size guide.

  • XS

    151cm - 166cm

  • SM

    163cm - 173cm

  • MD

    170cm - 181cm

  • LG

    178cm - 188cm

  • XL

    185cm - 195cm

  • XXL

    192cm - 201cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Axxome GTO Ultra Flatbar

Suspension Fork

OGV III 12x100

Drivetrain

Rear Derailleur

Apex XPLR AXS 1x12v

Cassette

Apex 12v AXS XPLR 11-44

Crank

Apex 12v 42D

Pedals

Without pedals

Wheels

Rims

P 1800 Spline

Tires

Ultra Sport 32

Brakes

Brakes

Rim

Cockpit

Stem

TK-278A (semi-intégrée)

Handlebar

Flat 580 mm

Grips

Superlogic

Seat

Saddle

X3 Flow Boost

Seatpost

Monobloc 27,2 350mm

Fit data

Geometry

Numbers for sizing and ride feel.

SizeXSSMMDLGXLXXL
Stack Reach Ratio
1.468 mm1.496 mm1.512 mm1.535 mm1.562 mm1.595 mm
Front Center
592 mm597 mm602 mm611 mm619 mm633 mm
Rake
50 mm50 mm50 mm50 mm50 mm50 mm
Trail
77 mm74 mm67 mm65 mm61 mm62 mm
Stack
530 mm546 mm564 mm585 mm606 mm630 mm
Reach
361 mm365 mm373 mm381 mm388 mm395 mm
Seat Tube Angle
73 °72.9 °72.8 °72.7 °72.6 °72.5 °
Seat Tube Length
450 mm480 mm510 mm540 mm570 mm595 mm
Head Tube Angle
69.5 °70 °71 °71.5 °72 °72 °
Head Tube Length
120 mm135 mm150 mm170 mm190 mm215 mm
Chainstay Length
417 mm417 mm417 mm417 mm417 mm417 mm
Wheelbase
1000 mm1005 mm1010 mm1019 mm1028 mm1042 mm
Bottom Bracket Drop
64 mm64 mm64 mm64 mm64 mm64 mm
Wheels700700700700700700
Rider Min Height151 cm163 cm170 cm178 cm185 cm192 cm
Rider Max Height166 cm173 cm181 cm188 cm195 cm201 cm
