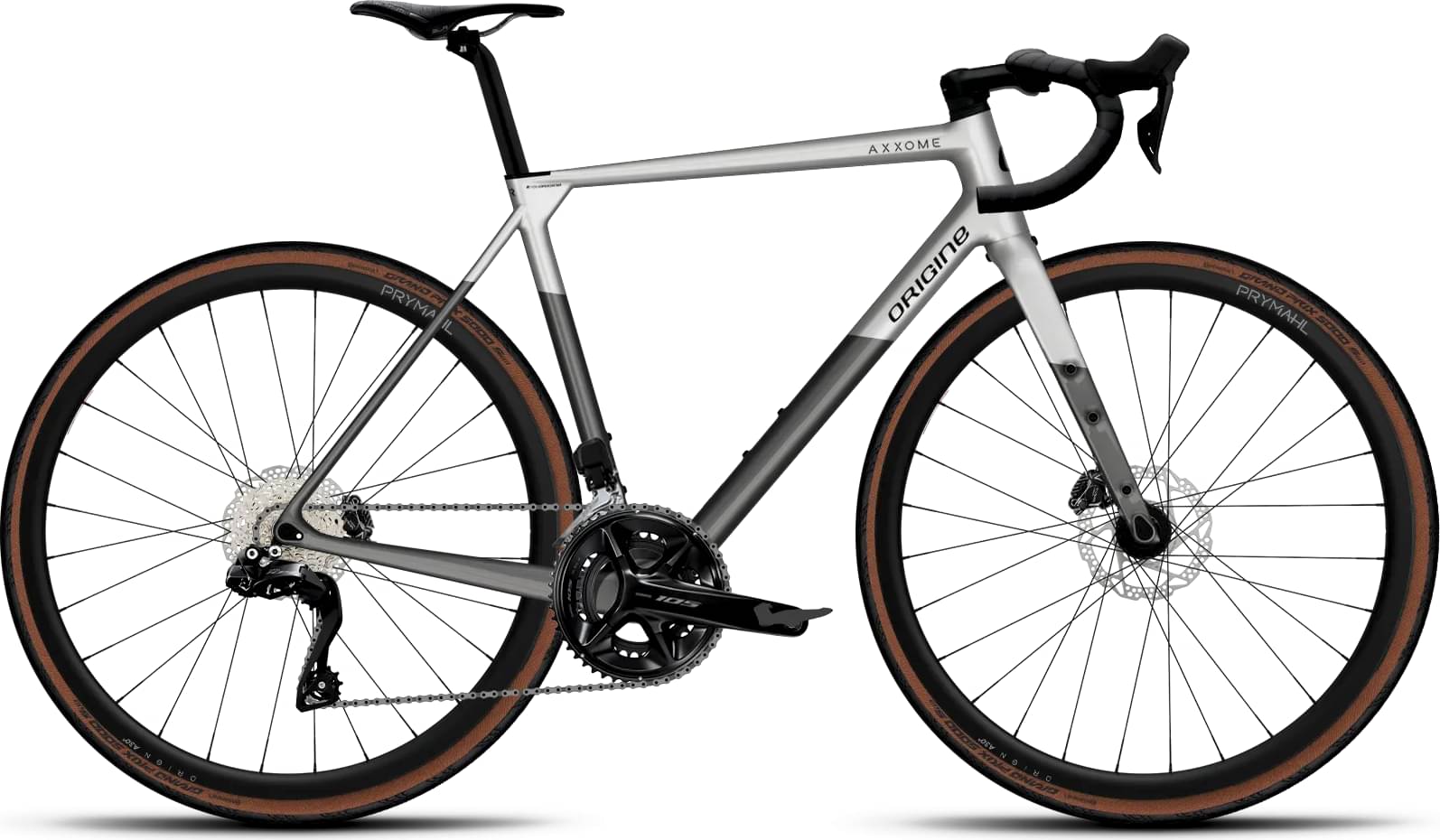

origine Axxome GTR Ultra M3 Di2 2025
2025 Road
Estimate price |
4,778$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 165cm
SM
162cm - 176cm
MD
173cm - 184cm
LG
181cm - 192cm
XL
189cm - 198cm
XXL
195cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Axxome GTR Ultra
Suspension Fork
OGV III 12x100
Drivetrain
Rear Derailleur
105 R7150 Di2 Disc 12v
Cassette
R7100 11-34 12v
Crank
105 R7100 50/34 BS
Pedals
Without pedals
Wheels
Rims
Orion A30 R Disc
Tires
GP 5000S TR 30 flanc brun Chambres à air
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
TK-278A (semi-intégrée)
Handlebar
Road Ergomax WCS
Seat
Saddle
SLR Boost Superflow
Seatpost
Monobloc 27,2 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.468 mm | 1.496 mm | 1.512 mm | 1.535 mm | 1.562 mm | 1.595 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 592 mm | 597 mm | 602 mm | 611 mm | 619 mm | 633 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 72 mm | 69 mm | 63 mm | 61 mm | 57 mm | 58 mm |
| Stack | 530 mm | 546 mm | 564 mm | 585 mm | 606 mm | 630 mm |
| Reach | 361 mm | 365 mm | 373 mm | 381 mm | 388 mm | 395 mm |
| Seat Tube Angle | 73 ° | 72.9 ° | 72.8 ° | 72.7 ° | 72.6 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm | 595 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1000 mm | 1005 mm | 1010 mm | 1019 mm | 1028 mm | 1042 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm | 64 mm | 64 mm | 64 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 162 cm | 173 cm | 181 cm | 189 cm | 195 cm |
| Rider Max Height | 165 cm | 176 cm | 184 cm | 192 cm | 198 cm | 201 cm |
