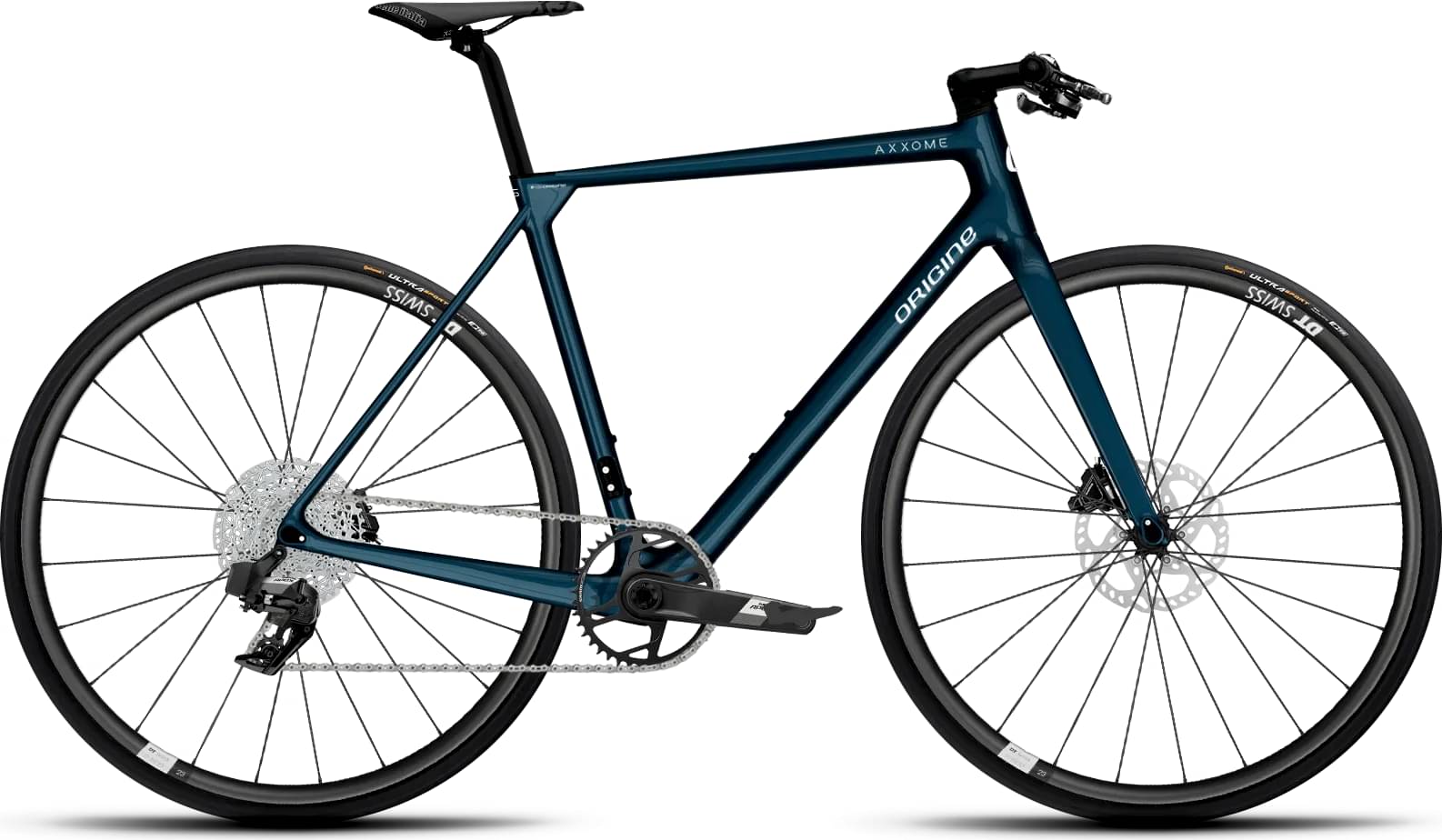

origine Axxome GTS Flatbar M3 AXS 2025
2025 Urban
Estimate price |
3,191$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Apex XPLR AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 166cm
SM
163cm - 173cm
MD
170cm - 181cm
LG
178cm - 188cm
XL
185cm - 195cm
XXL
192cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Axxome GTS Flatbar
Suspension Fork
Axxome III In Disc 12x100
Drivetrain
Rear Derailleur
Apex XPLR AXS 1x12v
Cassette
Apex 12v AXS XPLR 11-44
Crank
Apex 12v 40D
Pedals
Without pedals
Wheels
Rims
P 1800 Spline
Tires
Ultra Sport 28
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
TK-278A (semi-intégrée)
Handlebar
Flat 580 mm
Grips
Superlogic
Seat
Saddle
X3 Flow Boost
Seatpost
Monobloc 27,2 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.416 mm | 1.444 mm | 1.454 mm | 1.478 mm | 1.501 mm | 1.538 mm |
| Front Center | 582 mm | 588 mm | 593 mm | 602 mm | 612 mm | 625 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 77 mm | 73 mm | 66 mm | 63 mm | 60 mm | 60 mm |
| Stack | 524 mm | 540 mm | 557 mm | 578 mm | 599 mm | 623 mm |
| Reach | 370 mm | 374 mm | 383 mm | 391 mm | 399 mm | 405 mm |
| Seat Tube Angle | 74 ° | 73.9 ° | 73.8 ° | 73.7 ° | 73.6 ° | 73.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm | 595 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 988 mm | 994 mm | 999 mm | 1008 mm | 1018 mm | 1032 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 163 cm | 170 cm | 178 cm | 185 cm | 192 cm |
| Rider Max Height | 166 cm | 173 cm | 181 cm | 188 cm | 195 cm | 201 cm |
