origine Graxx GTR Explore M4 Di2 2025

2025 Road
Estimate price | 6,372$
Open compare Use advisor

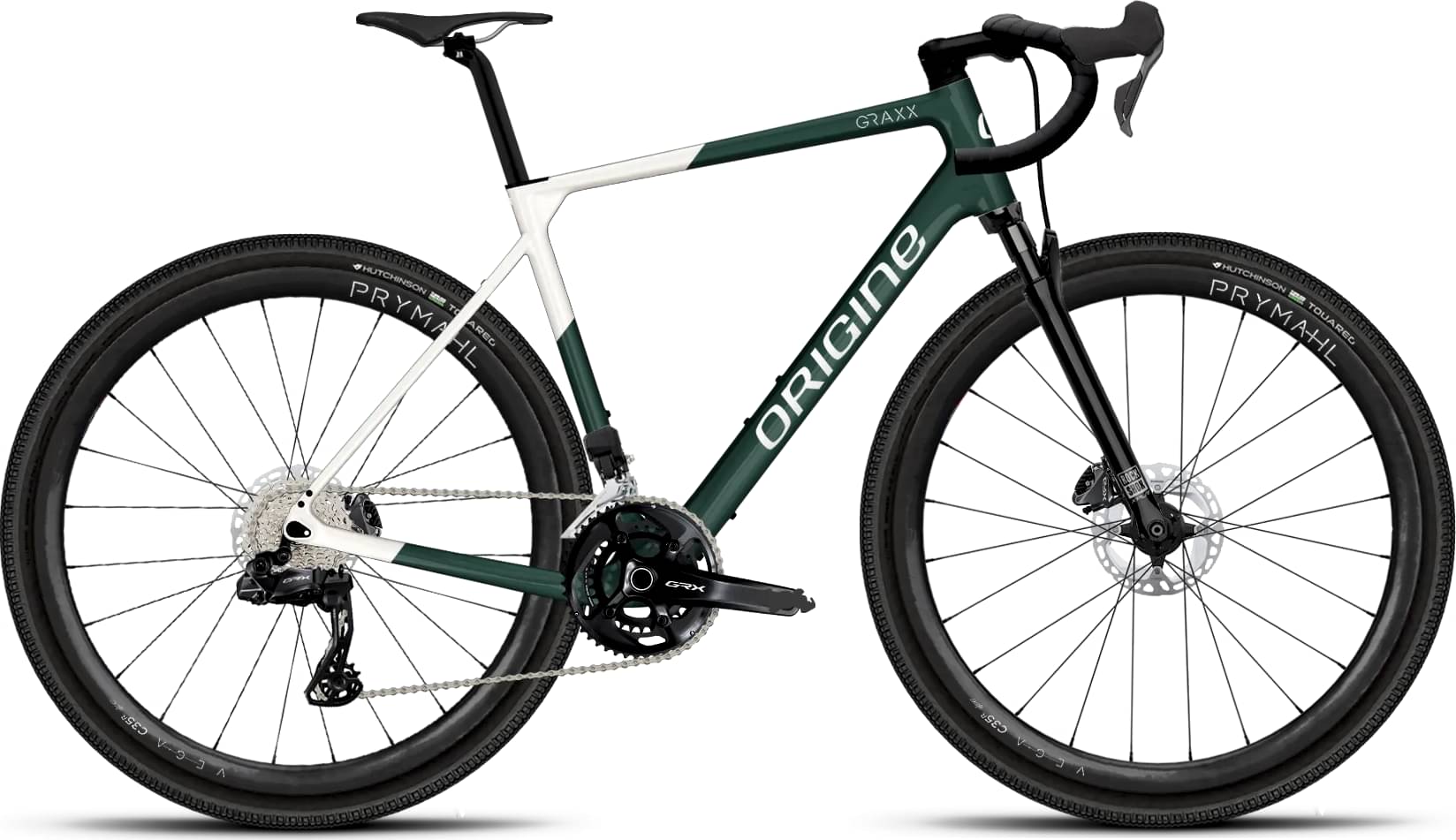

Origine Graxx Gtr Explore M4 Di2 2025

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Carbon
  • Travel Front 40mm
  • Fork RockShox Rudy XPLR
  • Groupset GRX Di2, GRX 600
  • Suspension Hardtail
  • Drivetrain 2 × 12 Electronic
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • XS

    150cm - 162cm

  • SM

    159cm - 172cm

  • MD

    169cm - 182cm

  • LG

    179cm - 191cm

  • XL

    188cm - 203cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Graxx GTR Explore

Suspension Fork

Rudy XPLR 40mm Noire

Drivetrain

Rear Derailleur

GRX 825 Di2 2x12v

Cassette

R7100 11-34 12v

Crank

GRX 610 12sp 46/30

Pedals

Without pedals

Wheels

Rims

Vega C35 R Wide

Tires

Touareg Green 700x40 w/tubes

Brakes

Brakes

Hydraulic Disc

Cockpit

Stem

TK-278A (semi-intégrée)

Handlebar

Road Ergomax WCS

Seat

Saddle

SLR Boost X-Cross Superflow

Seatpost

Monobloc 27,2 350mm

Fit data

Geometry

Numbers for sizing and ride feel.

SizeXSSMMDLGXL
Stack Reach Ratio
1.627 mm1.619 mm1.629 mm1.676 mm1.686 mm
Bottom Bracket Height
289 mm289 mm289 mm289 mm289 mm
Front Center
599 mm615 mm628 mm636 mm652 mm
Rake
51 mm51 mm51 mm51 mm51 mm
Trail
82 mm79 mm77 mm73 mm73 mm
Stack
558 mm578 mm598 mm625 mm644 mm
Reach
343 mm357 mm367 mm373 mm382 mm
Seat Tube Angle
72.4 °71.9 °72 °72 °72 °
Seat Tube Length
455 mm475 mm505 mm535 mm570 mm
Head Tube Angle
68.4 °68.9 °69.3 °70 °70 °
Head Tube Length
120 mm140 mm160 mm185 mm205 mm
Chainstay Length
430 mm430 mm430 mm430 mm430 mm
Wheelbase
1022 mm1038 mm1051 mm1059 mm1075 mm
Bottom Bracket Drop
60 mm60 mm60 mm60 mm60 mm
Wheels700700700700700
Rider Min Height150 cm159 cm169 cm179 cm188 cm
Rider Max Height162 cm172 cm182 cm191 cm203 cm
