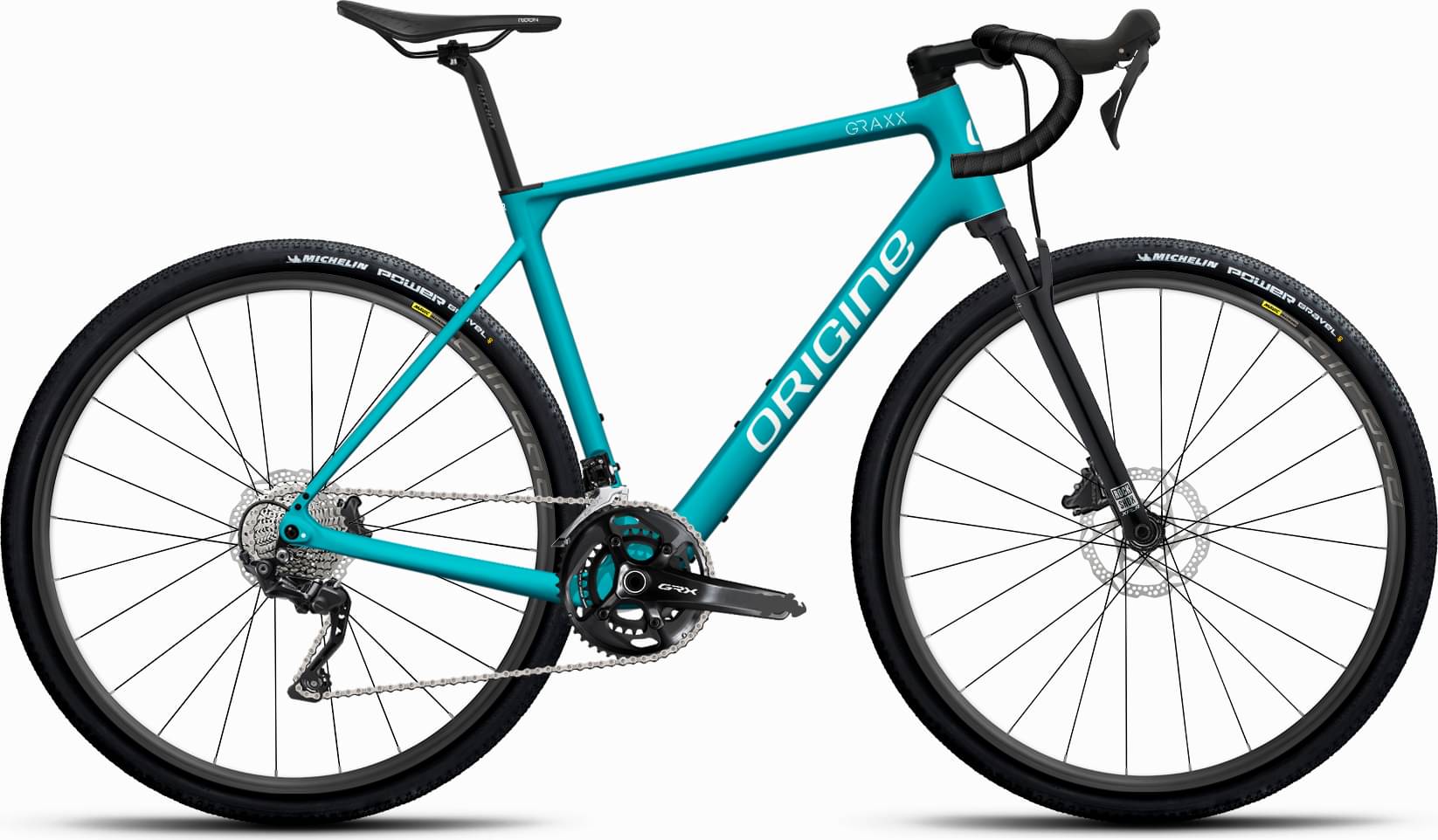

origine Graxx III GTR Explore R35 2024
2024 Road
Estimate price |
4,003$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 40mm -
Fork RockShox Rudy XPLR
-
Groupset GRX 600, GRX 400 -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 172cm
MD
169cm - 180cm
LG
177cm - 188cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Graxx III GTR Explore
Suspension Fork
Rudy XPLR Ultimate 40mm Noire
Drivetrain
Rear Derailleur
GRX 400 2x10s
Cassette
HG-50 11-36
Crank
GRX 600 46/30 10s
Pedals
Without pedals
Wheels
Rims
Allroad
Tires
Power Gravel 40 Tubeless
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
TK-278A (semi-intégrée)
Handlebar
Road Ergomax Comp
Seat
Saddle
Terra Ridon X5
Seatpost
2B WTD 27,2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.619 mm | 1.629 mm | 1.676 mm | 1.686 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm | 289 mm |
| Front Center | 615 mm | 628 mm | 636 mm | 652 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 79 mm | 77 mm | 73 mm | 73 mm |
| Stack | 578 mm | 598 mm | 625 mm | 644 mm |
| Reach | 357 mm | 367 mm | 373 mm | 382 mm |
| Seat Tube Angle | 71.9 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 475 mm | 505 mm | 535 mm | 570 mm |
| Head Tube Angle | 68.9 ° | 69.3 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 160 mm | 185 mm | 205 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1038 mm | 1051 mm | 1059 mm | 1075 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 169 cm | 177 cm | 185 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 200 cm |
