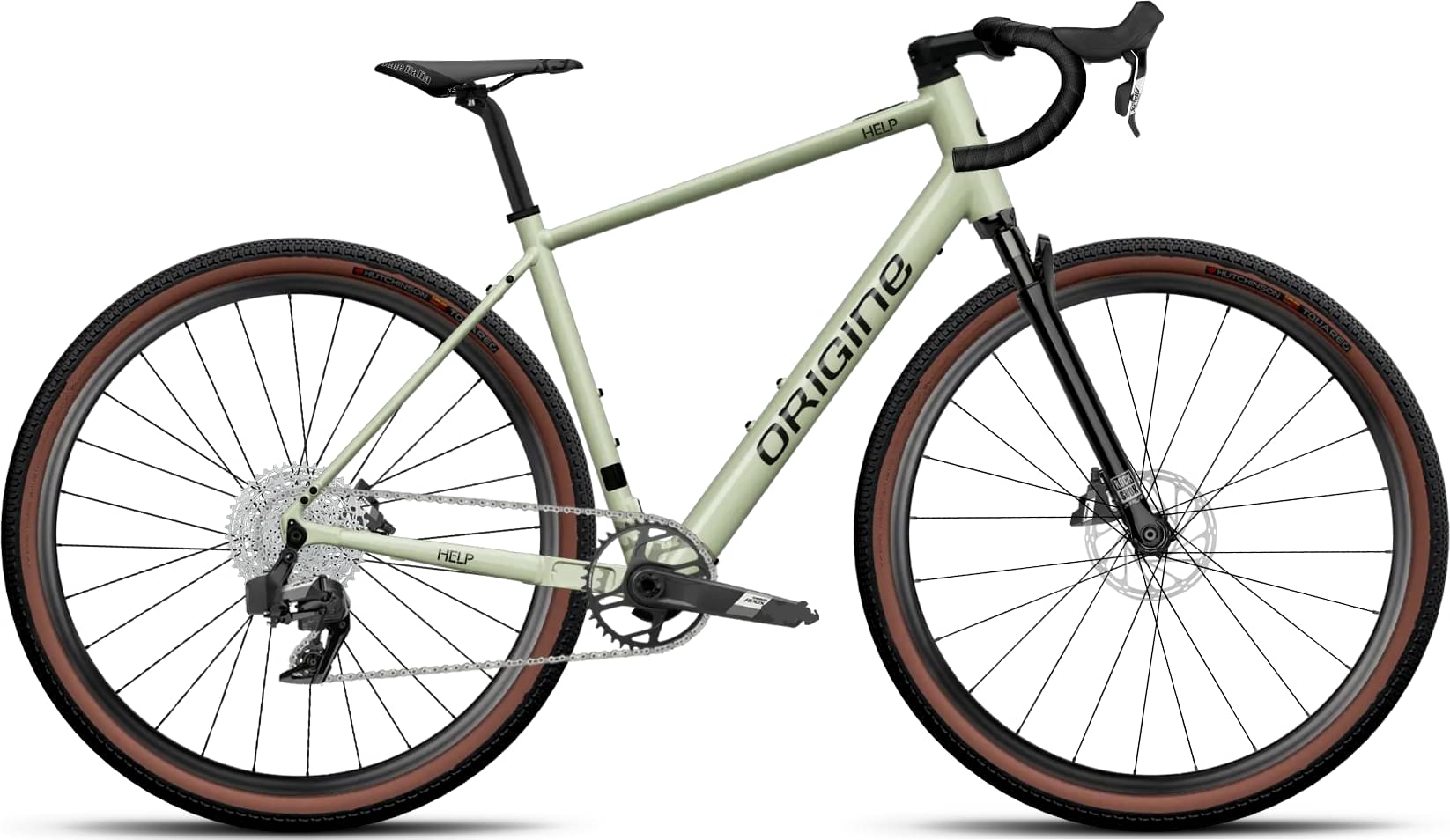

origine Help Explore M4 AXS 2025
2025 E-bike
Estimate price |
5,702$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 40mm -
Fork RockShox Rudy XPLR
-
Groupset Apex XPLR AXS -
Suspension Hardtail -
Motor MAHLE 55Nm hub-drive -
Battery IX 250Wh intube -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 172cm
MD
169cm - 180cm
LG
177cm - 187cm
XL
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Help Gravel
Suspension Fork
Rudy XPLR 40mm Noire
Drivetrain
Rear Derailleur
Apex XPLR AXS 1x12v
Cassette
Apex 12v AXS XPLR 11-44
Crank
Apex 12v 40D
Pedals
Without pedals
Wheels
Rims
R500 X20
Tires
Touareg 700x40 TR tan sidewall w/tubes
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
TK-278A (semi-intégrée)
Handlebar
Road Ergomax Comp
Seat
Saddle
X3 Flow Boost
Seatpost
Monobloc 27,2 350mm
Motor & Battery
Motor
Mahle X20 e-drive 435Wh
Battery
IX 250Wh intube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.695 mm | 1.711 mm | 1.737 mm | 1.726 mm |
| Front Center | 610 mm | 626 mm | 643 mm | 664 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 88 mm | 89 mm | 89 mm | 89 mm |
| Stack | 590 mm | 611 mm | 634 mm | 654 mm |
| Reach | 348 mm | 357 mm | 365 mm | 379 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 545 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 175 mm | 200 mm | 220 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1031 mm | 1048 mm | 1065 mm | 1086 mm |
| Bottom Bracket Drop | 62 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 172 cm | 180 cm | 187 cm | 193 cm |
