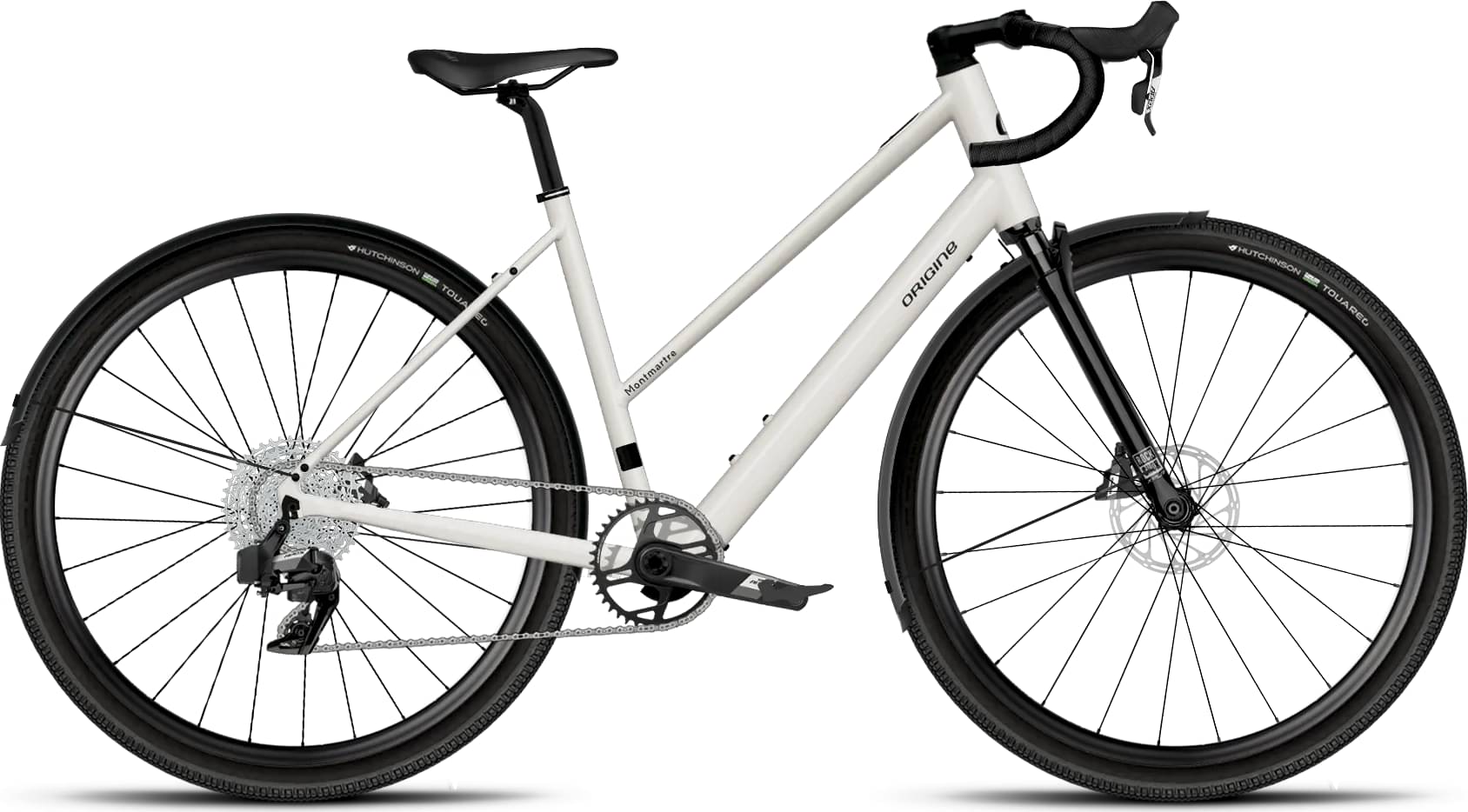

origine Montmartre Open Sport M4 2025
2025 Urban
Estimate price |
5,169$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 40mm -
Fork RockShox Rudy XPLR
-
Groupset Apex XPLR AXS -
Suspension Hardtail -
Battery IX2 250Wh intube X30 -
Drivetrain 1 × 12 Electronic -
Brakes Rim
Sizing
Recommended size guide.
SM
153cm - 172cm
MD
169cm - 180cm
LG
177cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Montmartre
Suspension Fork
Rudy XPLR 40mm Noire
Drivetrain
Rear Derailleur
Apex XPLR AXS 1x12v
Cassette
Apex 12v AXS XPLR 11-44
Crank
Apex 12v 40D
Pedals
Without pedals
Wheels
Rims
ASY X30
Tires
Touareg Green 700x40 w/tubes
Brakes
Brakes
Rim
Cockpit
Stem
TK-278A (semi-intégrée)
Handlebar
Road Curve Comp
Seat
Saddle
X-Bow Flow
Seatpost
Monobloc 27,2 350mm
Motor & Battery
Battery
IX2 250Wh intube X30
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.637 mm | 1.644 mm | 1.651 mm |
| Front Center | 624 mm | 641 mm | 658 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 84 mm | 84 mm | 84 mm |
| Stack | 591 mm | 610 mm | 629 mm |
| Reach | 361 mm | 371 mm | 381 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 510 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 185 mm | 205 mm | 225 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1070 mm | 1087 mm | 1104 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 153 cm | 169 cm | 177 cm |
| Rider Max Height | 172 cm | 180 cm | 185 cm |
