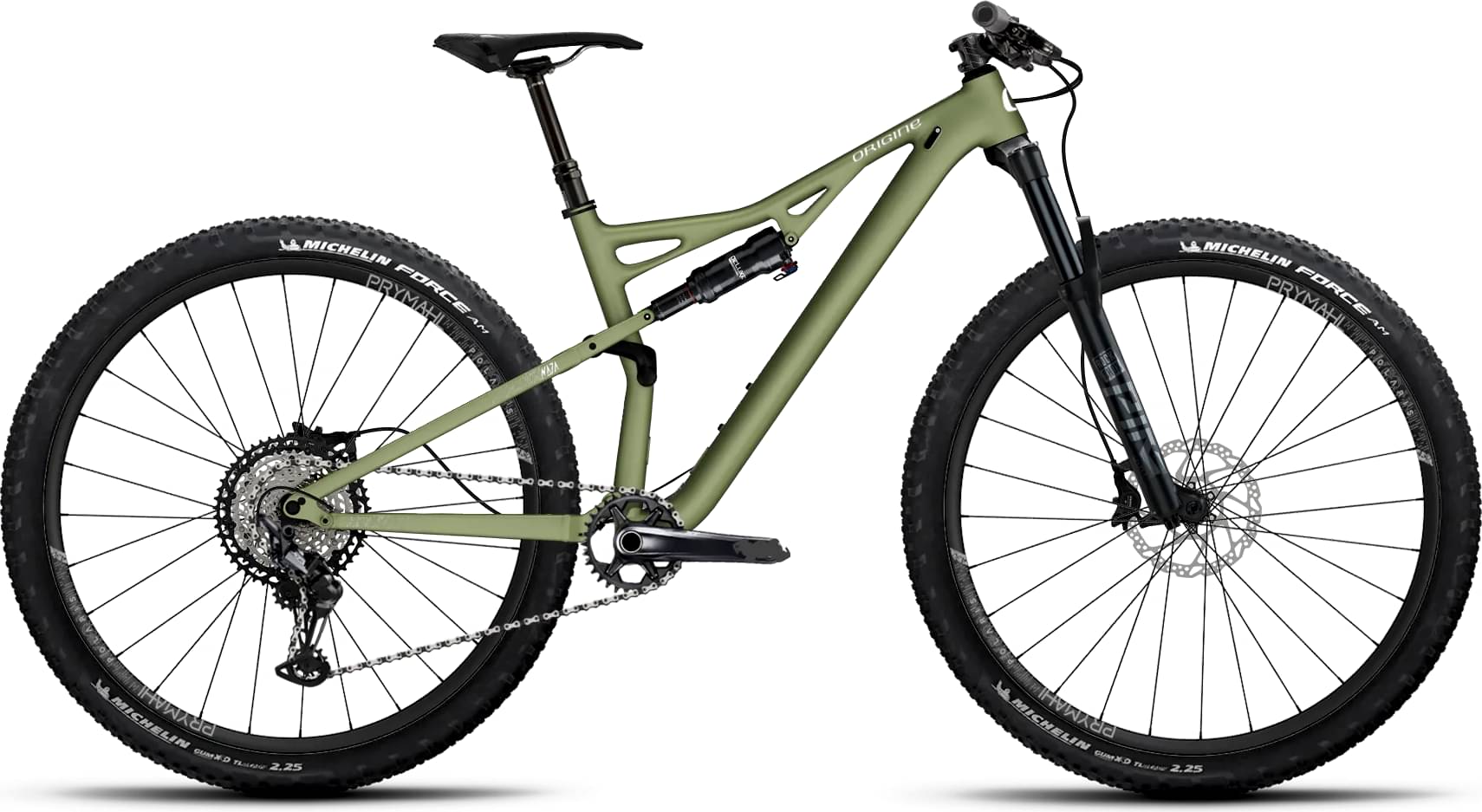

origine Naja 130 / 120 M3 2025
2025 Mountain
Estimate price |
4,373$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 130mm -
Fork RockShox Pike Select
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano XT Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 170cm
MD
167cm - 179cm
LG
176cm - 189cm
XL
186cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Naja 130 / 120
Suspension Fork
Pike Select 130mm
Drivetrain
Rear Derailleur
XT M8100 12s
Cassette
XT M8100 12s 10-51
Crank
XT M8100 single 32
Pedals
Without pedals
Wheels
Rims
Polaris A30 Pro 29''
Tires
Force AM Competition Line 29x2.25
Brakes
Brakes
XT M8100
Cockpit
Stem
Mountain Trail WCS
Handlebar
MTN Rizer Trail 760
Grips
True grip X Comp
Seat
Saddle
X-LR Air Cross Light SF Rails Ti316
Seatpost
Reverb Stealth 125mm 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.455 mm | 1.374 mm | 1.365 mm | 1.296 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 697 mm | 722 mm | 750 mm | 781 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 112 mm | 112 mm | 114 mm | 113 mm |
| Stack | 601 mm | 602 mm | 625 mm | 630 mm |
| Reach | 413 mm | 438 mm | 458 mm | 486 mm |
| Seat Tube Angle | 75.2 ° | 75.2 ° | 75.2 ° | 75.2 ° |
| Seat Tube Length | 395 mm | 435 mm | 470 mm | 525 mm |
| Head Tube Angle | 67.2 ° | 67.2 ° | 67.2 ° | 67.2 ° |
| Head Tube Length | 90 mm | 90 mm | 115 mm | 120 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1133 mm | 1158 mm | 1186 mm | 1217 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 159 cm | 167 cm | 176 cm | 186 cm |
| Rider Max Height | 170 cm | 179 cm | 189 cm | 200 cm |
