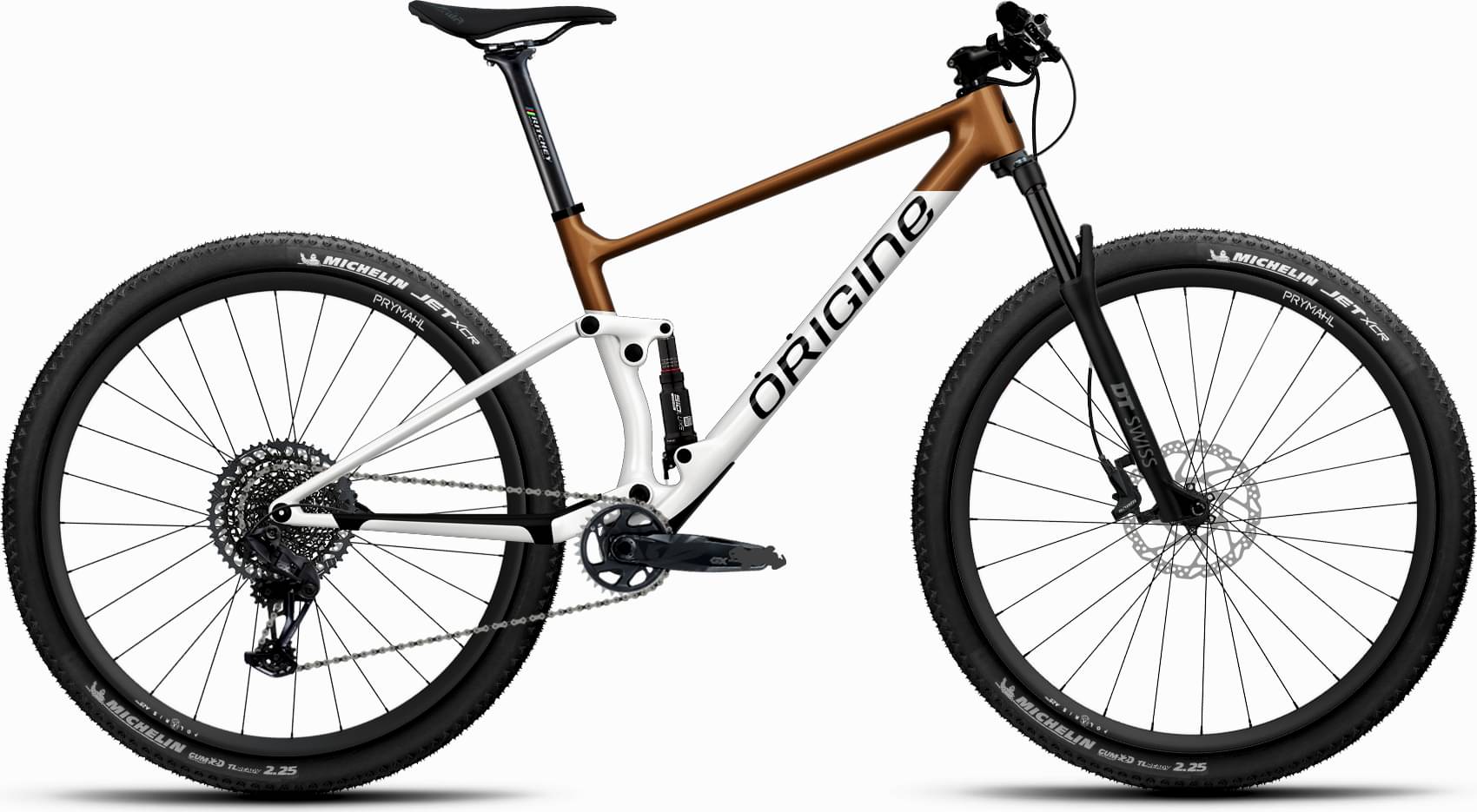

origine Théorème FS GTO 100 M2 2024
2024 Mountain
Estimate price |
4,901$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Travel Rear 100mm -
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 170cm
MD
167cm - 179cm
LG
176cm - 189cm
XL
186cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Théorème FS GTO 100mm
Suspension Fork
F232 One 100mm tfs
Drivetrain
Rear Derailleur
GX Eagle 12s Lunar
Cassette
GX Eagle 10-52 12 s
Crank
GX Eagle 32 single Dub
Pedals
Without pedals
Wheels
Rims
Polaris A25 Pro 29''
Tires
Jet XCR Competition Line 29x2.25
Brakes
Brakes
Level T
Cockpit
Stem
CLS TFS
Handlebar
MTN Rizer Comp 740
Grips
True grip X Comp
Seat
Saddle
Novus Boost Evo
Seatpost
Zero offset WCS 30.9 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.371 mm | 1.296 mm | 1.255 mm | 1.221 mm |
| Bottom Bracket Height | 329 mm | 329 mm | 329 mm | 329 mm |
| Front Center | 697 mm | 723 mm | 754 mm | 784 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 106 mm | 105 mm | 105 mm | 105 mm |
| Stack | 587 mm | 587 mm | 600 mm | 614 mm |
| Reach | 428 mm | 453 mm | 478 mm | 503 mm |
| Seat Tube Angle | 76.2 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 67.8 ° | 67.8 ° | 67.8 ° | 67.8 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1128 mm | 1154 mm | 1185 mm | 1215 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 159 cm | 167 cm | 176 cm | 186 cm |
| Rider Max Height | 170 cm | 179 cm | 189 cm | 200 cm |
