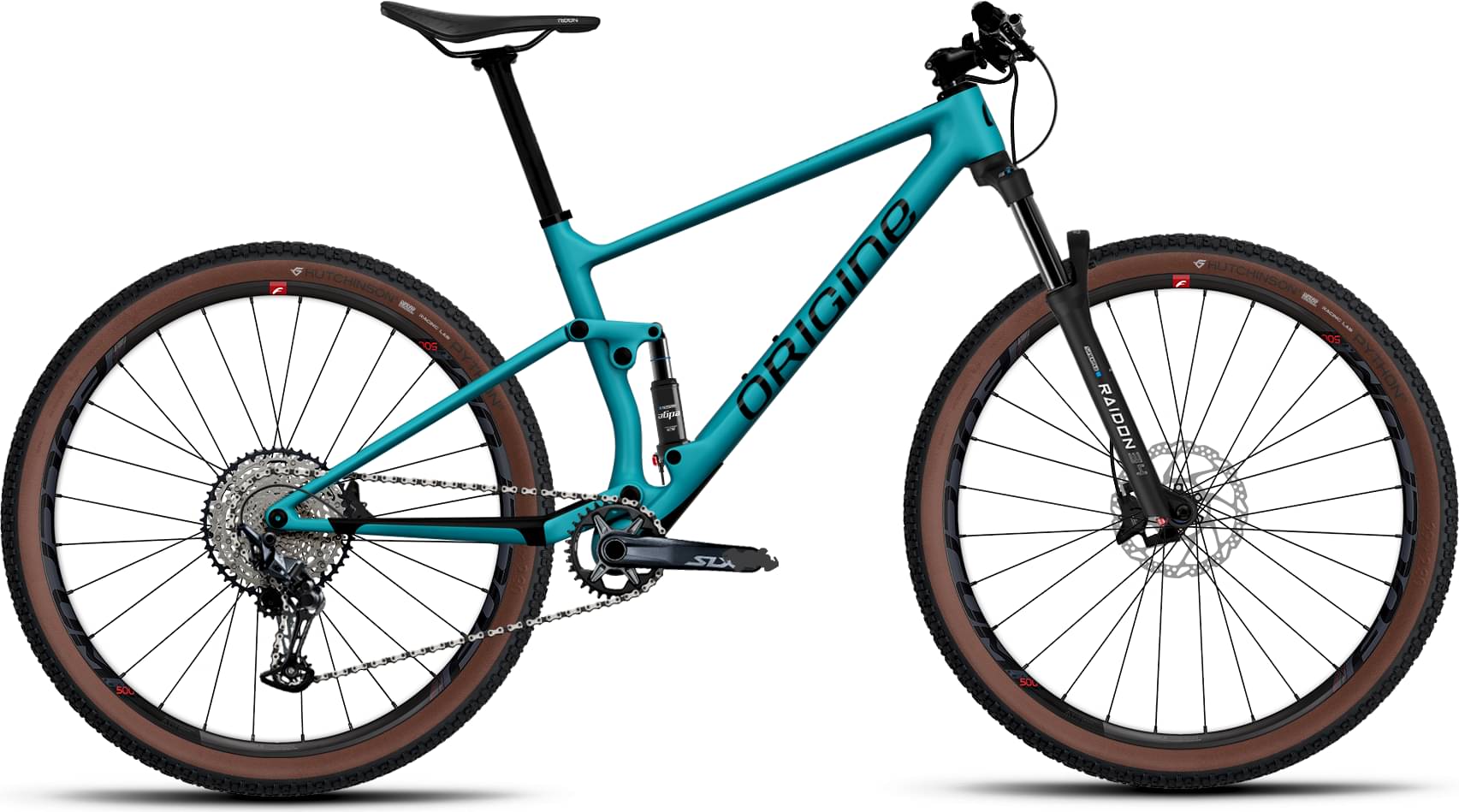

origine Théorème FS GTO 120 M1 2024
2024 Mountain
Estimate price |
3,560$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 120mm -
Groupset SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 170cm
MD
167cm - 179cm
LG
176cm - 189cm
XL
186cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Théorème FS GTO 120mm
Suspension Fork
Raidon 34 120mm tfs
Drivetrain
Rear Derailleur
SLX M7100 1x12s
Cassette
SLX M7100 12s 10-51
Crank
SLX M7100 single 32
Pedals
Without pedals
Wheels
Rims
Red Zone 500
Tires
Python 3 R Lab flan tan 29x2.30
Brakes
Brakes
MT 410
Cockpit
Stem
CLS TFS
Handlebar
MTN Rizer Comp 740
Grips
True grip X Comp
Seat
Saddle
Terra Ridon X5
Seatpost
Monobloc forgée alu 0 Offset 30,9 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.421 mm | 1.338 mm | 1.302 mm | 1.259 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 705 mm | 730 mm | 761 mm | 791 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 111 mm | 112 mm | 110 mm | 113 mm |
| Stack | 594 mm | 594 mm | 608 mm | 622 mm |
| Reach | 418 mm | 444 mm | 467 mm | 494 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 66.9 ° | 66.9 ° | 66.9 ° | 66.9 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1137 mm | 1162 mm | 1193 mm | 1223 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 159 cm | 167 cm | 176 cm | 186 cm |
| Rider Max Height | 170 cm | 179 cm | 189 cm | 200 cm |
