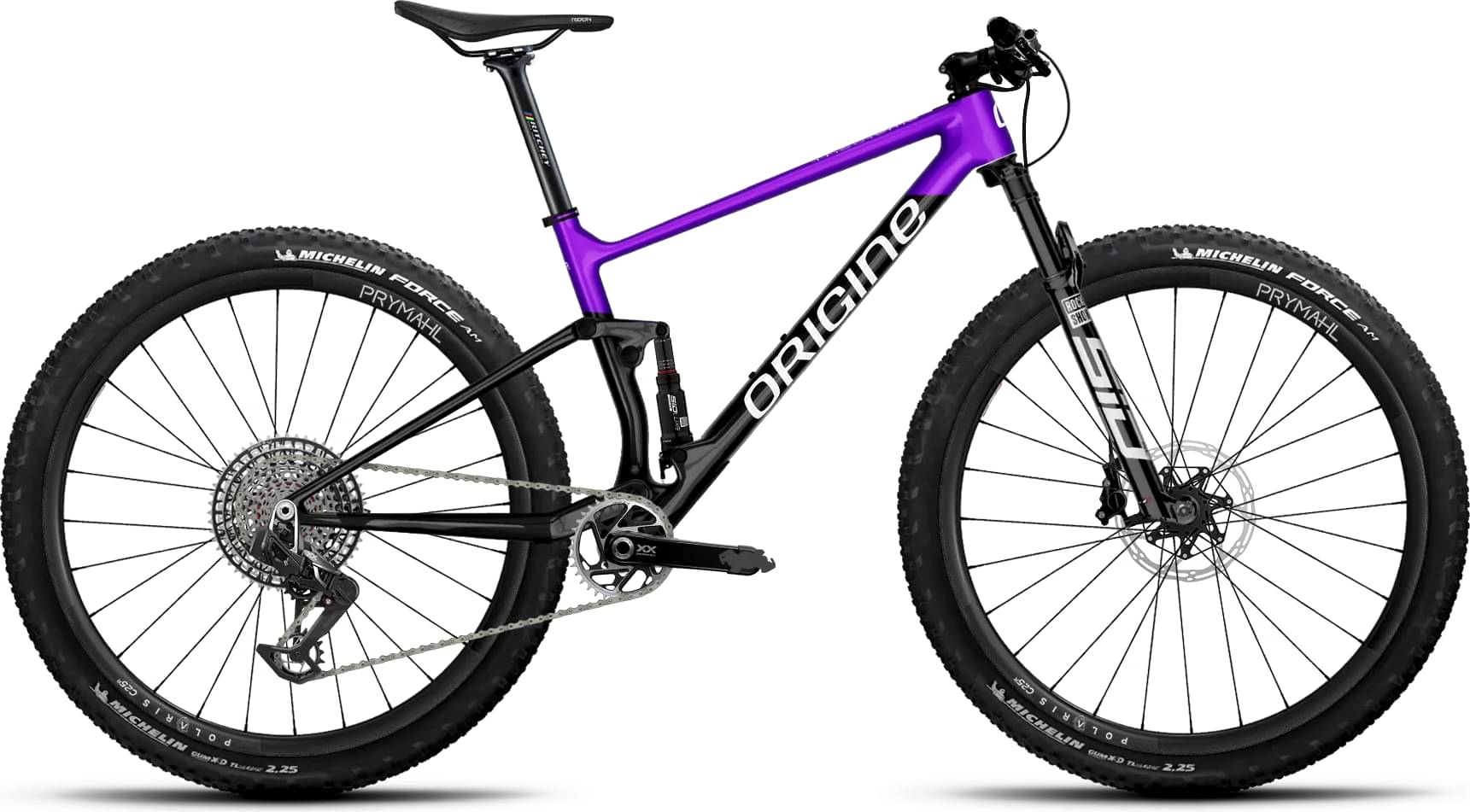

origine Théorème FS GTR 100 M4 AXS 2025
2025 Mountain
Estimate price |
9,023$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox SID SL Ultimate
-
Groupset XX SL Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Level Ultimate Hydraulic Disc
Sizing
Recommended size guide.
SM
153cm - 170cm
MD
167cm - 179cm
LG
176cm - 189cm
XL
186cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Théorème FS GTR 100mm
Suspension Fork
Sid SL Ultimate 100mm 3P tfs
Drivetrain
Rear Derailleur
XX SL AXS T-Type
Cassette
XX Eagle 10-52 12 s
Crank
XX SL Eagle T-Type 34 CL55
Pedals
Without pedals
Wheels
Rims
Polaris C25 R 29''
Tires
Force AM Competition Line 29x2.25
Brakes
Brakes
Level Ultimate
Cockpit
Stem
CLS TFS
Handlebar
MTN 2x Carbon
Grips
Superlogic
Seat
Saddle
Terra Ridon X5
Seatpost
Zero offset WCS 30.9 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.371 mm | 1.296 mm | 1.255 mm | 1.221 mm |
| Bottom Bracket Height | 329 mm | 329 mm | 329 mm | 329 mm |
| Front Center | 697 mm | 723 mm | 754 mm | 785 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 106 mm | 105 mm | 105 mm | 104 mm |
| Stack | 587 mm | 587 mm | 600 mm | 614 mm |
| Reach | 428 mm | 453 mm | 478 mm | 503 mm |
| Seat Tube Angle | 76.2 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 67.8 ° | 67.8 ° | 67.8 ° | 67.8 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1128 mm | 1154 mm | 1185 mm | 1216 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 153 cm | 167 cm | 176 cm | 186 cm |
| Rider Max Height | 170 cm | 179 cm | 189 cm | 200 cm |
