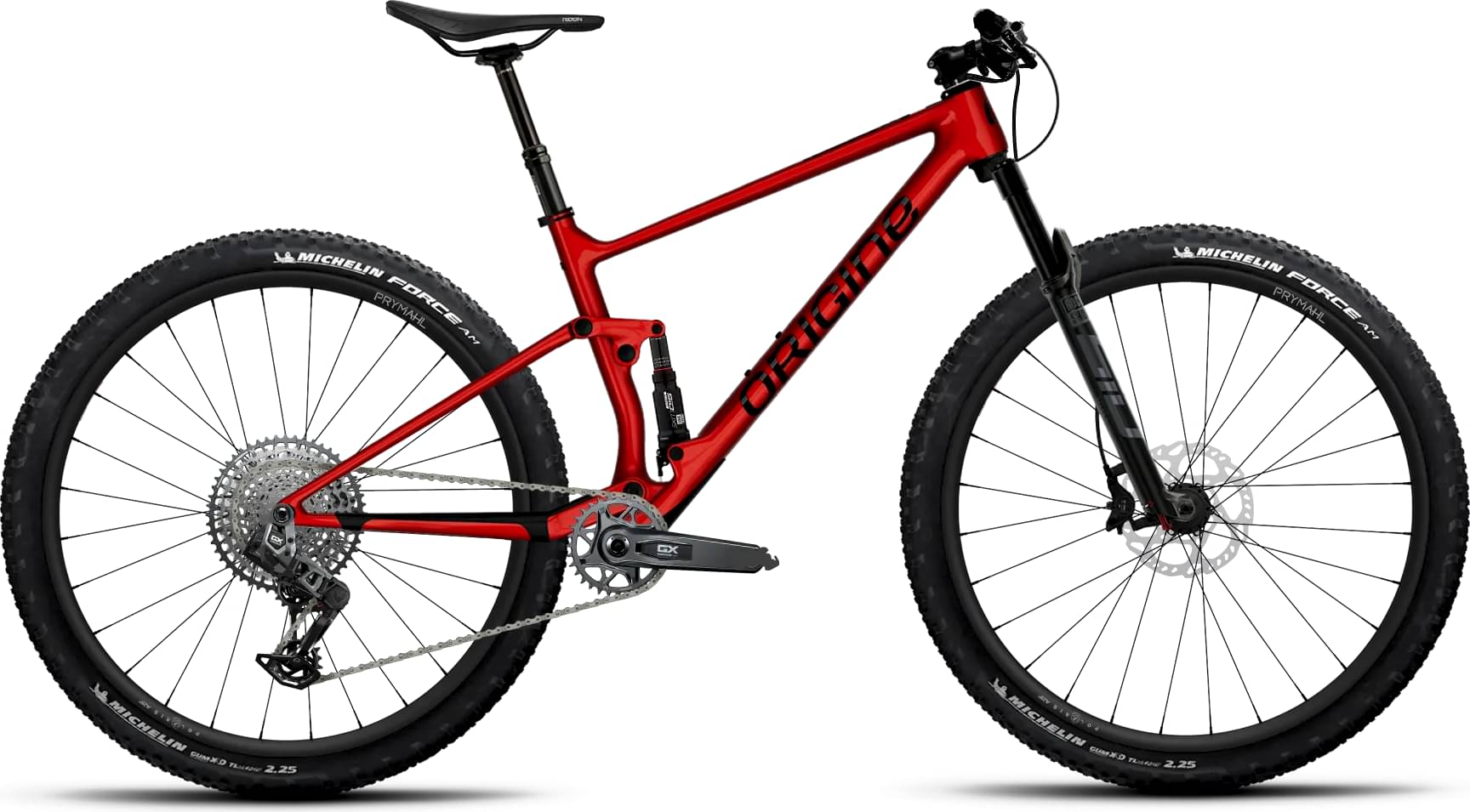

origine Théorème FS GTR 120 M2 AXS 2025
2025 Mountain
Estimate price |
5,953$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox SID Select
-
Groupset GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Shimano XT Hydraulic Disc
Sizing
Recommended size guide.
SM
153cm - 170cm
MD
167cm - 179cm
LG
176cm - 189cm
XL
186cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Théorème FS GTR 120mm
Suspension Fork
Sid Select 120mm Remote tfs
Drivetrain
Rear Derailleur
GX Eagle AXS T-Type
Cassette
GX Eagle 10-52 12 s
Crank
GX Eagle T-Type 32 CL55
Pedals
Without pedals
Wheels
Rims
Polaris A25 R 29''
Tires
Force AM Competition Line 29x2.25
Brakes
Brakes
XT M8100
Cockpit
Stem
CLS TFS
Handlebar
MTN 2x WCS 740
Grips
Superlogic
Seat
Saddle
Terra Ridon X5
Seatpost
Reverb Stealth 125mm 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.421 mm | 1.338 mm | 1.302 mm | 1.259 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 705 mm | 730 mm | 761 mm | 791 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 111 mm | 112 mm | 110 mm | 113 mm |
| Stack | 594 mm | 594 mm | 608 mm | 622 mm |
| Reach | 418 mm | 444 mm | 467 mm | 494 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 66.9 ° | 66.9 ° | 66.9 ° | 66.9 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1137 mm | 1162 mm | 1193 mm | 1223 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 153 cm | 167 cm | 176 cm | 186 cm |
| Rider Max Height | 170 cm | 179 cm | 189 cm | 200 cm |
