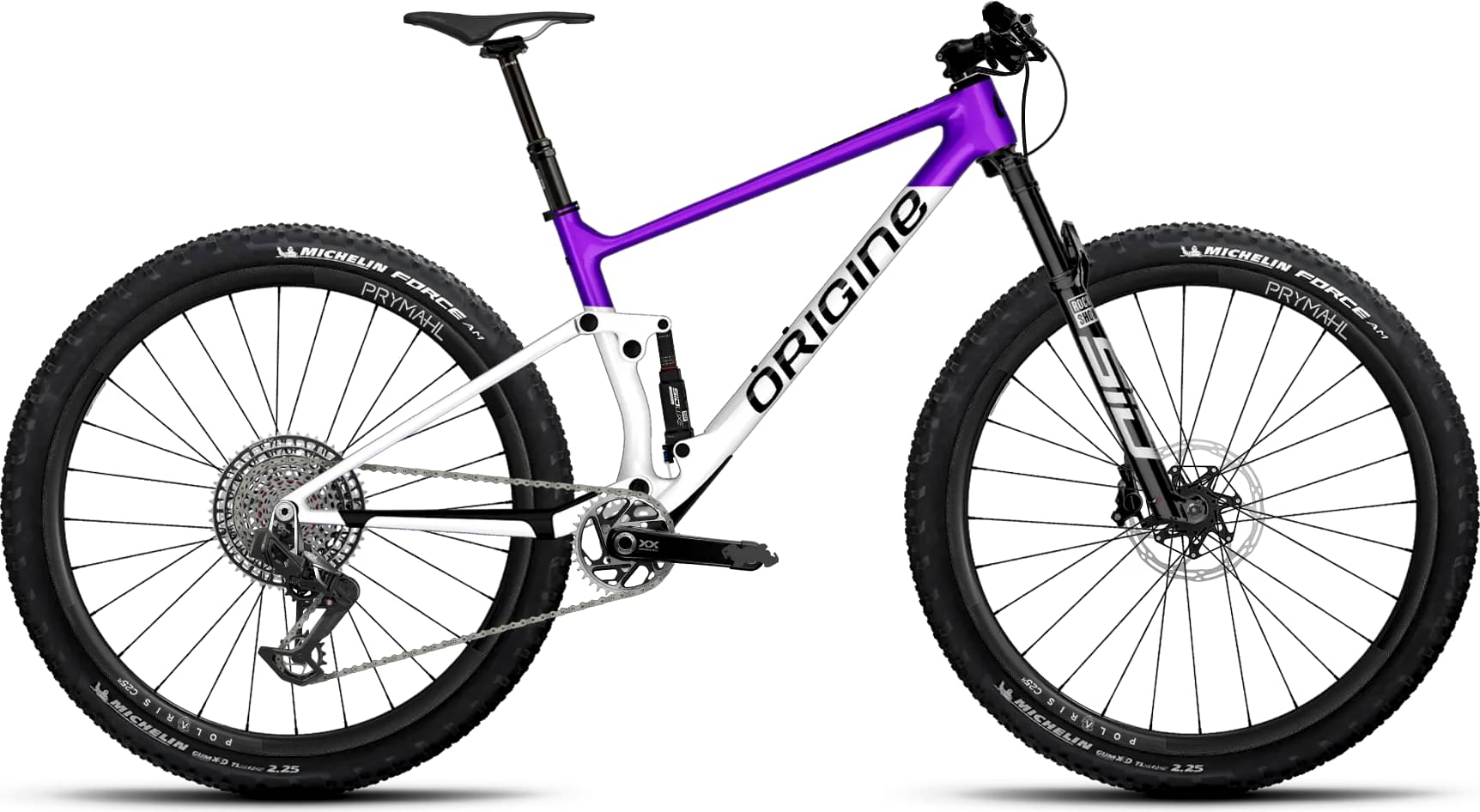

origine Théorème FS GTR 120 M4 AXS 2025
2025 Mountain
Estimate price |
9,458$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox SID Ultimate
-
Groupset XX SL Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Level Ultimate Hydraulic Disc
Sizing
Recommended size guide.
SM
153cm - 170cm
MD
167cm - 179cm
LG
176cm - 189cm
XL
186cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Théorème FS GTR 120mm
Suspension Fork
Sid Ultimate 120mm 3P tfs
Drivetrain
Rear Derailleur
XX SL AXS T-Type
Cassette
XX Eagle 10-52 12 s
Crank
XX SL Eagle T-Type 34 CL55
Pedals
Without pedals
Wheels
Rims
Polaris C25 R 29''
Tires
Force AM Competition Line 29x2.25
Brakes
Brakes
Level Ultimate
Cockpit
Stem
CLS TFS
Handlebar
MTN 2x Carbon
Grips
Superlogic
Seat
Saddle
SLR Boost X-Cross Superflow
Seatpost
Reverb Stealth 125mm 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.421 mm | 1.338 mm | 1.302 mm | 1.259 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 705 mm | 730 mm | 761 mm | 791 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 111 mm | 112 mm | 110 mm | 113 mm |
| Stack | 594 mm | 594 mm | 608 mm | 622 mm |
| Reach | 418 mm | 444 mm | 467 mm | 494 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 66.9 ° | 66.9 ° | 66.9 ° | 66.9 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1137 mm | 1162 mm | 1193 mm | 1223 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 153 cm | 167 cm | 176 cm | 186 cm |
| Rider Max Height | 170 cm | 179 cm | 189 cm | 200 cm |
