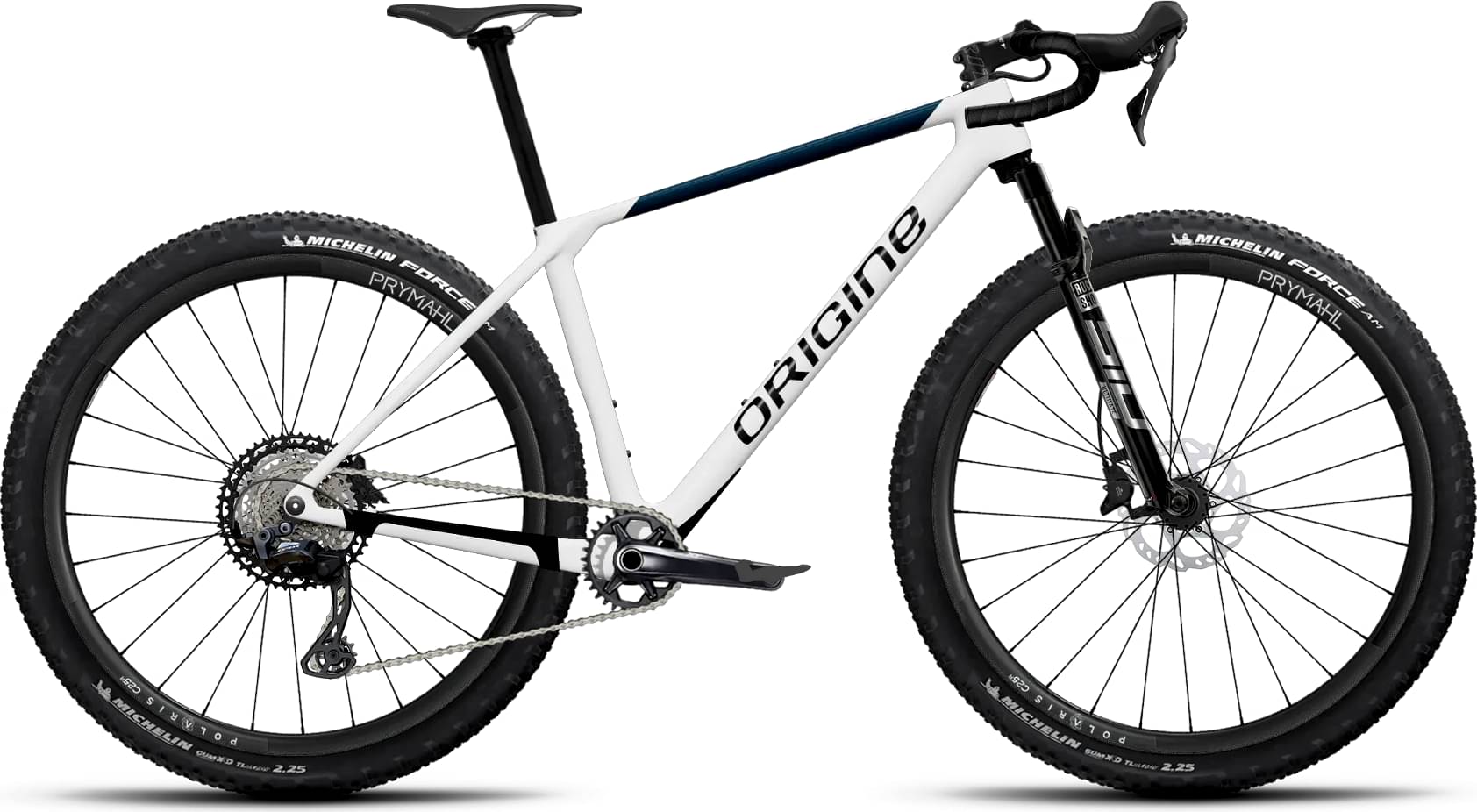

origine Théorème GR Ultra M5 2025
2025 Mountain
Estimate price |
4,727$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox SID SL Ultimate
-
Groupset GRX 800, XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 170cm
MD
167cm - 179cm
LG
176cm - 189cm
XL
186cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Théorème GR Ultra
Suspension Fork
Sid SL Ultimate Race Day 100mm
Drivetrain
Rear Derailleur
GRX 820 1x12v
Cassette
XT M8100 12s 10-51
Crank
XT M8100 single 32
Pedals
Without pedals
Wheels
Rims
Polaris C25 R 29''
Tires
Force AM Competition Line 29x2.25
Brakes
Brakes
Etriers dans transmission
Cockpit
Stem
Mountain Trail TFS
Handlebar
Road Beacon Comp
Seat
Saddle
SLR Boost X-Cross Superflow
Seatpost
Monobloc forgée alu 0 Offset 30,9 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.451 mm | 1.401 mm | 1.332 mm | 1.339 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 674 mm | 700 | 725 mm | 752 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 100 mm | 100 mm | 114 mm | 100 mm |
| Stack | 598 mm | 608 mm | 622 mm | 636 mm |
| Reach | 412 mm | 434 mm | 467 mm | 475 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.2 ° | 74.2 ° |
| Seat Tube Length | 395 mm | 435 mm | 475 mm | 525 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1097 mm | 1123 mm | 1148 mm | 1175 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 159 cm | 167 cm | 176 cm | 186 cm |
| Rider Max Height | 170 cm | 179 cm | 189 cm | 200 cm |
