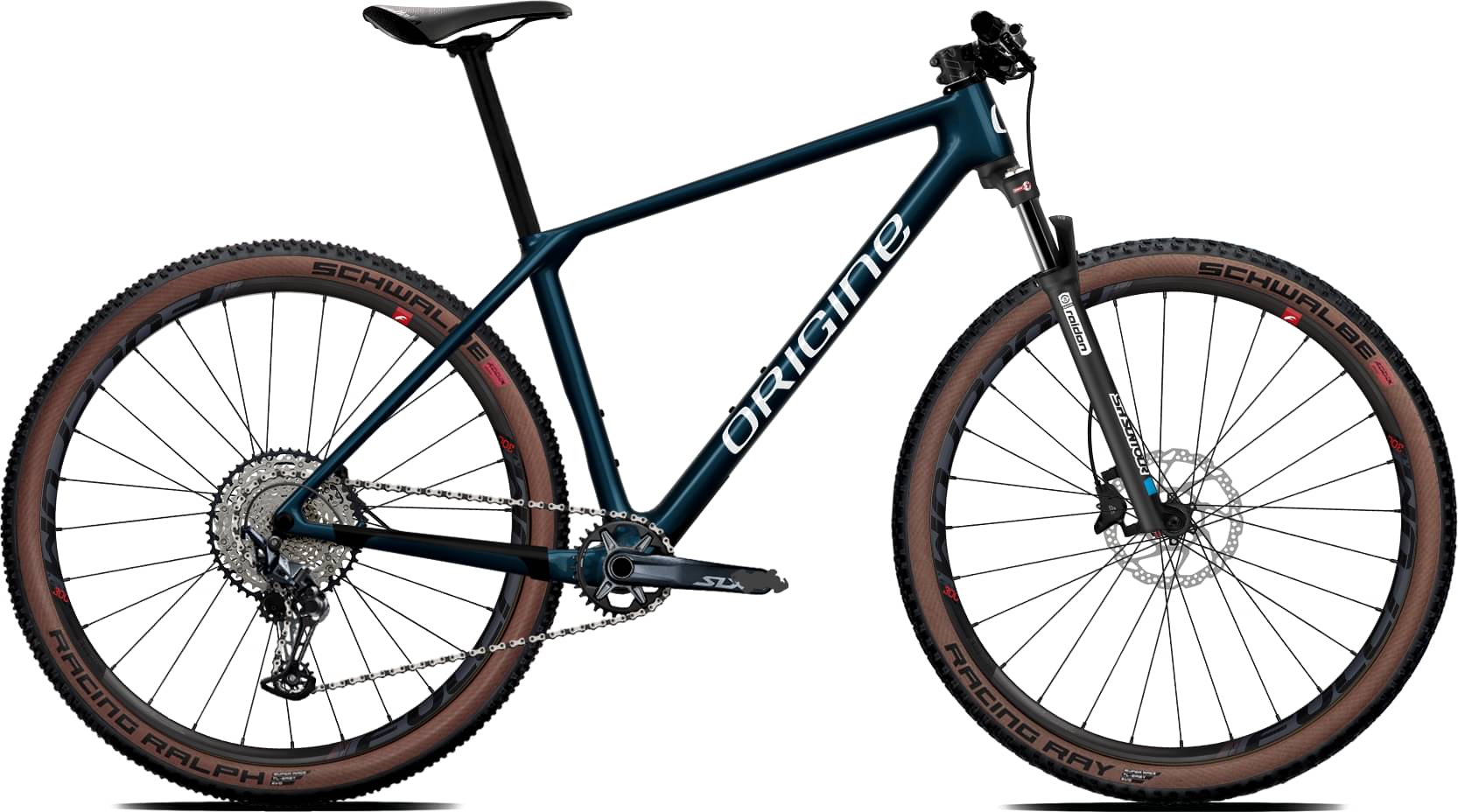

origine Théorème GTO MS20 2024
2024 Mountain
Estimate price |
2,809$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Groupset SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 170cm
MD
167cm - 179cm
LG
176cm - 189cm
XL
186cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Théorème 2 GTO
Suspension Fork
Raidon 32 100mm
Drivetrain
Rear Derailleur
SLX M7100 1x12s
Cassette
SLX M7100 12s 10-51
Crank
SLX M7100 single 32
Pedals
Without pedals
Wheels
Rims
Red Zone 300
Tires
Racing Ralph/Ray Evo 29x2.25 Transparent skin
Brakes
Brakes
MT 410
Cockpit
Stem
Mountain Trail TFS
Handlebar
MTN 2x Comp 740
Grips
True grip X Comp
Seat
Saddle
Novus Boost Evo X-Cross
Seatpost
Monobloc forgée alu 0 Offset 30,9 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.451 mm | 1.401 mm | 1.332 mm | 1.339 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 674 mm | 700 | 725 mm | 752 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 100 mm | 100 mm | 114 mm | 100 mm |
| Stack | 598 mm | 608 mm | 622 mm | 636 mm |
| Reach | 412 mm | 434 mm | 467 mm | 475 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.2 ° | 74.2 ° |
| Seat Tube Length | 395 mm | 435 mm | 475 mm | 525 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1097 mm | 1123 mm | 1148 mm | 1175 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 159 cm | 167 cm | 176 cm | 186 cm |
| Rider Max Height | 170 cm | 179 cm | 189 cm | 200 cm |
