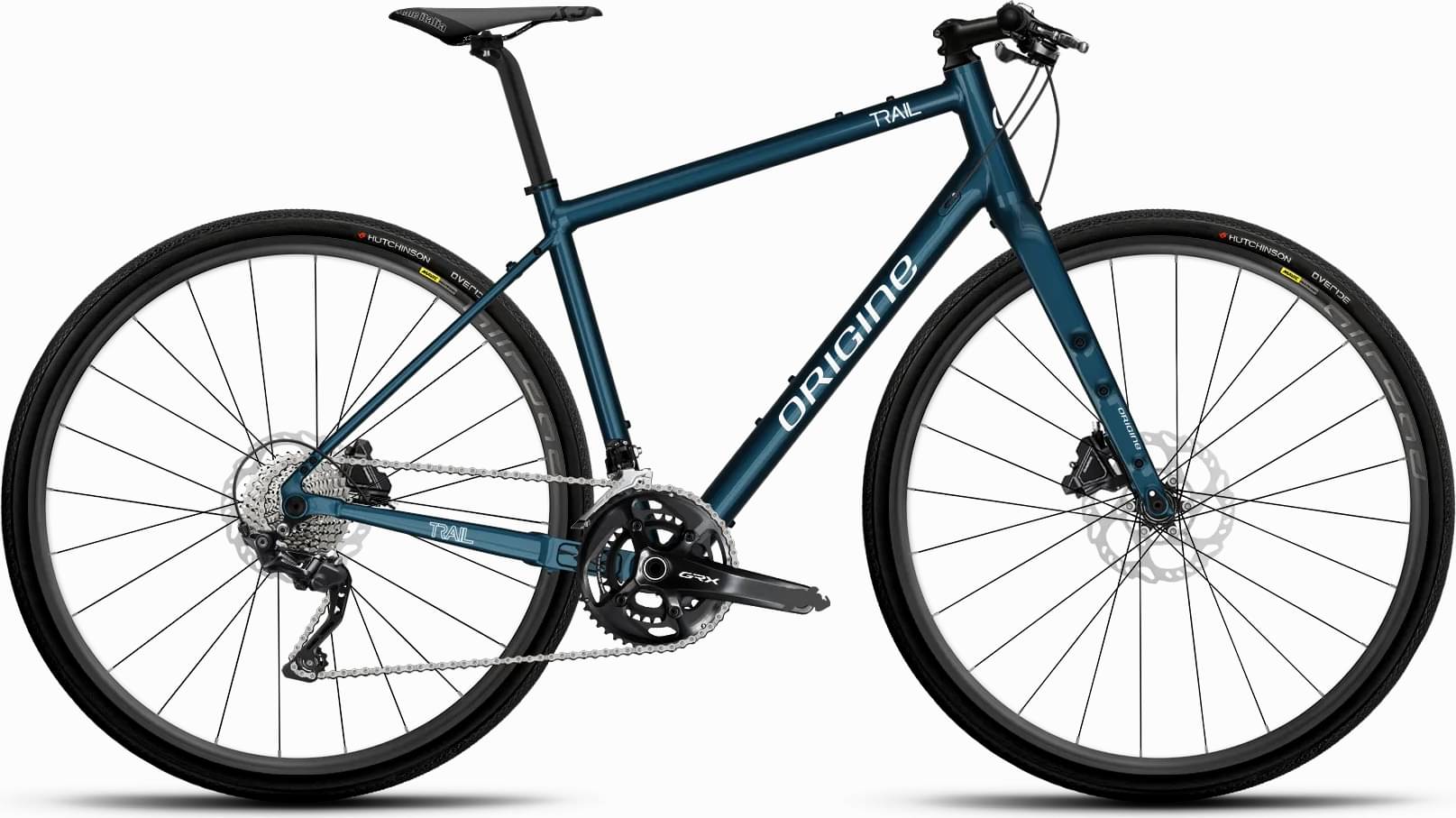

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset GRX 600, GRX 400 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
153cm - 172cm
MD
169cm - 180cm
LG
177cm - 187cm
XL
184cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trail Gravel Flatbar
Suspension Fork
OGV III 12x100
Drivetrain
Rear Derailleur
GRX 400 2x10s Flatbar
Cassette
HG-50 11-34
Crank
GRX 600 46/30 10s
Pedals
Without pedals
Wheels
Rims
Allroad
Tires
Overide 700x35 Tube Type
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
CLS L2
Handlebar
Flat 580 mm
Grips
True grip X Comp
Seat
Saddle
X3 Flow Boost
Seatpost
Monobloc 27,2 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.547 mm | 1.582 mm | 1.619 mm | 1.637 mm |
| Bottom Bracket Height | 273 mm | 274 mm | 275 mm | 276 mm |
| Front Center | 589 mm | 599 mm | 610 mm | 620 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 76 mm | 73 mm | 69 mm | 66 mm |
| Stack | 563 mm | 587 mm | 612 mm | 632 mm |
| Reach | 364 mm | 371 mm | 378 mm | 386 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 545 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 150 mm | 175 mm | 200 mm | 220 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1006 mm | 1017 mm | 1028 mm | 1038 mm |
| Bottom Bracket Drop | 76 mm | 75 mm | 74 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 153 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 172 cm | 180 cm | 187 cm | 197 cm |
