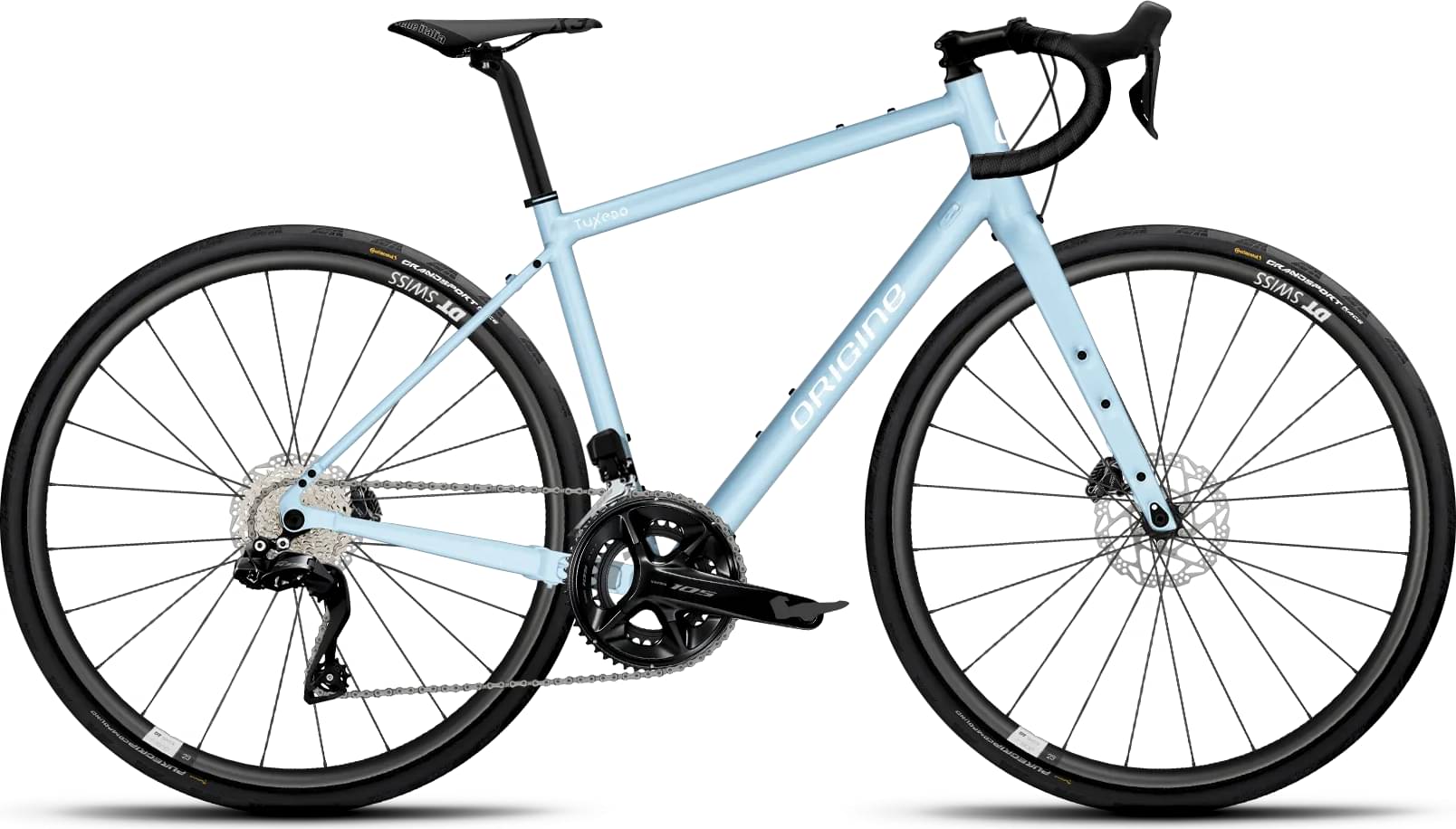

origine Tuxedo Endurance M4 Di2 2025
2025 Road
Estimate price |
2,967$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 172cm
MD
169cm - 180cm
LG
177cm - 187cm
XL
184cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tuxedo Endurance
Suspension Fork
OGV III 12x100
Drivetrain
Rear Derailleur
105 R7150 Di2 Disc 12v
Cassette
R7100 11-34 12v
Crank
105 R7100 50/34
Pedals
Without pedals
Wheels
Rims
P 1800 Spline
Tires
Ultra Sport 32
Brakes
Brakes
Rim
Cockpit
Stem
CLS L2
Handlebar
Road Curve Comp
Seat
Saddle
X3 Flow Boost
Seatpost
Monobloc 27,2 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.547 mm | 1.582 mm | 1.619 mm | 1.637 mm |
| Bottom Bracket Height | 260 mm | 261 mm | 262 mm | 263 mm |
| Front Center | 586 mm | 596 mm | 607 mm | 617 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 75 mm | 72 mm | 69 mm | 66 mm |
| Stack | 563 mm | 587 mm | 612 mm | 632 mm |
| Reach | 364 mm | 371 mm | 378 mm | 386 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 545 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 150 mm | 175 mm | 200 mm | 220 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1006 mm | 1017 mm | 1028 mm | 1038 mm |
| Bottom Bracket Drop | 76 mm | 75 mm | 74 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 172 cm | 180 cm | 187 cm | 197 cm |
