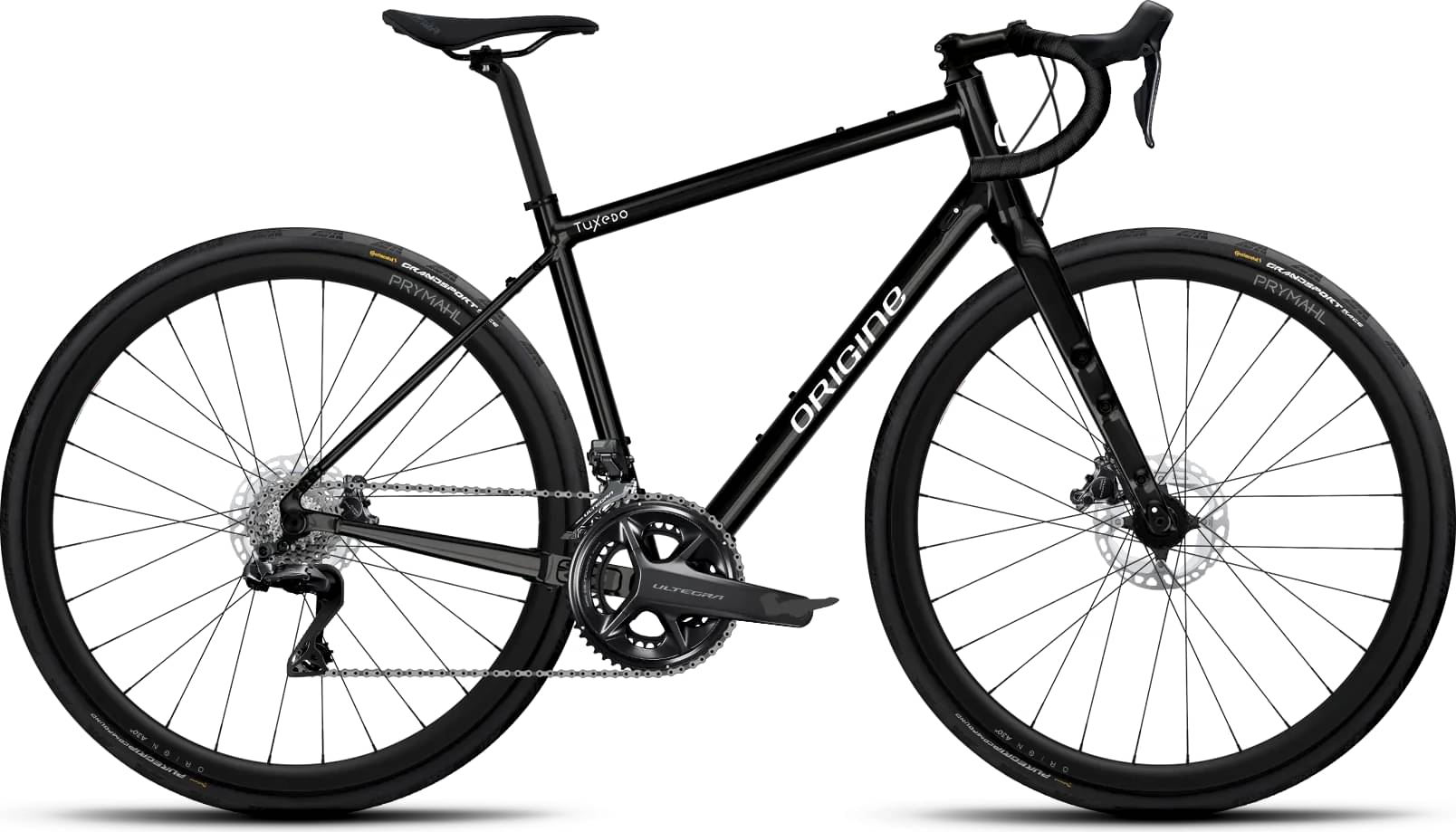

origine Tuxedo Endurance M6 Di2 2024
2024 Road
Estimate price |
4,155$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 172cm
MD
169cm - 180cm
LG
177cm - 187cm
XL
184cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tuxedo Endurance
Suspension Fork
OGV III 12x100
Drivetrain
Rear Derailleur
Ultegra R8170 Di2 Disc 12v
Cassette
Ultegra R8100 11-30 12v
Crank
Ultegra R8100 50/34
Pedals
Without pedals
Wheels
Rims
Orion A30 R Disc
Tires
Ultra Sport 32
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
CLS L2
Handlebar
Road Curve Comp
Seat
Saddle
Novus Boost Evo
Seatpost
Monobloc 27,2 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.547 mm | 1.582 mm | 1.619 mm | 1.637 mm |
| Bottom Bracket Height | 260 mm | 261 mm | 262 mm | 263 mm |
| Front Center | 586 mm | 596 mm | 607 mm | 617 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 75 mm | 72 mm | 69 mm | 66 mm |
| Stack | 563 mm | 587 mm | 612 mm | 632 mm |
| Reach | 364 mm | 371 mm | 378 mm | 386 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 545 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 150 mm | 175 mm | 200 mm | 220 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1006 mm | 1017 mm | 1028 mm | 1038 mm |
| Bottom Bracket Drop | 76 mm | 75 mm | 74 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 172 cm | 180 cm | 187 cm | 197 cm |
