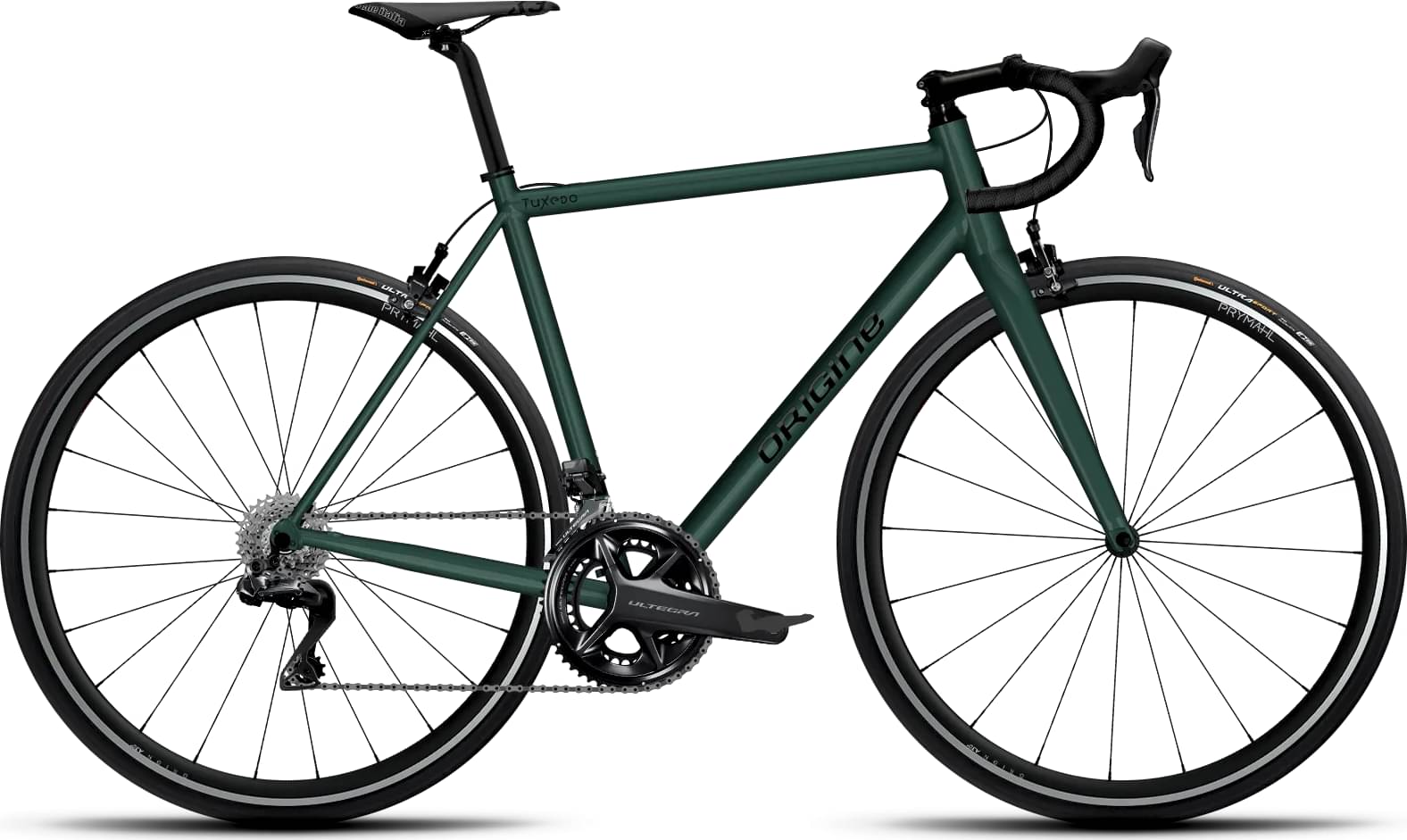

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano Ultegra Rim
Sizing
Recommended size guide.
SM
160cm - 175cm
MD
172cm - 181cm
LG
178cm - 187cm
XL
184cm - 192cm
XXL
189cm - 202cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tuxedo
Suspension Fork
Axxome II Carbone U.D (380 g)
Drivetrain
Rear Derailleur
Ultegra R8150 Di2 12v
Cassette
Ultegra R8100 11-30 12v
Crank
Ultegra R8100 50/34
Pedals
Without pedals
Wheels
Rims
Orion A30 R
Tires
Ultra Sport 28
Brakes
Brakes
Ultegra R8100 Direct Mount avant
Cockpit
Stem
CLS L2
Handlebar
Road Curve Comp
Seat
Saddle
X3 Flow Boost
Seatpost
Monobloc 27,2 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.472 mm | 1.483 mm | 1.527 mm | 1.535 mm | 1.526 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 574 mm | 590 mm | 600 mm | 620 mm | 627 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 63 mm | 60 mm | 60 mm | 50 mm |
| Stack | 543 mm | 562 mm | 588 mm | 611 mm | 615 mm |
| Reach | 369 mm | 379 mm | 385 mm | 398 mm | 403 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 530 mm | 555 mm | 590 mm | 610 mm |
| Head Tube Angle | 72 ° | 72 ° | 72.5 ° | 72.5 ° | 73 ° |
| Head Tube Length | 140 mm | 160 mm | 185 mm | 210 mm | 210 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 408 mm |
| Wheelbase | 974 mm | 990 mm | 1000 mm | 1020 mm | 1025 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 172 cm | 178 cm | 184 cm | 189 cm |
| Rider Max Height | 175 cm | 181 cm | 187 cm | 192 cm | 202 cm |
