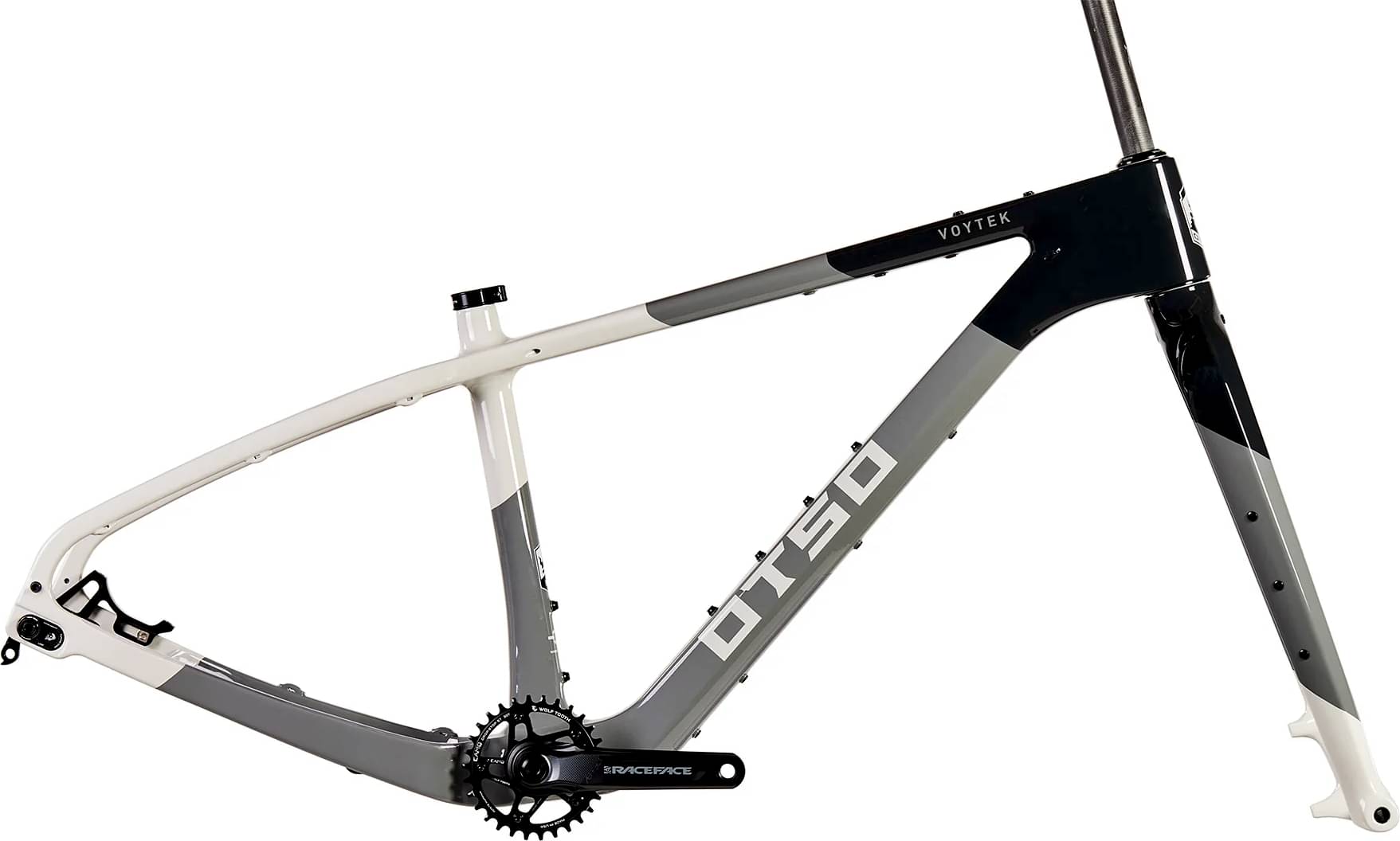

Otso Voytek 2 Frankset 2025
2025 Mountain
Estimate price |
3,295$
Weight | 1.45 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Groupset Race Face -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
144cm - 167cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon, Tuning Chip® dropout system, GeoChip Head Tube system
Drivetrain
Crank
Race Face Aeffect 170mm 83mm BB with Wolf Tooth CAMO Spider P3
Bottom Bracket
83mm (Press Fit 107)
Brakes
Brakes
74mm post (160mm native, 180mm max)
Cockpit
Headset
IS41 upper, IS52 lower
Seat
Seatpost
Ø31.6mm, accommodates internally routed dropper post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.342 mm | 1.311 mm | 1.325 mm | 1.308 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 705 mm | 731 mm | 754 mm | 781 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 93 mm | 93 mm | 93 mm | 93 mm |
| Stack | 581 mm | 595 mm | 619 mm | 637 mm |
| Reach | 433 mm | 454 mm | 467 mm | 487 mm |
| Top Tube Length | 600 mm | 625 mm | 645 mm | 670 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 380 mm | 420 mm | 465 mm | 510 mm |
| Head Tube Angle | 67.8 ° | 67.8 ° | 67.8 ° | 67.8 ° |
| Head Tube Length | 95 mm | 110 mm | 136 mm | 156 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1148 mm | 1174 mm | 1197 mm | 1224 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 691 mm | 724 mm | 764 mm | 801 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 144 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 167 cm | 177 cm | 188 cm | 203 cm |
