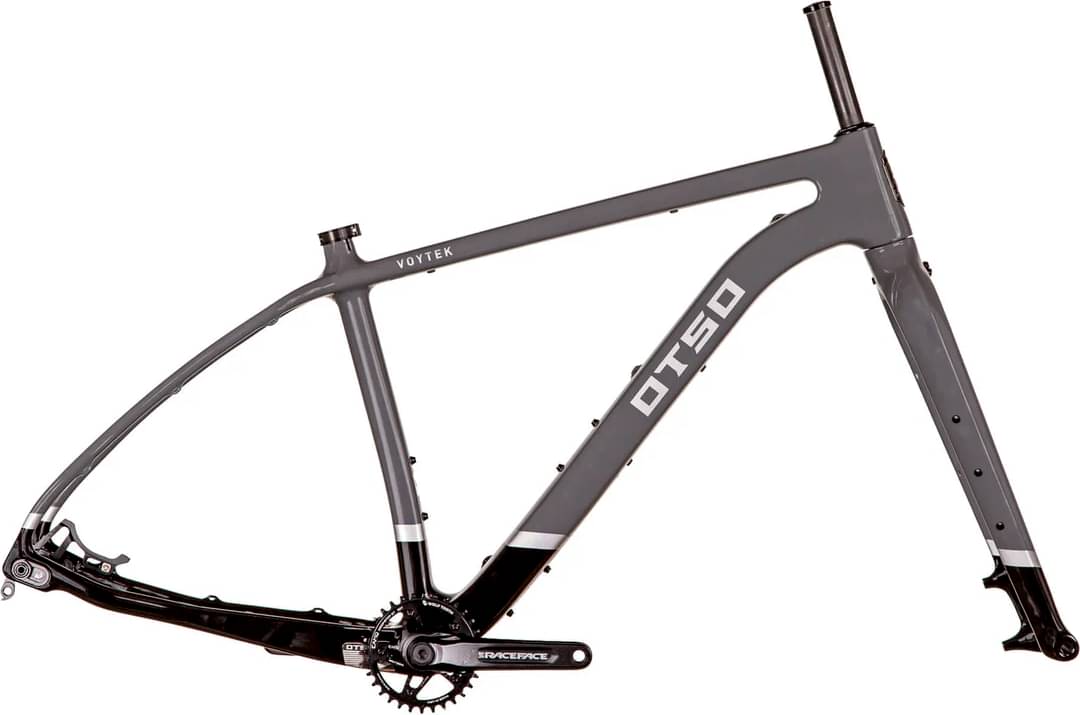

Otso Voytek Frankset 2024
2024 Mountain
Estimate price |
1,871$
Weight | 1.35 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Groupset Race Face -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
144cm - 167cm
MD
164cm - 177cm
LG
174cm - 187cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Crank
Race Face Aeffect 175mm 83mm BB with Wolf Tooth CAMO Spider
Bottom Bracket
83mm (Press Fit 107)
Brakes
Brakes
74mm post (160mm native, 180mm max)
Cockpit
Headset
Wolf Tooth Performance Headset - Black - 7mm top cap
Seat
Seatpost
Ø30.9mm, accommodates internally routed dropper post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.428 mm | 1.413 mm | 1.394 mm | 1.406 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 668 mm | 694 mm | 715 mm | 732 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 85.5 mm | 85.5 mm | 85.5 mm | 85.5 mm |
| Stack | 581 mm | 602 mm | 616 mm | 634 mm |
| Reach | 407 mm | 426 mm | 442 mm | 451 mm |
| Top Tube Length | 585 mm | 610 mm | 630 mm | 645 mm |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 115 mm | 130 mm | 150 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1092 mm | 1118 mm | 1139 mm | 1156 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 697 mm | 739 mm | 780 mm | 815 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 144 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 167 cm | 177 cm | 187 cm | 200 cm |
