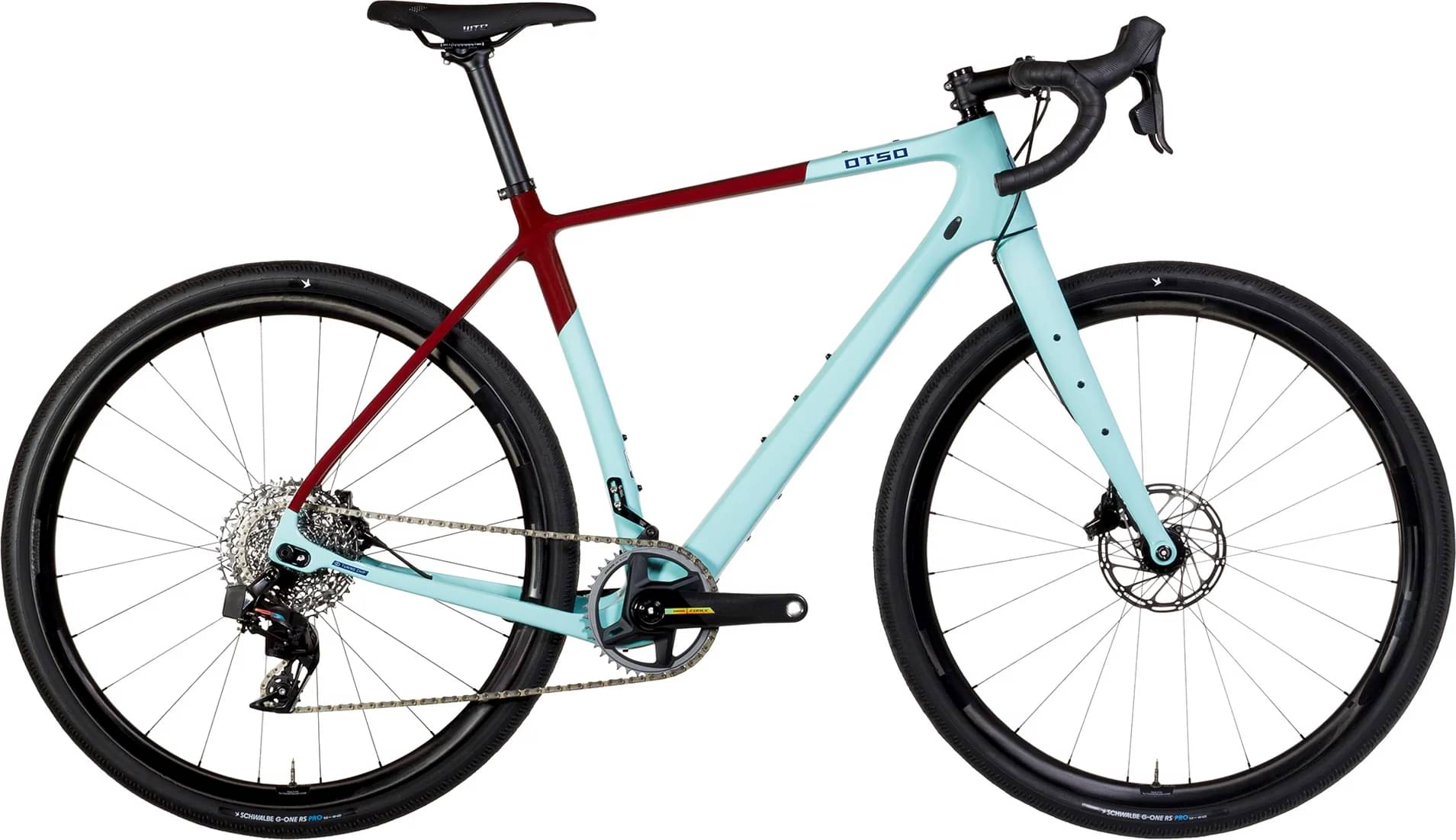

Otso Waheela C 1×12 SRAM Apex Mechanical 2025
2025 Road
Estimate price |
3,950$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
157cm - 172cm
MD
169cm - 182cm
LG
179cm - 192cm
XL
189cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon with Tuning Chip® dropout system
Drivetrain
Cassette
1x12 SRAM Apex Mechanical (11-50T NX cassette, 42T chainring, 170mm cranks, HG)
Bottom Bracket
68mm BSA threaded
Wheels
Rims
SUNringle G30 Expert 700c, 26mm
Tires
Schwalbe G-One RS, Super Race, V-Guard, TLE 700x40 Black
Brakes
Brakes
flat mount (160mm)
Cockpit
Handlebar
Lithic Aventurine 40cm
Headset
ZS44/28.6 upper, ZS56 lower
Seat
Saddle
WTB Silverado Medium Steel
Seatpost
Aluminum 30.9 350mm - Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.443 mm | 1.442 mm | 1.506 mm | 1.568 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 617 mm | 604 mm | 628 mm | 651 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 71 mm | 68 mm | 68 mm | 68 mm |
| Stack | 541 mm | 555 mm | 595 mm | 635 mm |
| Reach | 375 mm | 385 mm | 395 mm | 405 mm |
| Top Tube Length | 546 mm | 560 mm | 583 mm | 605 mm |
| Seat Tube Length | 475 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 94 mm | 107 mm | 149 mm | 191 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1028 mm | 1015 mm | 1039 mm | 1062 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 737 mm | 765 mm | 798 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 172 cm | 182 cm | 192 cm | 198 cm |
