Otso Waheela C Frameset 2024

2024 Road
Estimate price | 2,700$
Weight | 1.02 kg
Open compare Use advisor

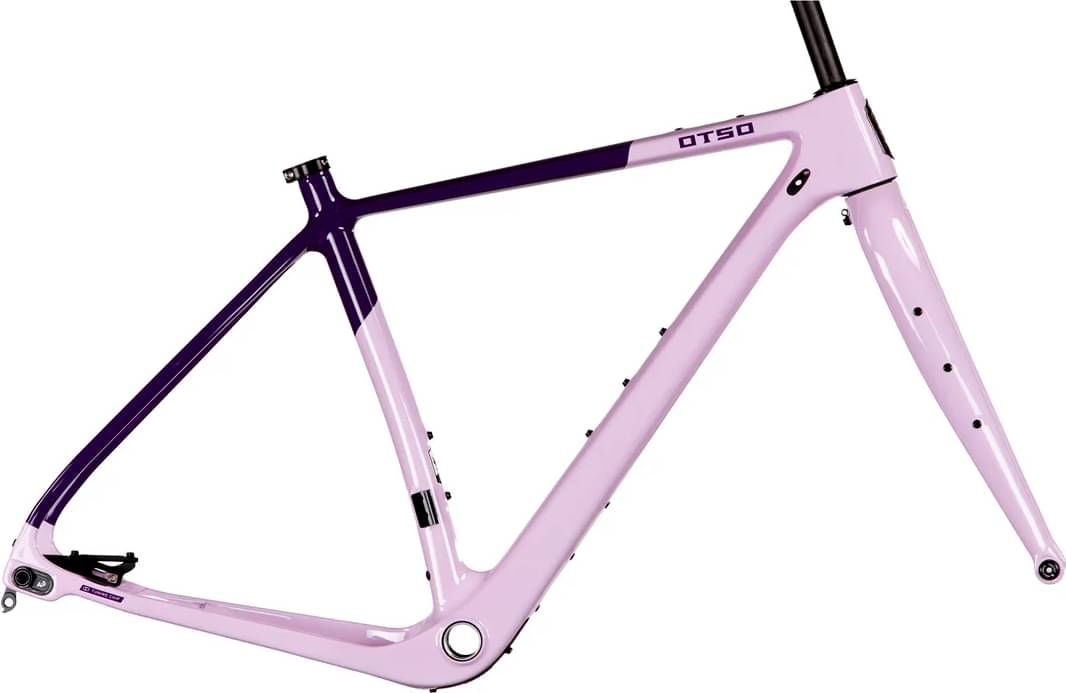

Otso Waheela C Frameset 2024

Bike details

Overview

Key information split into simple groups.

Frame summary

  • Category
  • Frame Carbon
  • Suspension Rigid
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • SM

    157cm - 172cm

  • MD

    169cm - 182cm

  • LG

    179cm - 192cm

  • XL

    189cm - 198cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Suspension Fork

None

Drivetrain

Bottom Bracket

68mm BSA threaded

Brakes

Brakes

flat mount (160mm)

Cockpit

Headset

Wolf Tooth Performance Headset - Black

Seat

Seatpost

Ø30.9mm

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSMMDLGXL
Stack Reach Ratio
1.443 mm1.442 mm1.506 mm1.568 mm
Bottom Bracket Height
281 mm281 mm281 mm281 mm
Front Center
617 mm604 mm628 mm651 mm
Rake
47 mm47 mm47 mm47 mm
Trail
71 mm68 mm68 mm68 mm
Stack
541 mm555 mm595 mm635 mm
Reach
375 mm385 mm395 mm405 mm
Top Tube Length
546 mm560 mm583 mm605 mm
Seat Tube Length
475 mm510 mm540 mm570 mm
Head Tube Angle
71 °71.5 °71.5 °71.5 °
Head Tube Length
94 mm107 mm149 mm191 mm
Chainstay Length
420 mm420 mm420 mm420 mm
Wheelbase
1028 mm1015 mm1039 mm1062 mm
Bottom Bracket Drop
68 mm68 mm68 mm68 mm
Standover Height
737 mm765 mm798 mm831 mm
Wheels700700700700
Rider Min Height157 cm169 cm179 cm189 cm
Rider Max Height172 cm182 cm192 cm198 cm
