Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Pinion -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components

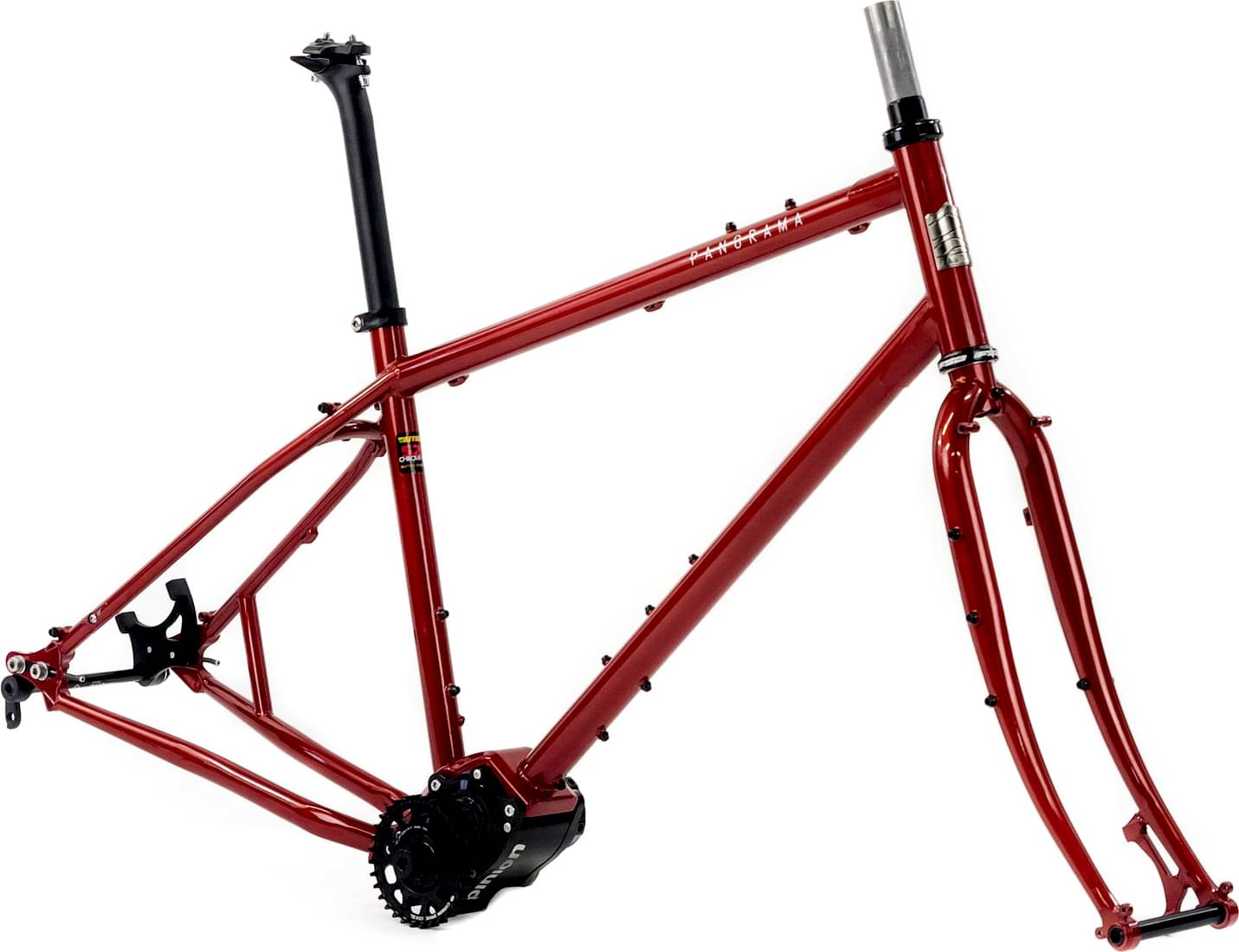

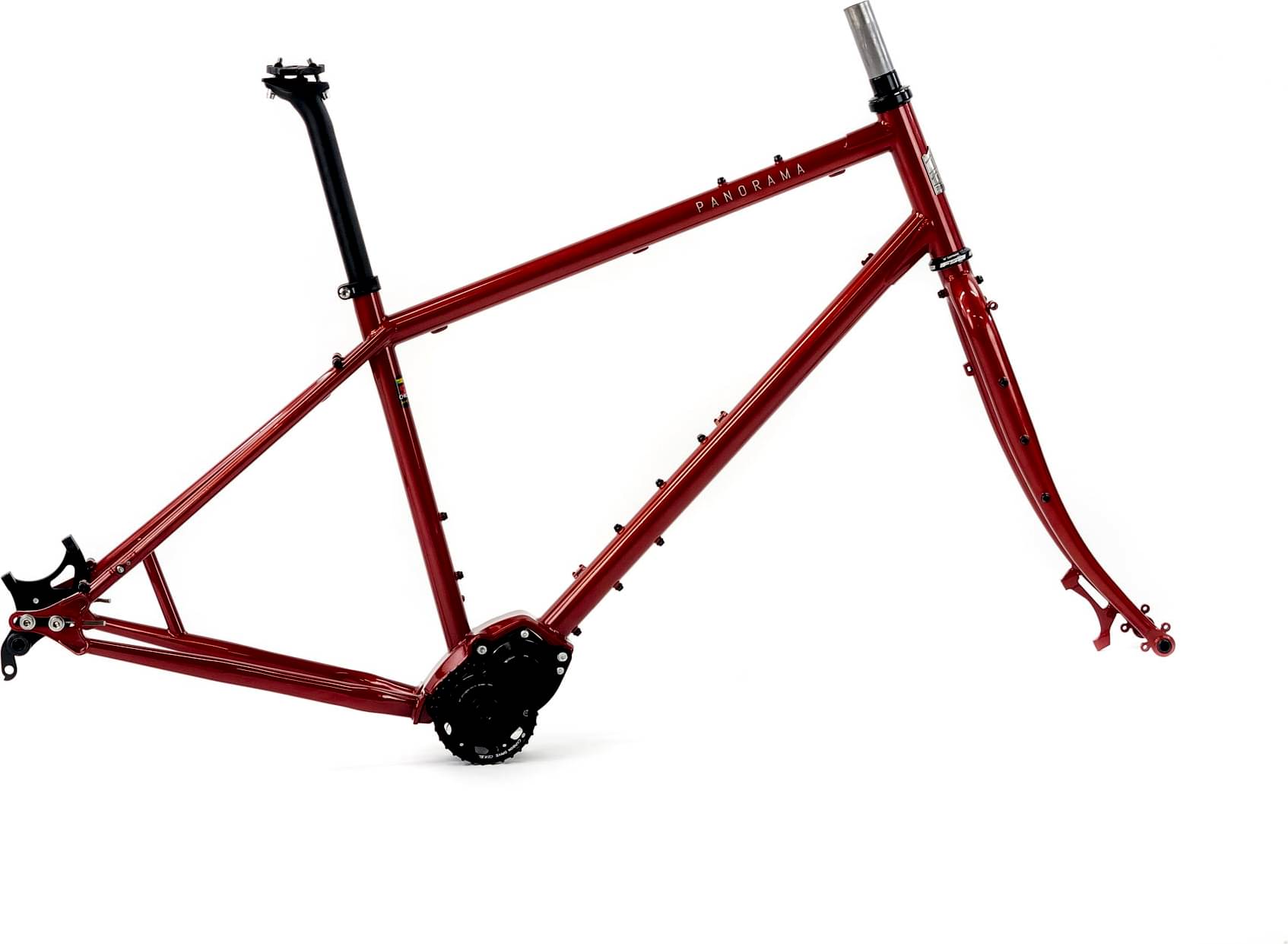

Frame
Frame
REYNOLDS 525 FRAME WITH WITH REINFORCEMENTS. INTERNAL CABLE ROUTING DROPPER SEATPOST, ADJUSTABLE REAR WHEEL DROPOUT, BELT DRIVE COMPATIBLE, POST-MOUNT BRAKE STD, MOUNTS FOR LUGGAGE RACK AND MUDGUARD, TRIPLE WATER BOTTLE MOUNT UNDER AND ON TOP OF THE DOWNTUBE, WATER BOTTLE MOUNT ON SEAT TUBE, GAS TANK BAG MOUNT ON TOP TUBE, 12MMX148MM BOOST REAR AXLE, STEERING TUBE 1-1/8¨, HEADSET: TOP EC34 LOWER EC34, SEATPOST COLLAR DIA 29.8MM, SEATPOST DIA 27.2MM, MAX TIRE CLEARANCE: 29¨X2.8¨
Suspension Fork
CUSTOM CR-MO 4130, POST MOUNT BRAKE STD, RACK MOUNTS, MUDGUARD MOUNTS, TRIPLE CARGO CAGE MOUNT, DYNAMO HUB COMPATIBLE, 12MMX110MM AXLE, 1-1/8¨ HEAD TUBE, MAX TIRE CLEARANCE: 29X2.8¨
Drivetrain
Shift Levers
PINION DS2.12
Crank
PINION, FORGED ALUMINUM, 165,170,175MM
Bottom Bracket
Pinion, press-fit
Pedals
Not included
Wheels
Rims
OPTION W1-1: WTB STi30 27.5¨ / SHIMANO TC500 (FRONT) / TC600 (REAR), 32 HOLES, CENTERLOCK, HG, OPTION W1-2: INDUSTRY NINE BACKCOUNTRY 360 27.5¨ / HYDRA HUBS / 6 BOLTS, 32 HOLES, HG, OPTION W2-1: WTB STi23 29¨ / SHIMANO TC500 (FRONT) / TC600 (REAR), 32 HOLES, CENTERLOCK, HG, OPTION W2-2: VELOCITY CLIFFHANGER 29¨ RIMS / INDUSTRY NINE HYDRA HUBS / 6 BOLTS, 32 HOLES, HG
Tires
OPTION W1: MAXXIS REKON, 27.5X2.6, EXO/TR, 60TPI, BLACK, OPTION W2: SCHWALBE MARATHON MONDIAL, 29X2.0¨ (700X50), DOUBLE DEFENSE, V GUARD
Brakes
Brakes
OPTION 1: SRAM LEVEL, OPTION 2: SRAM LEVEL T, OPTION 3: SHIMANO XT 4 PISTONS M8120
Cockpit
Stem
PROMAX FA-283, 60MM, 7DEG
Handlebar
VELO ORANGE CRAZY BARS
Headset
FSA ORBIT EQUIPE NO.21
Seat
Saddle
WTB PURE
Seatpost
KALLOY SP-3D2, 27.2mm X400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.461 mm | 1.436 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm |
| Front Center | 703 mm | 715 mm | 747 mm |
| Rake | 62 mm | 62 mm | 62 mm |
| Trail | 79 mm | 79 mm | 79 mm |
| Stack | 602 mm | 621 mm | 639 mm |
| Reach | 416 mm | 425 mm | 445 mm |
| Top Tube Length | 597 mm | 611 mm | 637 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 460 mm | 490 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1165 mm | 1178 mm | 1210 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 750 mm | 810 mm | 860 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 171 cm | 179 cm |
| Rider Max Height | 174 cm | 182 cm | 190 cm |
