Bike details
Overview
Key information split into simple groups.

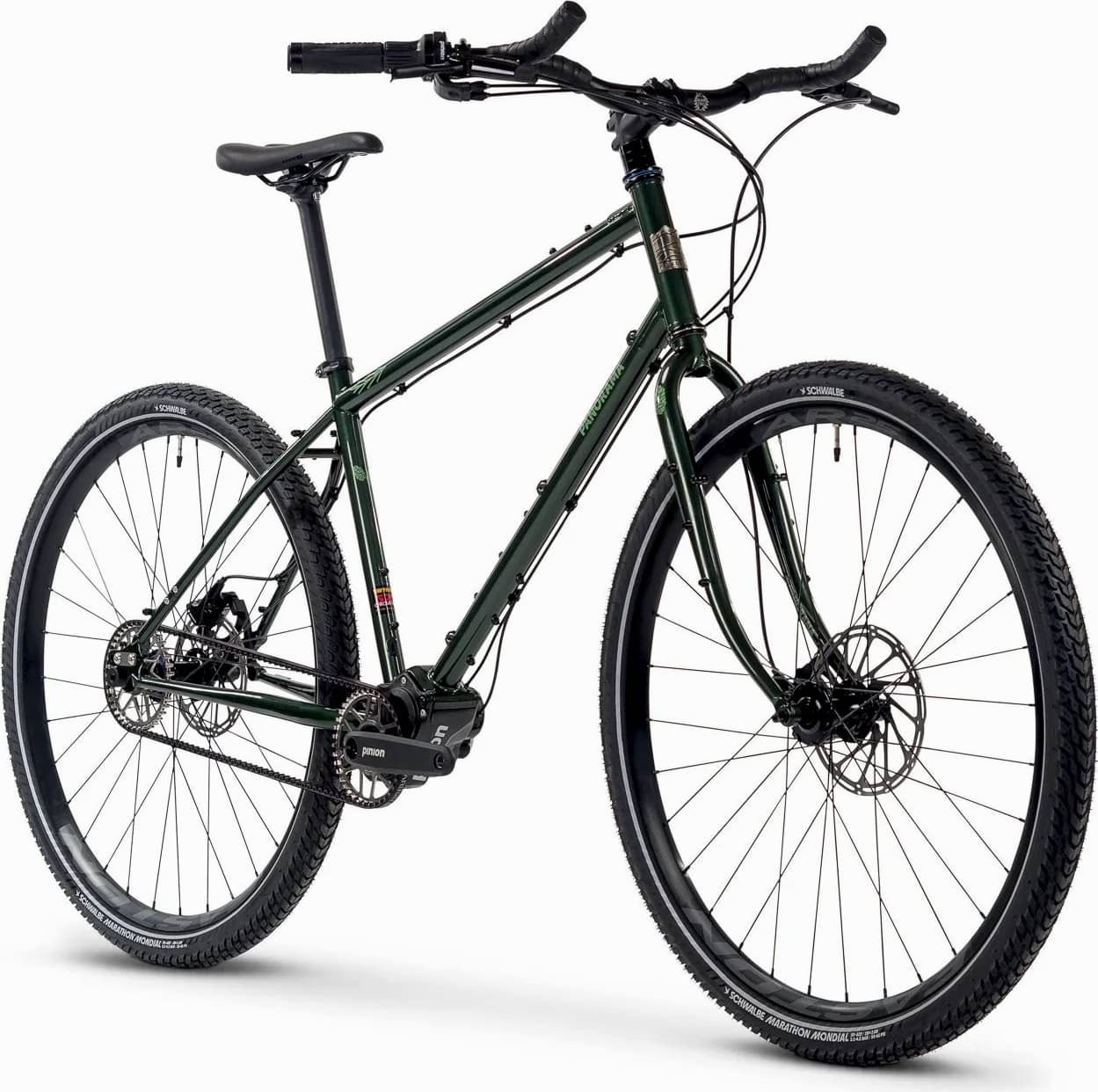

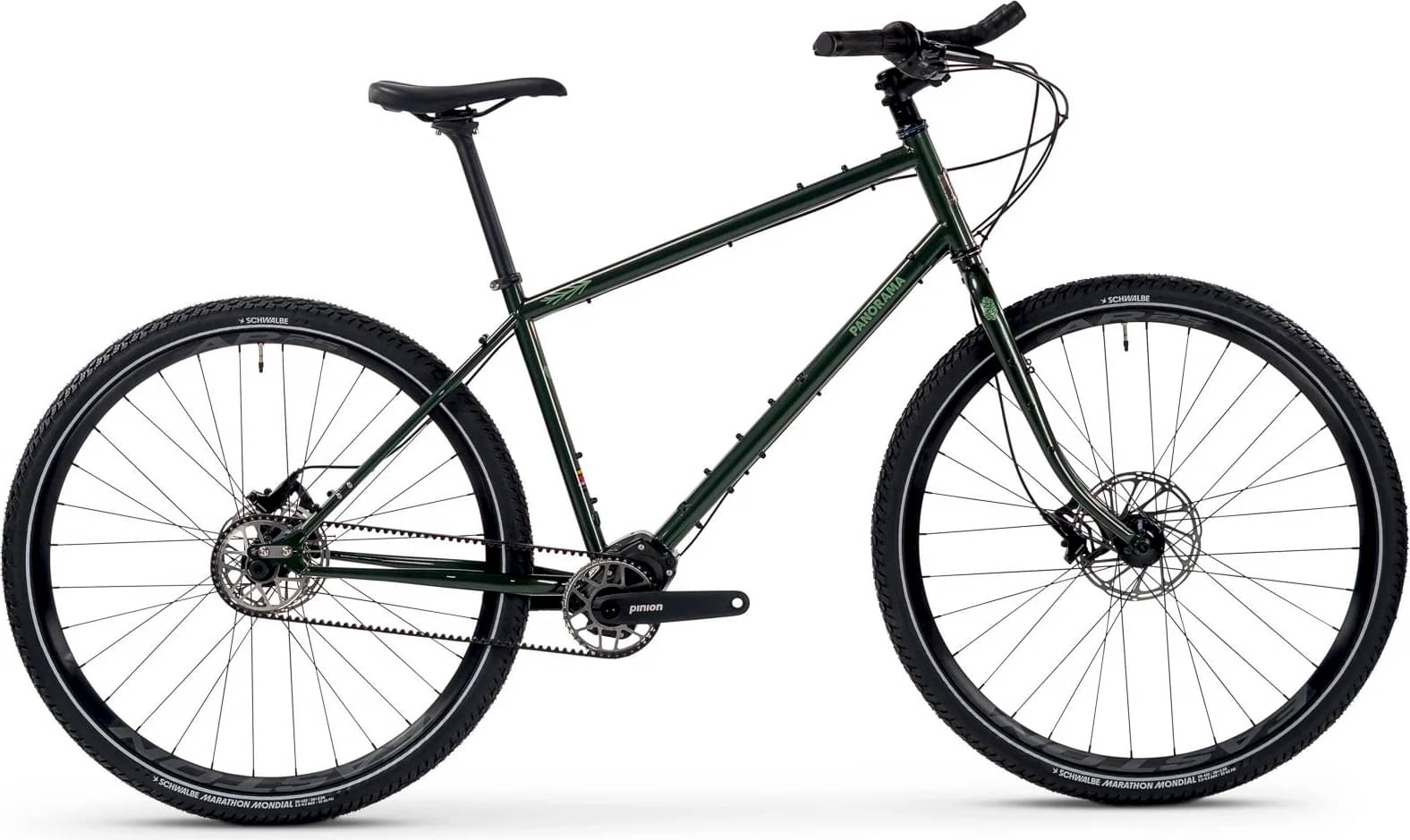

Bike summary
-
-
Groupset Pinion -
Suspension Rigid -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
CUSTOM CR-MO 4130, POST MOUNT BRAKE STD, RACK MOUNTS, FENDER MOUNTS, TRIPLE CARGO CAGE MOUNTS, MOUNTS FOR LOW-RIDER AND NITTO/RIVENDALE-STYLE RACK, DYNAMO HUB COMPATIBLE, 15MMX110MM AXLE, STRAIGHT STEER TUBE 1-1/8¨, MAX TIRE CLEARANCE: 29X2.8¨, 27.5¨X3¨, COLOR: METALLIC FOREST GREEN
Drivetrain
Shift Levers
PINION DS2.12
Crank
PINION, FORGED ALUMINUM 170MM
Bottom Bracket
Pinion, press-fit
Pedals
Not included
Wheels
Rims
OPTION W1-1: WTB STi30 27.5¨ / SHIMANO TC500 (FRONT) / TC600 (REAR), 32 HOLES, CENTERLOCK
Tires
OPTION W1: MAXXIS REKON, 27.5X2.6, EXO/TR, 60TPI, BLACK
Brakes
Brakes
SRAM DB4
Cockpit
Stem
PROMAX FA-283, 60MM, 7DEG
Handlebar
VELO ORANGE CRAZY BARS
Headset
CANE CREEK 40-SERIES
Seat
Saddle
WTB PURE
Seatpost
KALLOY SP-3D2, 27.2mm X400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.452 mm | 1.48 mm | 1.443 mm |
| Front Center | 703 mm | 715 mm | 747 mm |
| Rake | 62 mm | 62 mm | 62 mm |
| Trail | 79 mm | 79 mm | 79 mm |
| Stack | 604 mm | 623 mm | 642 mm |
| Reach | 416 mm | 421 mm | 445 mm |
| Top Tube Length | 595 mm | 605 mm | 635 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 460 mm | 490 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1165 mm | 1178 mm | 1210 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 730 mm | 750 mm | 780 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 162 cm | 171 cm | 179 cm |
| Rider Max Height | 174 cm | 182 cm | 190 cm |
