Bike details
Overview
Key information split into simple groups.

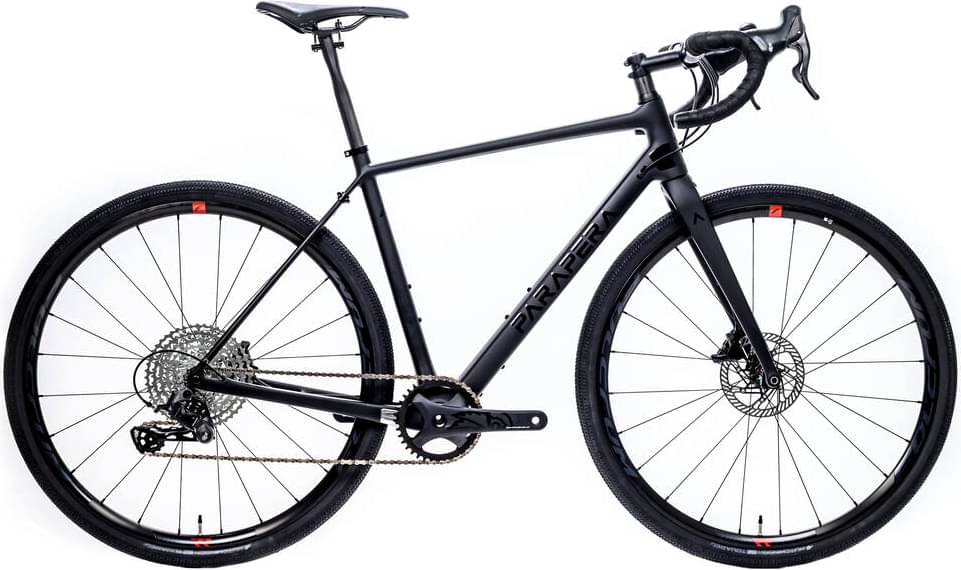

Bike summary
-
-
Frame Carbon -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Campagnolo Ekar Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 167cm
SM
165cm - 171cm
MD
168cm - 180cm
LG
177cm - 187cm
XL
184cm - 201cm
XXL
195cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components

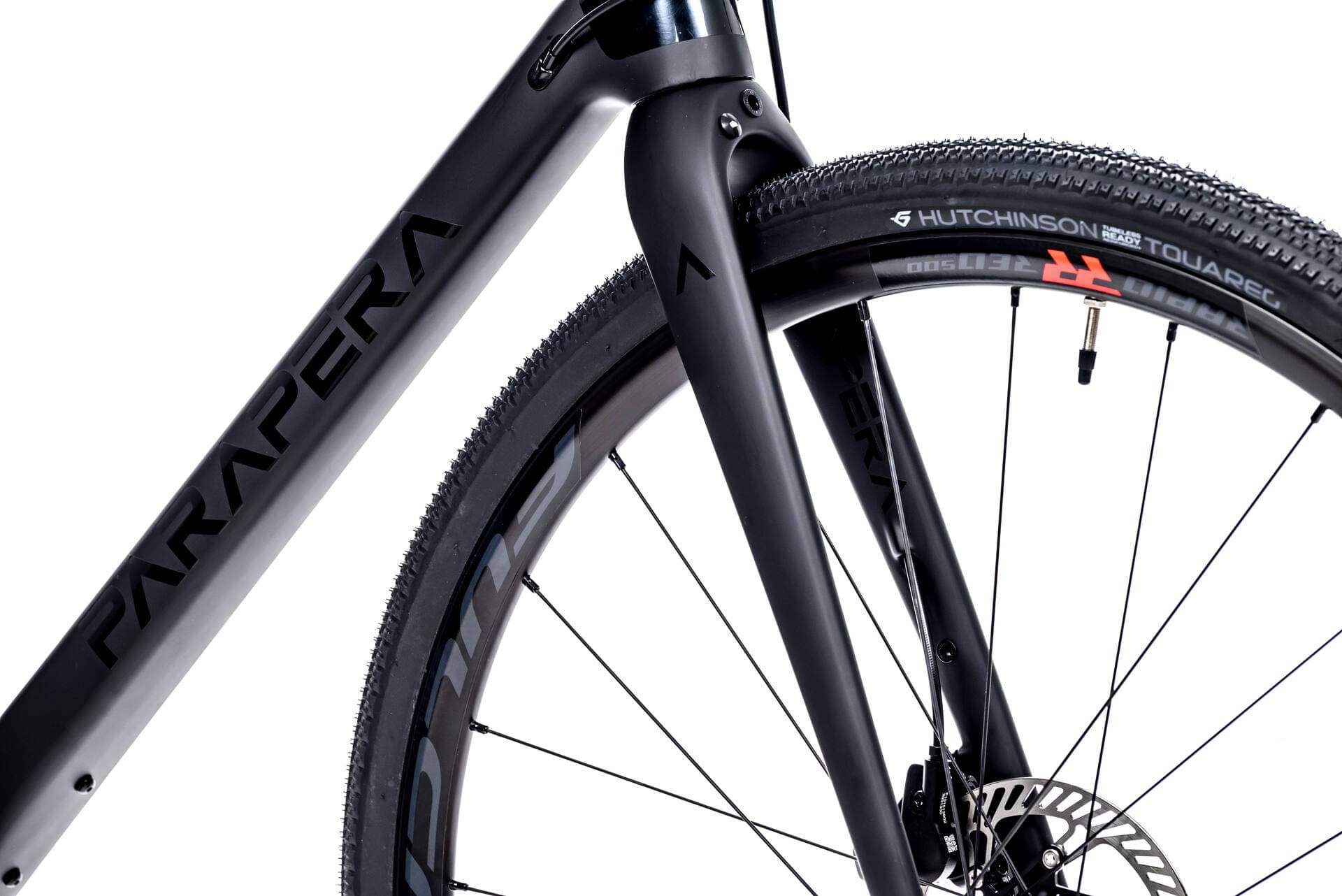

Frame
Suspension Fork
PARAPERA Gravel Carbon with eyelets for mudguards and integrated light cable

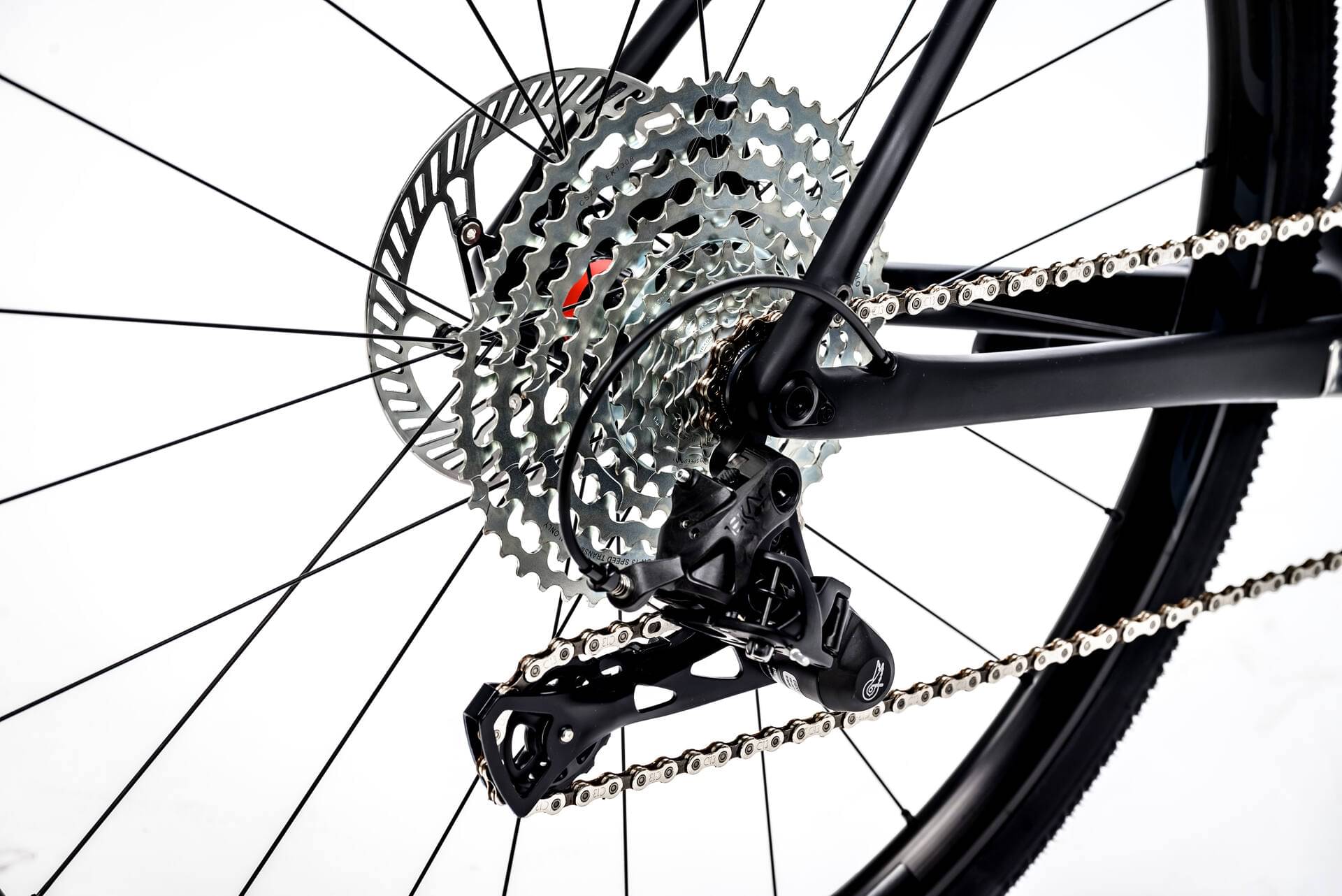

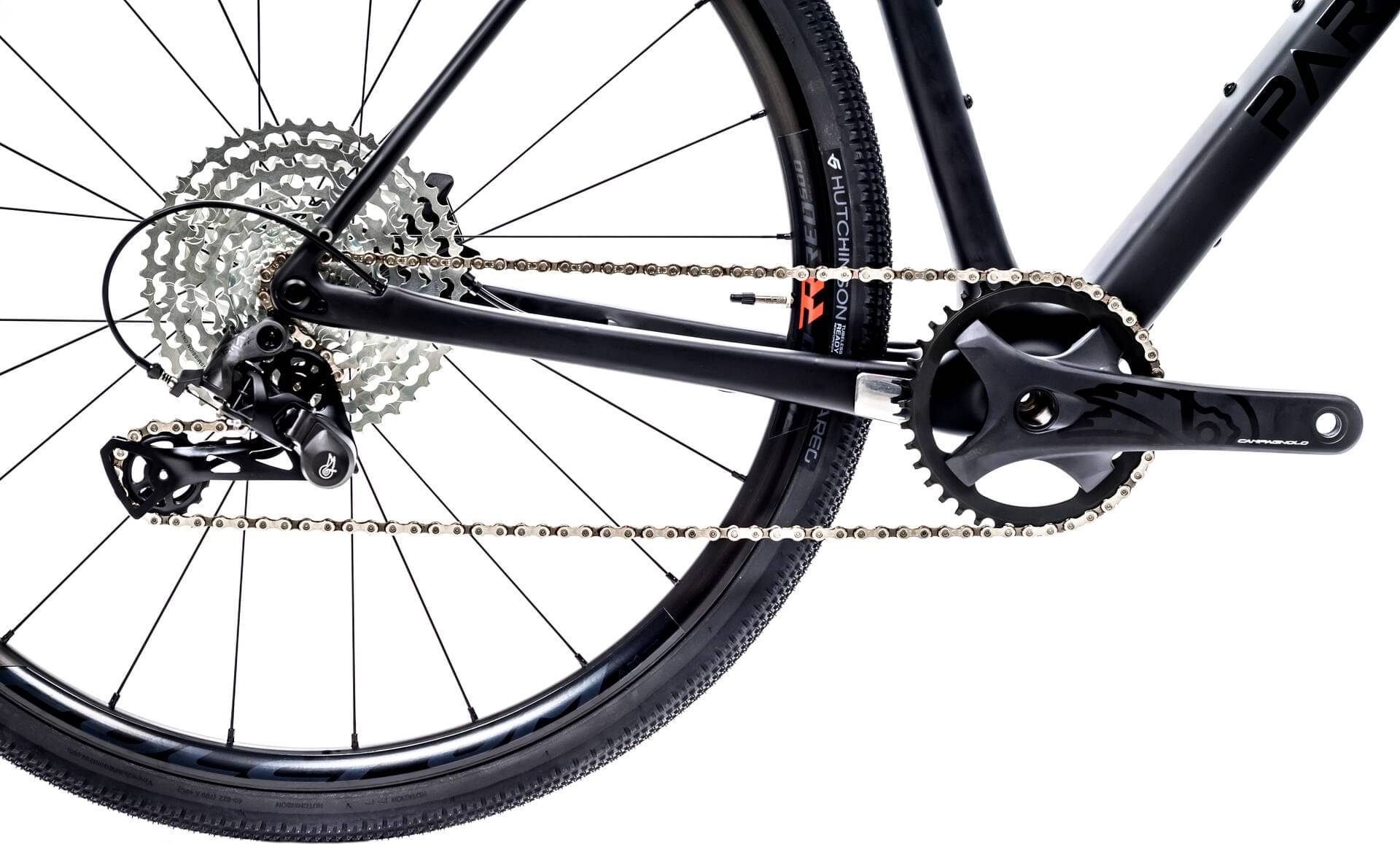

Drivetrain
Rear Derailleur
Campagnolo Ekar GT 1x 13
Cassette
EKAR GT 13-speed 10-48

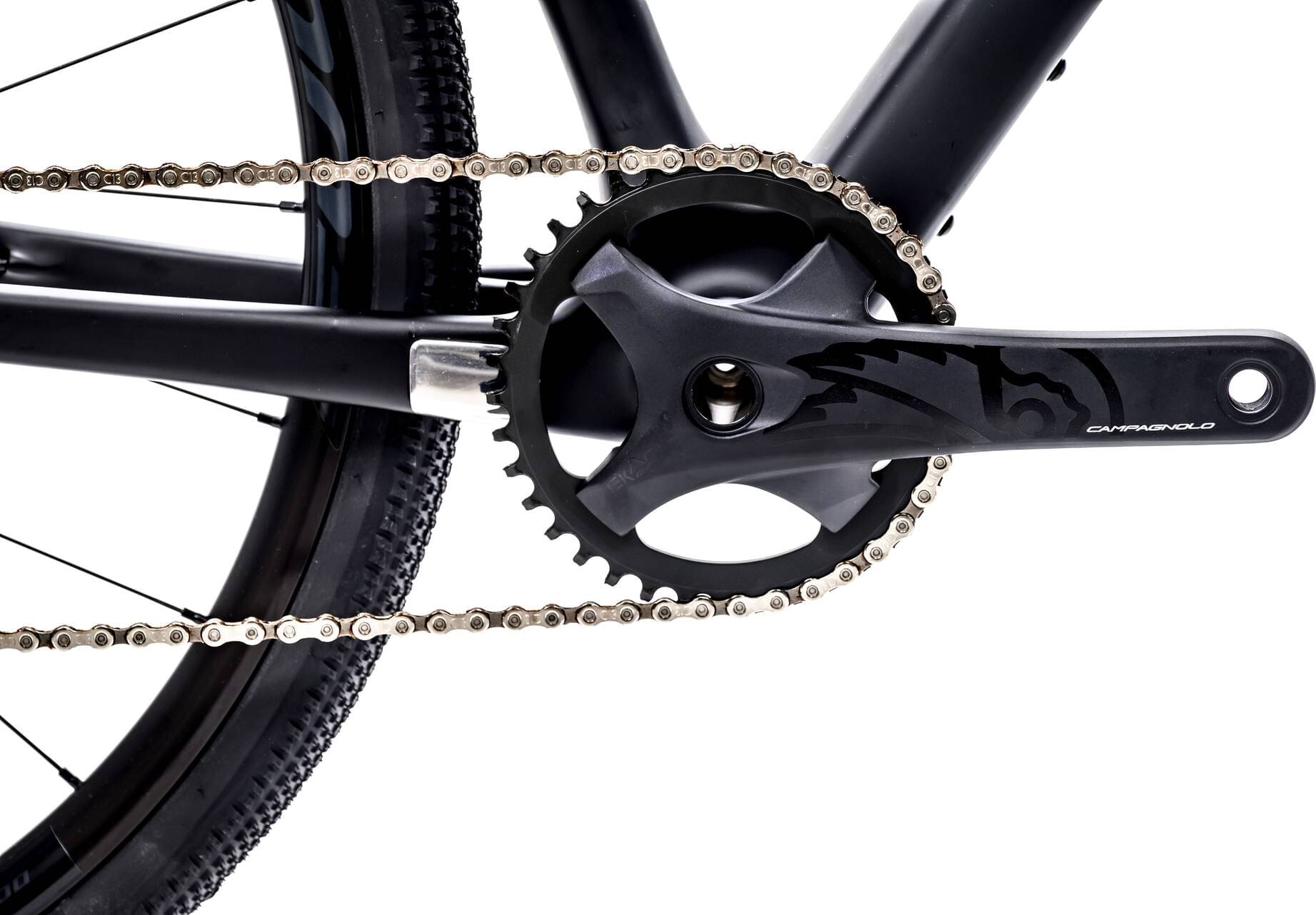

Crank
EKAR GT 13-speed 38T.
Pedals
without
Wheels
Rims
Fulcrum RED 500

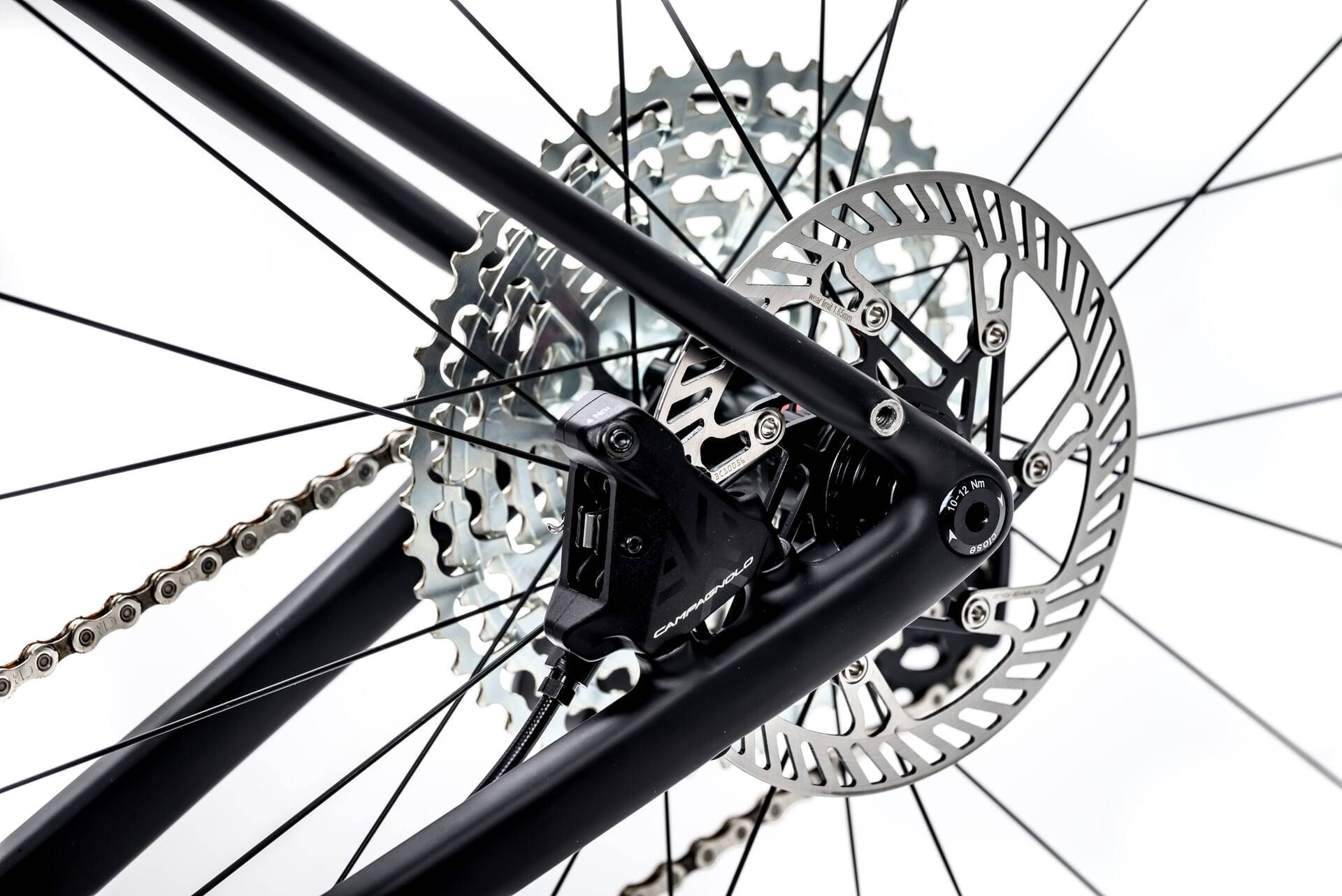

Brakes
Brakes
Campagnolo EKAR GT

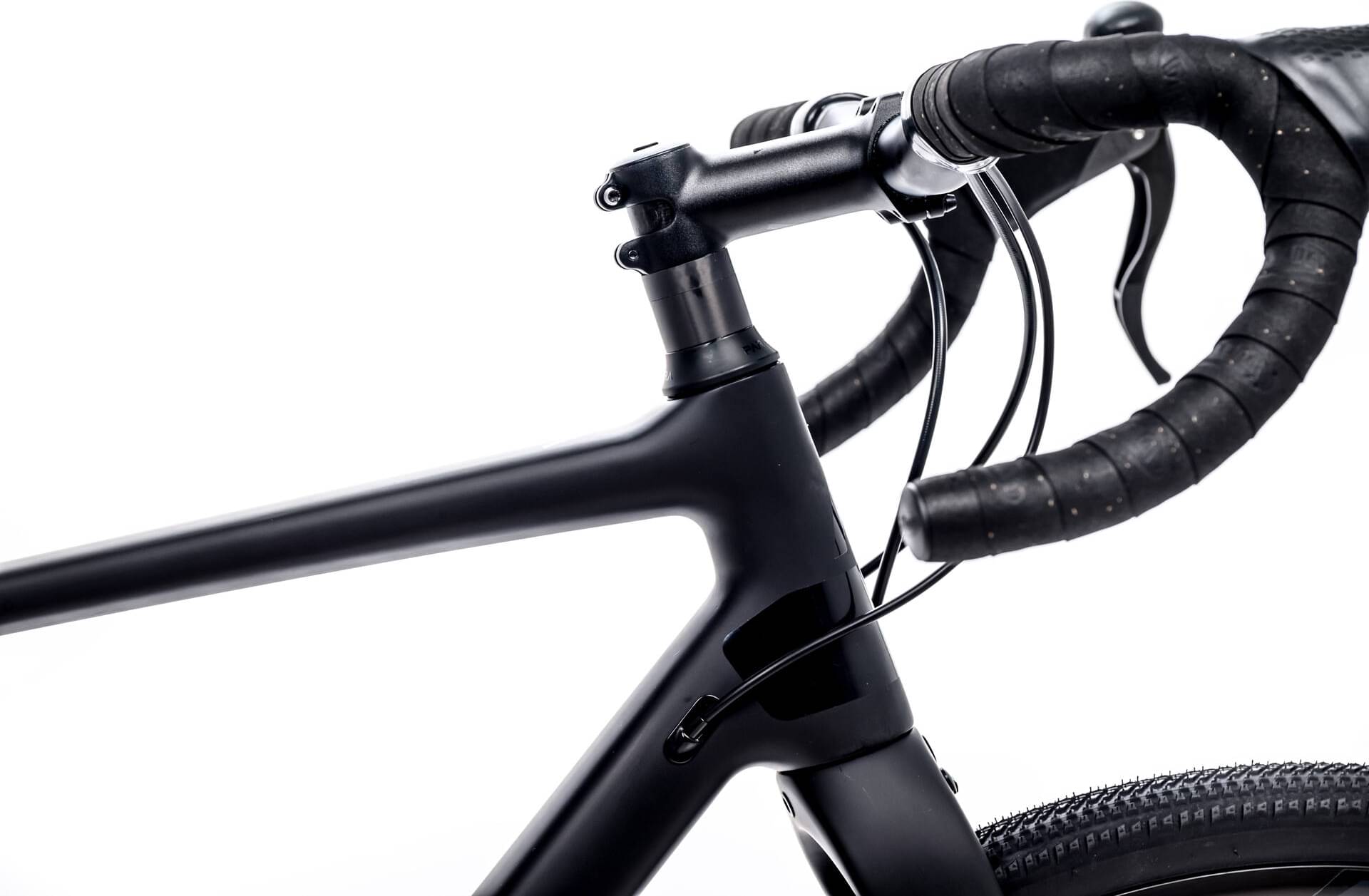

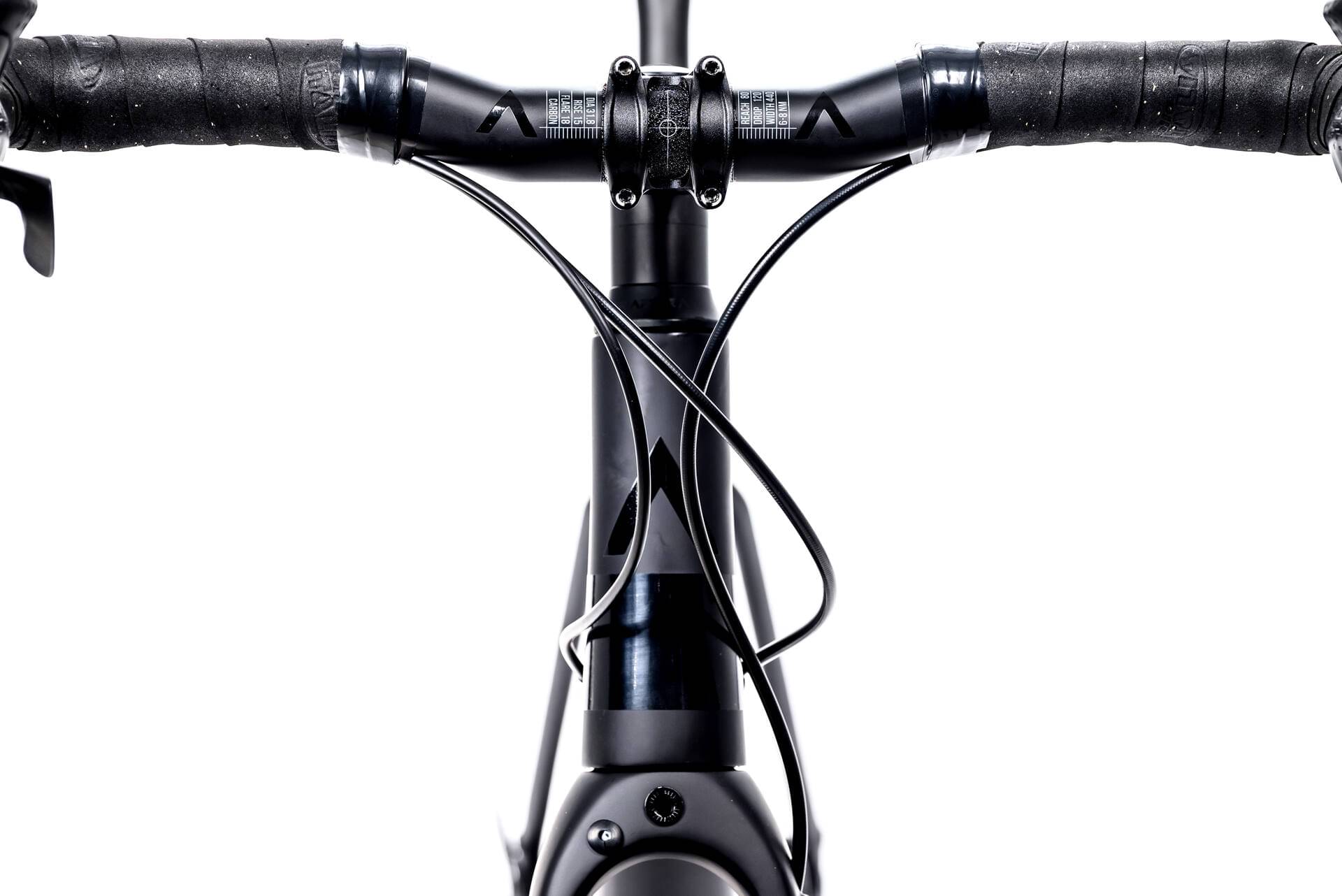

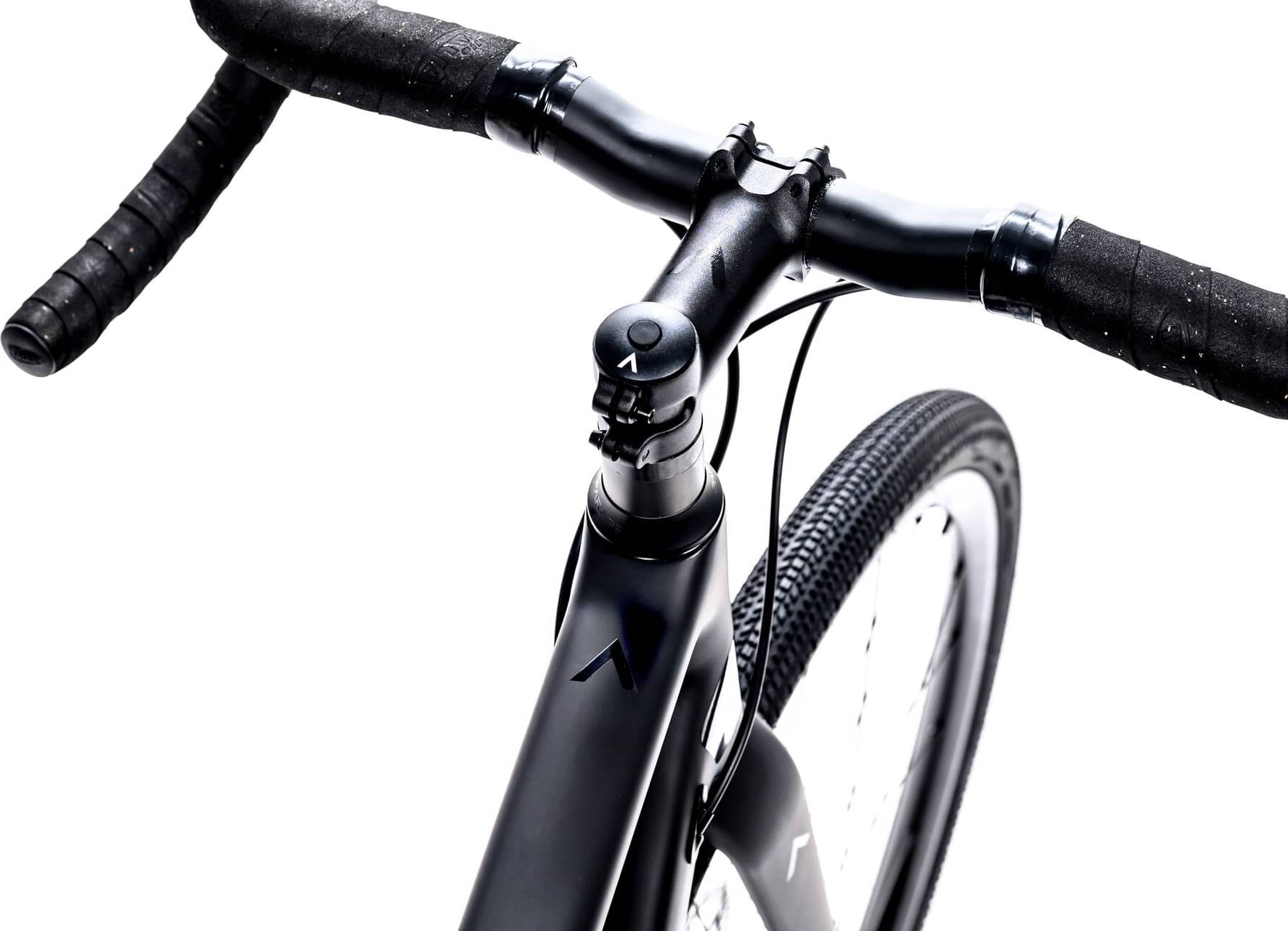

Cockpit
Stem
PARAPERA Aluminum Super Light

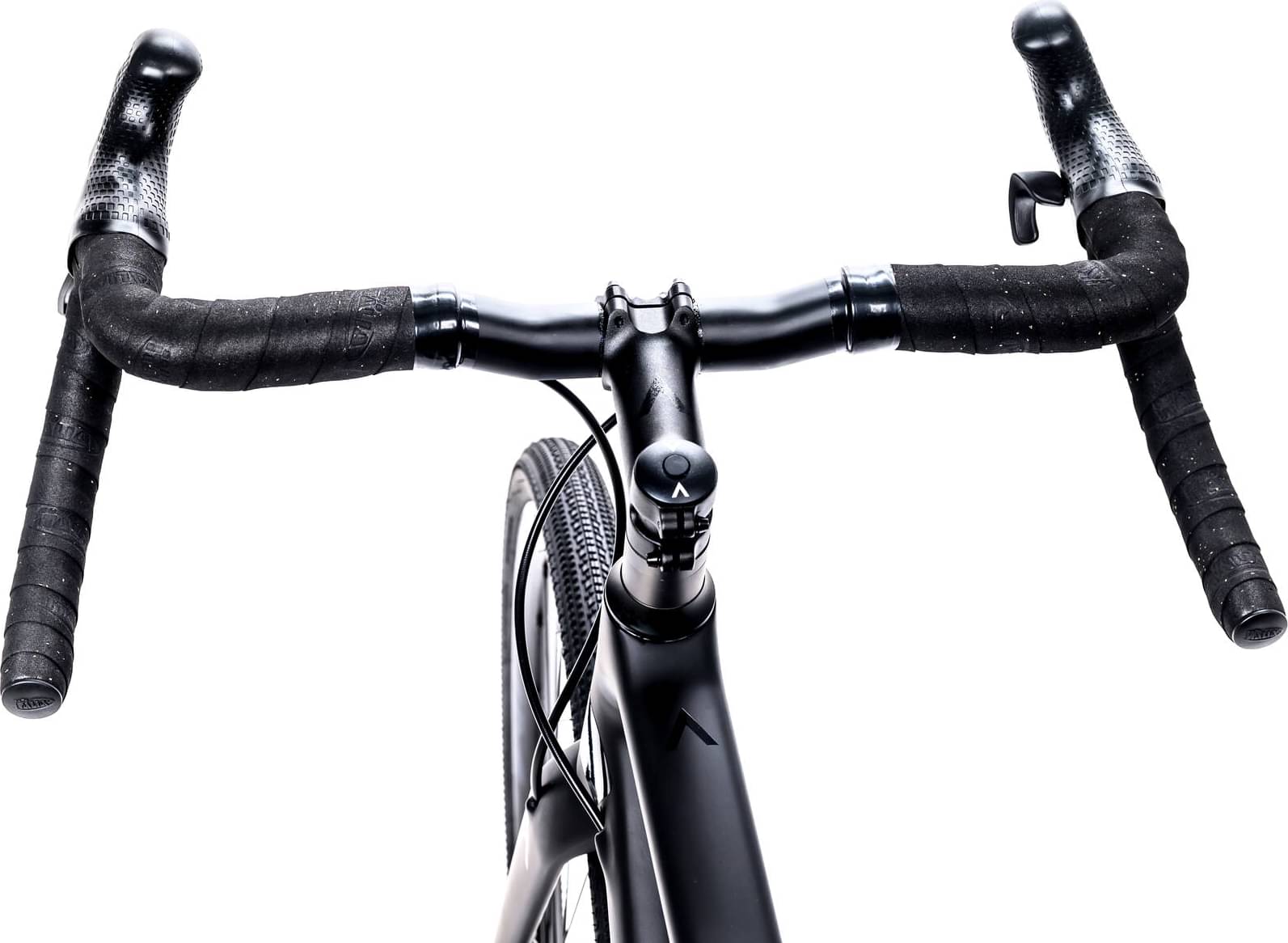

Handlebar
400mm PARAPERA Speed Gravel Carbon / 18 degree flare

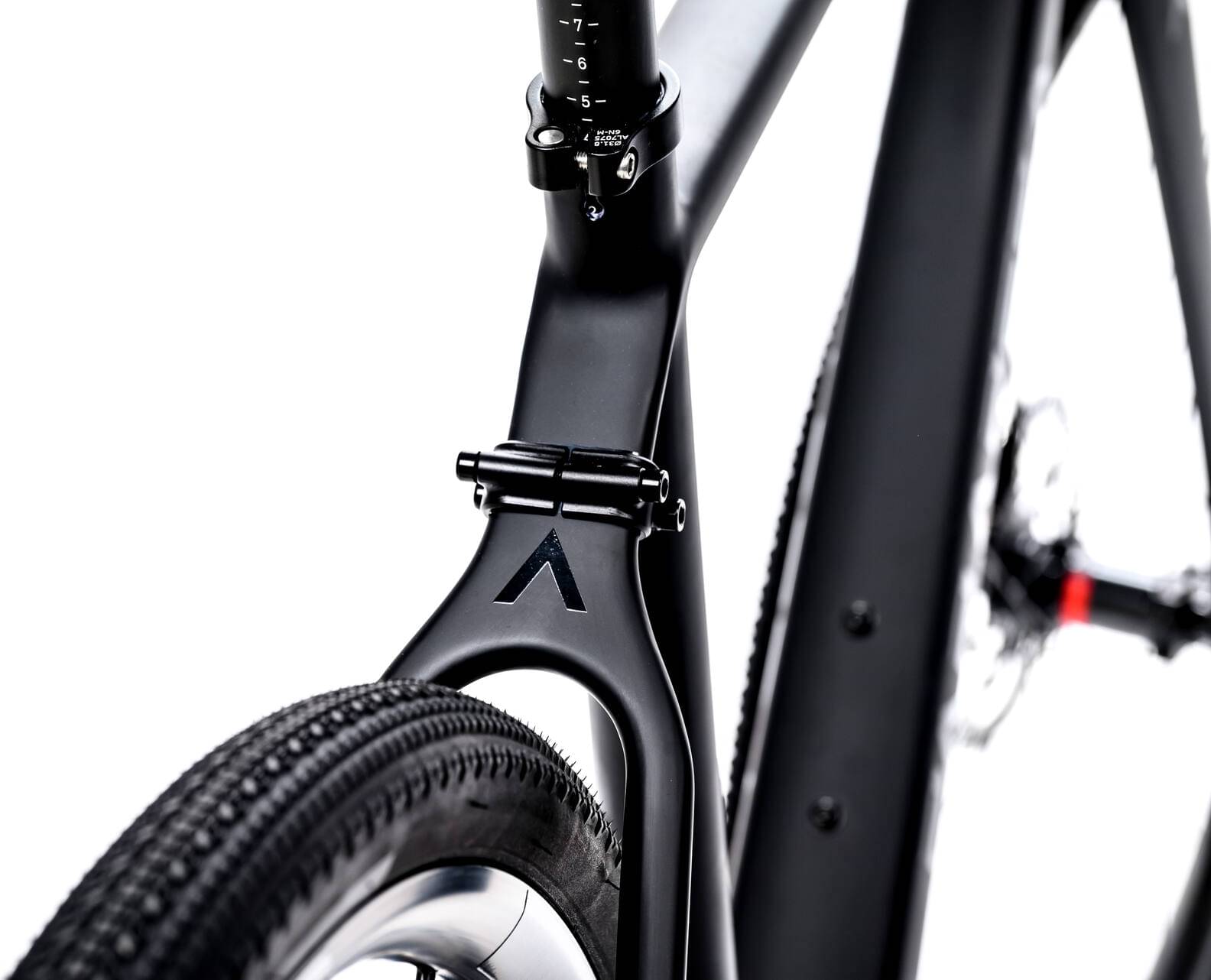

Seat
Saddle
Selle Italia SLR Boost Magnesia
Seatpost
PARAPERA Carbon extralight
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.443 mm | 1.497 mm | 1.52 mm | 1.515 mm | 1.561 mm | 1.561 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 274 mm | 274 mm | 276 mm | 276 mm |
| Front Center | 604 mm | 606 mm | 616 mm | 631 mm | 641 mm | 656 mm |
| Rake | 56 mm | 62 mm | 62 mm | 61 mm | 61 mm | 60 mm |
| Trail | 64 mm | 51 mm | 51 mm | 52 mm | 52 mm | 54 mm |
| Stack | 541 mm | 560 mm | 576 mm | 591 mm | 612 mm | 629 mm |
| Reach | 375 mm | 374 mm | 379 mm | 390 mm | 392 mm | 403 mm |
| Top Tube Length | 520 mm | 535 mm | 555 mm | 570 mm | 585 mm | 600 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 110 mm | 125 mm | 145 mm | 160 mm | 185 mm | 200 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1022 mm | 1024 mm | 1035 mm | 1050 mm | 1061 mm | 1076 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 75 mm | 75 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 165 cm | 168 cm | 177 cm | 184 cm | 195 cm |
| Rider Max Height | 167 cm | 171 cm | 180 cm | 187 cm | 201 cm | 205 cm |
