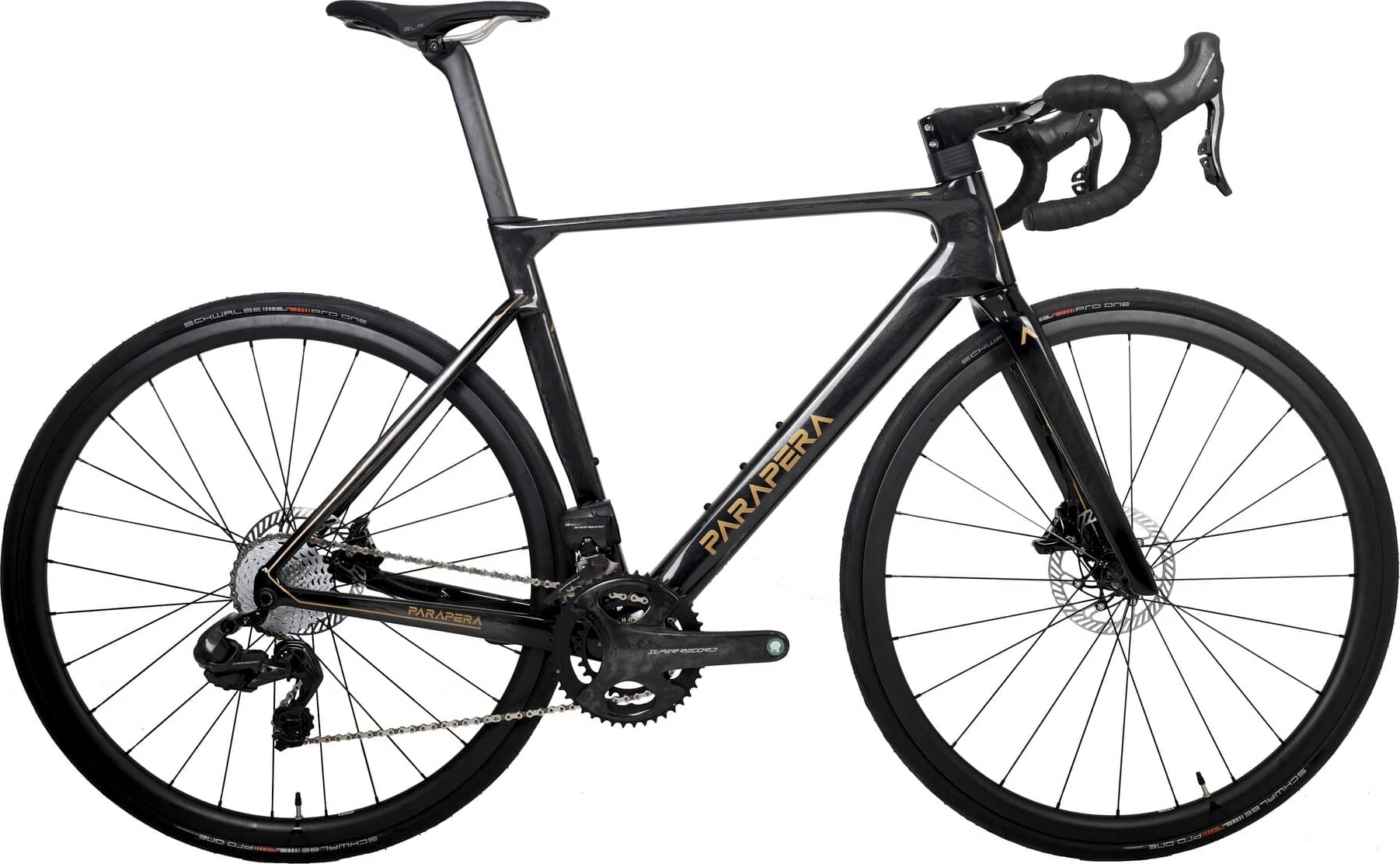

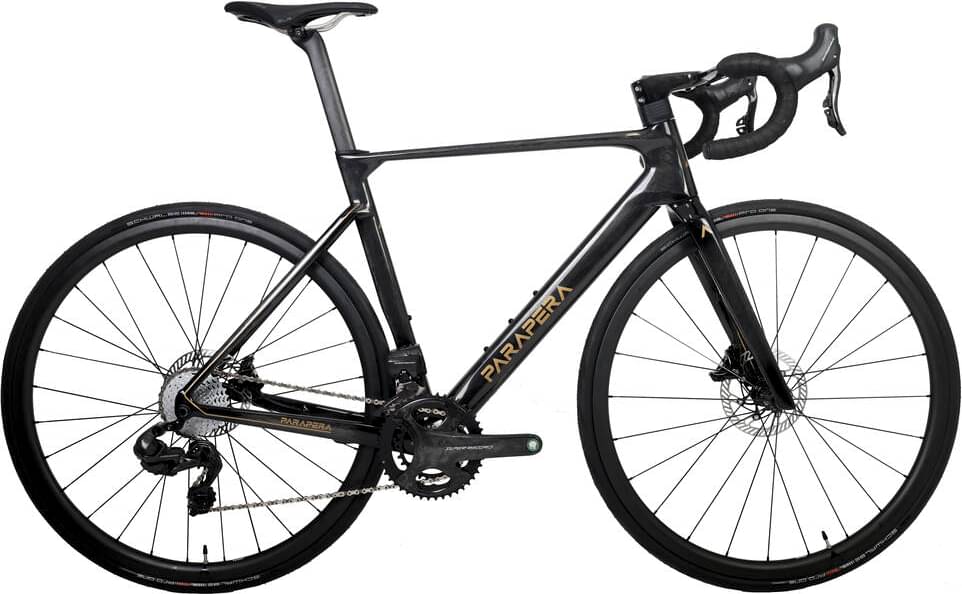

parapera ATMOS² MASTERPIECE 2024
2024 Youth
Estimate price |
10,331$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Super Record Wireless -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Campagnolo Super Record Rim
Sizing
Recommended size guide.
XS
155cm - 167cm
SM
165cm - 171cm
MD
168cm - 180cm
LG
177cm - 187cm
XL
184cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components

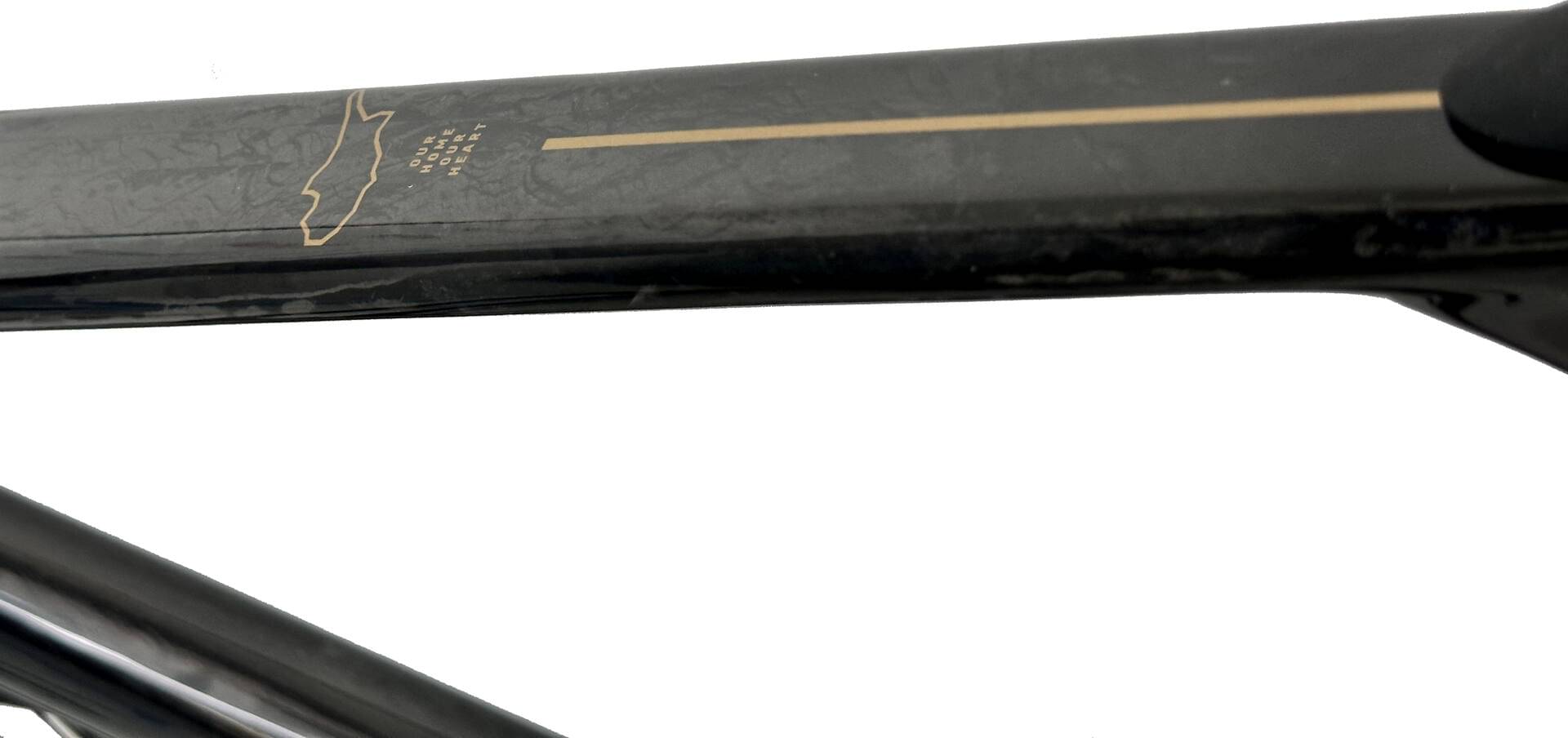

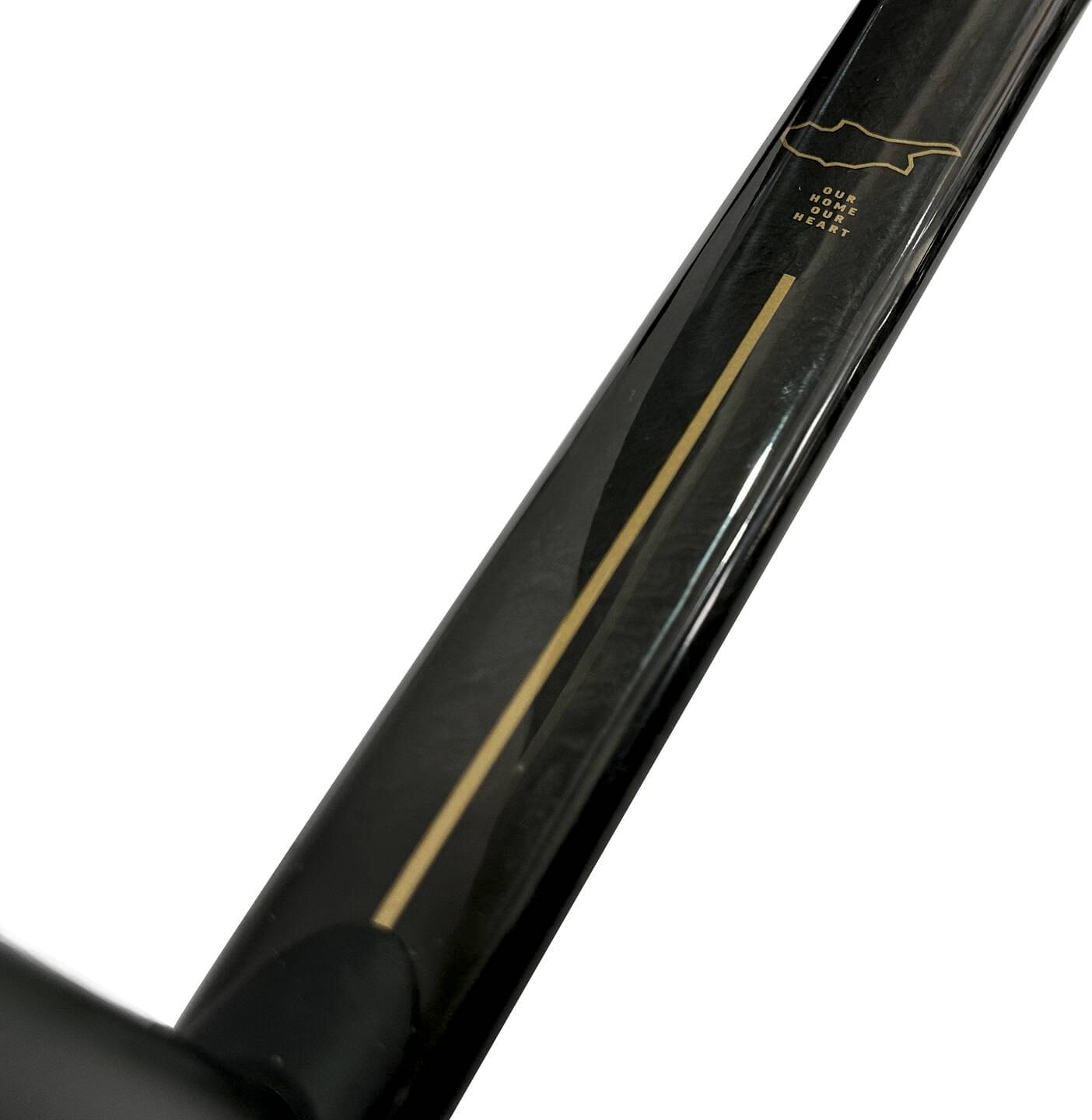

Frame

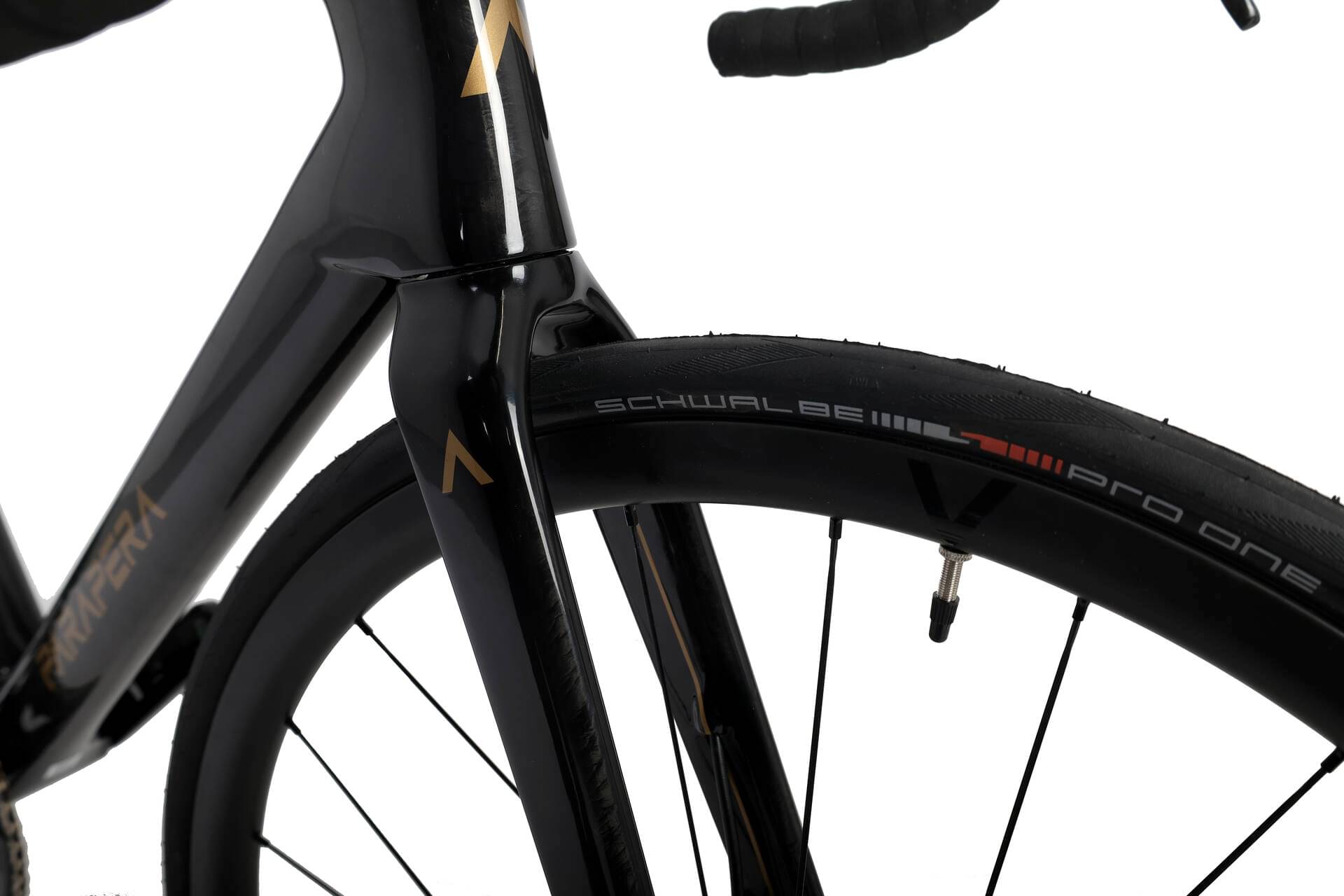

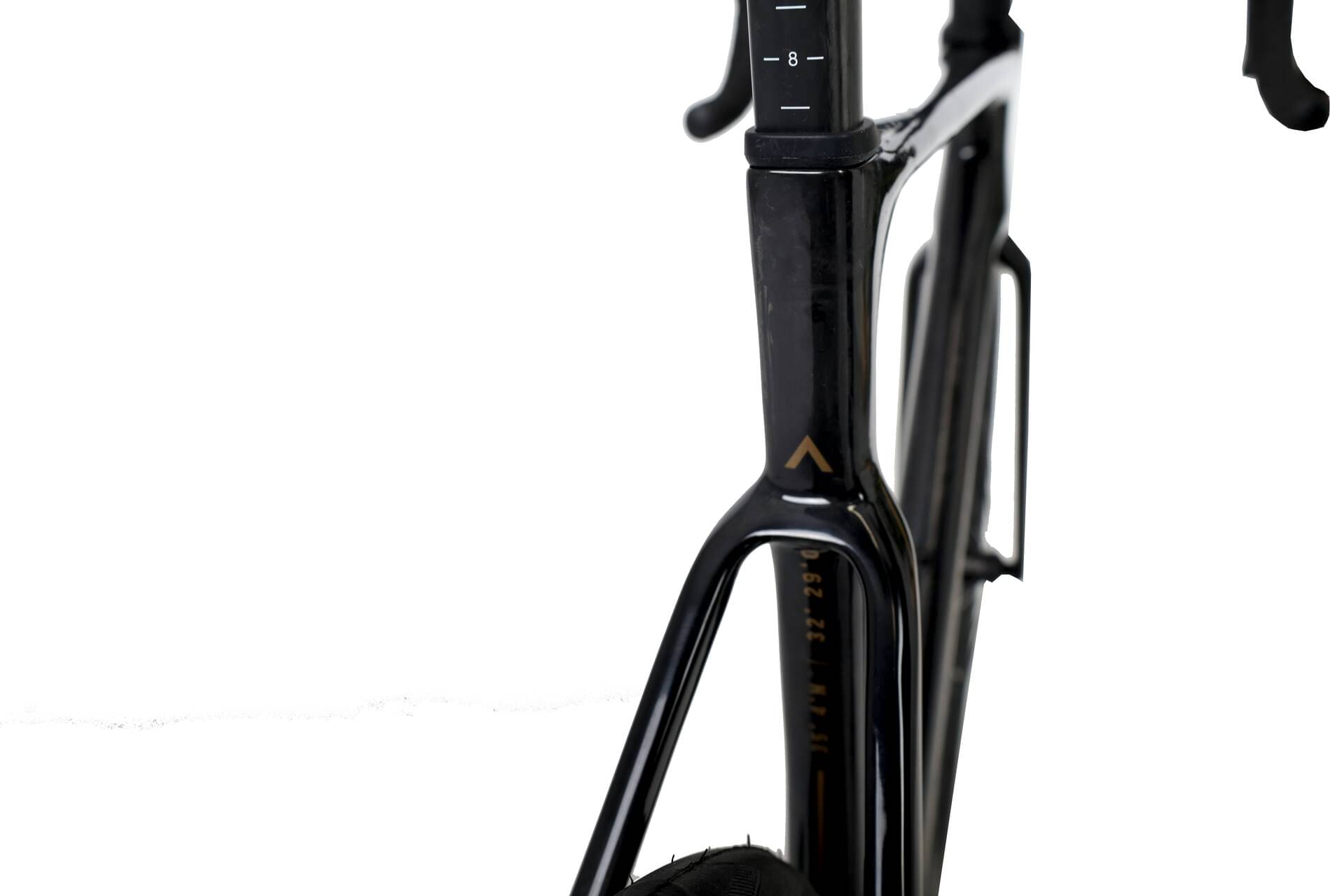

Suspension Fork
PARAPERA Carbon Aero

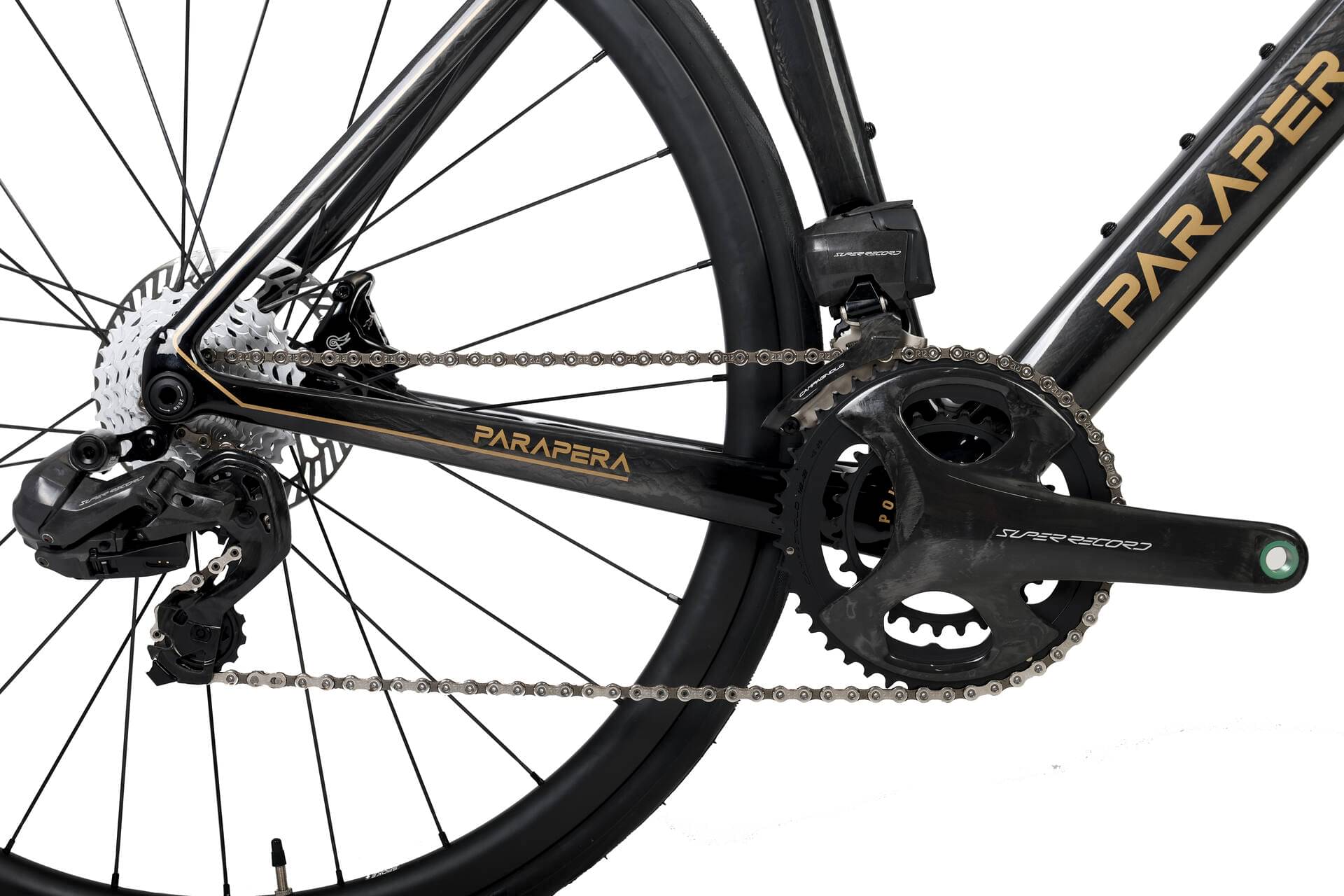

Drivetrain

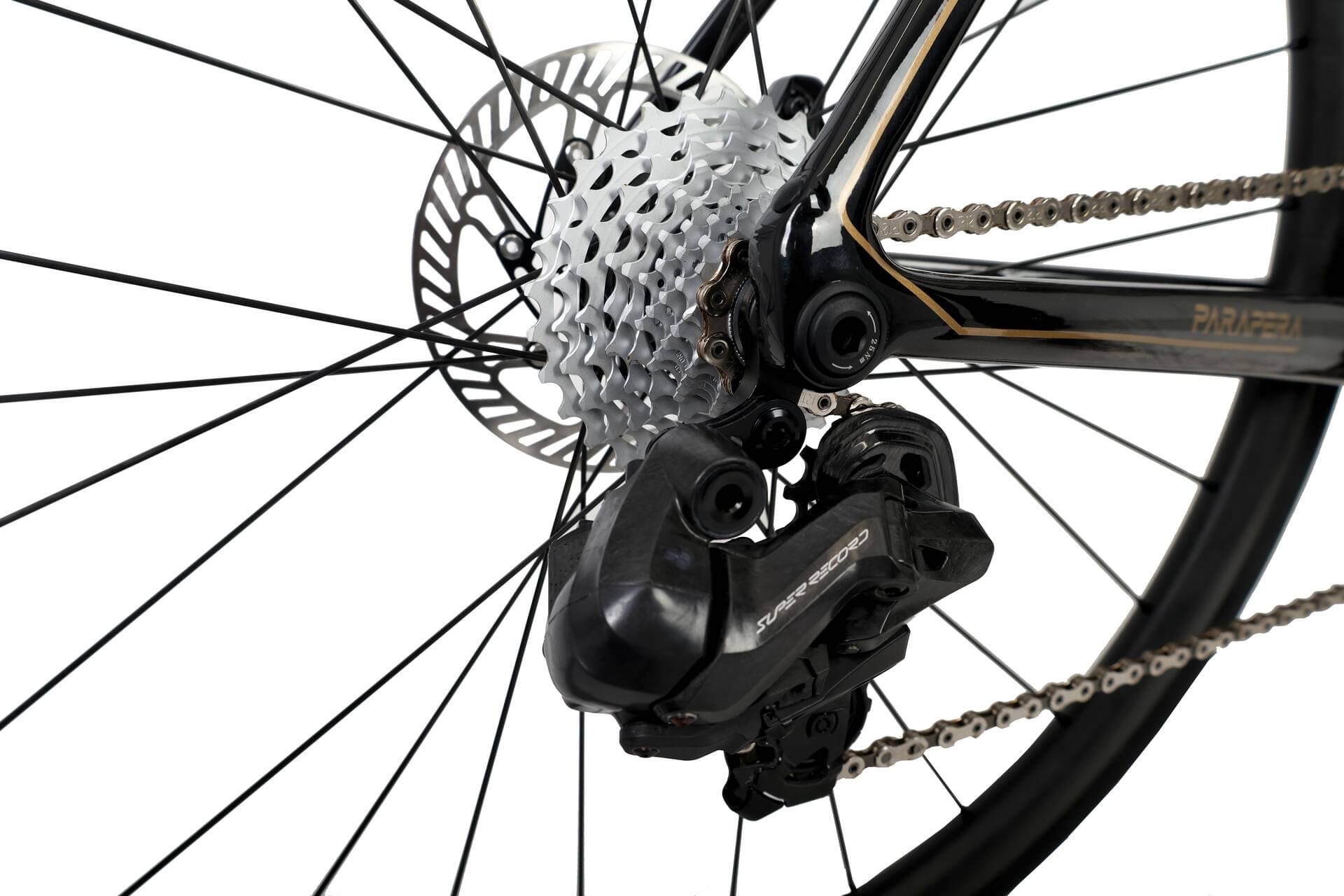

Rear Derailleur
Campagnolo Super Record wireless 12-speed disc
Cassette
12-speed Super Record wireless 10-29

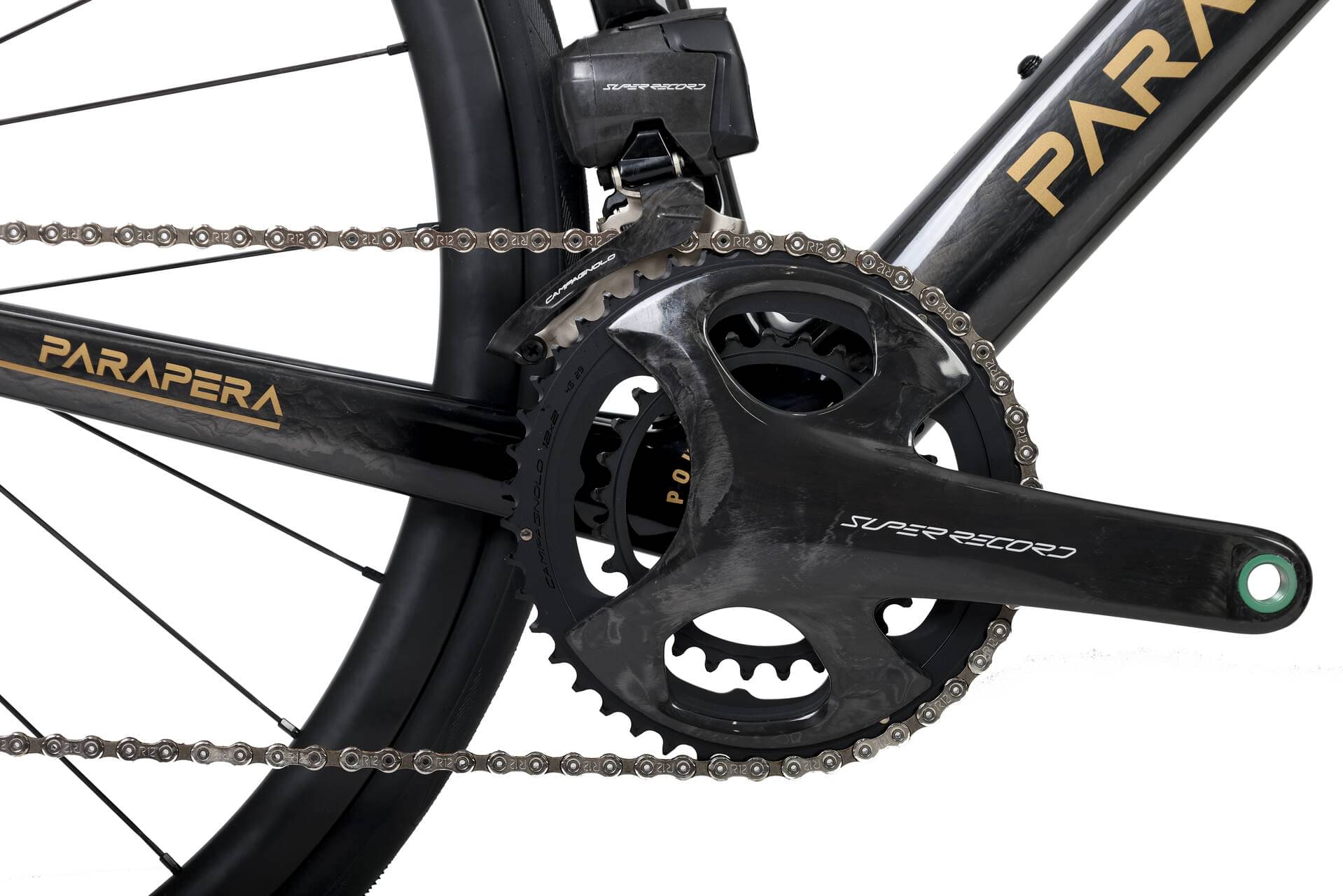

Crank
Campagnolo Super Record wireless 2-fold 29-45 new SuperCompact
Pedals
without
Wheels
Rims
Parapera Carbon SLS 30

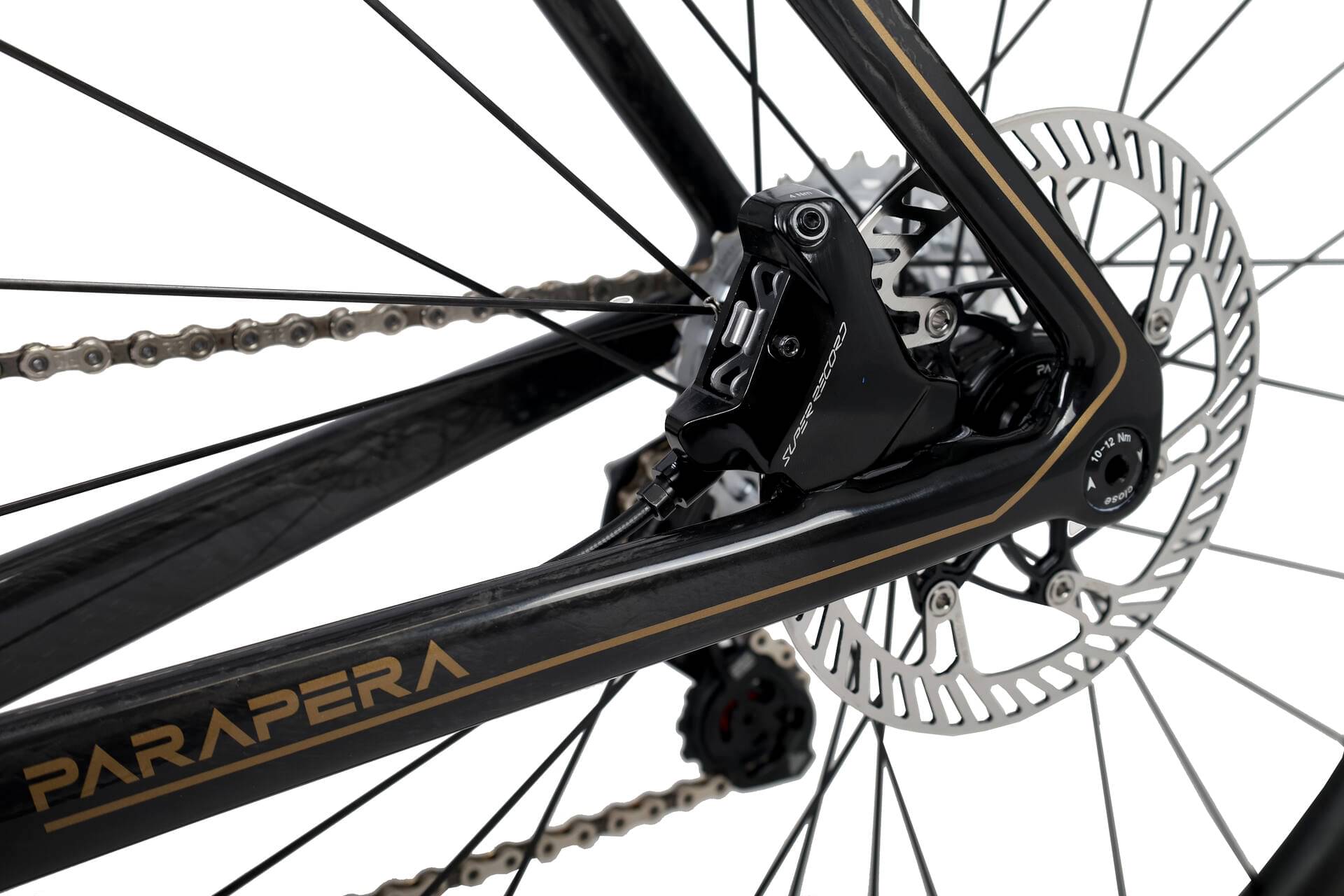

Brakes
Brakes
Campagnolo Super Record

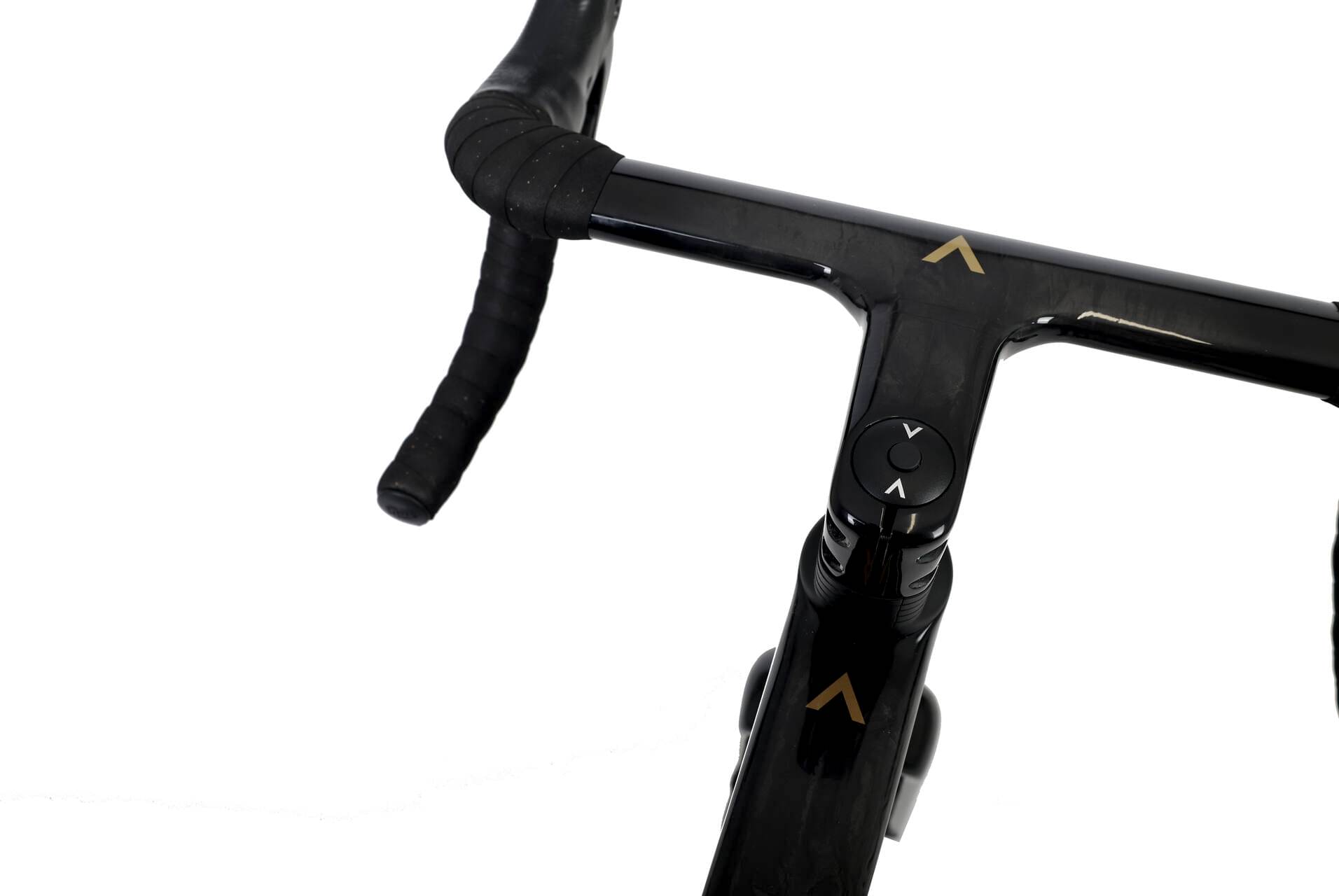

Cockpit

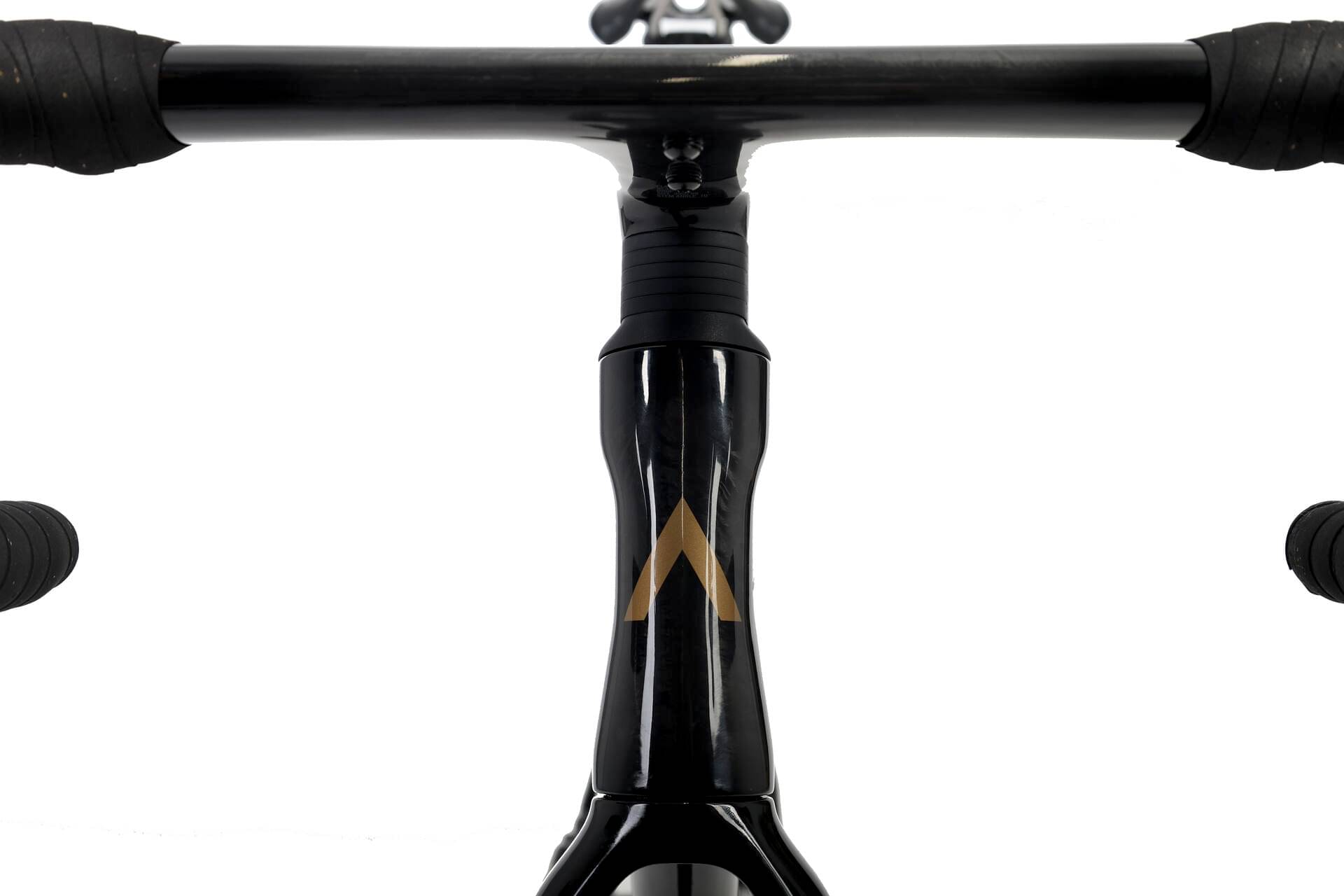

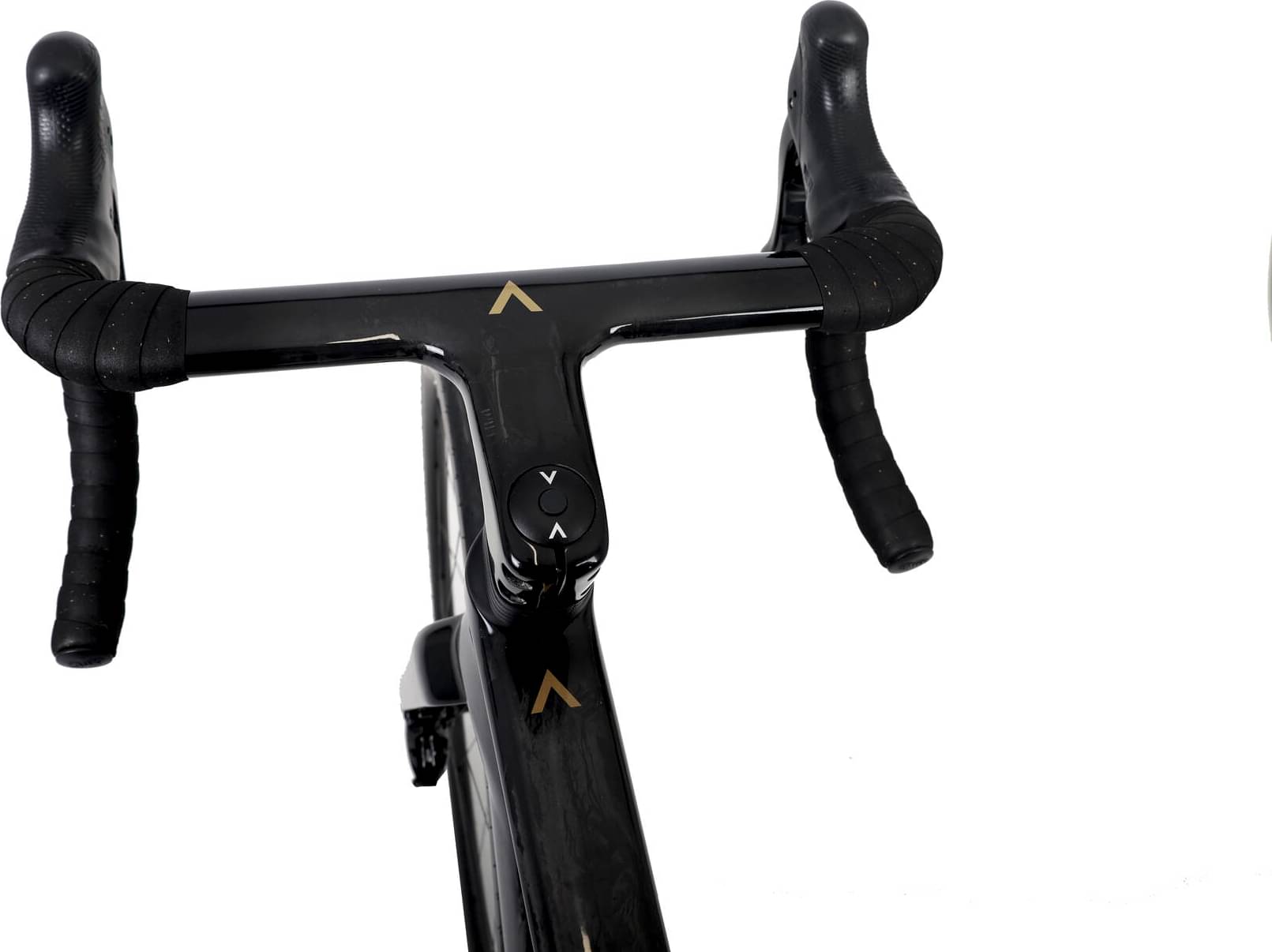

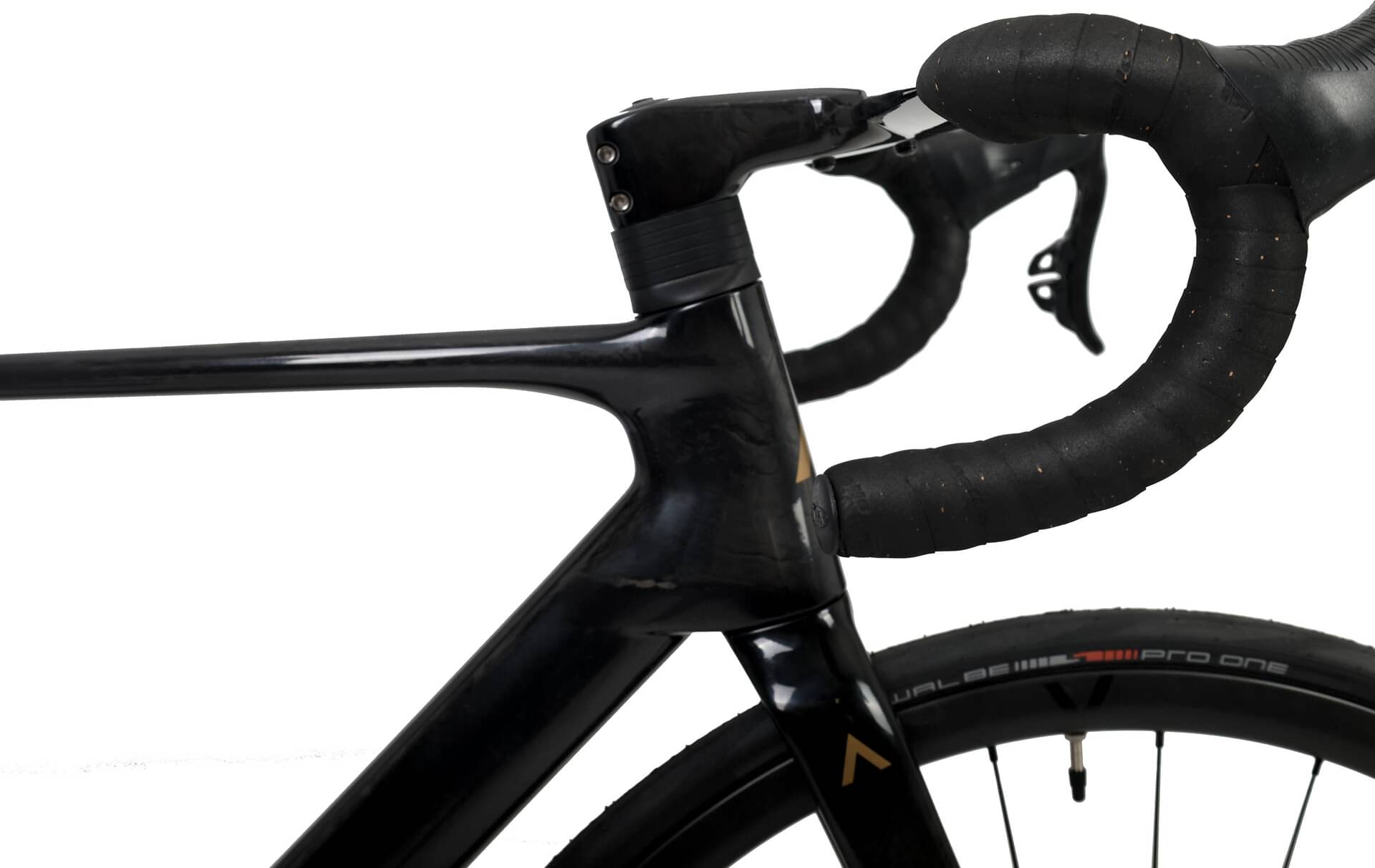

Stem
PARAPERA Carbon Aero
Seat
Saddle
Selle San Marco Carbon
Seatpost
PARAPERA Carbon Aero
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.337 mm | 1.349 mm | 1.394 mm | 1.423 mm | 1.43 mm |
| Front Center | 577 mm | 586 mm | 590 mm | 600 mm | 614 mm |
| Rake | 44 mm | 50 mm | 47 mm | 44 mm | 51 mm |
| Stack | 500 mm | 514 mm | 541 mm | 562 mm | 575 mm |
| Reach | 374 mm | 381 mm | 388 mm | 395 mm | 402 mm |
| Top Tube Length | 510 mm | 527 mm | 542 mm | 562 mm | 581 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 460 mm | 485 mm | 510 mm | 535 mm | 565 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72.5 ° | 72.5 ° | 73 ° |
| Head Tube Length | 102 mm | 120 mm | 135 mm | 155 mm | 180 mm |
| Chainstay Length | 408 mm | 405 mm | 405 mm | 410 mm | 410 mm |
| Wheelbase | 975 mm | 981 mm | 985 mm | 1000 mm | 1014 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 165 cm | 168 cm | 177 cm | 184 cm |
| Rider Max Height | 167 cm | 171 cm | 180 cm | 187 cm | 201 cm |
