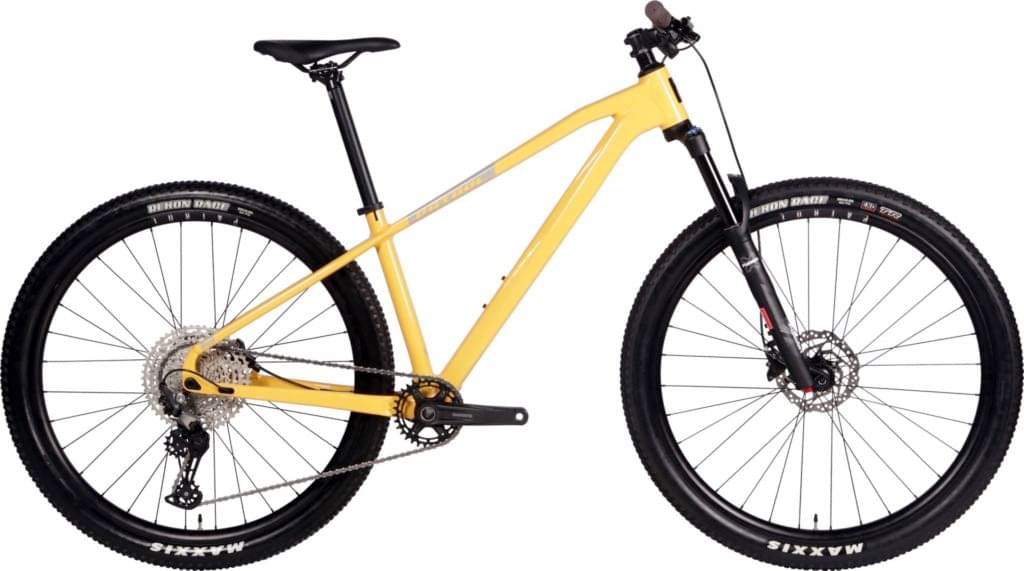

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
PATROL alloy hardtail XC-trail, 12×148 mm
Suspension Fork
ROCKSHOX Recon Silver RL, 120mm travel
Drivetrain
Rear Derailleur
SHIMANO Deore M6100, 12s
Shift Levers
SHIMANO Deore M6100
Cassette
SHIMANO Deore M6100, 12s, 10-50t
Crank
SHIMANO Deore MT510-1
Wheels
Rims
PATROL alloy rims with SHIMANO hubs
Tires
MAXXIS Rekon Race, 29×2.25
Brakes
Brakes
SHIMANO MT200
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.4 mm | 1.337 mm | 1.283 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 724 mm | 749 mm | 773 mm | 801 mm |
| Rake | 2 mm | 2 mm | -1 mm | 2 mm |
| Trail | 157 mm | 157 mm | 160 mm | 157 mm |
| Stack | 630 mm | 630 mm | 635 mm | 639 mm |
| Reach | 425 mm | 450 mm | 475 mm | 498 mm |
| Top Tube Length | 606 mm | 631 mm | 657 mm | 682 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 420 mm | 460 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 105 mm | 105 mm | 110 mm | 115 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1157 mm | 1182 mm | 1206 mm | 1234 mm |
| Bottom Bracket Drop | -62 mm | -62 mm | -62 mm | -62 mm |
| Standover Height | 704 mm | 708 mm | 738 mm | 780 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
093 belongs to the Patrol 093 model. 2 bikes variations carry this model name so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
093 components
Fork
This bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on 093 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The 093 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Patrol 093 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
