Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork X Fusion
-
Groupset Deore -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
X-Fusion RC32
Rear Shock
None
Drivetrain
Rear Derailleur
Shimano Deore M5100, 11-speed
Front Derailleur
None
Shift Levers
Shimano Deore M5100, 11-speed
Cassette
Shimano Deore M5100, 11-speed, 11-51 tooth
Crank
Shimano Deore M5100
Chain Guide
None
Wheels
Front Hub
Patrol wheelset, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rear Hub
Patrol wheelset, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rims
Patrol wheelset, alloy, 32 hole
Spokes
Patrol wheelset
Tires
Maxxis Ikon, wire bead, 29" x 2.2"
Brakes
Brakes
Shimano MT200, 2-piston
Brake Levers
Shimano MT200
Seat
Seatpost
Rigid
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.539 mm | 1.431 mm | 1.393 mm | 1.342 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm |
| Stack | 608 mm | 608 mm | 617 mm | 624 mm |
| Reach | 395 mm | 425 mm | 443 mm | 465 mm |
| Top Tube Length | 570 mm | 600 mm | 620 mm | 644 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 445 mm | 470 mm | 495 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1093 mm | 1123 mm | 1144 mm | 1169 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 704 mm | 742 mm | 763 mm | 783 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

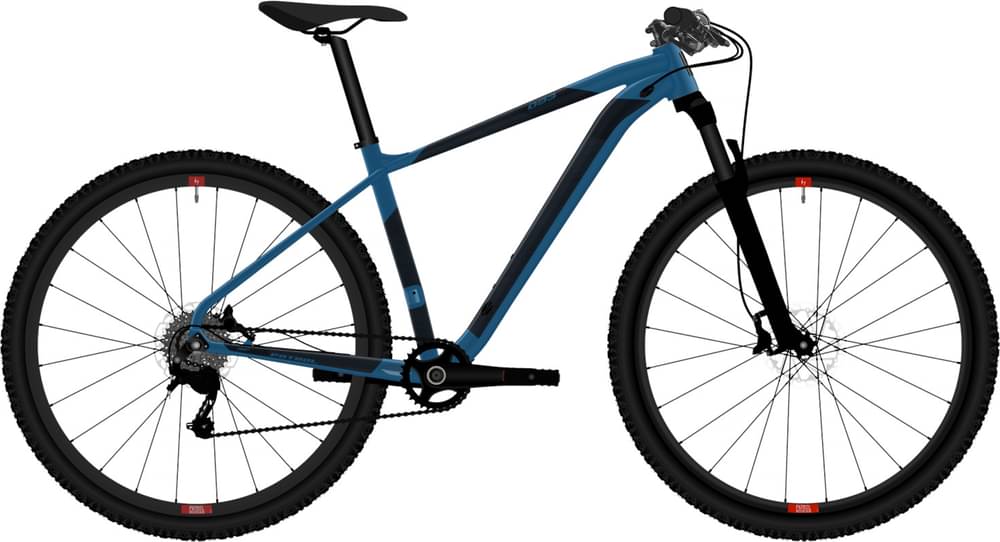

093 Alloy is part of the Patrol 093 model. Patrol launched 2 bikes of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1199$. If we compare this with the average Crosscountry bike cost we notice that the price is 58.88% lower.
Overview of components
Fork
The 093 Alloy comes factory-installed with the X Fusion fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The 093 Alloy 2021 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The 093 Alloy comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
