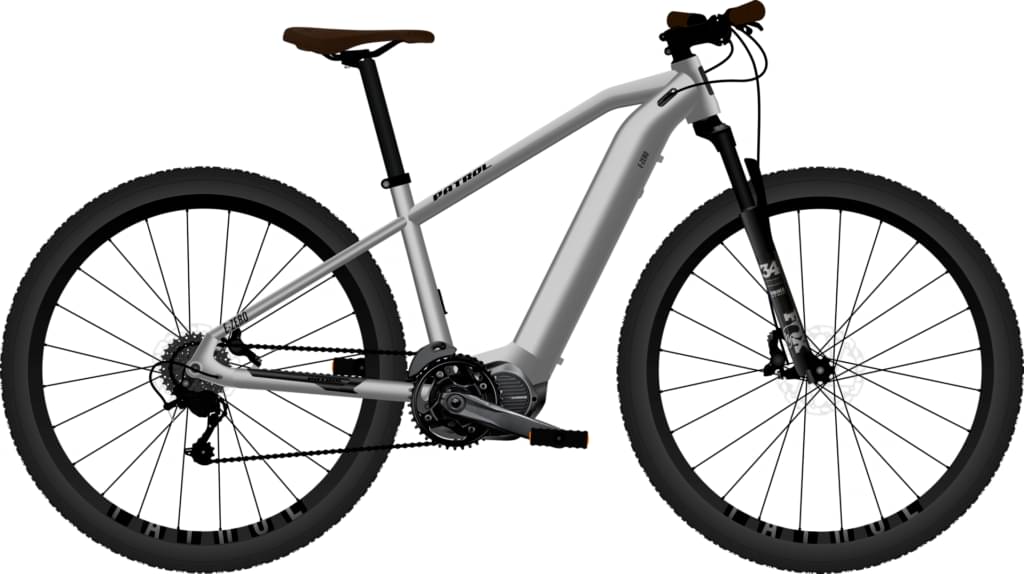

Patrol E Zero Sl 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Travel Front 110mm
  • Fork X-Fusion SLIDE
  • Groupset Deore
  • Suspension Hardtail
  • Motor Shimano 250W 60Nm mid-drive
  • Battery SMP, 630Wh
  • Drivetrain 1 × 11
  • Brakes Mechanical Disc
Sizing

Recommended size guide.

  • SM

    158cm - 171cm

  • MD

    168cm - 180cm

  • LG

    178cm - 189cm

  • XL

    186cm - 199cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

PATROL E-ZERO alloy, 12×148 mm

Suspension Fork

X FUSION Slide Boost RC, 110mm travel, 51mm offset

Drivetrain

Rear Derailleur

SHIMANO Deore M5100, 11s

Shift Levers

SHIMANO Deore M5100

Cassette

SHIMANO Deore M5100, 11-speed, 11-42t

Crank

SHIMANO E6100, SM-CRE80-12-B, 34t

Wheels

Rims

PATROL MD35 rims with SHIMANO MT400 hubs

Tires

MAXXIS Rekon, 29×2.4WT, EXO/TR

Brakes

Brakes

SHIMANO MT420

Cockpit

Stem

Patrol Enduro

Handlebar

Patrol Enduro

Motor & Battery

Motor

SHIMANO Steps E7000

Battery

SMP, 630Wh

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSMMDLGXL
Stack Reach Ratio
1.547 mm1.431 mm1.354 mm1.321 mm
Bottom Bracket Height
328 mm328 mm328 mm328 mm
Front Center
659 mm692 mm712 mm737 mm
Rake
19 mm20 mm16 mm19 mm
Trail
120 mm119 mm123 mm120 mm
Stack
608 mm608 mm608 mm617 mm
Reach
393 mm425 mm449 mm467 mm
Top Tube Length
567 mm599 mm620 mm644 mm
Seat Tube Angle
74 °74 °74 °74 °
Seat Tube Length
400 mm445 mm470 mm495 mm
Head Tube Angle
69.5 °69.5 °69.5 °69.5 °
Head Tube Length
110 mm110 mm110 mm120 mm
Chainstay Length
465 mm465 mm465 mm465 mm
Wheelbase
1120 mm1153 mm1173 mm1198 mm
Bottom Bracket Drop
-45 mm-45 mm-45 mm-45 mm
Standover Height
709 mm719 mm720 mm721 mm
Wheels29"29"29"29"
Rider Min Height158 cm168 cm178 cm186 cm
Rider Max Height171 cm180 cm189 cm199 cm
