Bike details
Overview
Key information split into simple groups.

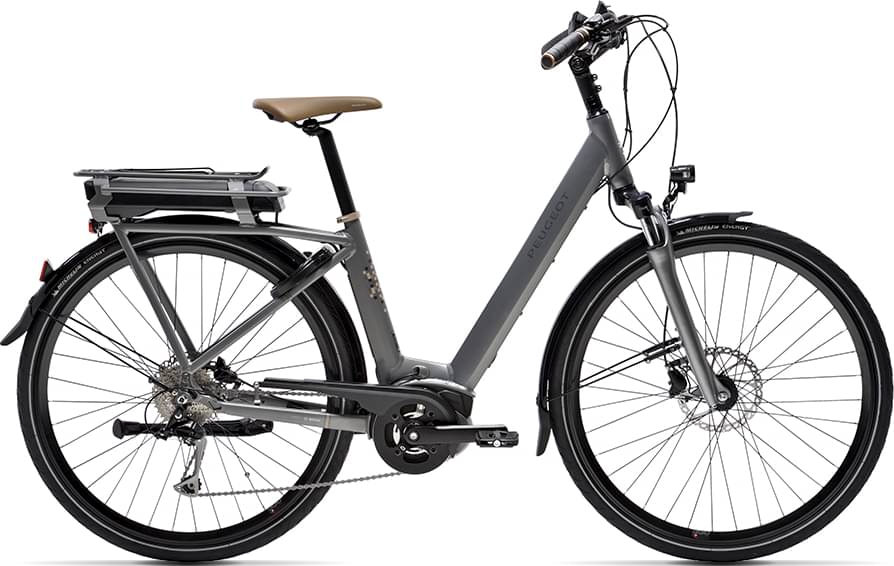

Bike summary
-
-
Frame Aluminum -
Travel Front 47mm -
Fork Suntour NEX
-
Groupset Alivio -
Suspension Hardtail -

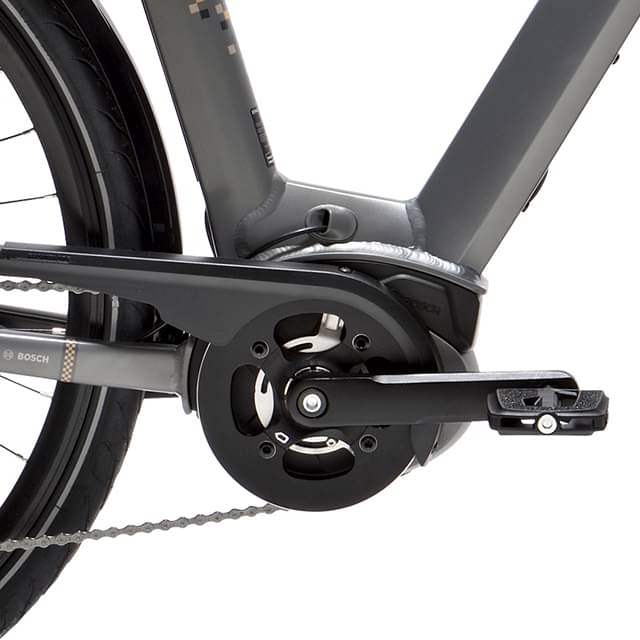

Motor Bosch 600W 50Nm mid-drive -
Battery Bosch Li-ion Power-Pack, 400Wh/500 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 T6
Suspension Fork
Suntour NEX E25 LO, 63 mm
Drivetrain
Rear Derailleur
Shimano Alivio, RD-T4000-SGS
Shift Levers
Shimano Alivio, SL-M4000, 9V
Cassette
Shimano CS-HG201-9, 11-34T
Crank
Aluminium, 170 mm, 38 teeth
Chain Guide
SKS Chainblade
Wheels
Front Hub
Aluminium 36T
Rear Hub
Aluminium 36T
Rims
Mach 1 550 disc, alu, double sidewall, profiled
Tires
Michelin Energy 700 X 38C
Brakes
Brakes
Shimano MT201, 180/160mm
Cockpit

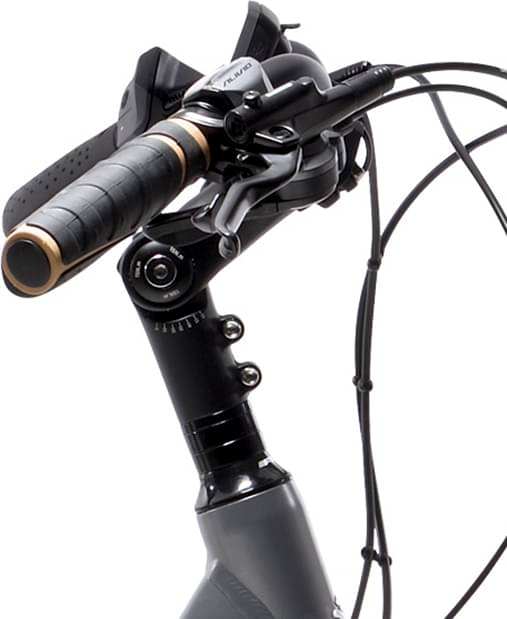

Stem
Aluminium 90 x 31,8 adjustable 0°-90°
Handlebar
Aluminium 620 x 31,8 x 79 x 38°
Seat
Saddle
Royal Essenza
Seatpost
Aluminium 31,6 x 350 mm
Motor & Battery
Motor
Bosch Active Line Plus
Battery
Bosch Li-ion Power-Pack, 400Wh/500 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Top Tube Length | 565 mm | 580 mm | 590 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 520 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 150 mm | 160 mm | 170 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm |
| Front Travel | 47 mm | 47 mm | 47 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
