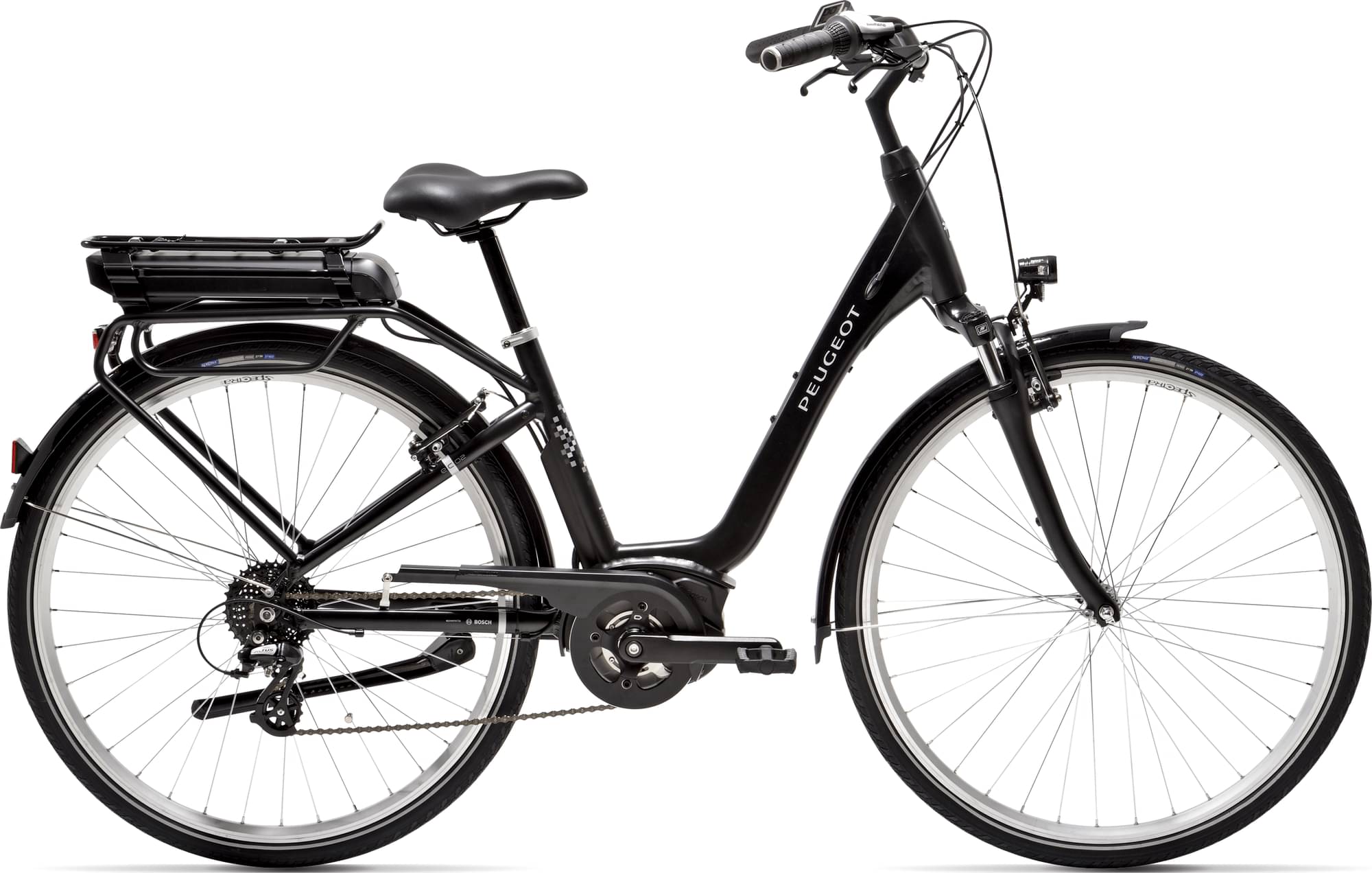

peugeot eC02 Bosch Active Line 2024
2024 E-bike
Weight | 24.9 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour
-
Groupset Tourney, Altus -
Suspension Hardtail -
Motor Bosch 600W 40Nm mid-drive -
Battery Bosch Li-ion Power-Pack, 300Wh/400 Wh -
Drivetrain 1 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 T6
Suspension Fork
Suntour CR7V Vbrake
Drivetrain
Rear Derailleur
Shimano Altus RD-M310
Shift Levers
Shimano Revoshift SL-RS45, 8V
Cassette
Shimano CS-HG31, 11-32T
Crank
Aluminium, 170 mm, 38 teeth
Chain Guide
SKS
Wheels
Front Hub
Aluminium 36T
Rear Hub
Aluminium 36T
Rims
Spectra aluminium double sidewall
Tires
Pergo H-480 622 x 37
Brakes
Brakes
Aluminium TX-121, pâtins freinage 70 mm
Cockpit
Stem
Aluminium 80 x 25,4 adjustable 95-145°
Handlebar
Acier 600 x 25,4 x 110°
Seat
Saddle
Comfort black
Seatpost
Aluminium, 27,2 x 300 mm
Motor & Battery

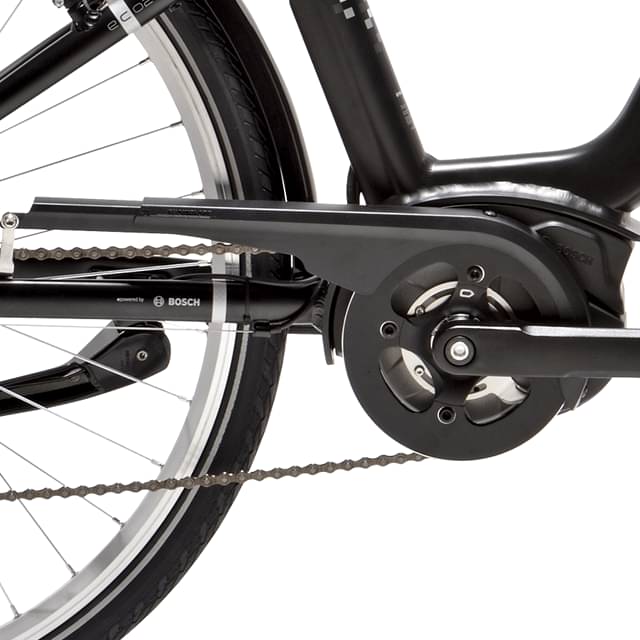

Motor
Bosch Active Line
Battery
Bosch Li-ion Power-Pack, 300Wh/400 Wh
