Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour
-
Groupset Nexus -
Suspension Hardtail -
Motor hub-drive -
Battery Phylion Li-ion 316 Wh -
Drivetrain Internally Geared Hub -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum 6061
Suspension Fork
SR SUNTOUR CR7V with a clearance of 40 mm

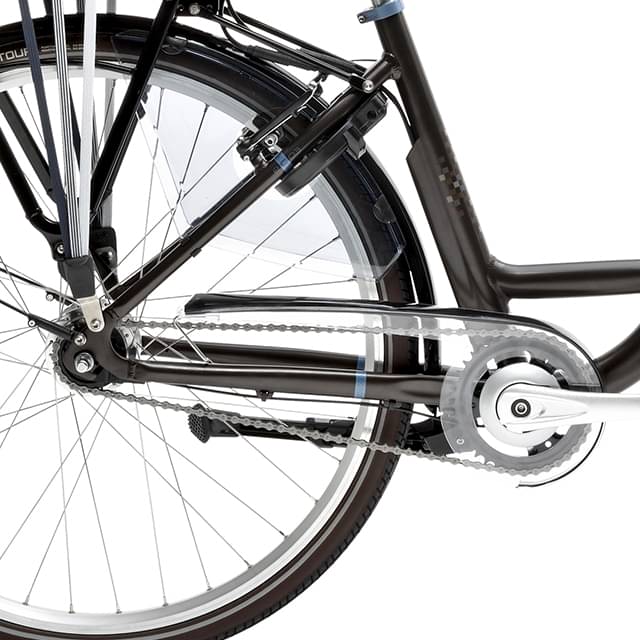

Drivetrain
Shift Levers
Shimano Nexus Revoshift 7 speeds
Crank
Aluminum 170 mm 38 teeth
Chain Guide
Hesling Cambio 38 T
Wheels
Rims
Spectra with double sidewall
Tires
Vredestein Classic Tour
Brakes
Brakes
V-brake aluminum

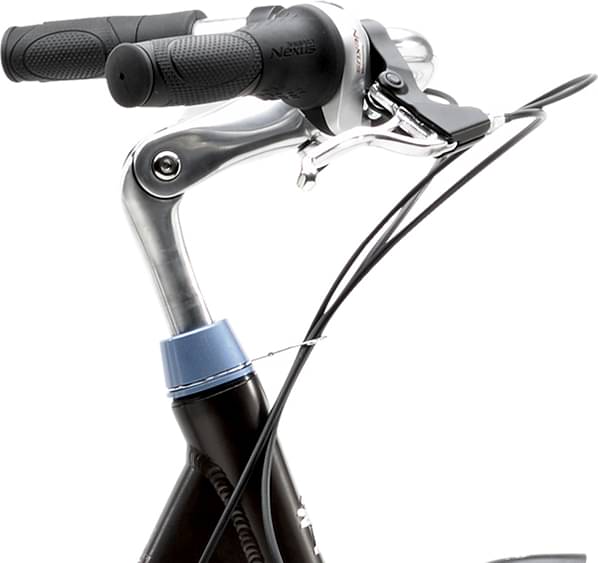

Cockpit
Stem
Aluminum 105 x 25.4 mm adjustable
Handlebar
Aluminum 580 x 25.4 mm
Seat
Saddle
Comfort
Seatpost
Aluminum 27.2 x 300 mm
Motor & Battery
Motor
E-Going moteur
Battery
Phylion Li-ion 316 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Top Tube Length | 556 mm | 557 mm | 562 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 170 mm | 170 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm |
| Wheelbase | 360 mm | 360 mm | 360 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Front Travel | 50 mm | 50 mm | 50 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
