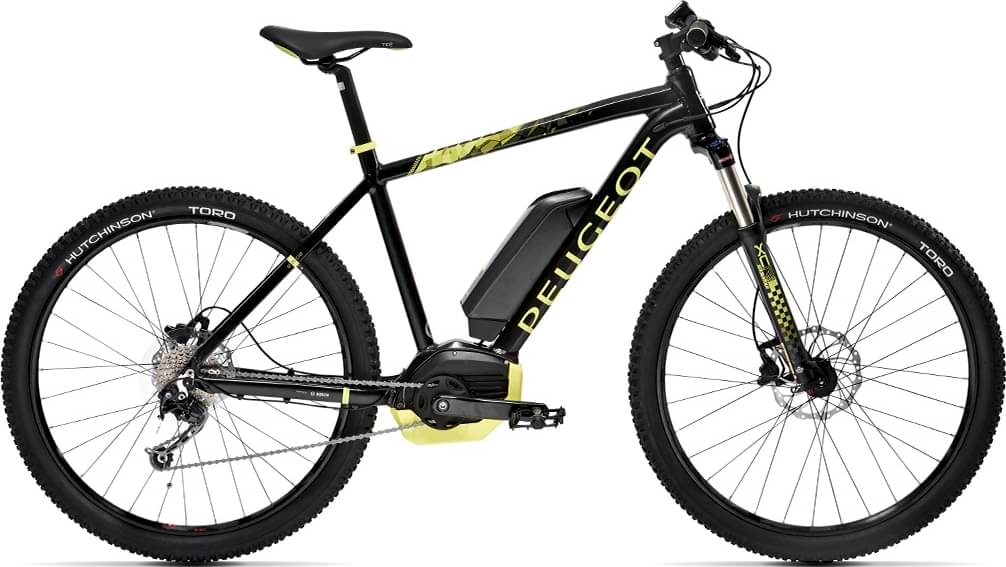

peugeot eM02 27.5 Deore 9 2024
2024 E-bike
Weight | 20.35 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 42mm -
Fork Suntour XCR
-
Groupset Deore, Alivio -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Li-ion Power Pack 400 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum 6061 with double stop

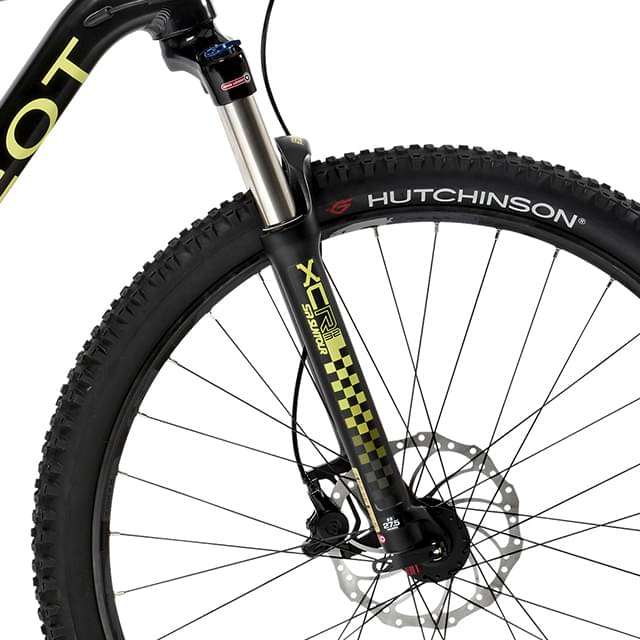

Suspension Fork
SR SUNTOUR XCR 32 with a clearance of 100 mm
Drivetrain
Rear Derailleur
Shimano Deore Shadow
Shift Levers
Shimano Alivio Rapidfire 9 speeds
Cassette
Shimano Alivio
Crank
Aluminum 170 mm
Wheels
Rims
Mach1 Karma with reinforced outer sidewall
Tires
Tec Rapio kevlar protection
Brakes
Brakes
Magura MT2 180 / 160 mm hydraulic discs
Cockpit
Stem
Aluminum 70 x 31.8 mm
Handlebar
Aluminum 720 x 31.8 mm
Seat
Saddle
Tec Fero
Seatpost
Aluminum 31.6 x 350 mm

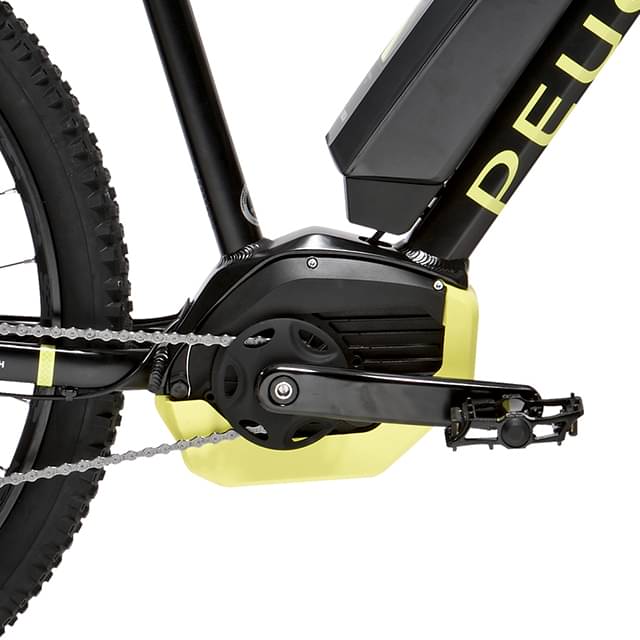

Motor & Battery
Motor
Bosch Performance CX
Battery
Bosch Li-ion Power Pack 400 Wh
Charger
2A (100-240V)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Top Tube Length | 575 mm | 585 mm | 615 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 125 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 350 mm | 350 mm | 350 mm | 350 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Front Travel | 42 mm | 42 mm | 42 mm | 42 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
