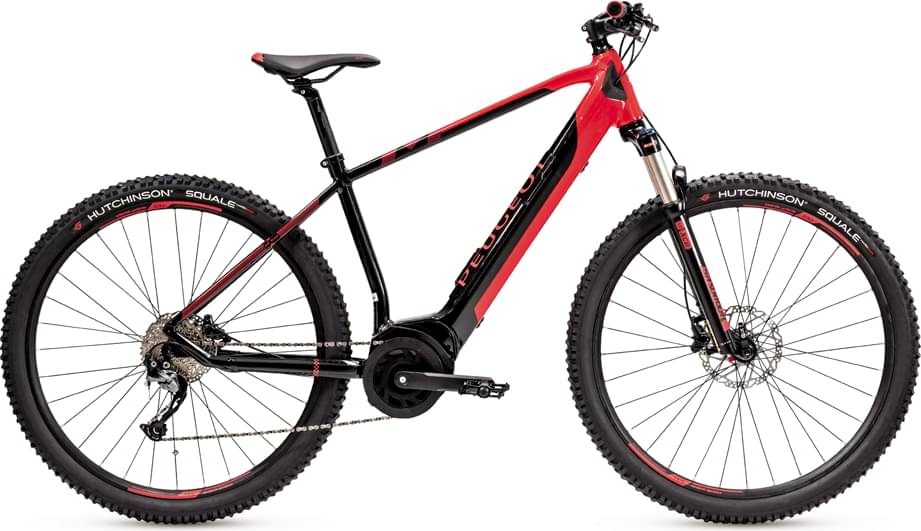

peugeot eM02 Performance 29″ 2024
2024 E-bike
Weight | 22.1 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 51mm -
Fork Suntour XCR
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch PowerTube, 500 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 T6, disque, hydroformé
Suspension Fork
Suntour XCR34-Boost hydraulique avec lockout
Drivetrain
Rear Derailleur
Shimano Alivio, RD-M4000-SGS
Shift Levers
Shimano Alivio, SL-M4000, 9V
Cassette
Shimano CS-HG400-9, 11-36T
Crank
Aluminium 170, 38 dents
Wheels
Front Hub
Shimano MT400-B / M4050 Centerlock 32T
Rear Hub
Shimano MT400-B / M4050 Centerlock 32T
Rims
Mach 1 CrossR 29'' / tailles : 48-52
Tires
Hutchinson Squale 29 x 2,25''
Brakes
Brakes
Shimano MT400 hydrauliques, 180 / 160 mm
Cockpit
Stem
Aluminium 70 x 31,8 x 7°
Handlebar
Aluminium rise 20 mm 720 x 20 x 31,8 x 6°
Seat
Saddle
Selle Royal Vivo
Seatpost
Tec Obvius 31,6 x 350 mm, 15 mm offset
Motor & Battery
Motor
Bosch Performance Line
Battery
Bosch PowerTube, 500 Wh
Charger
Compact 2Ah (100-240V)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 580 mm | 604 mm | 627 mm | 652 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Front Travel | 51 mm | 51 mm | 51 mm | 51 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
