Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 39mm -
Fork Suntour XCM
-
Groupset Alivio, Altus -
Suspension Hardtail -
Motor hub-drive -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 T6, Hydroformed

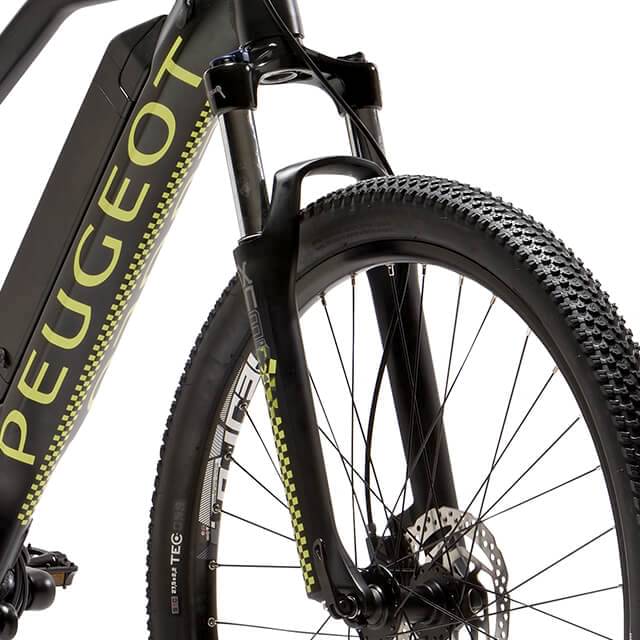

Suspension Fork
Suntour XCM DS HLO, 100 mm, disc
Drivetrain
Rear Derailleur
Shimano Alivio, RD-M4000
Front Derailleur
Shimano Altus, FD-M371
Shift Levers
Shimano Alivio, SL-M4000, 9V
Cassette
Shimano CS-HG400-9, 11-32T
Crank
Triple plateaux 44 x 32 x 22, 170 mm
Wheels
Front Hub
Aluminium 36T / moteur E-Going
Rear Hub
Aluminium 36T / moteur E-Going
Rims
Mach 1 aluminium double sidewall
Tires
Tec Opes 27,5 " x 2.20
Brakes
Brakes
Shimano MT201 hydraulic, 160 / 160 mm
Cockpit
Stem
Tec aluminium 75 x 31,8 x 7°
Handlebar
Tec aluminium 680 x 31,8
Seat
Saddle
Tec Fero
Seatpost
Tec aluminium 27,2 x 350 mm

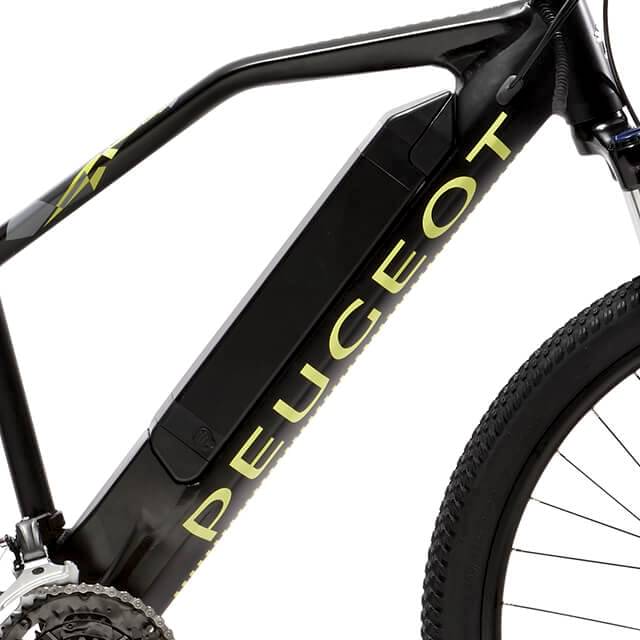

Motor & Battery
Motor
E-Going, moteur roue arrière 36V
Charger
36 V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 470 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Front Travel | 39 mm | 39 mm | 39 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
