peugeot eR02 FlatBar PowerTube 2024

2024 E-bike
Weight | 18.2 kg
E-bike
Open compare Use advisor

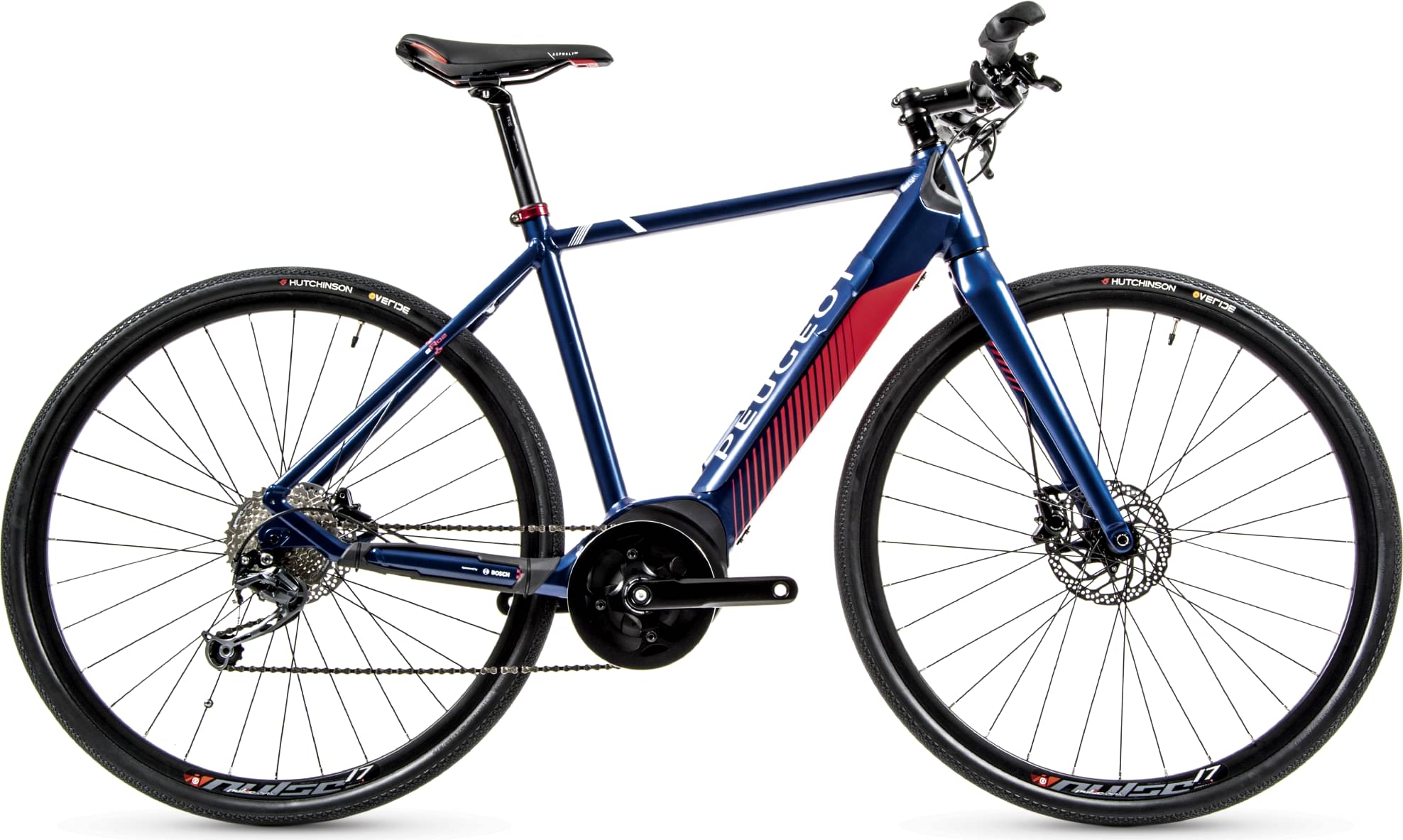

Peugeot Er02 Flatbar Powertube 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Groupset Deore, Alivio
  • Suspension Rigid
  • Motor Bosch 600W 50Nm mid-drive
  • Battery Bosch PowerTube battery, 500 Wh
  • Drivetrain 1 × 9
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • SM

    158cm - 171cm

  • MD

    168cm - 180cm

  • LG

    178cm - 189cm

  • XL

    186cm - 199cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Aluminium 7005, post-mount

Suspension Fork

Carbone, Post Mount disque

Drivetrain

Rear Derailleur

Shimano Deore, RD-M592 SGS

Shift Levers

Shimano SL-M4000, 9V

Cassette

Shimano CS-HG201-9, 11-36T

Crank

Aluminium, 42 teeth

Wheels

Front Hub

Shimano RS470/MT400 Thru-Axle, 100 / 142 mm

Rear Hub

Shimano RS470/MT400 Thru-Axle, 100 / 142 mm

Rims

Mach 1 Pulse 17, Tubeless Ready

Tires

Hutchinson Overide, 700 x 35C, 66 tpi

Brakes

Brakes

Shimano MT400 hydrauliques, 160 / 160 mm

Cockpit

Stem

Tec Obvius, 31,8 x 90 mm (S-M) / 100 mm (L-XL)

Handlebar

Tec Aluminium, 31,8 x 600

Seat

Saddle

Selle Royal Asphalt

Seatpost

Tec Obvius 31,6 x 350 mm, 15 mm offset

Motor & Battery

Motor

Bosch Active Line Plus

Battery

Bosch PowerTube battery, 500 Wh

Charger

2A (220-240V)

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSMMDLGXL
Bottom Bracket Height
266 mm266 mm266 mm266 mm
Top Tube Length
520 mm530 mm550 mm570 mm
Seat Tube Angle
74 °74 °74 °74 °
Seat Tube Length
480 mm510 mm540 mm570 mm
Head Tube Angle
70 °71 °72 °73 °
Head Tube Length
140 mm140 mm150 mm160 mm
Chainstay Length
455 mm455 mm455 mm455 mm
Wheelbase
340 mm340 mm340 mm340 mm
Bottom Bracket Drop
70 mm70 mm70 mm70 mm
Front Travel45 mm45 mm45 mm45 mm
Wheels700700700700
Rider Min Height158 cm168 cm178 cm186 cm
Rider Max Height171 cm180 cm189 cm199 cm
