Bike details
Overview
Key information split into simple groups.

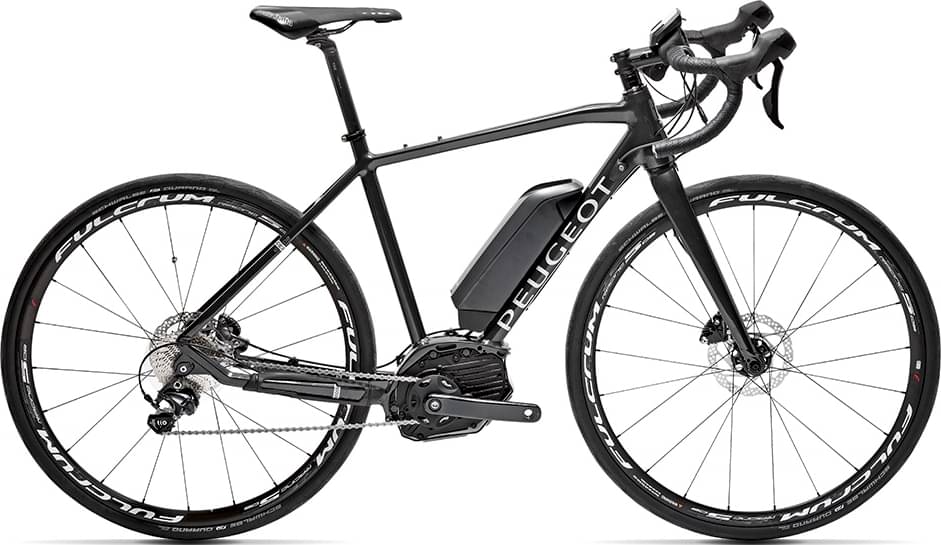

Bike summary
-
-
Frame Aluminum -
Groupset Ultegra -
Suspension Rigid -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Li-ion Power Pack 500 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum 7005
Suspension Fork
Aluminum 7005
Drivetrain
Rear Derailleur
Shimano Ultegra
Shift Levers
Shimano RS-505 20 speeds
Cassette
Shimano CS-5800
Crank
Aluminum 170 mm offset de 5 mm 18 teeth
Wheels

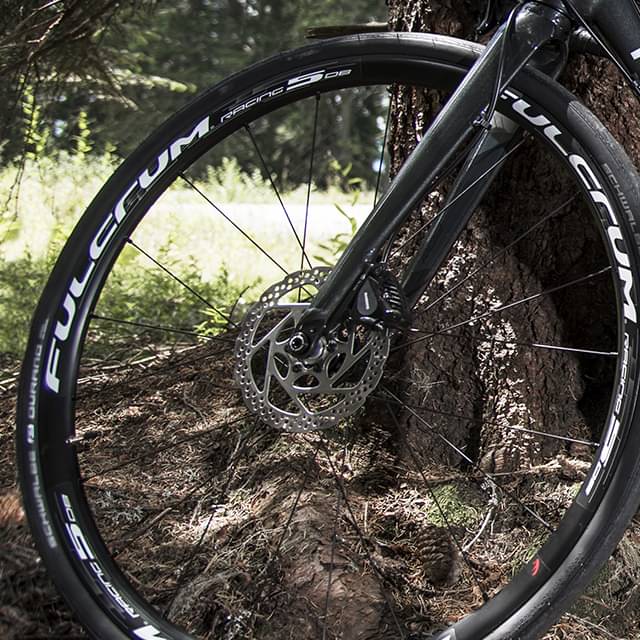

Rims
Fulcrum Racing 5 DB aluminum
Tires
Schwalbe Durano E
Brakes
Brakes
Shimano RS-505 160 / 160 mm hydraulic discs
Cockpit
Stem
Tec Obvius 31.8 x 90 mm (S-M) / 100 mm (L-XL)
Handlebar
Tec Aluminum 31.8 x 400 mm (S-M) / 420 mm (L-XL)
Seat
Saddle
Italia X3 Flow
Seatpost
Tec Obvius 27.2 x 350 mm with a 15 mm offset
Motor & Battery
Motor
Bosch Performance CX
Battery
Bosch Li-ion Power Pack 500 Wh
Charger
2A (100-240V)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm |
| Top Tube Length | 520 mm | 530 mm | 550 mm | 570 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 70 ° | 71 ° | 72 ° | 73 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 355 mm | 355 mm | 355 mm | 355 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Front Travel | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 700 | 700 | 700 | 700 |
