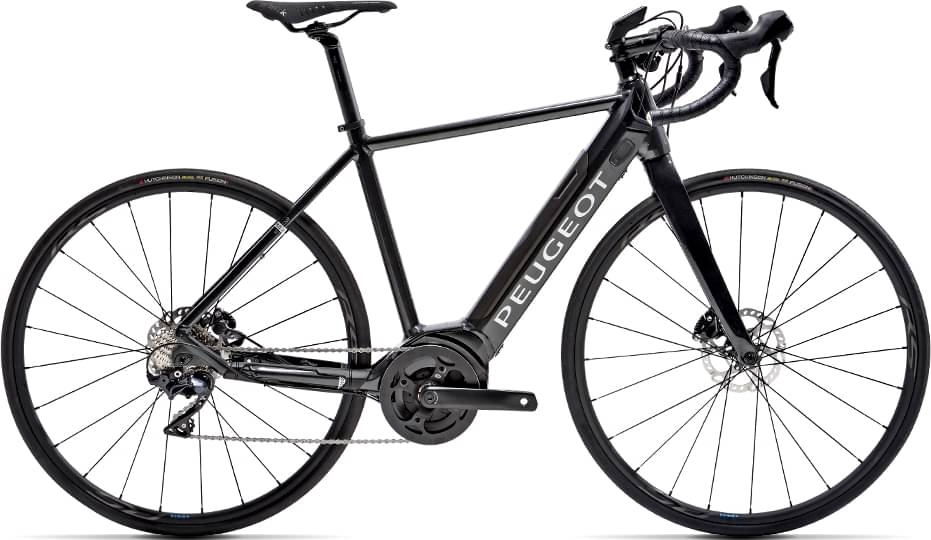

peugeot eR02 Ultegra PowerTube 2024
2024 E-bike
Weight | 18 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Ultegra -
Suspension Rigid -
Motor Bosch 600W 50Nm mid-drive -
Drivetrain 1 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 7005, post-mount

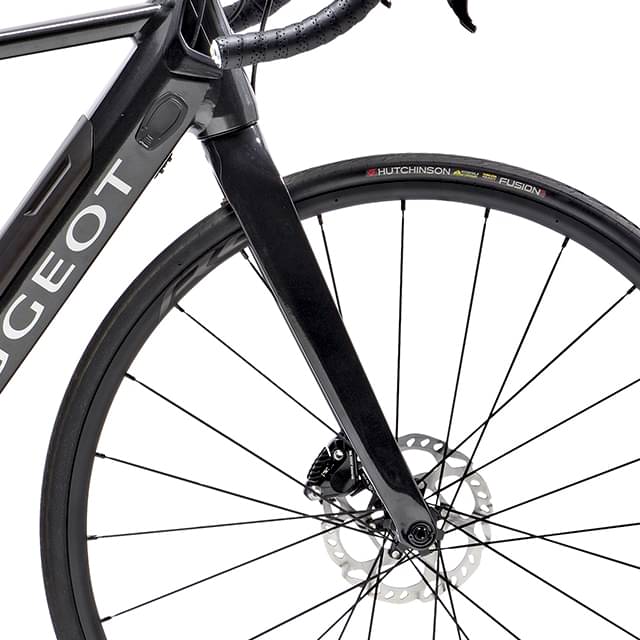

Suspension Fork
Carbone, Flat Mount disque
Drivetrain
Rear Derailleur
Shimano Ultegra, RD-R8000 GS
Shift Levers
Shimano RS-8020, 11V
Cassette
Shimano CS-HG70011, 11-34T
Crank
Aluminium, 42 teeth
Wheels
Front Hub
Shimano Thru Axle, 142 x 12 mm
Rear Hub
Shimano Thru Axle, 142 x 12 mm
Rims
Shimano RS370
Tires
Hutchinson Fusion 5 All Season, 700x38C, 66 tpi
Brakes
Brakes
Shimano ST-8020, BR-785, 160 mm
Cockpit
Stem
Tec Obvius, 31,8 x 90 mm (S-M) / 100 mm (L-XL)
Handlebar
Tec Aluminium, 31,8 x 400 (S-M) / 420 (L-XL)
Seat
Saddle
Fizik Antares R5 black
Seatpost
Tec Obvius 27,2 x 350 mm, 15 mm offset
Motor & Battery
Motor
Bosch Active Line Plus
Charger
6A (220-240V)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm |
| Top Tube Length | 520 mm | 530 mm | 550 mm | 570 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 70 ° | 71 ° | 72 ° | 73 ° |
| Head Tube Length | 140 mm | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 340 mm | 340 mm | 340 mm | 340 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Front Travel | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
