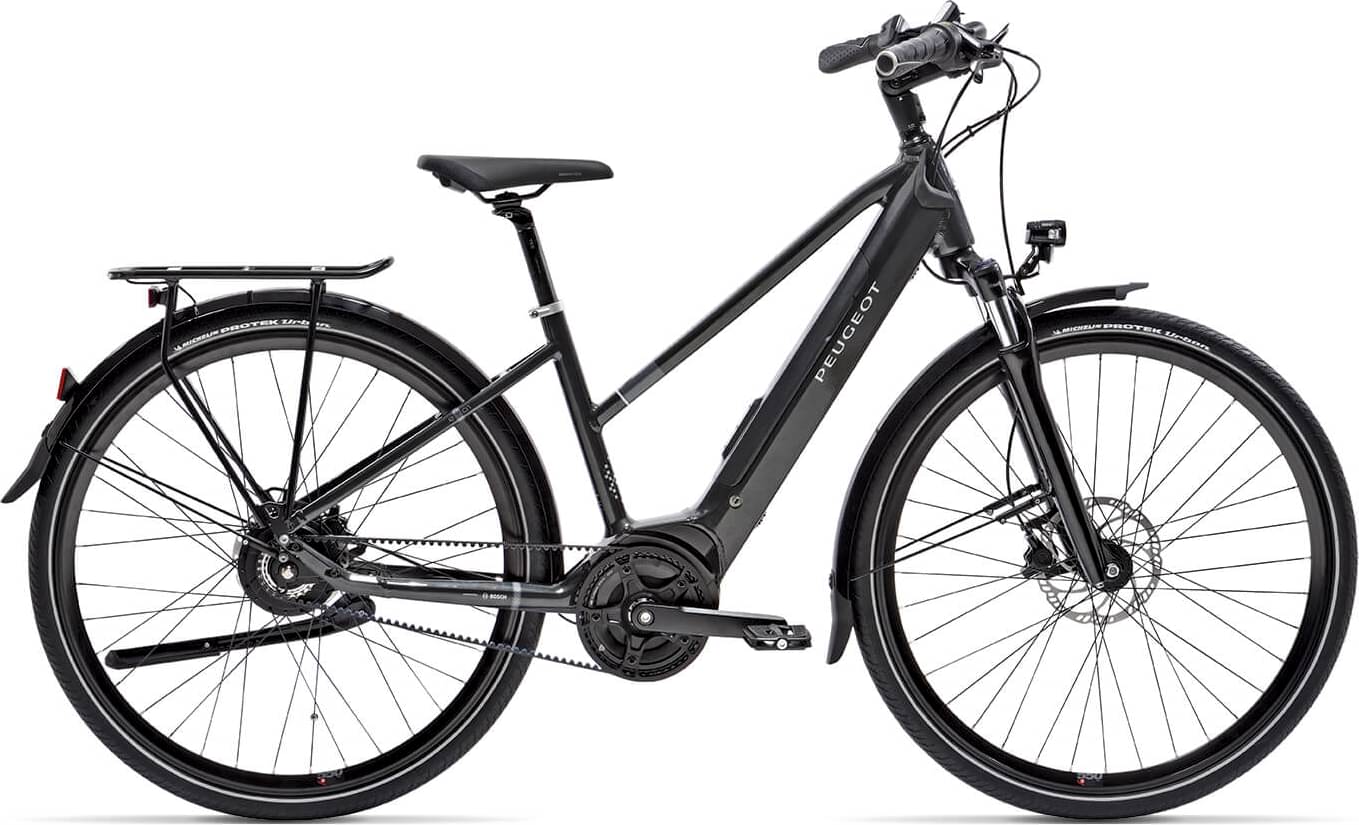

peugeot eT01 Belt Mixt PowerTube 2024
2024 E-bike
Weight | 25.25 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 40mm -
Fork Suntour NCX
-
Groupset Gates -
Suspension Hardtail -
Motor Bosch 600W 50Nm mid-drive -
Battery 500Wh -

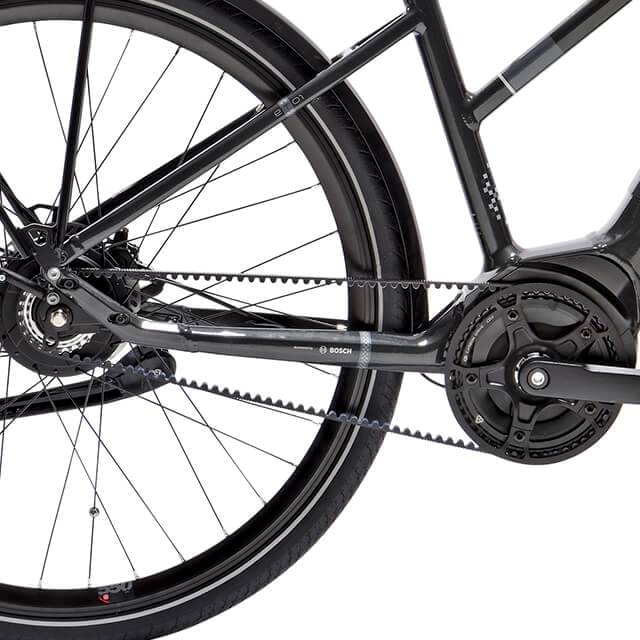

Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Al 6061 T6 hydroformed, belt compatible
Suspension Fork
Suntour NCX, 63 mm, Postmount
Drivetrain
Shift Levers
NuVinci Cable Envolio
Cassette
Gates 24T
Crank
Gates, 170mm, 50T, for belt
Wheels
Front Hub
Aluminium 36T / NuVinci Enviolo 36T, disc
Rear Hub
Aluminium 36T / NuVinci Enviolo 36T, disc
Rims
Mach1 550 disc, Aluminium, double-walled, profiled
Tires
Michelin Protek Urban 700 X 38C
Brakes
Brakes
Magura MT2 hydraulic + 180/160 mm
Cockpit
Stem
Aluminium 90 x 31.8 Adjustable 0-90°
Handlebar
Aluminium 630 x 31,8 x 79 x 41°
Seat
Saddle
Seatpost Royal Essenza
Seatpost
Tec Obvius 27,2 x 350 mm
Motor & Battery
Motor
Bosch Active Line Plus
Battery
500Wh
Charger
4A (100-240V)
Fit data
Geometry
