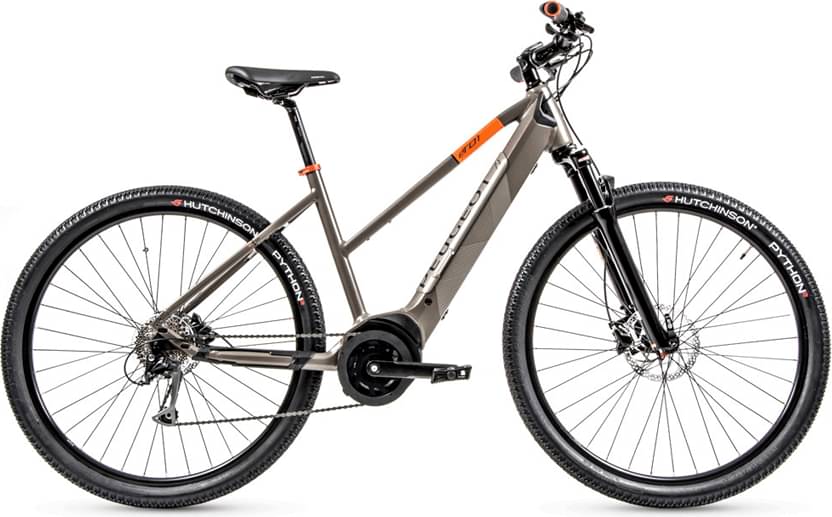

peugeot eT01 Crossover D9 PowerTube Mixte 2024
2024 E-bike
Weight | 21.7 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 51mm -
Fork Suntour MOBIE
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 600W 40Nm mid-drive -
Battery Bosch PowerTube 400 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum 6061
Suspension Fork
Suntour MOBIE hydraulique 75 mm, axe traversant
Drivetrain
Rear Derailleur
Shimano Alivio, RD-T4000-SGS
Shift Levers
Shimano Alivio, SL-M4000, 9V
Cassette
Shimano CS-HG400-9, 11-32T
Crank
Aluminium, 170 mm, 38 dents
Wheels
Front Hub
Shimano MT400 / TX505 Centerlock 36T
Rear Hub
Shimano MT400 / TX505 Centerlock 36T
Rims
Mach 1 Aluminium - 622 x 19C
Tires
Hutchinson Python 2 - 29 x 2,1''
Brakes
Brakes
Shimano MT201 180 x 160 mm
Cockpit
Stem
Aluminium Compact 31,8 x 100 mm réglable
Handlebar
Aluminium 680 x 25 x 31,8 x 15°
Seat
Saddle
Selle Royal Essenza
Seatpost
Aluminium 27,2 x 350 mm
Motor & Battery
Motor
Bosch Active Line
Battery
Bosch PowerTube 400 Wh
Charger
Compact 2Ah (100-240V)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 565 mm | 595 mm | 615 mm | 630 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Front Travel | 51 mm | 51 mm | 51 mm | 51 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
